Description
Included in this kit
This bundle includes 2x Diamond Audio DMDX69 - DMDX Series 6"X9"2-way Concentric Coaxial Speakers, and 2x Stinger RKFR69 Roadkill Fast Rings 6x9".
2x Diamond Audio DMDX69 - DMDX Series 6"X9"2-way Concentric Coaxial Speakers - (DMDX69)

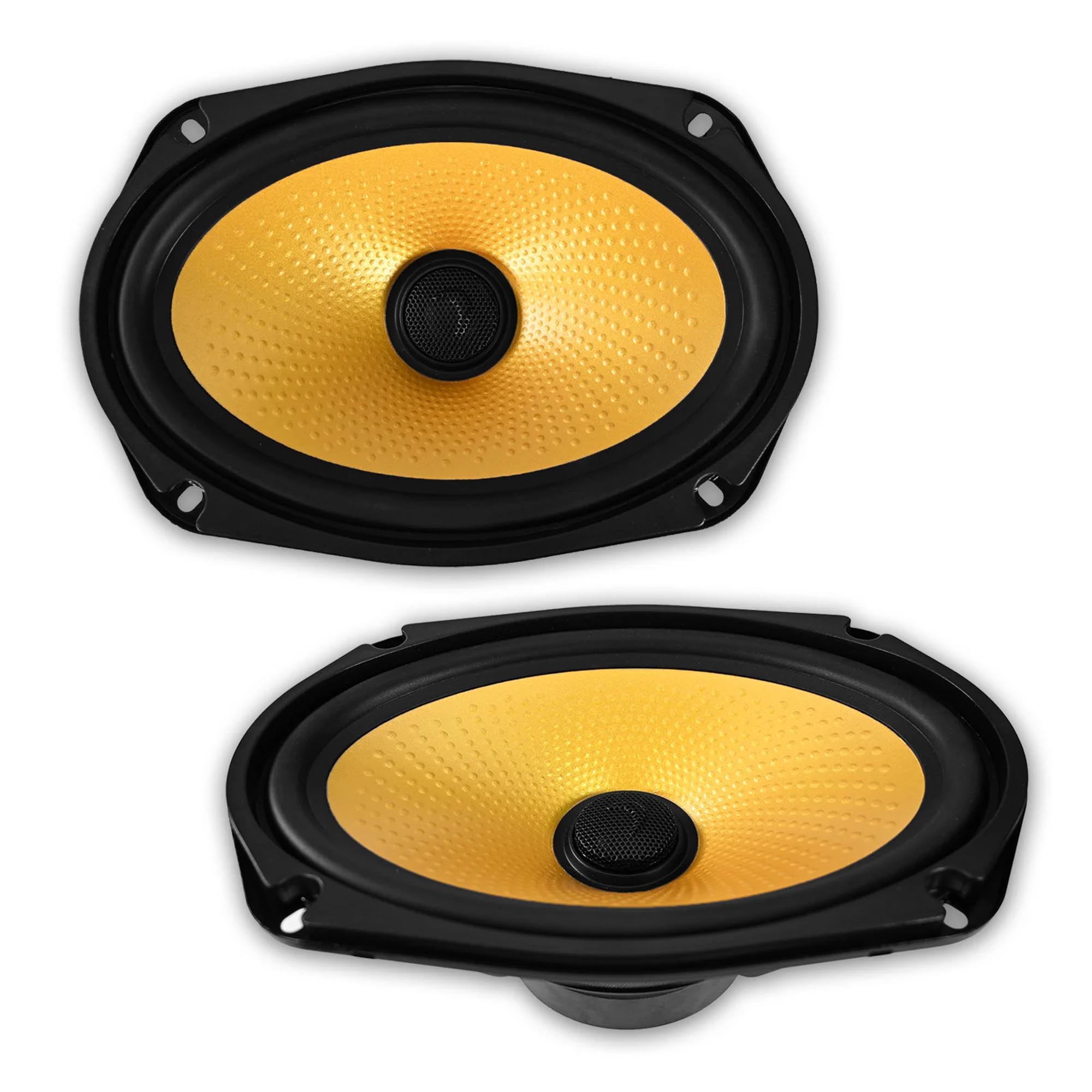

Diamond Audio DMDX 6"x9" Concentric Coaxial Speakers
The Diamond Audio DMDX Concentric Coaxial Speakers are engineered to deliver high-fidelity sound in a streamlined, full-range design. Built for drivers seeking a noticeable upgrade over factory audio, the DMDX series combines clarity, efficiency, and dynamic output in a single 6"x9" chassis.
Utilizing a concentric coaxial configuration, the tweeter and woofer are aligned to provide cohesive sound reproduction with natural staging and improved tonal balance across the frequency spectrum.
Performance Highlights
- 65 watts RMS power handling
- 195 watts maximum power handling
- 50Hz–20kHz frequency response
- 88dB sensitivity (1W/1M)
- 4-ohm nominal impedance
- 68Hz free-air resonance (Fs)
Installation & Fitment
Designed around a standard 6"x9" form factor, the DMDX coaxials provide compatibility with a wide range of factory and aftermarket speaker locations. Installation measurements are provided below to assist with proper fitment.
| Nominal Diameter | 6"x9" (152 x 228mm) |
|---|---|
| Mounting Depth | 3.17" (80.6mm) |
| Cut-Out Dimensions | 8.68" x 5.93" (220.5 x 150.5mm) |
| Overall Dimensions | 9.29" x 6.4" (236 x 162.6mm) |
| Overall Height | 3.54" (90mm) |
Specifications
| Power Handling (RMS) | 65 Watts |
|---|---|
| Power Handling (Max) | 195 Watts |
| Frequency Response | 50Hz–20kHz |
| Sensitivity (1W/1M) | 88dB |
| Nominal Impedance | 4 Ohms |
| Free-Air Resonance (Fs) | 68Hz |
2x Stinger RKFR69 Roadkill Fast Rings 6x9" - (RKFR69)
Our 3-piece foam ring speaker enhancement system solves the problem of acoustically coupling aftermarket speakers to factory speaker openings. The RoadKill Fast Rings kit increases speaker output, improves the projection of the audio into the car cabin and reduces unwanted rear reflections that can degrade the sound.
3-piece Foam Ring System fits 6x9" Speakers
Features:
• Reduce panel vibration
• Increase mid-bass response
• Enhanced audio output efficiency
• Minimize destructive wave interference
• Help prevent front and rear wave cancellation
• Easy installation with peel & stick application
• Maximize performance for speaker installations
• Sold in pairs
3 Ring DNA
• Gasket for speaker mounting to the baffle plate surface
• Middle ring to mount around the outer edge of the speaker
• Circular foam pad goes behind the speaker to absorb unwanted reflections on hard surfaces, such as inside a car door
