Description
Included in this kit
This bundle includes a Garmin Fusion Apollo 010-13291-10 7.7" Sport Grills, Mesh Gray, Pair (AP-G77SHG), and a Garmin Fusion Apollo AP-FL77SPG 7.7" LED Marine Speakers Sport Grills, Gray, Pair.
1x Garmin Fusion Apollo 010-13291-10 7.7" Sport Grills, Mesh Gray, Pair (AP-G77SHG) - (AP-G77SHG)

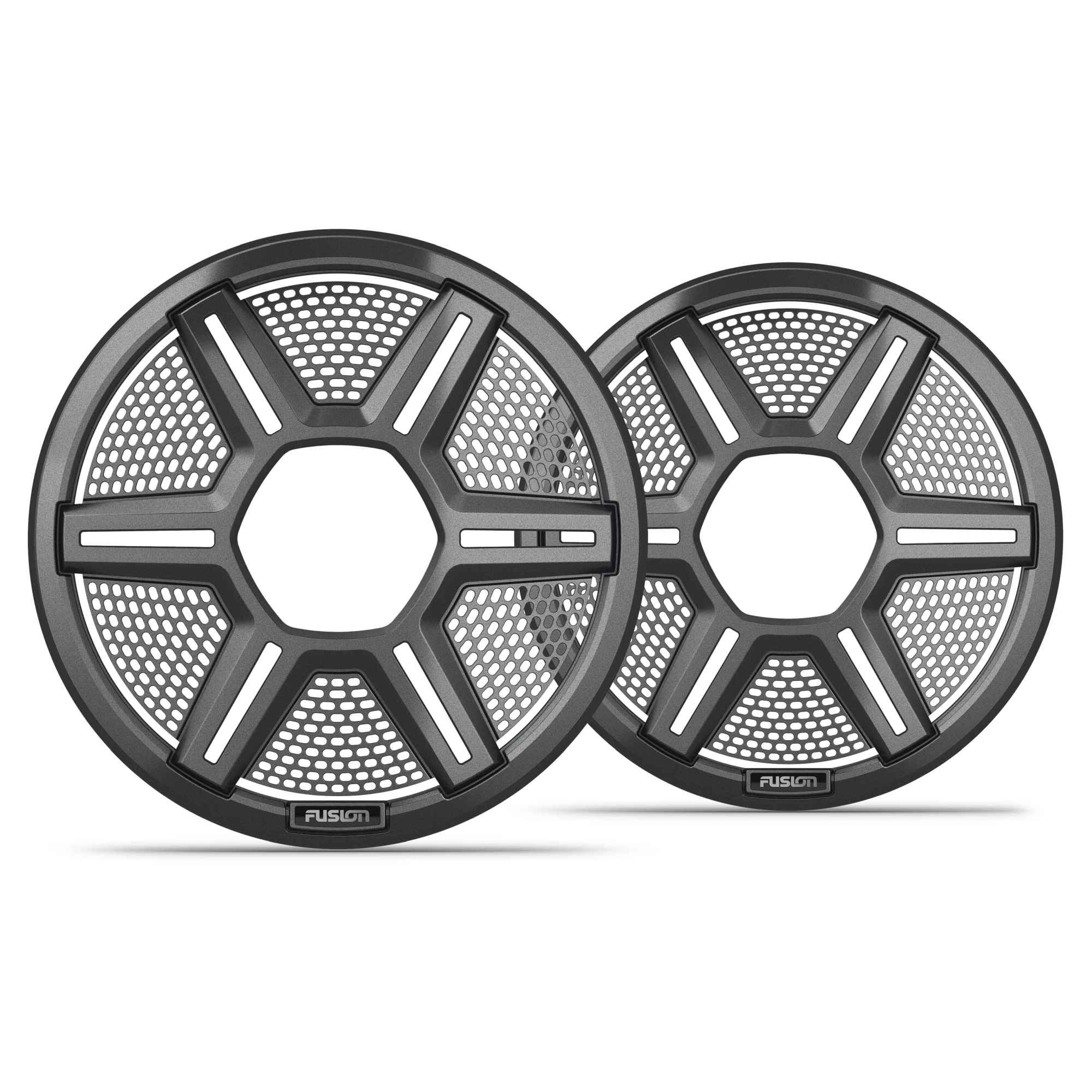

Fusion Apollo™ Speaker Grilles - 7.7" Shielded Gray Speaker Grilles (Pair)
Compatible with:
• AP-FL77SPW
• AP-FL77SPG
Customize the look of your Fusion Apollo coaxial speakers with these accessory grilles. Available in multiple colors and styles, these grilles are easy to install and built to last in the harsh marine environment.
1x Garmin Fusion Apollo AP-FL77SPG 7.7" LED Marine Speakers Sport Grills, Gray, Pair - (AP-FL77SPG)
Fusion Apollo™ Speakers - 7.7" LED Marine Speakers with Sports Gray Grilles
Fusion Apollo coaxial marine speakers deliver immersive, high-fidelity audio on the water and are engineered to withstand harsh marine conditions.
• PREMIUM SOUND - Enjoy immersive audio at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.
• LED LIGHTS - Showcase your boat with dual-hue LED lighting rings that provide a unique look through the distinct hexagonal tweeters. Choose from a broad range of colors to match the mood or music.
• INTERCHANGEABLE GRILLES - Complete your speakers with the included sports white or sports gray interchangeable grilles. For more protection, purchase the shielded grille (also available in gray or white).
• Color - Sports gray
• Physical dimensions (Diameter x Depth) - 7.72" x 4.46" (196 x 113.2 mm)
• Water and dust rating - IP66/IP67
• Configuration - Coaxial
• Peak power - 400 W
• RMS power - 100 W
• Sensitivity (1 watt @ 1 meter) - 91 dB
• Frequency response - 60 Hz - 22 kHz
• Nominal impedence - 4 ohms
• Recommended amplifier power (RMS) - 30 - 200 W/channel
• LED lighting - yes (CRGBW; 5 colors)
• LED supply voltage - 10.8 - 16 VDC
• LED load current @14.4 VDC - 0.14 A per color, per speaker
• LED load current @14.4 VDC when using Garmin Spectra™¹ - 0.31 A maximum per speaker
• Operating temperature range - 32° to 122° F (0° to 50° C)
• Voice coil diameter - 1.4"
• Cone material - CURV® Cone Technology with rubber surround
• Tweeter type - 1" Silk Dome
• Compass-safe distance - 9.84 ft (300 cm)
• LED connection - 5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground)
• Warranty - 3 years
Mounting Dimensions (Cutout) • Mounting diameter clearance - 6.14" (156 mm)
• Mounting depth clearance - 3.39" (86 mm)
