Description
Included in this kit
This bundle includes an iDatalink ACC-HU-KEN1 Head Unit Adapter 22 Pin Harness For Kenwood Radios, a JVC KW-Z1000AW Direct Replacement digital multimedia receiver with 10.1" floating touchscreen display, an Idatalink Maestro ADS-MRR2 Maestro RR - Universal Radio Replacement and Steering Wheel Interface, and an iDatalink APX-FL-JL1 APX Floating radio installation kit for Jeep Wrangler/Gladiator.
1x iDatalink ACC-HU-KEN1 Head Unit Adapter 22 Pin Harness For Kenwood Radios - (ACC-HU-KEN1)
Head unit adapter that allows a plug n play connection between select Kenwood and JVC radios and a compatible Maestro T Harnesses.

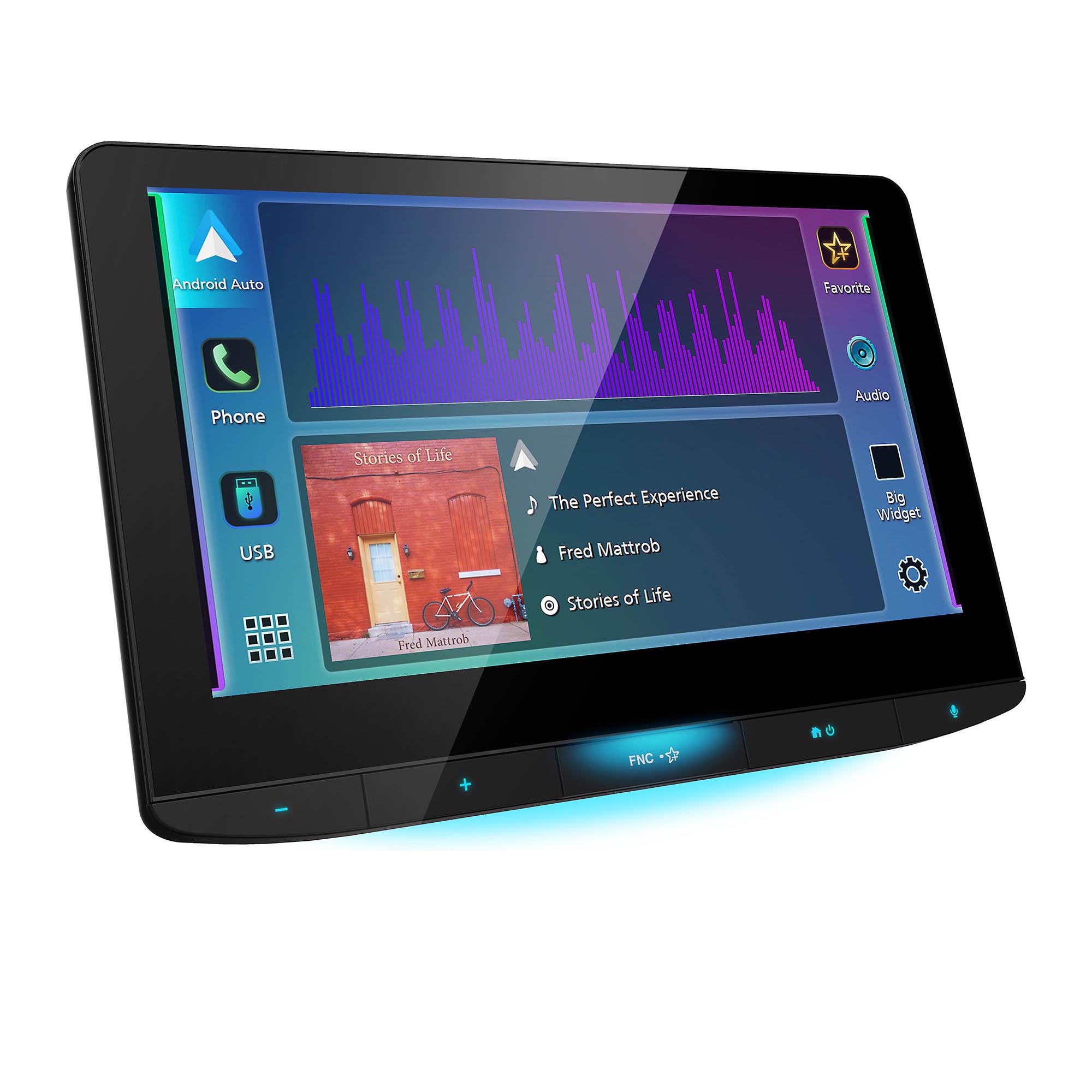

1x JVC KW-Z1000AW Direct Replacement digital multimedia receiver with 10.1" floating touchscreen display - (KW-Z1000AW)
Monitor
High Definition Monitor: Yes
Screen Size: 10.1"W HD Screen
Touch Panel: Capacitive / Bonding
Gesture Touch Control: Yes
Key Illumination Color: Variable
Dimmer: Yes
Multilingual Display: Yes
Bluetooth Control
Built-in Bluetooth: Yes (Version 5.2, Wired-Mic included)
Hands Free Call: Yes (HFP1.7)
2 Phones Full-Time Connection: Yes
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
5 BT-Audio Connection: Yes
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Wi-Fi Control
Built-in Wi-Fi: Yes
Android Control
Android Auto: Yes (via Wi-Fi or USB)
Mirroring for Android: Yes (via Wi-Fi or HDMI)
iPod/iPhone Control
CarPlay: Yes (via Wi-Fi or USB)
Radio Tuner
Built-in HD Radio: Yes
SiriusXM Ready: Yes *SiriusXM 360L Ready
Radio Broadcast Data System (RBDS): Yes
Preset Stations: 20(FM:15ch, AM:5ch)
Auto Memory Entry: Yes
FM Frequency Range: 87.9 - 107.9MHz
AM Frequency Range: 530-1,700kHz
Audio
Maximum Power Output (Front & Rear): 50Wx4
Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ: Yes (13-Band Graphic EQ)
Preset EQ: Yes (8Preset + 4user)
Bass Boost: Yes
High-Pass Filter/Low-Pass Filter: Yes/Yes
3-Way X'over: Yes
High-Resolution Audio: Yes
K2 Technology: Yes
Space Enhancement: Yes
Sound Response: Yes
Sound Lift: Yes
Volume Link EQ: Yes
Time Alignment: Yes
Inputs and Outputs AV Input: RCA (AV-IN or Camera Input switchable)
Video Out: RCA
HDMI Terminal: Yes
Camera Input: Max 4 inputs (including AV- IN's assignable input)
Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
Pre-output Level: 4V
Subwoofer Output with Level/Frequency Control: Yes
General
iDatalink Maestro Ready: Yes
JVC Portal App: Yes
Remote Control Application: Yes
Face Type
Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
Wireless Remote Control: Optional (RM-RK259K)
Steering Remote Control Ready: Yes
1x Idatalink Maestro ADS-MRR2 Maestro RR - Universal Radio Replacement and Steering Wheel Interface - (ADS-MRR2)
Advanced radio replacement interface compatible with over 3000 vehicles 2003 and up. Maestro RR2 offers the same exclusive infotainment retention and exclusive screens as the Maestro RR while adding support for additional vehicles and enabling Bluetooth programming directly from your iOS and Android mobile device. Basic radio retention features are also available with non-iDatalink-compatible radios. Some accessories and aftermarket radio are required and sold separately.
1x iDatalink APX-FL-JL1 APX Floating radio installation kit for Jeep Wrangler/Gladiator - (APX-FL-JL1)
APX Floating radio installation kit for Jeep Wrangler/Gladiator.
Vehicle Coverage
Works with 10.1" screen; Gladiator 2020-2023, Wrangler 2018-2023
