Description
Included in this kit
This bundle includes a Kenwood X503-1 eXcelon Class D Mono Power Amp, 500Wx1 @ 2 ohms, and a Kenwood P-XRW1202WB XR-W1202 & 12" Wedge Woofer Box.
1x Kenwood X503-1 eXcelon Class D Mono Power Amp, 500Wx1 @ 2 ohms - (X503-1)
Kenwood X503-1 Class D Mono Power Amplifier
The Kenwood X503-1 is a powerful and efficient mono amplifier designed to deliver precise and impactful bass. Compact and loaded with advanced features, this amplifier enhances your audio system with clean, powerful sound and versatile control options.
Key Features and Specifications
Power Output:
RMS Power: 300W @ 4Ω, 500W @ 2Ω
Max Power: 1000W
Compact Design:
Dimensions: 8-3/8" (W) x 2-1/16" (H) x 5-7/8" (D)
Weight: 3.3 lbs (1.5 kg)
Advanced Filters:
Variable Low Pass Filter for precise bass tuning.
Infrasonic Filter cuts off frequencies below 25Hz, improving amplifier efficiency and delivering clean bass output.
Bass Boost Control:
Adjustable bass boost for enhancing low-frequency impact.
High-Quality Components:
Output Coil with Magnetic Shield reduces noise and improves sound clarity.
PMLCAP (Polymer Multi-Layer Capacitors) minimize distortion, ensuring true-to-life sound.
User-Friendly Features:
Speaker Level Input Harness for seamless connection to factory-installed receivers.
Gauge-Style Terminals with set screws for secure and reliable wiring.
One-Side Connection design for easy installation and a clean look.
Wired Remote Included for convenient subwoofer volume adjustments.
Controls and Inputs
Input sensitivity control.
Infrasonic filter switch.
Bass boost level control.
Low Pass Filter (LPF) frequency control.
Speaker level input and line-in terminals for versatile connectivity.
The Kenwood X503-1 Class D Mono Power Amplifier delivers high-efficiency power and clean bass performance in a compact design. Ideal for enhancing any audio system, it offers precise control, advanced filtering, and durable components to ensure exceptional sound quality. Perfect for those who demand powerful, clear, and responsive bass.

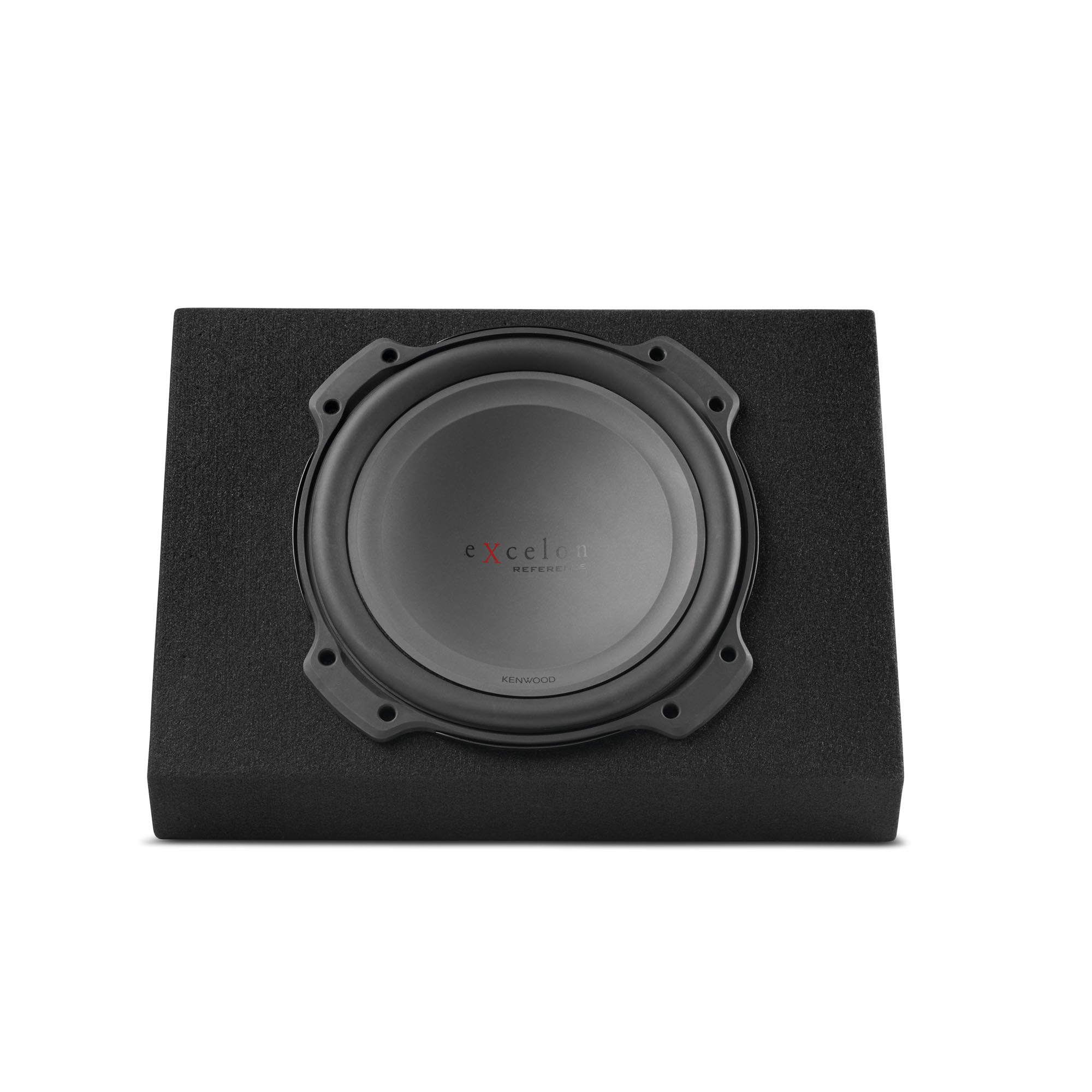

1x Kenwood P-XRW1202WB XR-W1202 & 12" Wedge Woofer Box - (P-XRW1202WB)
Kenwood's Excelon P-XRW1202WB sub brings you the rich, full bass you love in a solid, durable wedge-style enclosure that tucks neatly behind your seat or in your trunk. The enclosure houses a redesigned 12" subwoofer that features an oversized cone with ribbed reinforcement for maximum bass response. The 3/4" MDF sealed enclosure provides a rock-solid home for the sub, so you can count on accurate reproduction of low frequencies.
Features -
• Dual Ventilation System
• Stress-Free Damper
• 8AWG Push Terminals
• Rubber Magnet Cover
• Low Profile Sealed Down-Firing Design
• Black Carpeted 3/4" MDF Enclosure
• Acoustic Damping Material
