Included in this kit
This bundle includes an ARC Audio LR2 Programmable DSP Level Controller, and an Arc Audio X2 800.8 DSP Multi-Channel DSP Amplifier (Eight Channels).
1x ARC Audio LR2 Programmable DSP Level Controller (LR-2)
ARC Audio LR2 Programmable DSP Controller
The ARC Audio LR2 is a programmable single-function digital remote controller designed for seamless integration with ARC Audio stand-alone DSPs and DSP amplifiers. As part of the ARC Audio DNA DSP ecosystem, the LR2 provides direct, intuitive control over one user-defined function—allowing precise, on-the-fly system adjustments without accessing software.
Ideal for OEM upgrades and fully custom DSP-based systems, the LR2 delivers predictable and synchronized system control through ARC Audio’s DNA 2.7+ PC software platform.
Programmable Single-Function Control
- Assignable to one dedicated control function per installation
- Common applications include master volume, subwoofer level, bass boost, and more
- Digital controller design for precise and repeatable adjustment
- Fully programmable through ARC Audio DNA 2.7+ software
Dual DSP Control Capability
The LR2 can control up to two ARC Audio DSPs simultaneously, making it an excellent solution for advanced multi-processor systems that require synchronized adjustments across components.
- Controls one DSP with included cable
- Controls two DSPs with the addition of a second LR2-compatible cable (sold separately)
- Maintains identical behavior across both processors
Installation & Included Hardware
- Includes 5-meter (20-foot) 4-pin low-impedance data cable
- Pre-mounted to right-angle L-bracket for quick installation
- Knob and circuit board removable from bracket for custom mounting applications
Specifications
| Product Type | DSP Controller |
| Controller Type | Digital |
| Function Controls | Single Function (User Programmable) |
| Feature Control | Single (Volume, Sub Level, Bass Boost, etc.) |
| Compatible With | All ARC Audio Stand-Alone DSPs & DSP Amplifiers |
| Control Quantity | Up to Two DSPs Simultaneously |
| Included Hardware | L-Bracket Mount & Cable |
| Cable Type | 5 Meter (20ft) 4-Pin Low Impedance Cable |
| Software Requirements | DNA 2.7+ |

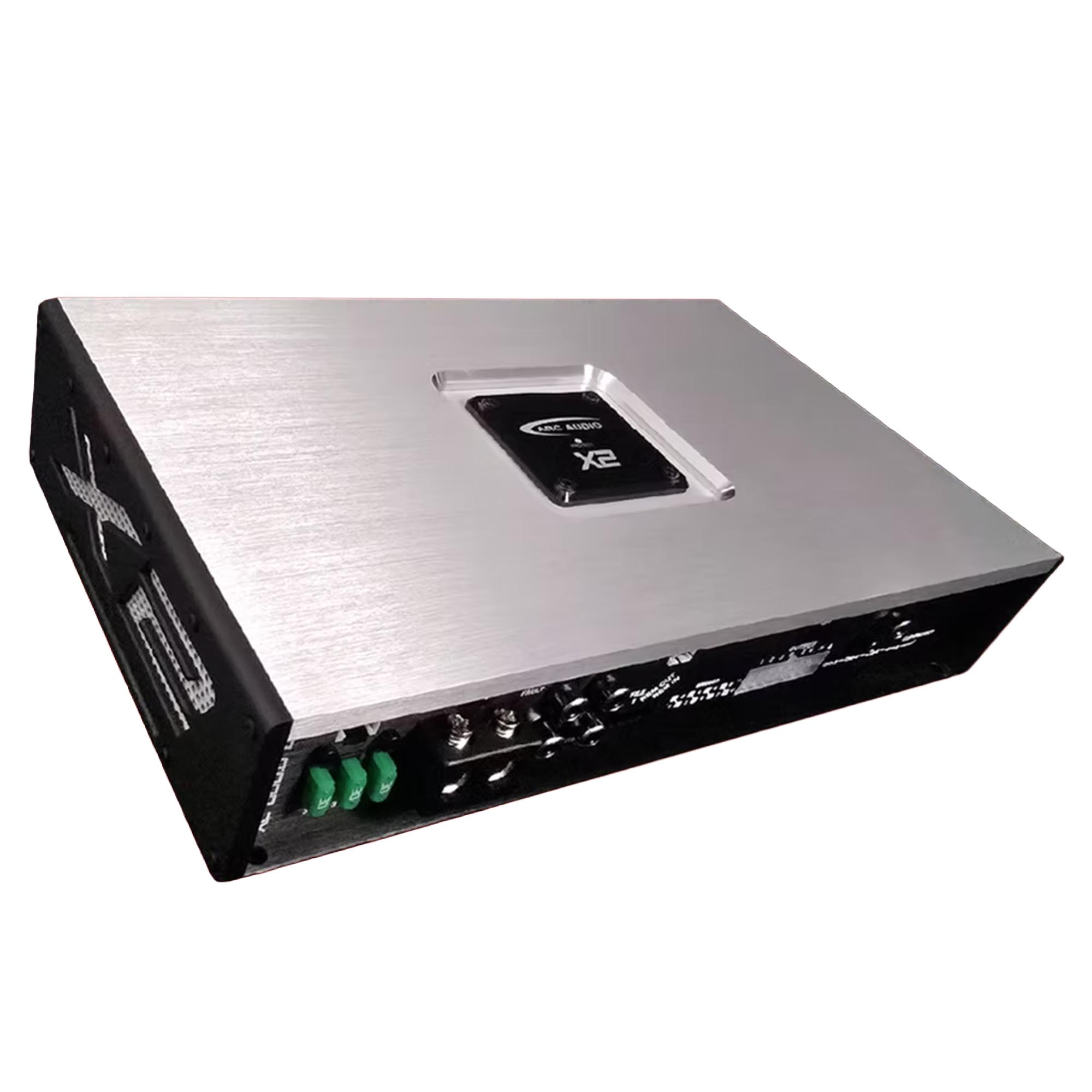

1x Arc Audio X2 800.8 DSP Multi-Channel DSP Amplifier (Eight Channels) (X2-800.8-DSP)
ARC Audio X2800.8 DSP – 8-Channel Class-D Amplifier with 12-Channel DSP
The ARC Audio X2800.8 DSP is an integrated 8-channel Class-D amplifier and 12-channel DSP designed for modern vehicles where space, control, and clean OEM integration matter. Built around an Analog Devices ADAU1462 32-bit processor with AKM Velvet Sound converters, it provides precise tuning tools, flexible routing, and stable multi-channel power for active front stages, subwoofer systems, and complete OEM replacement installations.
Purpose-built for Real-World System Design
With eight bridgeable Class-D channels and twelve DSP channels, the X2800.8 DSP is capable of driving front stages, rear fill, and subwoofers from a single compact chassis while still providing processed outputs for external amplification. Power is rated at 50 watts x 8 at 4 ohms or 85 watts x 8 at 2 ohms, with the option to bridge for 170 watts x 4 at 4 ohms (2-ohm bridged operation is not recommended).
Eight balanced analog inputs accept both RCA and speaker-level signals with 0.5–32 V sensitivity, so the amplifier can be used behind aftermarket head units or directly on factory amplified systems. A digital coaxial input supports sample rates up to 96 kHz for high-resolution playback. ARC Audio’s DNA software unlocks full control over EQ, crossovers, time alignment, phase, summing, and mix routing, with up to four user presets for different tuning profiles or listening preferences.
- Integrated DSP amplifier architecture reduces wiring and saves space compared to separate DSP and amplifier components.
- Balanced analog inputs and high input voltage capability simplify connection to OEM and aftermarket sources.
- Four high-voltage RCA outputs (up to 8 V) provide processed signals for additional amplifiers in larger systems.
- Auto-sense turn-on (signal or DC BTL) and adjustable remote turn-on timing streamline integration and prevent pops and thumps.
- Fan-assisted cooling and smart thermal management support under-seat and hidden installations where airflow is limited.
Integration, Control & System Expansion
The X2800.8 DSP is designed for clean OEM integration and easy system expansion. iDatalink Maestro AR compatibility allows direct digital communication with supported factory source units, keeping OEM features while routing audio into the DSP for full control. Auto-sense turn-on and user-adjustable timing for both device power-up and remote output help match system behavior to the vehicle and connected amplifiers.
- Up to four user-defined presets, selectable via ARC DNA software, optional LR-2 controller, or manual trigger switches.
- USB-C connection for tuning with ARC Audio DNA software (Windows PC), with support for multi-processor systems using a powered USB hub.
- Common input gain structure across channels for fast setup and consistent level control.
- Start/stop compliant DSP power range, designed to remain stable in vehicles with aggressive voltage drop during engine cranking.
- Compact footprint suitable for under-seat, side-panel, or factory amplifier locations to preserve cargo and cabin space.
| Processor Type | Integrated DSP amplifier |
| DSP Resolution | Fixed-point native 32-bit |
| Main DSP Processor | Analog Devices ADAU1462 |
| ADC | AKM Velvet Sound 5558B |
| DAC | AKM Velvet Sound AK4438 |
| Total DSP Channels | 12 |
| Amplified Output Channels | 8 Class-D channels, bridgeable |
| Power @ 4 Ω Stereo | 8 × 50 watts |
| Power @ 2 Ω Stereo | 8 × 85 watts |
| Power @ 4 Ω Bridged | 4 × 170 watts (2 Ω bridged not recommended) |
| RCA Outputs | 4 channels, up to 8 V |
| Frequency Response | 10 Hz – 22 kHz |
| S/N Ratio (1 V analog) | 88.5 dB (1:1) |
| S/N Ratio (4 V analog) | 98.5 dB (1:1) |
| S/N Ratio (digital) | -119.3 dB |
| Analog Inputs | 8 balanced channels (RCA or speaker-level) |
| Analog Input Sensitivity | 0.5 V – 32 V |
| Analog Input Impedance | 10 kΩ |
| Input Gain Type | Common gain across all input channels |
| Digital Inputs | Coaxial S/PDIF (no optical) |
| Max Digital Sample Rate | 96 kHz |
| Auto-Sense Turn-On | Yes – signal & DC (BTL) using Ch 1/2 analog inputs |
| DSP Operating Voltage | 8.0 – 17.1 V (start/stop compliant to 4.5 V) |
| Amplifier Operating Voltage | 8.0 – 17.1 V |
| Switching Frequency | Adjustable Class-D switching frequency via DNA software |
| Cooling | Built-in fan cooling |
| Fuse Rating | 3 × 30 A |
| User Presets | Up to 4 user-defined presets |
| Preset Control | Via DNA software, optional LR-2 controller, or manual trigger switches (+/-) |
| External Control Options | LR-2 remote (optional), dual external control not supported |
| Wi-Fi Control | AXP Wi-Fi adapter not supported |
| On/Off Timing Control | Device turn-on up to 40 ms, turn-on hold up to 40 ms, auto-sense hold up to 200 ms |
| Remote Output Timing | Remote turn-on output adjustable from 0.05 – 40 seconds |
| OEM Integration | iDatalink Maestro AR amplifier replacement capable (vehicle module, T-harness, and ARC/iData signal harness required) |
| Multi-Processor Support | Yes – multiple DSPs controllable via full-time USB connections and non-amplified USB hub |
| USB Connection | USB-C for tuning and firmware updates |
| Tuning Software | ARC Audio DNA software only |
