Description
Included in this kit
This bundle includes an ARC Audio LR2 Programmable DSP Level Controller, and an ARC Audio PS12-Pro 12-Channel Pro-Series Stand-Alone DSP w/ Maestro "AR" Compatibility.
1x ARC Audio LR2 Programmable DSP Level Controller (LR-2)
ARC Audio LR2 Programmable DSP Controller
The ARC Audio LR2 is a programmable single-function digital remote controller designed for seamless integration with ARC Audio stand-alone DSPs and DSP amplifiers. As part of the ARC Audio DNA DSP ecosystem, the LR2 provides direct, intuitive control over one user-defined function—allowing precise, on-the-fly system adjustments without accessing software.
Ideal for OEM upgrades and fully custom DSP-based systems, the LR2 delivers predictable and synchronized system control through ARC Audio’s DNA 2.7+ PC software platform.
Programmable Single-Function Control
- Assignable to one dedicated control function per installation
- Common applications include master volume, subwoofer level, bass boost, and more
- Digital controller design for precise and repeatable adjustment
- Fully programmable through ARC Audio DNA 2.7+ software
Dual DSP Control Capability
The LR2 can control up to two ARC Audio DSPs simultaneously, making it an excellent solution for advanced multi-processor systems that require synchronized adjustments across components.
- Controls one DSP with included cable
- Controls two DSPs with the addition of a second LR2-compatible cable (sold separately)
- Maintains identical behavior across both processors
Installation & Included Hardware
- Includes 5-meter (20-foot) 4-pin low-impedance data cable
- Pre-mounted to right-angle L-bracket for quick installation
- Knob and circuit board removable from bracket for custom mounting applications
Specifications
| Product Type | DSP Controller |
| Controller Type | Digital |
| Function Controls | Single Function (User Programmable) |
| Feature Control | Single (Volume, Sub Level, Bass Boost, etc.) |
| Compatible With | All ARC Audio Stand-Alone DSPs & DSP Amplifiers |
| Control Quantity | Up to Two DSPs Simultaneously |
| Included Hardware | L-Bracket Mount & Cable |
| Cable Type | 5 Meter (20ft) 4-Pin Low Impedance Cable |
| Software Requirements | DNA 2.7+ |
1x ARC Audio PS12-Pro 12-Channel Pro-Series Stand-Alone DSP w/ Maestro "AR" Compatibility (PS12-Pro)

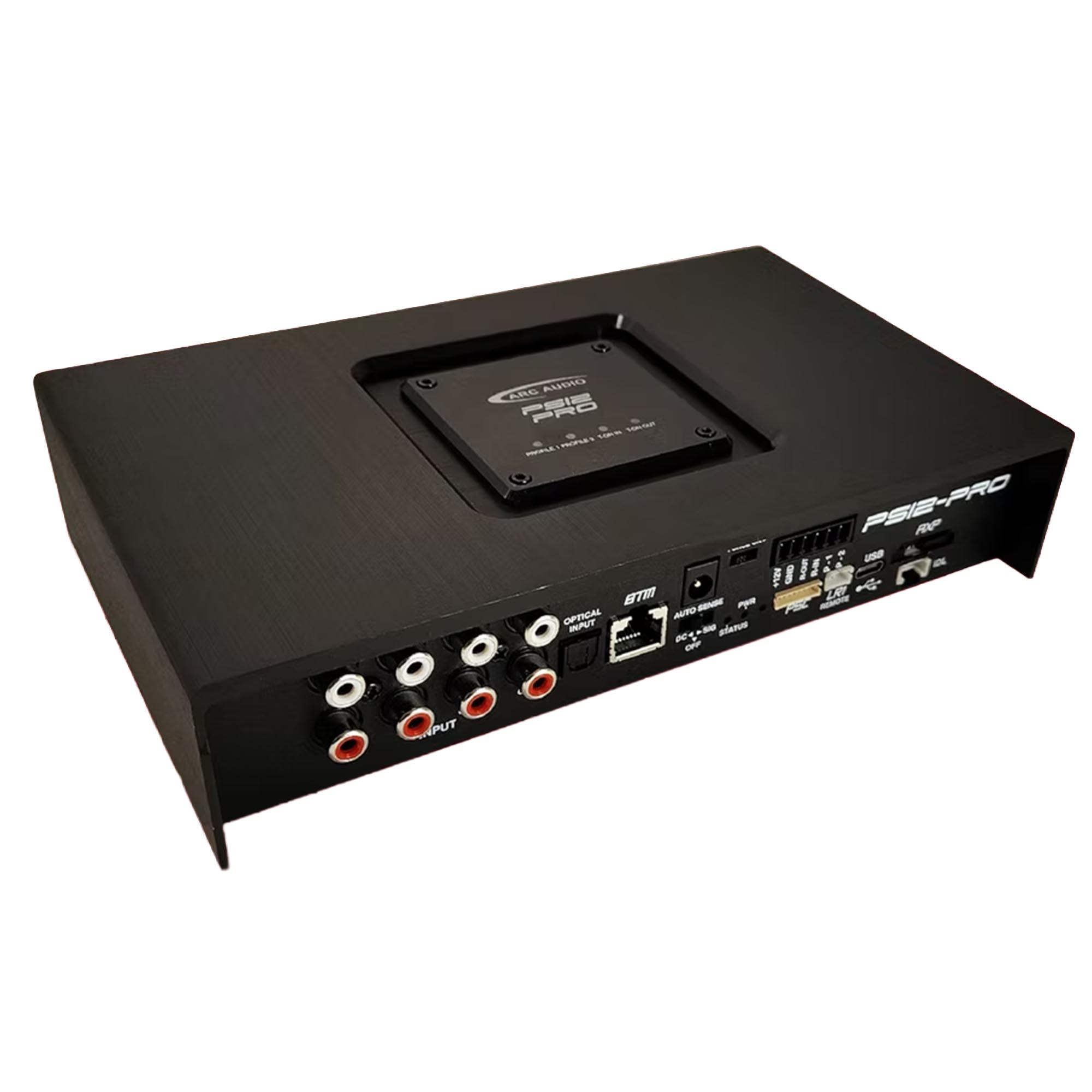

ARC Audio PS12-Pro 12-Channel Digital Signal Processor
The ARC Audio PS12-Pro is a stand-alone digital signal processor designed for high-channel-count mobile audio systems and advanced OEM integration projects. Built on the same Pro-Series platform as the PS8-Pro and PS16-Pro, the PS12-Pro expands system flexibility with twelve channels of DSP processing while maintaining the compact, installer-friendly chassis used throughout the series.
This increased channel count allows precise individual processing for complex multi-speaker layouts commonly found in modern vehicles and high-end custom installations.
High-Resolution DSP Architecture
The PS12-Pro is powered by the Analog Devices ADAU1462 DSP processor operating at native 32-bit fixed-point resolution. Dual AKM Velvet Sound 5558B analog-to- digital converters and an AK4438 digital-to-analog converter provide high resolution signal conversion while supporting digital input sample rates up to 192kHz.
This architecture delivers accurate signal processing and low distortion, preserving detail across the entire audio spectrum.
System Integration Flexibility
Eight differential analog inputs accept either RCA or speaker-level signals with a wide sensitivity range from 0.5V to 32V, allowing seamless integration with both aftermarket and factory audio systems. Digital sources can be connected via Toslink optical input or coaxial digital input when used with the optional D.O.C. adapter.
Twelve RCA outputs provide up to 8 volts of signal for clean, high-level connections to external amplifiers in multi-channel systems.
Advanced Control and OEM Compatibility
The PS12-Pro integrates with ARC Audio’s DNA tuning software through a USB-C connection, giving installers access to extensive equalization, crossover configuration, delay adjustments, and flexible signal routing.
Integration with supported vehicles is simplified through compatibility with iDatalink Maestro amplifier replacement modules. Additional system control options include ARC Audio PSC and LR-2 controllers as well as optional AXP WiFi control capability.
Specifications
| Processor Type | Stand-Alone DSP |
| DSP Resolution | Fixed Point Native 32-Bit |
| Main DSP Processor | Analog Devices ADAU1462 |
| ADC | Dual AKM Velvet Sound 5558B |
| DAC | AKM Velvet Sound AK4438 |
| Total DSP Channels | 12 |
| RCA Outputs | 12 Channels |
| Max RCA Output Voltage | Up to 8V |
| Analog Inputs | 8 (Differential RCA or Speaker Level) |
| Input Sensitivity | 0.5V – 32V RMS |
| Input Impedance | 10k Ohms |
| Optical Input | Toslink |
| Digital Coaxial Input | Supported with D.O.C Adapter |
| Maximum Digital Sample Rate | 192kHz |
| Frequency Response | 10Hz – 23.5kHz |
| Operating Voltage | 8V – 17.1V (Start/Stop Compliant to 4.5V) |
| User Presets | Up to 4 |
| USB Connection | USB-C |
| Tuning Software | ARC Audio DNA |
| Dimensions | 8.5" L × 5.1" W × 1.81" H |
