Description
Included in this kit
This bundle includes an Arc Audio X2 6.2 6.5" Component System, an Arc Audio X2 692 6x9” 2-Way Coaxial Speakers, and an Arc Audio X2 600.4 Multi-Channel Amplifier (Four-Channels).
1x Arc Audio X2 6.2 6.5" Component System (X2-6.2)
Arc Audio X2 6.2 6.5" Component System
Full Range 6.5" OEM Fit Component System Speaker Design
Sold In Pairs Only
Designed And Engineered In The USA
2- Way Component Speakers With External Speakers And Stand-Alone Tweeters
Reinforced Injected Poly Cone Material
Design Specific Heavy Duty Stamped Aluminum Basket
Vented Basket Design For Improved Midbass, Overall Output And Elimination Of Rear Wave Distortion
Ultra-Low Distortion Linear Suspension Design
High-Temperature Copper / Kapton Voice Coil Former
High-End Audiophile Grade Polypropylene Crossover Filter
15mm Silk Dome Tweeter
1x Arc Audio X2 692 6x9” 2-Way Coaxial Speakers (X2-692)
Arc Audio X2 692 6x9” 2-Way Coaxial Speakers
Full Range 6" x 9" OEM Fit Coaxial Speaker Design
Sold In Pairs Only
Designed And Engineered In The USA
2-Way Coaxial Design
Reinforced Injected Poly Cone Material
Design Specific Heavy-Duty Stamped Aluminum Basket
Vented Basket Design for Improved Midbass, Overall Output And Elimination Of Rear Wave Distortion
Ultra-Low Distortion Linear Suspension Design
High-Temperature Copper / Kapton Voice Coil Former
High-End Audiophile Grade Polypropylene Crossover Filter
15mm Silk Dome Tweeter
Specifications -
Speaker Size - 6.0" x 9.0" OEM Fit
Speaker Type - 2-Way Coaxial
Power Handling (Peak) - 150 Watts
Power Handling (RMS) - 75 Watts
Frequency Response - 60Hz - 20kHz
Sensitivity - 89dB
Impedance - 4 ohms
Tweeter Diameter - 20mm
Tweeter Dome Material - Wool Damped Silk Fibe

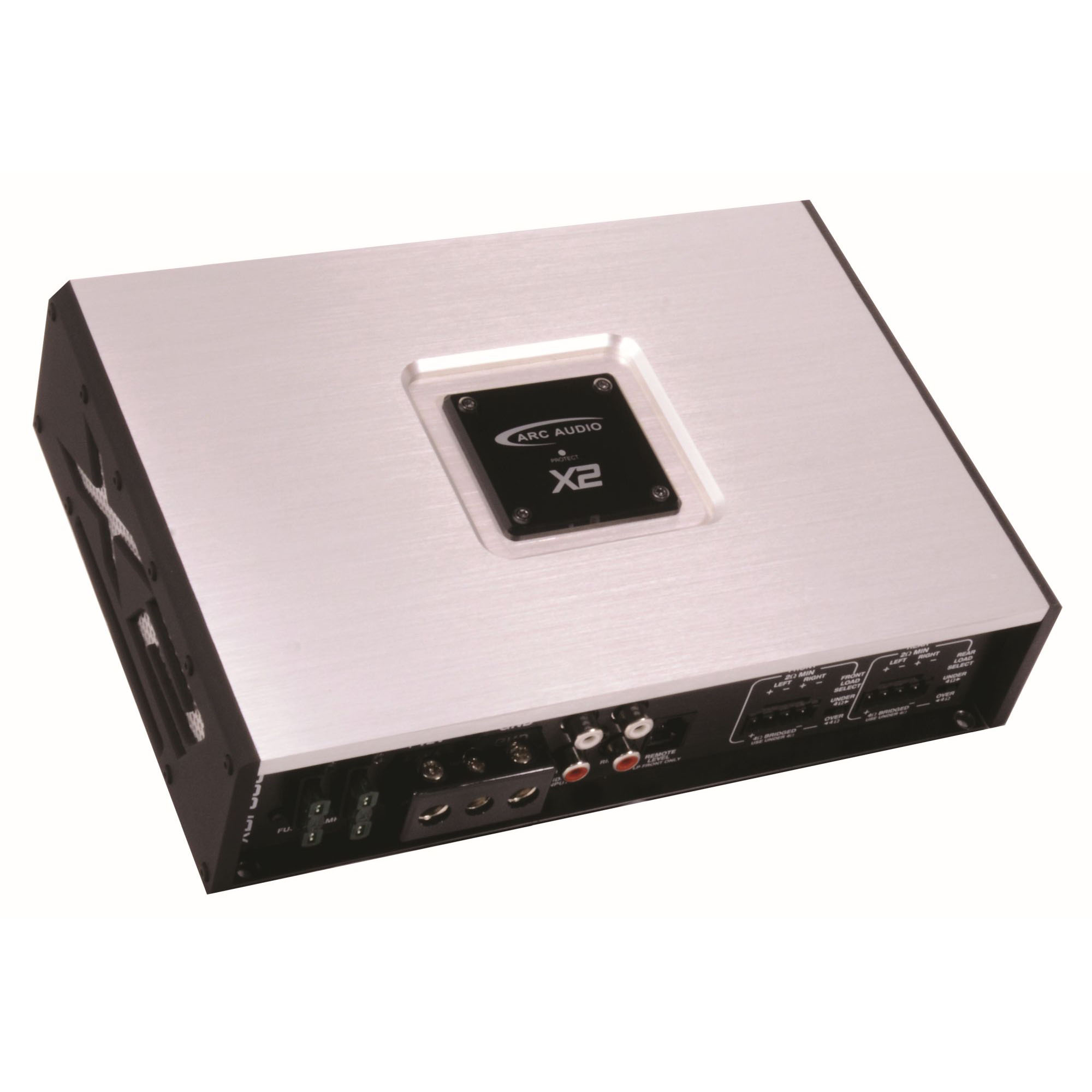

1x Arc Audio X2 600.4 Multi-Channel Amplifier (Four-Channels) (X2-600.4)
Arc Audio X2 600.4 Multi-Channel Amplifier (Four-Channels)
Multi-Channel Amplifier (Four-Channels)
Microprocessor-Controlled Class-D Design
Designed And Engineered By Robert Zeff
High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality
Remote Bass Boost Control (Included)
Extruded Aluminum CNC Chassis Design (Level 2 X2 Cosmetics)
Start-Stop Vehicle Compatible
Signal Sense and DC Detect
Single Side Connection Design
Nickel Plated RCA Terminals
Quick Disconnect Speaker Terminal Plugs
Audiophile Class-D Output Filter Networks
Detailed Microprocessor Controlled Protection
Large, High-Frequency Switching Power Supplies
RCA Inputs Are Compatible With Speaker-Level Inputs
Fault Codes Storage Of The Last Protection Code Detected
Hi Signal To Noise Ratio Without Compromising Power Output
Fully Balanced Input Stage Significantly Increases Flexibility
Ultra Low ESR, High-Capacity Power Supply Storage Capacitors
Flexible Mounting Orientation For Vertical Or Horizontal Installations
Next Generation High Speed Class-D Technology Powering All X2 Amplifiers
Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Headunits
Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
Quick Disconnect Type Terminal Connections
Specifications -
4- Channels @ 4 Ohms - 150 Watts
4-Channels @ 2 Ohms - 150 Watts
2-Channel @ 4 Ohms (Bridged) - 300 Watts
2-Channel @ 2-Ohms (Bridge) - Not Recommended
Frequency Response - 20Hz - 20kHz
Crossover Range - 50Hz - 550Hz
Crossover Types - HP/LP on all channels
Bandpass Crossovers - Yes Ch 3/4 Only
Remote Level Control - Yes
Remote Level Control Included - Yes - LP Front Channel only
Input Sensitivity (Low) - 200mV - 3.5V
Fuse - 2 x 30 Amp
Dimensions - 9.020"(L) x 6.268"(W) x 2.162"(H)
