Description
Included in this kit
This bundle includes an ARC Audio MPAK-13CX Motorcycle Coaxial Speaker Kit - Fits 1999-2013 HD Street Glide and Road Glide Motorcycles, an ARC PSM-PRO 6 Ch-in / 8 Ch-out Compact Stand-Alone DSP w/ Idata Maestro "AR" Compatibility., an ARC Audio LR2 Programmable DSP Level Controller, an ARC Audio MOTO CX69 High Performance 6x9" Motorcycle Speakers, Pair, and a Hertz HD13DH Lid Kit with Speaker Harness (No Speakers) Compatible With 1998 - 2013 HD Motorcycles.

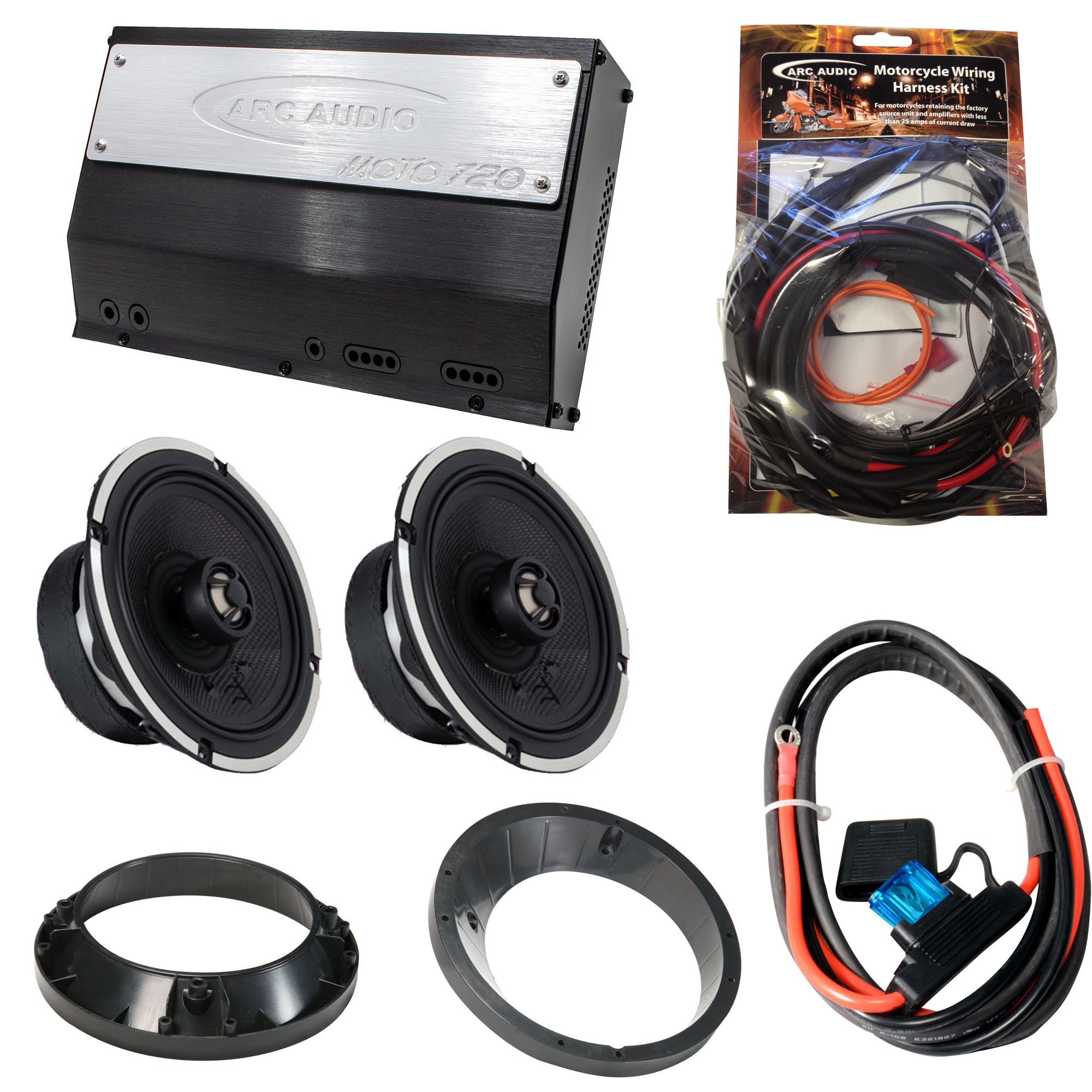

1x ARC Audio MPAK-13CX Motorcycle Coaxial Speaker Kit - Fits 1999-2013 HD Street Glide and Road Glide Motorcycles (MPAK-13CX)
This MPAK kit includes the following products: MOTO720.4 Amplifier, MOTO602V2 Coaxial Speakers, HD-Harness, HD-Power, 6.5-Adapter Rings
Quick points:
• Designed for use with 2000 - 2013 Harley Street Glide and Road Glide Motorcycles.
• MPAK kits are designed to fit directly into your HD Motorcycle's factory locations in the front fairing.
• Speakers bolt directly into the factory locations with no modifications or changes needed to the factory speakers mounting area.
• Includes full step-by-step color instruction manual for an easy do it yourself installation.
• Allows you to upgrade your HD audio system and still retain all factory handlebar stereo controls.
• Includes full plug and play input/output signal wire harness.
When it comes to upgrading the audio system on your Harley Road Glide or Street Glide, you can trust ARC Audio – the innovators of motorcycle audio upgrade packages. For those with a 1999 through 2013 Touring bike, the MPAK13 (Motorcycle Performance Audio Kit) has been created just for you.
The MPAK13 kit starts with our MOTO720 four-channel amplifier. Capable of delivering up to 180 watts per channel, this amplifier was designed to make your bike’s stereo sound crystal clear, even at 70+ MPH.
For a warm, rich and powerful sound, choose the MOTO602 V2 6.5-inch coaxial speaker set. Designed specifically for motorcycle and powersports applications, these speakers are built with UV-resistant materials that can stand the test of time.
ARC Audio works directly with Harley dealers to ensure our kits are designed with OEM-compatible, high-performance cables and connectors that make it easy for your installer to complete the installation. The MPAK13 kits include all the wiring you need to connect the MOTO720 amp to the radio and the new speakers. No wiring on the bike needs to be modified. Period. Your classic touring machine can be returned to stock at any time with no traces of it ever having been upgraded.
1x ARC PSM-PRO 6 Ch-in / 8 Ch-out Compact Stand-Alone DSP w/ Idata Maestro "AR" Compatibility. (PSM-PRO)
The ARC Audio PSM Pro digital sound processor is a small but powerful device that is designed to enhance the audio quality of your car or motorcycle's sound system. It is an upgraded version of the PSM offering even better performance and 8 channels of output.
The PSM Pro uses advanced 32-bit DSP technology and has 296 total bands of full variable parametric equalization, open architecture crossover selection, signal delay, and phase control. This allows you to tune your audio system to your specific preferences and improve the quality of your listening experience.
The PSM Pro is affordable and provides OEM integration, which means it can work seamlessly with the existing audio system of your car or motorcycle. For example, if you have a 2014+ HD motorcycle, the PSM Pro can be easily integrated with the ARC Audio Moto 720 amplifier to improve your audio system's performance.
The PSM Pro is designed to be easy to use and can be easily customized to suit your personal listening style using a Windows based computer.
The ARC Audio PSM Pro is an affordable and powerful solution for enhancing the audio quality of your car or motorcycle. It offers advanced features and can be easily integrated with a wide range of vehicles, making it a versatile choice for anyone looking to improve their listening experience.
Specifications -
• Processor Type: Stand Alone Unit
• Processor Resolution: 32-Bits
• Sample Rate: 96kHz
• Analog Inputs: 6 CH. Differential in (RCA or Speaker Level)
• Input Sensitivity: 2V - 16V RMS
• Digital Inputs: Coaxial
• Auto-sense Turn-On: DC (BTL) (Uses Ch 1/2 Inputs Only)
• Outputs (RCA): 8-Channels
• Outputs Voltage (RCA): Up to 3.5V
• Input Impedance (RCA): 10k ohms
• Frequency Response: 20Hz - 23.5kHz
• S/N Ratio 1V 1:1: 86dB
• S/N 4V 1:1: 90dB
1x ARC Audio LR2 Programmable DSP Level Controller (LR-2)
ARC Audio LR2 Programmable DSP Controller
The ARC Audio LR2 is a programmable single-function digital remote controller designed for seamless integration with ARC Audio stand-alone DSPs and DSP amplifiers. As part of the ARC Audio DNA DSP ecosystem, the LR2 provides direct, intuitive control over one user-defined function—allowing precise, on-the-fly system adjustments without accessing software.
Ideal for OEM upgrades and fully custom DSP-based systems, the LR2 delivers predictable and synchronized system control through ARC Audio’s DNA 2.7+ PC software platform.
Programmable Single-Function Control
- Assignable to one dedicated control function per installation
- Common applications include master volume, subwoofer level, bass boost, and more
- Digital controller design for precise and repeatable adjustment
- Fully programmable through ARC Audio DNA 2.7+ software
Dual DSP Control Capability
The LR2 can control up to two ARC Audio DSPs simultaneously, making it an excellent solution for advanced multi-processor systems that require synchronized adjustments across components.
- Controls one DSP with included cable
- Controls two DSPs with the addition of a second LR2-compatible cable (sold separately)
- Maintains identical behavior across both processors
Installation & Included Hardware
- Includes 5-meter (20-foot) 4-pin low-impedance data cable
- Pre-mounted to right-angle L-bracket for quick installation
- Knob and circuit board removable from bracket for custom mounting applications
Specifications
| Product Type | DSP Controller |
| Controller Type | Digital |
| Function Controls | Single Function (User Programmable) |
| Feature Control | Single (Volume, Sub Level, Bass Boost, etc.) |
| Compatible With | All ARC Audio Stand-Alone DSPs & DSP Amplifiers |
| Control Quantity | Up to Two DSPs Simultaneously |
| Included Hardware | L-Bracket Mount & Cable |
| Cable Type | 5 Meter (20ft) 4-Pin Low Impedance Cable |
| Software Requirements | DNA 2.7+ |
1x ARC Audio MOTO CX69 High Performance 6x9" Motorcycle Speakers, Pair (MOTO-CX69)
Moto series CX69 speakers deliver an enhanced level of balanced output
and efficiency over the previous design with improved mid-bass extension and accuracy, with complete attention given to the open environment applications speakers in this category, are designed for.
Based on a reimagined design, these next-gen speakers handle more power and shrug off water, dust, and debris better than their predecessors. They are technically a component speaker set with the tweeter mounted on a bridge above the woofer. The benefit of this design is a significant increase in the woofer cone area that improves efficiency and enhances low-frequency output capabilities. The elimination of the second weather-resistant surround around a coaxial pole piece found on its predecessor, the Moto692, provides an additional improvement in sound quality.
The basket features a high-density pressure cast four-spoke basket that features eight large hi-velocity cooling vents under the spider mounting plateau to help heat from the voice coil escape this custom-tooled design.
The motor is based around a Y35A-grade ferrite magnet, and the top plate is CNC-cut hot-rolled steel. Most listeners will perceive this upgrade over the previous design as delivering a smoother and more accurate midrange response with better overall accuracy and higher levels of efficiency effectively delivering more sound per watt than other brands while remaining composed with unmatchable musical properties.
As a complete scratch design, the staff in ARC Audio’s speaker transducer engineering team spent significant time optimizing every component for this new design. The woofer cones are based on an injection-molded polypropylene doped with carbon to increase thermal stability and improve the damping characteristics. Built with entirely UV-resistant materials that can stand the test of time the CX69 features a hi-clearance low-shore rubber surround and a form molded dual-step sealed 1-piece dust cap that covers the tri-layered bonded joint between the cone, the spider, and the 1.45-inch glass ber voice coil former.
The Moto CX69’s large diameter of the voice coil helps to improve thermal power handling by increasing its total surface area. Using lightweight, layered Kapton and glass ber as a foundation the CX69’s pure OFC copper windings are built using ARC Audio’s proprietary “Step-up” power handling design requirements greatly improving the thermal rating and overall power handling of the speaker. Likewise, the choice of a ferrite magnet allows it to act as a large-mass thermal heat sink to wick heat away from the voice coil assembly. The result is a speaker design that can “easily” handle its rated 125-watt musical / 300-peak power level rating with ease.
The spider is made of hybrid Nomex and features a constant wave progressive rolled design that prevents the assembly from bottoming out at extreme power levels. The spider, coil former, and cone are stagger step bonded together with a high-temperature adhesive rated for over 230 degrees C (440+ F) to ensure reliability and improve strength at extended hi-level listening periods.
Moving onto the tweeter of the CX69 the team at ARC used a highly efficient but sonically superior polyetherimide (PEI) and mylar dome damped with Norseal PVC mesh on the dome of this sealed and suspended design. This unique composite dome design is popular in pro audio compression drivers as it combines strength and damping with heat- and weather resistance. The CX69 Tweeters 25mm voice coil, much like the midrange uses a hi-temperature temper, step-cured adhesives on a copper voice coil wrapped around a composite Kapton mesh former, and a neodymium slug in the center of the voice coil serves as the motor.
Simply put, the CX69 is loaded with the latest and greatest speaker components and assembly technology. If you’re searching for a motorcycle speaker that sounds realistic and offers impressive midbass performance while still getting loud, then the MOTO CX69 should be the target product for your Harley Davidson Motorcycle, UTV, or even Marine audio application!
Specifications -
| Speaker Size | 6" X 9" |
| Speaker Type | Coaxial |
| Weather Resistant Design | Yes |
| Impedance | 4 ohms |
| Power Handling (Peak) | 300 Watts |
| Power Handling (RMS) | 125 Watts |
| SPL (Overall Average) | 95dB |
| Frequency Response | 50Hz - 20kHz |
| Magnet | Y35 magnet 1-piece T-yoke motor design (cast and then CNC refined for alignment accuracy and optimizing the magnetic structure) |
| Voice Coil | 1.45” voice coil, press glass fiber former, hi-temp tempered copper voice coil |
| Voice Coil Material | Voice coil is a multi-stage tempered design allowing for higher operating temperatures, reducing possible adhesive and material failure. Ultra hi-temp voice coil adhesive and material temp with thermal temperature rating over +230 Celsius.
The vented voice coil and motor design for improved cooling over long play periods. Progressive power testing process to improve handling and reliability at high output listening over prolonged periods of operation. Heavy-duty- diecast
basket.
|
| Cone Material | Carbon-filled PP cone and sealed front speaker design for greatly improved water resistance and all-weather riding. |
| Surround | Low shore progressive s-shape rubber surround |
| Spider Material | Progressive Nomex (Constant Wave Step Reduced shape design) |
| Tweeter Mounting | Stamped steel tri-mount tweeter support bracket. |
| Tweeter Diameter | 25mm |
| Tweeter Material | Dampened PEI/Mylar dome-shaped composite tweeter. (a material commonly used for compression drivers for pro audio, it's super light, strong, high temp-resistant, weather-resistant, and very good for high freq.) |
| Max Outer Diameter | 9.3" X 6.5" |
| Motor Diameter | 4.3" |
| Mounting Depth | 3.25"" |
| Flange Thickness | .25" |
| Cutout Diameter | 5.82” x 8.62” |
1x Hertz HD13DH Lid Kit with Speaker Harness (No Speakers) Compatible With 1998 - 2013 HD Motorcycles (HD13DH)
Hertz HD13DH Lid Kit with Speaker Harness (No Speakers) - Compatible with 1998-2013 Harley-Davidson® Motorcycles
What’s Included:
Stylish black speaker grilles and mounting hardware designed for 6x9 speakers
Plug & play wiring harness for seamless installation
What’s Not Included:
Speakers
Saddlebag lids
Key Features:
Flexible Speaker Options:
Upgrade your motorcycle’s sound system with this versatile lid kit, designed to accommodate most 6x9 speakers. For optimal performance, it pairs perfectly with Hertz SX690Neo speakers but allows you the freedom to choose your preferred brand.
Quick and Simple Installation:
A precision cutout guide is included to ensure the perfect fit for your saddlebag lids. The plug & play wiring harness minimizes installation time and eliminates the need for complex wiring adjustments.
Durable and Weather-Resistant Design:
Built to withstand the rigors of the road, this kit is made with high-quality materials that ensure long-lasting performance, even in challenging weather conditions. The black grilles add a sleek, polished look to your ride.
No Major Modifications Required:
Enhance your audio system without replacing your saddlebags or worrying about repainting. This kit is engineered for a hassle-free fit on select 1998-2013 Harley-Davidson® models.
Important Fitment Note:
Not compatible with models equipped with electric locking saddlebags. Please verify compatibility with your specific motorcycle before purchase.
Fits the Following Models:
1998-2013 Harley-Davidson® Street Glide
1998-2013 Harley-Davidson® Road Glide
Transform your ride with enhanced sound quality and sleek design. The Hertz HD13DH Lid Kit offers a perfect balance of style, functionality, and performance for your Harley-Davidson® motorcycle.
