Description
Included in this kit
This bundle includes a Diamond Audio HXM65F2BK Motosport 2-way 6.5" 2-ohm Flush Mount Speaker Black Carbon Cone Speaker - 450w Max/150w RMS, and a Metra 82-9601 Speaker Adapters compatible with Harley Davidson 1998-2013 -6.5 to 6.75 inch.

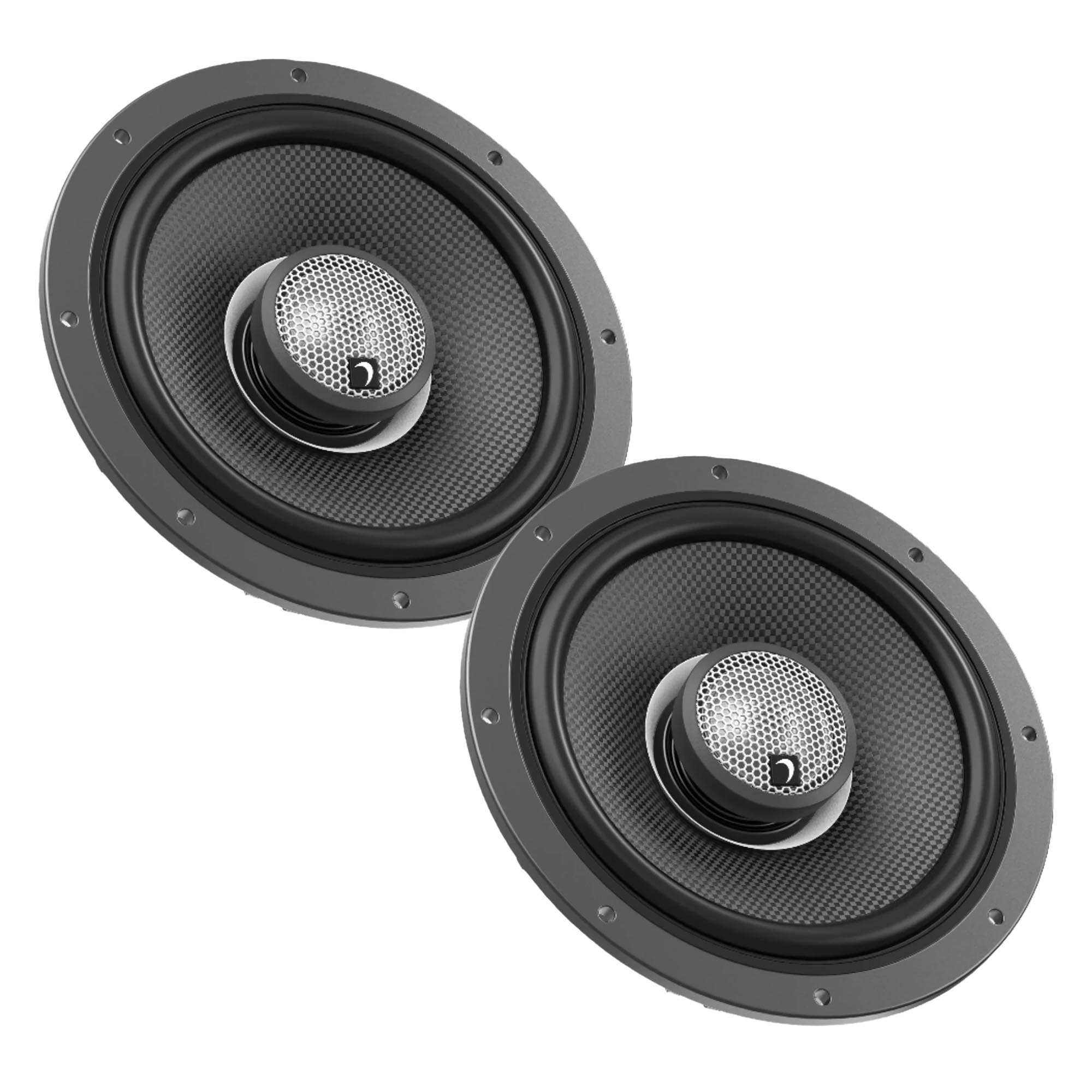

1x Diamond Audio HXM65F2BK Motosport 2-way 6.5" 2-ohm Flush Mount Speaker Black Carbon Cone Speaker - 450w Max/150w RMS (HXM65F2BK)
Diamond Audio’s is proud to release it’s new and improved HXMF Black Series Coaxial Drivers. Building on the features of the HXM and HXMF platforms, the new HXMFB series increases performance where it counts. Higher output, more impactful bass response, and more high-end with new larger 1.5” Titanium tweeters. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary HXM and HXMF series to expand it with the new HXMFB Series, combining the best features of the HXM and HXMF drivers and improving both the output performance and low-end response. Available in both 2Ω and 4Ω models to really optimize system design. The result? Class-leading sound quality, exceptional output, and that trademark Diamond Audio quality.
These drivers’ elements are crafted to the highest standards, from the premium voice coils and advanced Neodymium motor structures to the rock-solid fiber-reinforced composite basket design, oversized titanium tweeters, and carbon fiber cones. Choose Diamond Audio’s HXMFB Series Coaxial Drivers — because your music deserves the best.
Specifications
SPEAKER SIZE - 6.5"
SPEAKER TYPE - HORN LOADED CO AXIAL
OHMS (PER COIL) - 2
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - TITANIUM
BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 95
RE (Ω) [SERIES]: 1.8
QMS: 7.506
QES: 0.369
QTS: 0.352
FS (HZ): 105
VAS (L): 6.172
CMS (MM/N): 0.288
MMS (G): 8.024
SD (M2): 122.718
BL (T*M): 5.068
XMAX (MM): 2.75
POWER HANDLING RMS: 125
POWER HANDLING MAX: 250
MOUNTING DEPTH: IN.(MM):2.52" (64MM)
CUT OUT DIAMETER IN.(MM):5.44" (138.06MM)
OVER ALL DIAMETER IN.(MM):6.61" (167.79MM)
OVER ALL HEIGHT IN.(MM):3.03" (77.02MM)
1x Metra 82-9601 Speaker Adapters compatible with Harley Davidson 1998-2013 -6.5 to 6.75 inch (82-9601)
Custom spacer designed for installation of 6-1/2 to 6-3/4 inch aftermarket speakers and works with all varieties of speakers including component drivers. One pair of adaptors included in each package.
