This bundle includes a JL Audio RBC-1:Remote Bass Control, a JL Audio JD700/5 700W Class D 5-Channel Full-Range Amplifier, a JL Audio C1-650x 6.5-inch (165mm) Coaxial with 0.75-inch (19mm) aluminum dome tweeter, a JL Audio C1-690tx 6 x 9-inch (150 x 230mm) 3-Way with 1-inch (25mm) and 0.75-inch (19mm) aluminum dome tweeter, and a JL Audio 10-inch thinline subwoofer driver, 2 ohm.
1x JL Audio RBC-1:Remote Bass Control (RBC-1)
JL Audio RBC-1: Remote Bass Control
Remote Bass Control for Select JL Audio Amplifiers
The RBC-1 remotely controls the Bass Level of the following JL Audio amplifiers:
JX-Series: JX250/1, JX500/1, JX1000/1D
When the RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:
Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
Original Slash Series: 500/1, 1000/1, 450/4, 500/5
G-Series: All Models
A-Series: All Models
e-Series: All Models (including marine versions)
M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600
When the RBC-1 is connected to the above amplifiers, the on-board "Boost" control of the amplifier is defeated and the RBC-1 becomes the active controller.
The RBC-1 kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
A satin-finish aluminum knob can be purchased separately.

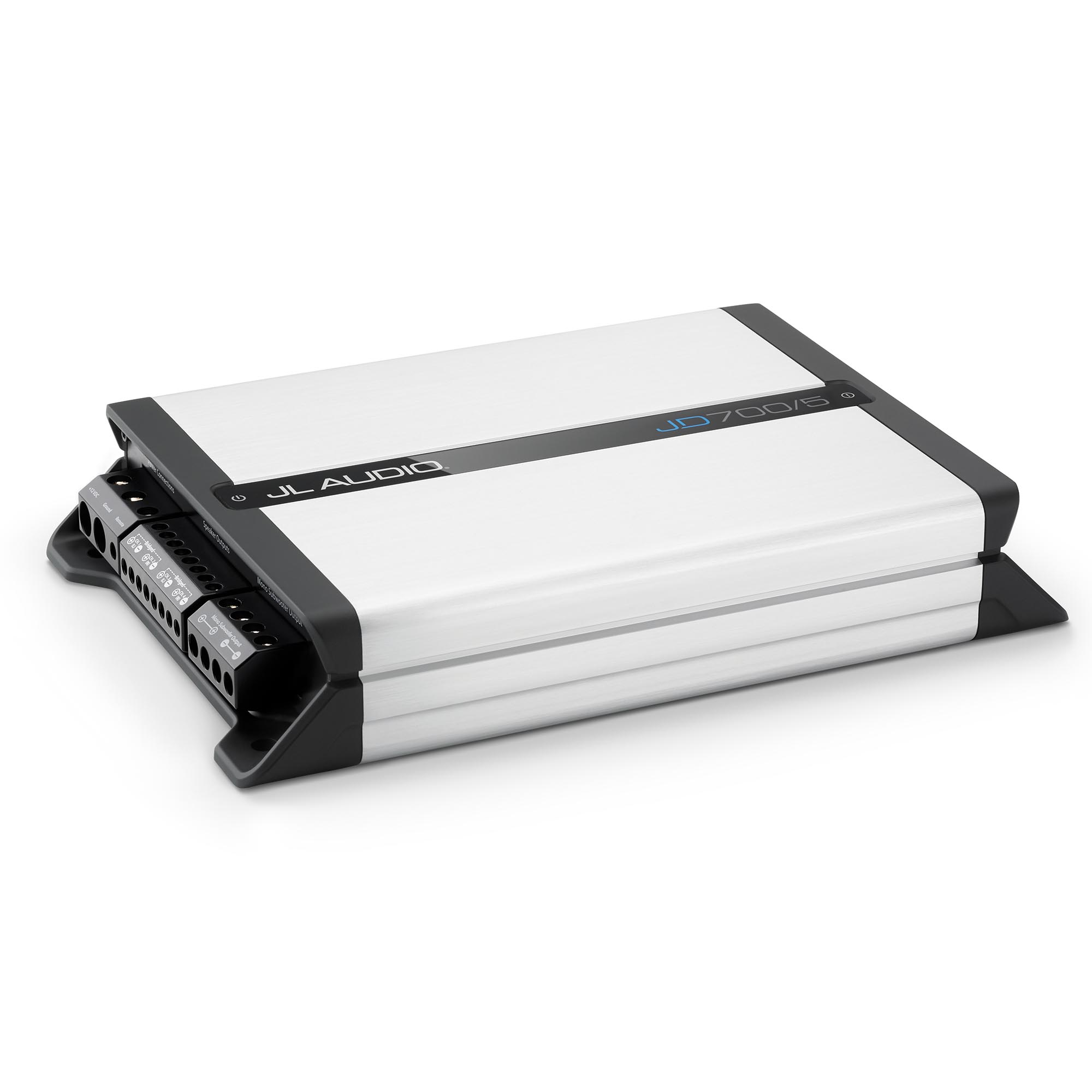

1x JL Audio JD700/5 700W Class D 5-Channel Full-Range Amplifier (JD700/5)
Specifications:
Channels: 5
Operating voltage: 10.5-16 VDC
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)
Main: 75 W x 4
Sub: 180 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)
Main: 100 W x 4
Sub: 300 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)
Main: 60 W x 4
Sub: 180 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)
Main: 90 W x 4
Sub: 300 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: >104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: >80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: >84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: >60 dB
Damping factor @ 4 Ω: >150/50 Hz
Damping factor @ 2 Ω: >75/50 Hz
THD+N @ Rated Power: Main Channels: <1% @ 2 Ω per Channel
THD+N @ Rated Power: Subwoofer Channel: <1% @ 2 Ω per Channel
Frequency response (+0, -1dB): 12 Hz-22 kHz
Frequency response (+0, -1dB): Main Channels: 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel: 7 Hz-500 Hz
Signal Processing
Filter mode(s): Channels 1 & 2: Off, Low-pass or High-pass x10
Filter Slope(s): Channels 1 & 2: 12 dB/octave
Filter frequency range: Channels 1 & 2: 50 Hz-500 Hz (x10: 500 Hz-5 kHz)
Filter mode(s): Channels 3 & 4: Off, High-pass or Bandpass
Filter Slope(s): Channels 3 & 4: 12 dB/octave
Filter frequency range: Channels 3 & 4: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel: Off or Low-pass only
Filter slope(s): Subwoofer Channel: 12 dB/octave
Filter frequency range: Subwoofer Channel: 50 Hz-500 Hz
In the box:
JD Amplifier
2 mm hex wrench
2.5 mm hex wrench
3 mm hex wrench
Documentation
1x JL Audio C1-650x 6.5-inch (165mm) Coaxial with 0.75-inch (19mm) aluminum dome tweeter (C1-650x)
JL Audio C1-650x
Coaxial Speaker System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Aluminum Dome Tweeter
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles. To facilitate fit, multi-application adaptor rings are included with the C1-650x allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the speaker will fit into many "6-inch" speaker locations as well.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650x is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
Sold as a pair. Grilles not included.
General Specifications
| Continuous Power Handling (RMS) | 50 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 10 - 75 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 48 Hz - 24 KHz ± 3 dB |
Physical Specifications
| Frame Outer Diameter* (A) | 6.25 in / 159 mm |
| Grille Tray Outer Diameter (B) | N/A |
| Motor Outer Diameter (C) | 3.15 in / 80 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.72 in / 18 mm |
| Frontal Grille Protrusion (E) | N/A |
| Mounting Hole Diameter (F) | 5.02 in / 128 mm |
| Mounting Depth (G) | 2.07 in / 53 mm |
1x JL Audio C1-690tx 6 x 9-inch (150 x 230mm) 3-Way with 1-inch (25mm) and 0.75-inch (19mm) aluminum dome tweeter (C1-690tx)
JL Audio C1-690tx
Coaxial 3-Way Speaker System: 6 x 9-inch (150 x 230 mm) Woofer, 1.0-inch (25 mm) Aluminum Dome Tweeter, 0.75-inch (19 mm) Aluminum Dome Super Tweeter
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles. To facilitate fit, spacer/adaptor rings are included allowing the C1-690tx to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690tx is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.
Sold as a pair. Grilles not included.
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 10 - 100 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 36 Hz - 24 KHz ± 3 dB |
Physical Specifications
| Frame Outer Diameter* (A) | 6.38 x 9.33 in / 162 x 237 mm |
| Grille Tray Outer Diameter (B) | N/A |
| Motor Outer Diameter (C) | 3.94 in / 100 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.72 in / 18 mm |
| Frontal Grille Protrusion (E) | N/A |
| Mounting Hole Diameter (F) | N/A |
| Mounting Depth (G) | 3.09 in / 79 mm |
1x JL Audio 10-inch thinline subwoofer driver, 2 ohm (10TW1-2)
JL Audio 10TW1-2
TW1 10-inch Subwoofer Driver (300 W, 2 Ω)
Built on JL Audio's patented thin-line subwoofer technology, the 10TW1 delivers a powerful combination of shallow mounting depth and excursion capability, while operating in insanely small enclosures (0.35 cu.ft. / 10 liters). This, combined with a special cast alloy frame design, makes the 10TW1 capable of operating in extremely tight spaces. These include under-seat installations in trucks, 2-seat sports cars and many other creative applications requiring a compact, low profile subwoofer design.
JL Audio's patented thin-line woofer technology compresses the architecture of the 10TW1 using a "concentric tube" structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of a large motor structure further forward in the speaker than with conventional designs.
The 10TW1 also features a clever frame design that minimizes the frontal clearance required for the excursion of the driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. Thanks to this feature, the 10TW1 requires only 0.87 inches (22 mm) of frontal clearance, even with its grille installed. This allows for more efficient use of space and increased enclosure volume within a given overall depth.
Even though the 10TW1 is optimized for an enclosure much smaller than any other JL Audio ten-inch subwoofer driver, it never sounds like a big woofer struggling in a tiny box...instead, it delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system.
- Very shallow mounting depth (4.36 in / 111 mm)
- No pole vent: permits mounting close to rear wall of enclosure
- Extremely small sealed enclosure volume requirements
- Long linear excursion capability (0.40 in / 10 mm, one-way)
- DMA-optimized motor design
- Patented "concentric tube" architecture
- Patented "floating cone attach method" technology
- Cast alloy frame with flat edges for tight driver grouping
- Injection molded, mica-filled polypropylene cone
- Rubber surround
- Steel mesh grille included with each driver
- Precision-built in USA with Global Components at JL Audio's Miramar, Florida factory
General Specifications
| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 - 300 W |
| Nominal Impedance (Znom) | 2 Ω |
Physical Specifications
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.375 in / 264 mm |
| Mounting Hole Diameter (B) | 9.0625 in / 230 mm |
| Bolt Hole Circle Diameter (C) | 9.7 in / 246 mm |
| Motor Outer Diameter (D) | 4.54 in / 115 mm |
| Mounting Depth (E) | 4.36 in / 111 mm |
| Front Grille Protrusion (F) | 0.87 in / 22 mm |
| Driver Displacement | 0.047 cu ft / 1.33 L |
| Net Weight | 10.5 lb / 4.8 kg |
Parameters
| Free Air Resonance (Fs) | 41.45 Hz |
| Electrical “Q” (Qes) | 0.696 |
| Mechanical “Q” (Qms) | 9.7 |
| Total Speaker “Q” (Qts) | 0.649 |
| Equivalent Compliance (Vas) | 0.364 cu ft / 10.31 L |
| One-Way Linear Excursion (Xmax)* | 0.40 in / 10.0 mm |
| Efficiency (1 W / 1 m)** | 82.5 dB SPL |
| Effective Piston Area (Sd) | 41.602 sq in / 0.0268 sq m |
| DC Resistance (Re) | 2.428 Ω |
Sealed Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.35 cu ft / 9.91 L |
| External Width (W) | 16.125 in / 410 mm |
| External Height (H) | 14 in / 356 mm |
| External Depth (D) | 5.25 in / 133 mm |
| F3 | 48.31 Hz |
| Fc | 59.21 Hz |
| Qtc | 0.927 |
Ported Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.625 cu ft / 17.7 L |
| External Width (W) | 26.625 in / 676 mm |
| External Height (H) | 16 in / 406 mm |
| External Depth (D) | 5.25 in / 133 mm |
| Internal Slot Port Width (SW) | 3.75 in / 95 mm |
| Internal Slot Port Height (SH) | 1.875 in / 48 mm |
| Internal Slot Port Length (SL) | 22.50 in / 572 mm |
| Port Extension Length (EL) | 20.8125 in / 529 mm |
| Tuning Frequency (Fb) | 35.0 Hz |
| F3 | 30.56 Hz |
