Description
Included in this kit
This bundle includes a JL Audio XDM600/1 XDM Series Monoblock Class-D Car/Marine Subwoofer Amplifier, 600 W, 2x JL Audio 10-Inch M6 Marine Subwoofer, Gloss White, Classic Grille - SKU: M6-10W-C-GwGw-4, and a JL Audio MHD-RLC: Water-Resistant Amplifier Remote Level Control and Cable.
1x JL Audio XDM600/1 XDM Series Monoblock Class-D Car/Marine Subwoofer Amplifier, 600 W (XDM600/1)
JL Audio XDM600/1 Monoblock Class D Car/Marine Subwoofer Amplifier, 600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω - 14.4V
This potent monoblock amplifier employs JL Audio's high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).
Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 400 W RMS x 1 |
| @ 3 Ω | 500 W RMS x 1 |
| @ 2 Ω | 600 W RMS x 1 |
| @ 1.5 Ω | N/A |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 300 W RMS x 1 |
| @ 3 Ω | 400 W RMS x 1 |
| @ 2 Ω | 500 W RMS x 1 |
| @ 1.5 Ω | N/A |
General Specifications
| Frequency Response | 7 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >1000 / 50 Hz |
| Damping Factor @ 2 Ω | >500 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | 30 Hz, defeatable |
| Bass Boost EQ | No |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 8.52 in / 216 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 6.3 lb / 2.86 kg |

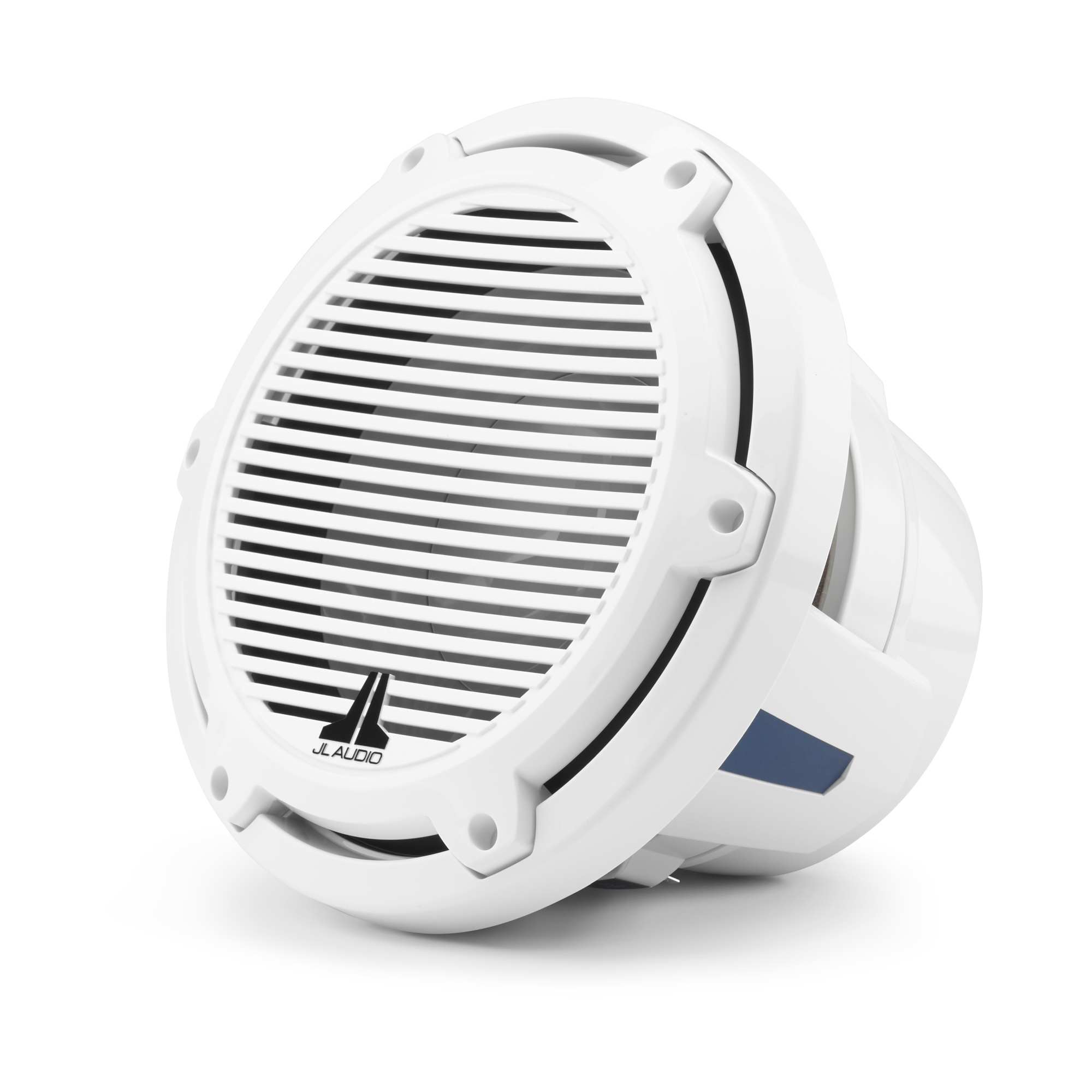

2x JL Audio 10-Inch M6 Marine Subwoofer, Gloss White, Classic Grille - SKU: M6-10W-C-GwGw-4 (M6-10W-C-GwGw-4)
JL Audio M6-10W-C-GwGw-4
JL Audio 10-Inch M6 Marine Subwoofer, Gloss White, Classic Grille - SKU: M6-10W-C-GwGw-4
M6 Loudspeakers fulfill JL Audio’s commitment to raise the bar with each product generation. The JL Audio engineering team has completely reinvented the premium marine loudspeaker, with major improvements in performance, precision and durability. Offered in multiple sizes and cosmetic options, most models are also available with a brilliant, new lighting technology.
Advanced Subwoofer Technologies
The M6-10W is best used with amplifier power in the 75W - 250W range and is optimized to operate in a compact 0.75 cu. ft. (21.2 l) sealed enclosure, or a 1.50 cu. ft. (42.5 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab. If you need a Subwoofer that operates without a dedicated enclosure, select one of our Infinite Baffle Subwoofers instead.
Physical Specifications
| Nominal Diameter | 10 in / 250 mm |
| Outer Diameter | 10.75 in / 273 mm |
| Bolt Hole Circle | 9.7 in / 247 mm |
| Frontal Grille Protrusion | 1.66-Inches for Classic Grille, 1.66-Inches for Sport Grille |
| Mounting Hole Diameter | 8.875 in / 225 mm |
| Net Weight | 12.6 lbs / 5.7 kg |
| Driver Displacement | .052 ft^3 / 1.47 liters |
Subwoofer Parameters
| Free Air Resonance (Fs) | 34.58 Hz |
| Electrical “Q” (Qes) | 0.522 |
| Mechanical “Q” (Qms) | 9.78 |
| Total Speaker “Q” (Qts) | 0.496 |
| Equivalent Compliance (Vas) | 1.22 ft3 / 34.49 litres |
| One-way, Linear Excursion (Xmax) | 0.52 in / 13.2 mm |
| Efficiency (1W/1m) | 86.4 dB SPL |
| Effective Piston Area (Sd) | 50.11 in² / 0.0323 m² |
| DC Resistance (Re) | 3.619 ohm |
| Nominal Impedance | 4 Ohm |
| Infinite Baffle Use | No |
| Enclosure Use | Yes (Sealed & Ported) |
| Power Handling (continuous) | 250W |
Sealed Enclosure Specs
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.75 cu ft / 21.2 L |
| External Width (W) | 17 in / 432 mm |
| External Height (H) | 17 in / 432 mm |
| External Depth (D) | 7.25 in / 184 mm |
| F3 | 41.54 Hz |
| Fc | 53.41 Hz |
| Qtc | 0.8035 |
|
Enclosure Notes Safety Notice When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van. |
|
Ported Enclosure Specs
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 1.50 cu ft / 42.5 L |
| External Width (W) | 17 in / 432 mm |
| External Height (H) | 17 in / 432 mm |
| External Depth (D) | 13.125 in / 333 mm |
| Internal Port Diameter (ID) | 3 in / 76 mm |
| Port Length (L) | 11.125 in / 283 mm |
| Tuning Frequency (Fb) | 31 Hz |
| F3 | 29.81 Hz |
|
Enclosure Notes Safety Notice When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van. |
|
1x JL Audio MHD-RLC: Water-Resistant Amplifier Remote Level Control and Cable (MHD-RLC)
JL Audio MHD-RLC - Water-Resistant Remote Level Control for Select JL Audio Amplifiers The MHD-RLC remotely controls the Bass Level of the following JL Audio amplifiers: HD-Series: All models XD-Series: All models MHD-Series: All models M-Series: All models When the MHD-RLC is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle. The MHD-RLC kit includes the rotary control with a black ABS knob, mounting hardware and one 16.4 ft. (5 m) cable. A satin-finish aluminum knob can be purchased separately.
