Description
Included in this kit
This bundle includes a Cicada Audio FLX700.4PRO 4 x 175 @ 2Ω Amplifier w/DSP PROcessor - DIALD tuning software, a Cicada Audio 14HDAR-SG - CX/DSP/FLX Amplifier Mounting System H-D® Street Glide ®, a Cicada Audio 14HDAR-RG - CX/DSP/FLX Amplifier Mounting System H-D® Road Glide ®, a Cicada Audio CH65.2C High Efficiency 6.5-Inch Horn Coaxial Speakers - 2Ω - Original Classic Design, a Cicada Audio CXX65.4 - Pro Coaxial Speakers 6.5-inch- 4 Ohm, Pair, a Cicada Audio CHDSGG - H-D 2014-2023 SG Round Grill, Pair, a Cicada Audio CHDRGG - H-D 2014-2023 RG Kidney Grill - PR, a Cicada Audio HDPG6K 6 Gauge Power/Ground Kit, and a Cicada Audio HDTSLINKv2 14-23 H-D® Factory Radio “T” Harness for plug-n-play integration with Maestro ADS-MAR to prevent bike flash.

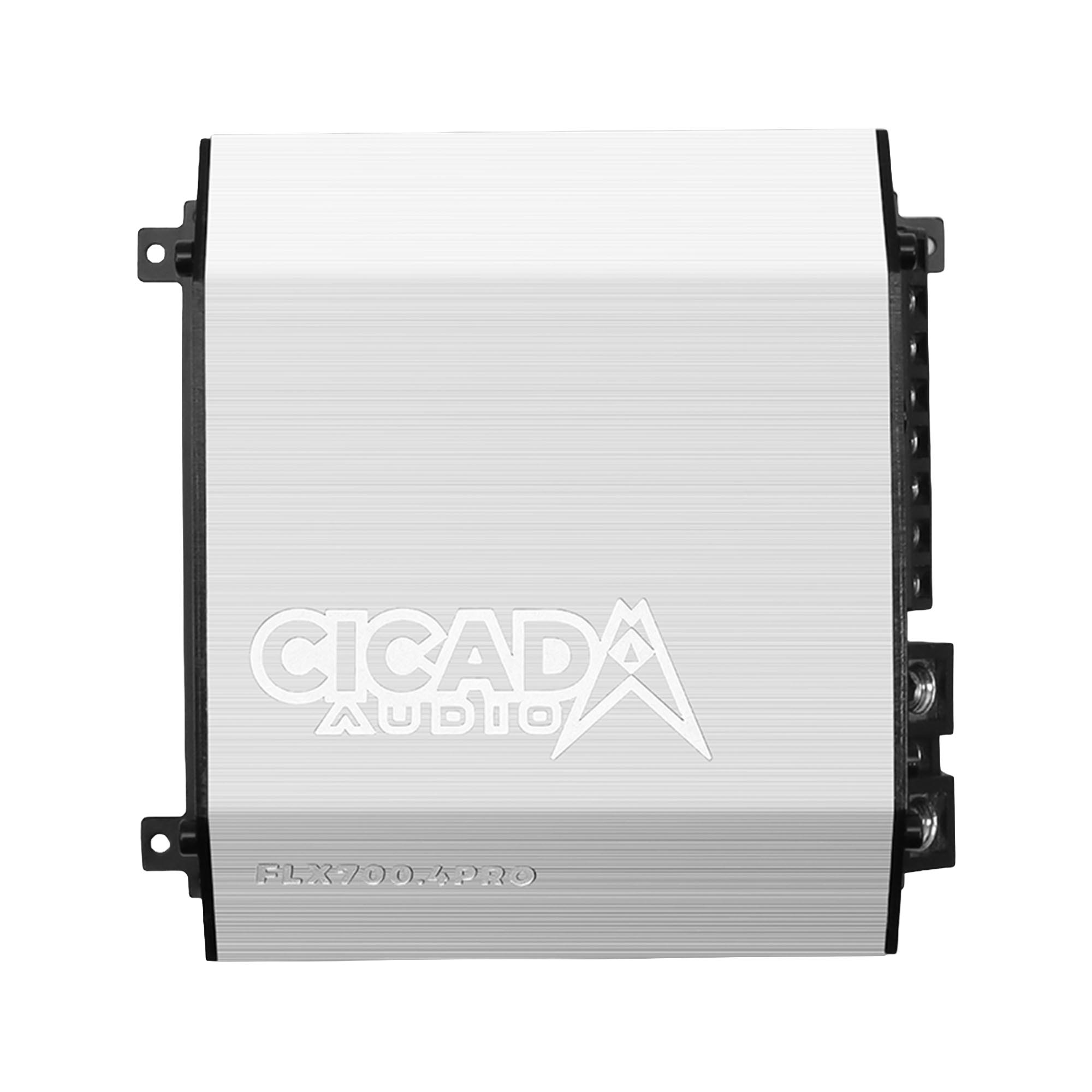

1x Cicada Audio FLX700.4PRO 4 x 175 @ 2Ω Amplifier w/DSP PROcessor - DIALD tuning software (FLX700.4PRO)
SPECIFICATIONS
4 Channel (14.4v)-RMS Power Output: 120w x 4 @ 4 Ω stereo, 175w x 4 @ 2 Ω stereo
2 Channel Bridged Mode (14.4v): 350w x 2 @ 4 Ω -RMS Power Output
Additional Specifications:
Built in 4CH input / 6CH output digital signal processor
SNR: 91dB (A-weighted, 20 Hz – 20 kHz)
Operating Voltage: 9v – 16v
Current Draw (Music): 50 A
Current Draw (Max): 80 A
Recommended Fuse (Music): 50 A
Total Efficiency: 80%
Frequency response 20 Hz – 20 kHz +/- 3 dB
Damping Factor: 200
Crossover LPF/FULL/HPF: 20 – 20kHz
Slope: 6/12/24/48 dB per octave
Gain: 0.2 V – 12 V
Turn-On Configuration: REM/DC/VOX
THD + N (10% Rated Power): 0.1% @ 2 Ω per channel
Dimensions (Mounting Brackets): 5.3 x 4.9 x 2.0-inch, 134 x 125 x 51mm
Dimensions (Chassis): 4.1 x 4.9 x 2.0-inch, 104 x 125 x 51mm
1x Cicada Audio 14HDAR-SG - CX/DSP/FLX Amplifier Mounting System H-D® Street Glide ® (14HDAR-SG)
Amplifier Mounting Rack for 2014-2023 H-D® Street Glide®
HASSLE-FREE INSTALLATION
Velcro® mount amp to stainless steel tray between the head unit and the headlight.
Powder coated
Stainless steel construction
Mounting hardware included
Designed for CX/FLX/DSP600.4D style amplifiers only
1x Cicada Audio 14HDAR-RG - CX/DSP/FLX Amplifier Mounting System H-D® Road Glide ® (14HDAR-RG)
Amplifier Mounting Rack for 2014-2023 H-D® Road Glide®
HASSLE-FREE INSTALLATION
Mount amp to stainless steel chassis and easily slide in under the fairing mounted radio.
NOTE: Place amplifier input side toward the driver, power and ground input toward the headlight!
Powder coated
Stainless steel construction
Mounting hardware included
Designed for CX/FLX/DSP600.4D style amplifiers only

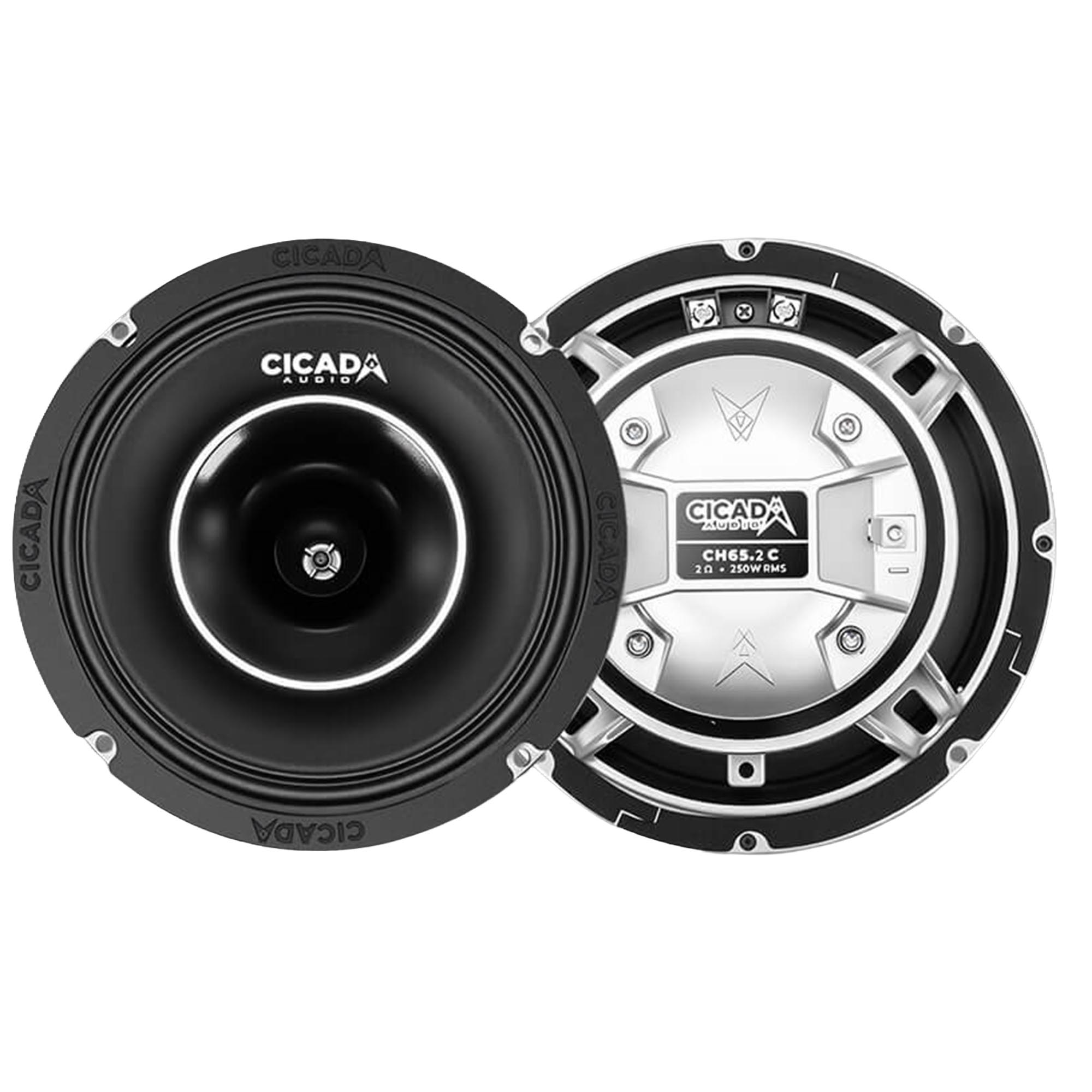

1x Cicada Audio CH65.2C High Efficiency 6.5-Inch Horn Coaxial Speakers - 2Ω - Original Classic Design (CH65.2C)
6.5" 2-Ohm Coaxial Horn Driver – 250W RMS
This 6.5-inch 2-ohm coaxial horn driver is built around the Larry Frederick Original Classic Design and engineered for high-efficiency output in 2014+ H-D® factory locations (some models include a 0.5-inch spacer). With 250 watts RMS and 500 watts max power handling, it delivers strong mid-bass impact and crisp high-frequency response in a factory-fit footprint.
Performance Highlights
- 250W RMS / 500W MAX power handling
- 96.4 dB sensitivity (1W/1M)
- 75Hz – 20kHz frequency response (±5 dB)
- 2-ohm impedance for amplifier efficiency
- 12 dB crossover at 4 kHz
Tweeter & Crossover Engineering
The aluminum dome tweeter uses a 1.4-inch (36mm) OFC copper voice coil to deliver brighter sound and maximized efficiency while minimizing heat buildup. A custom-tooled, vented, encased external 12 dB crossover network is precisely tuned at 4 kHz for smooth transition between mid-bass and high frequencies.
Mid-Bass & Motor Structure
A lightweight, water-resistant treated paper cone provides efficient output and high-temperature durability. The 2-inch (51mm) OFC copper mid-bass voice coil with Black Coat™ ensures high conductivity, low resistance, and strong thermal performance under load.
The N35SH Neodymium magnet motor structure and custom die-cast aluminum basket with Vortex Flow Venting™ improve cooling and structural rigidity for consistent performance at higher output levels.
Fitment & Installation
Designed for 2014+ H-D® factory locations, with select models including a 0.5-inch spacer for proper fitment.
- Mounting Depth: 3.0" (76.2 mm)
- Mounting Diameter: 5.7" (145.5 mm)
Specifications
| Speaker Size | 6.5-inch |
|---|---|
| Impedance | 2 Ohm |
| Power Handling (RMS) | 250 Watts |
| Power Handling (Max) | 500 Watts |
| Sensitivity | 96.4 dB (1W/1M) |
| Frequency Response | 75Hz – 20kHz ±5 dB |
| Mid-Bass Voice Coil | 2-inch (51mm) OFC Copper |
| Tweeter Voice Coil | 1.4-inch (36mm) OFC Copper |
| Tweeter Dome | Aluminum |
| Crossover | 12 dB @ 4 kHz (External) |
| Cone Material | Water-Resistant Treated Paper |
| Magnet | N35SH Neodymium |
| Mounting Depth | 3.0-inch (76.2 mm) |
| Mounting Diameter | 5.7-inch (145.5 mm) |
| Warranty | 2 Years |
1x Cicada Audio CXX65.4 - Pro Coaxial Speakers 6.5-inch- 4 Ohm, Pair (CXX65.4)
Features:
Designed for 2014 + H-D® factory designed locations
V8™ Dispersion Guide
Exclusive Cicada Design for 360o sound from tweeter
Rain or Shine™ all weather performance design
Built-In 6dB crossover
PEI tweeter dome for best sound dispersion
Moisture resistant
Brighter sound
More efficiency
Kevlar cone
Extremely lightweight and strong
Moisture resistant
Maximized efficiency
Copper wire voice coils offer great sound while generating less heat
N45H Neo Magnets
High temperature resistant Polycarbonate custom tooled basket
UV protection over all surfaces
5-inch Grills and Hardware are included
Two (2) year warranty
Specification:
4Ω / 6.5-inch high performance coaxial driver
Power handling: 100W RMS/200W MAX
Voice Coils: 1.4-inch/35mm mid-bass and 1-inch/25mm Tweeter
Cone: Kevlar
Tweeter Dome: PEI
Magnet: Neodymium
Sensitivity: 93dB
Frequency response 55 Hz – 20 kHz +/- 3dB
Mounting Depth: 2.26-inch/57mm
Mounting Diameter: 5.43-inch/138mm
1x Cicada Audio CHDSGG - H-D 2014-2023 SG Round Grill, Pair (CHDSGG)
Custom tooled Street Glide® replacement grills add additional depth required for aftermarket speaker upgrades.
1x Cicada Audio CHDRGG - H-D 2014-2023 RG Kidney Grill - PR (CHDRGG)
Custom tooled Road Glide(R) replacement grill for increased height for CH/CM series speakers.

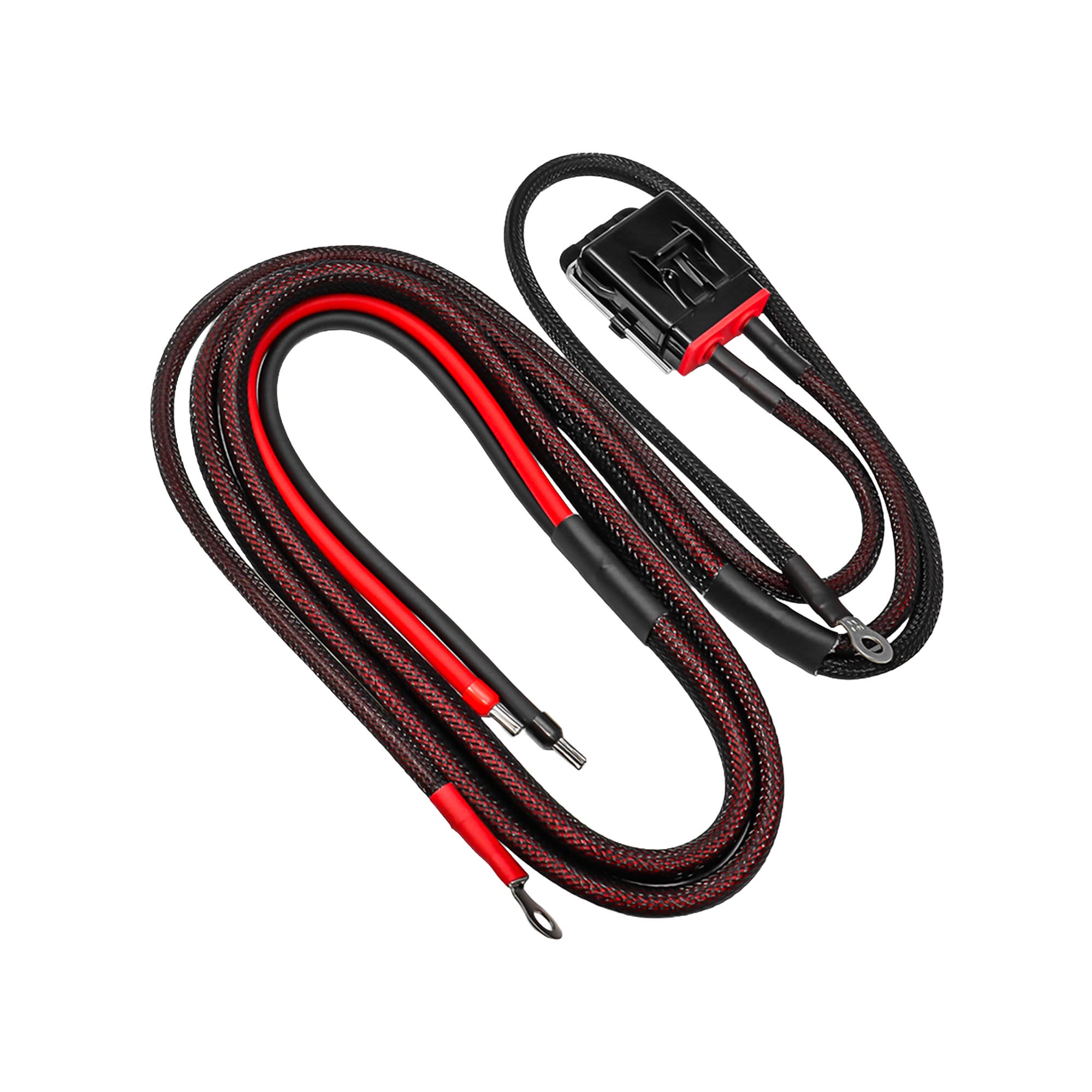

1x Cicada Audio HDPG6K 6 Gauge Power/Ground Kit (HDPG6K)
6ft Power/Ground with black over braid, terminated w/ ring terminals at the battery side, Ferrules on the amp side
Remote trigger wire w/ H-D® plug for termination to remote trigger or plug into the H-D® harness
Waterproof Mini ANL Fuse Holder w/60, 80 and 100-amp fuses

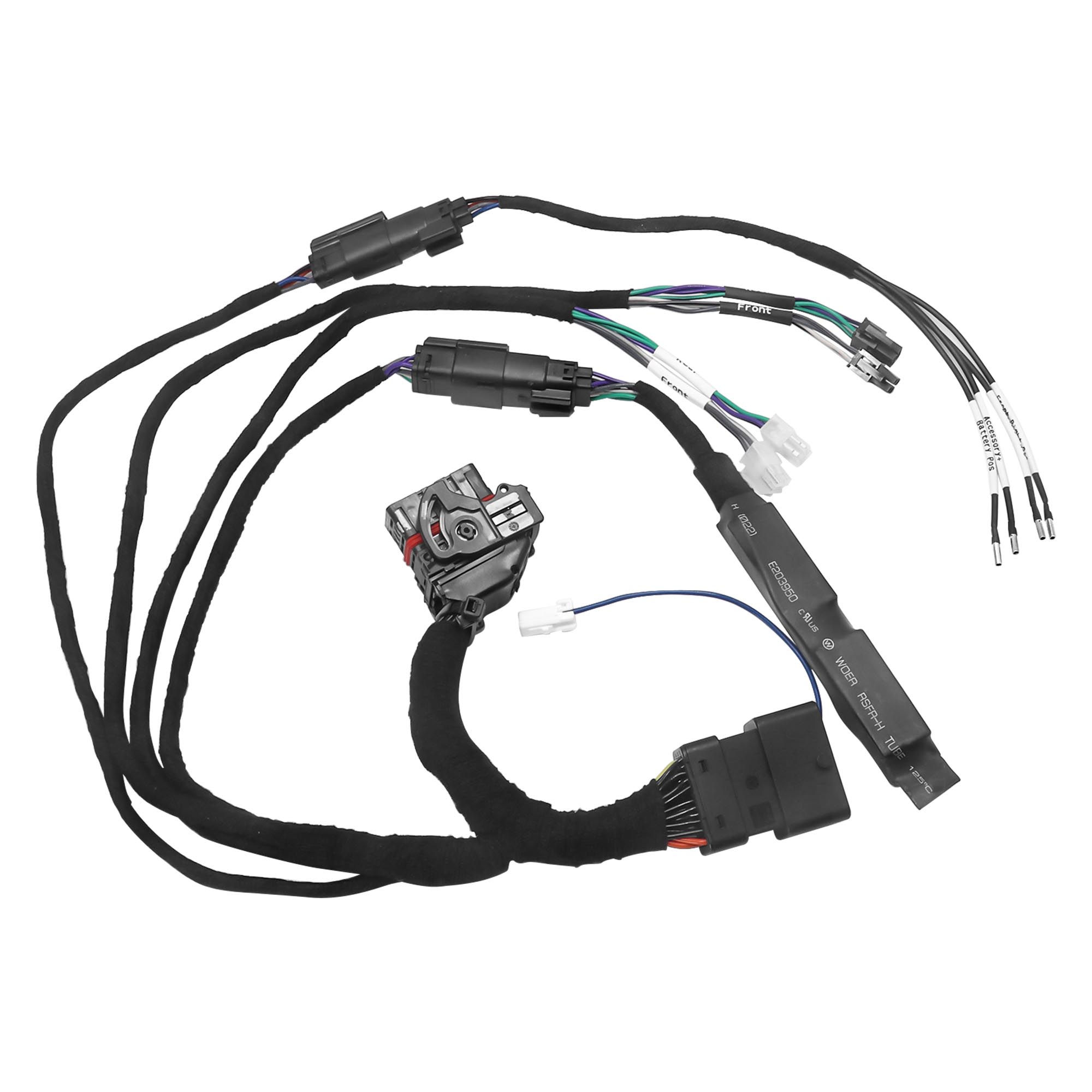

1x Cicada Audio HDTSLINKv2 14-23 H-D® Factory Radio “T” Harness for plug-n-play integration with Maestro ADS-MAR to prevent bike flash (HDTSLINKV2)
HDTSLINK FACTORY RADIO “T” HARNESS FOR PLUG-N-PLAY AFTERMARKET AMPLIFIER INTEGRATION
