Description
Included in this kit
This bundle includes a Cicada Audio FLX500.4 125w x 4CH AMPLIFIER, a Cicada Audio CXX65.2 - Pro Coaxial Speakers 6.5-inch- 2 Ohm, Pair, a Cicada Audio 24CHDRGG - H-D 2024 + RG Kidney Grill - PR, a Cicada Audio HDPG8K - 8 Gauge Power/Ground Kit, a Cicada Audio 24HDZENHCAKIT NAV-TV® ZEN-H™ and Cicada Audio® A2B Audio Interface Harness Kit, a Cicada Audio 24HDRO 2024+ H-D® Rear Output Speaker Wire Harness, and a Cicada Audio 24HDAR-RG 2024+ H-D® Road Glide® Amplifier Rack.

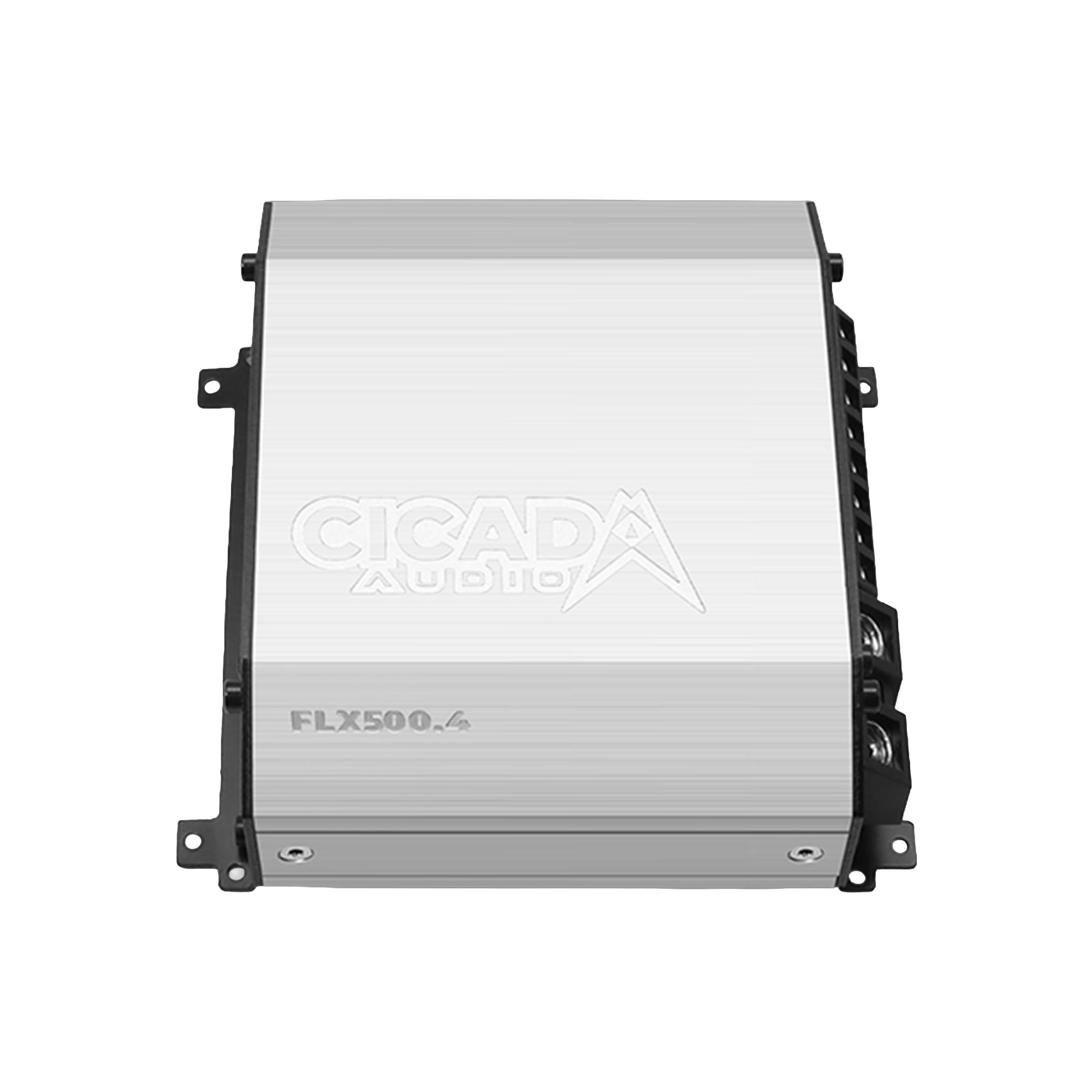

1x Cicada Audio FLX500.4 125w x 4CH AMPLIFIER (FLX500.4)
Clean Power. Compact Footprint. True Cicada Performance.
The FLX500.4 is a compact, high‑efficiency 4‑channel amplifier engineered for motorcycles, powersports, marine, and small‑format automotive systems. Delivering impressive output in a micro‑sized chassis, it’s designed to integrate seamlessly into tight installs while maintaining the clarity, reliability, and dynamic range Cicada amplifiers are known for.
FEATURES
Ultra‑Compact Design
Small‑format chassis engineered to fit inside fairings, saddlebags, kick panels, and other tight mounting locations without sacrificing performance.
High‑Efficiency Class‑D Platform
Delivers strong power output with reduced heat and electrical load, ideal for motorcycles and vehicles with limited charging systems.
Flexible Crossover Control
Selectable LPF / FULL / HPF crossover with a wide adjustment range (20 Hz – 20 kHz) and steep selectable slopes (6 / 12 / 24 / 48 dB per octave) for precision system tuning.
OEM‑Friendly Integration
Multiple turn‑on options — REM, DC, or VOX — make it easy to integrate with factory head units and custom installations.
Precision Audio Control
Wide gain range (0.2V – 12V) accommodates factory and aftermarket source units, DSPs, and high‑output preamps.
Rugged Build Quality
Built with durable components and a compact aluminum housing for long‑term reliability in harsh motorcycle and outdoor environments.
SPECIFICATIONS
RMS Power Output (14.4V)
4‑Channel Stereo Mode:
95W × 4 @ 4 Ω
125W × 4 @ 2 Ω
2‑Channel Bridged Mode:
250W × 2 @ 4 Ω
Performance Metrics
Signal‑to‑Noise Ratio: 91 dB (A‑weighted, 20 Hz – 20 kHz)
Operating Voltage: 9V – 16V
Current Draw (Music): 50 A
Current Draw (Max): 80 A
Recommended Fuse: 50 A
Total Efficiency: 80%
Frequency Response: 20 Hz – 20 kHz (±3 dB)
Damping Factor: 200
THD + N (10% rated power): 0.1% @ 2 Ω per channel
1x Cicada Audio CXX65.2 - Pro Coaxial Speakers 6.5-inch- 2 Ohm, Pair (CXX65.2)
Features:
Designed for 2014 + H-D® factory designed locations
V8™ Dispersion Guide
Exclusive Cicada Design for 360o sound from tweeter
Rain or Shine™ all weather performance design
Built-In 6dB crossover
PEI tweeter dome for best sound dispersion
Moisture resistant
Brighter sound
More efficiency
Kevlar cone
Extremely lightweight and strong
Moisture resistant
Maximized efficiency
Copper wire voice coils offer great sound while generating less heat
N45H Neo Magnets
High temperature resistant Polycarbonate custom tooled basket
UV protection over all surfaces
5-inch Grills and Hardware are included
Two (2) year warranty
Specification:
2Ω / 6.5-inch high performance coaxial driver
Power handling: 100W RMS/200W MAX
Voice Coils: 1.4-inch/35mm mid-bass and 1-inch/25mm Tweeter
Cone: Kevlar
Tweeter Dome: PEI
Magnet: Neodymium
Sensitivity: 93dB
Frequency response 55 Hz – 20 kHz +/- 3dB
Mounting Depth: 2.26-inch/57mm
Mounting Diameter: 5.43-inch/138mm
1x Cicada Audio 24CHDRGG - H-D 2024 + RG Kidney Grill - PR (24CHDRGG)
Crafted from high-quality aluminum, these custom-built grilles are designed specifically to fit 2024 and newer Harley-Davidson Road Glide models. Each grille includes a Cicada Audio® Branded Emblems, ensuring a precise fit and clean installation. Built for durability and performance, these grilles offer a sleek, factory-style appearance while optimizing audio performance—all proudly featuring the Cicada Audio® brand.
1x Cicada Audio HDPG8K - 8 Gauge Power/Ground Kit (HDPG8K)
HD 8 Gauge Power Harness Kit

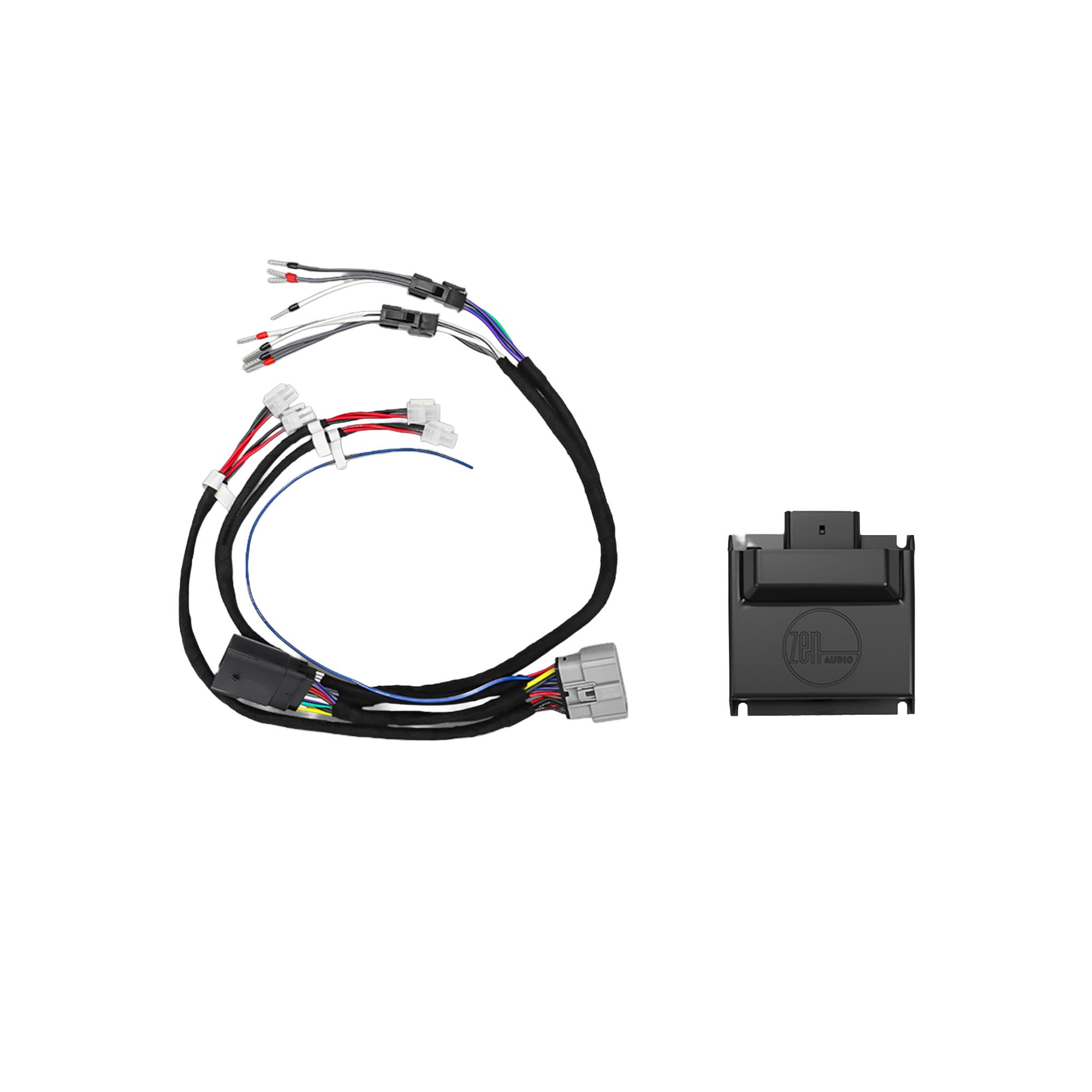

1x Cicada Audio 24HDZENHCAKIT NAV-TV® ZEN-H™ and Cicada Audio® A2B Audio Interface Harness Kit (24HDZENHCAKIT)
FEATURES
Direct‑Fit Integration for NAV TV ZEN H‑D® A2B Interfaces
Engineered specifically for seamless use with the NAV TV ZEN H‑D® A2B Interface, ensuring a clean, plug‑and‑play installation with no cutting, splicing, or guesswork.
Purpose‑Built for Cicada Audio® Amplifiers
Equipped with correctly pinned Molex® connectors designed to mate directly with the input and output ports of all Cicada Audio® amplifiers, guaranteeing perfect compatibility.
OEM‑Grade Construction
Built using high‑quality automotive‑grade materials for maximum durability, vibration resistance, and long‑term reliability in the harsh motorcycle environment.
Precision‑Engineered Signal Routing
Provides clean, stable audio signal delivery from the ZEN H‑D® A2B interface to your amplifier system, ensuring optimal sound quality with zero noise or interference.
Simplified Installation
Reduces install time dramatically—no depinning, no rewiring, and no modification to the factory harness required. Simply plug in and go.
Secure Locking Connectors
All connectors feature positive‑locking mechanisms to prevent accidental disconnects due to road vibration, heat, or long‑term wear.
Compact, Clean Layout
Designed with tight routing and minimal bulk to fit neatly within Harley‑Davidson® fairings without adding clutter.
Optimized for Harley-Davidson® Audio Upgrades
Perfect for technicians and DIY builders who want a reliable, direct‑connect solution when upgrading or expanding a 2024 + H-D® factory or aftermarket system.

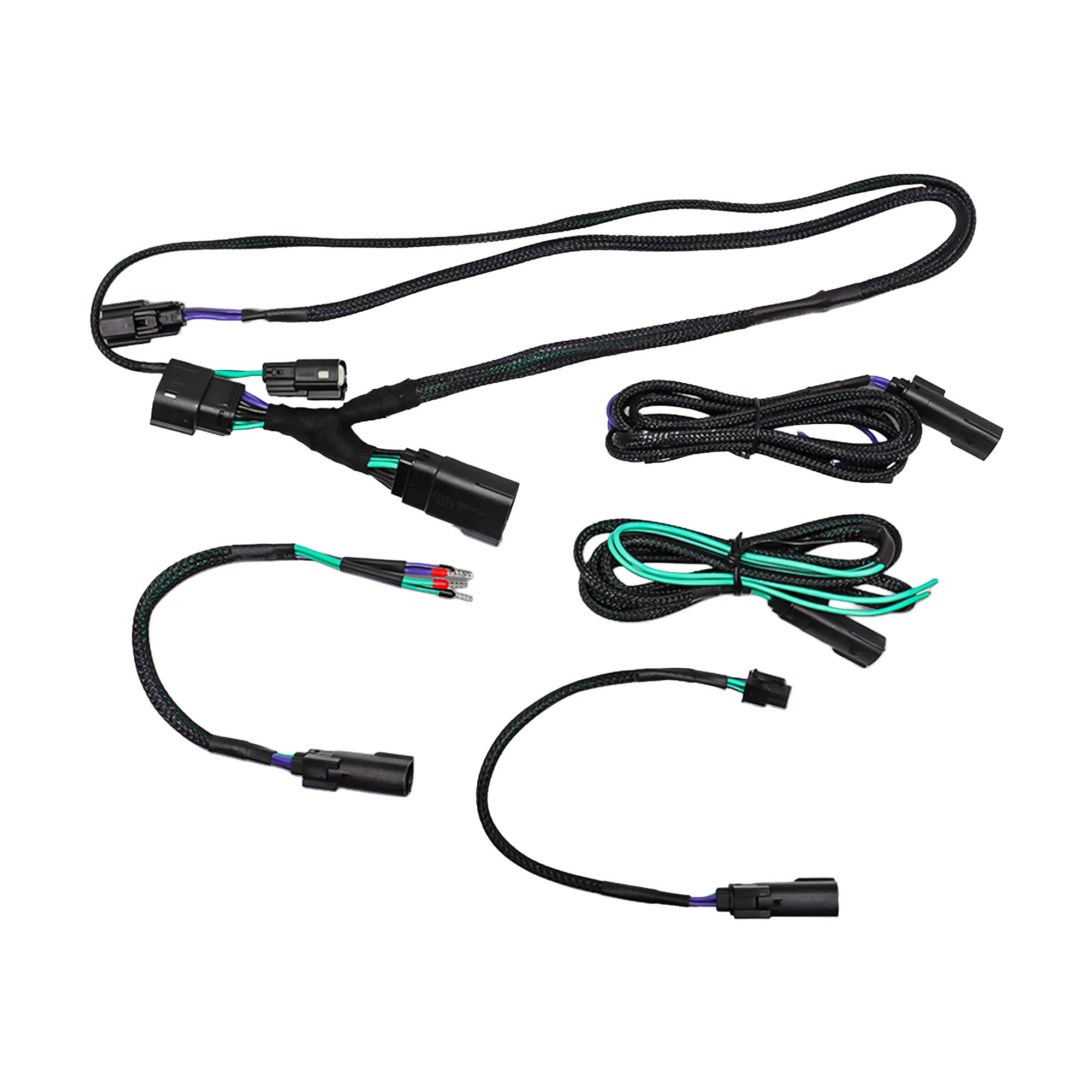

1x Cicada Audio 24HDRO 2024+ H-D® Rear Output Speaker Wire Harness (24HDRO)
Compatible with 2024 and newer Harley-Davidson® models
Connects rear speaker output to aftermarket audio systems
Includes main harness with factory-style connectors
Two short extensions and two longer leads for flexible installation
Color-coded wiring (green, blue, purple) for easy identification
Braided black sheathing for a clean, professional look and added durability
Plug-and-play design—no cutting or splicing required

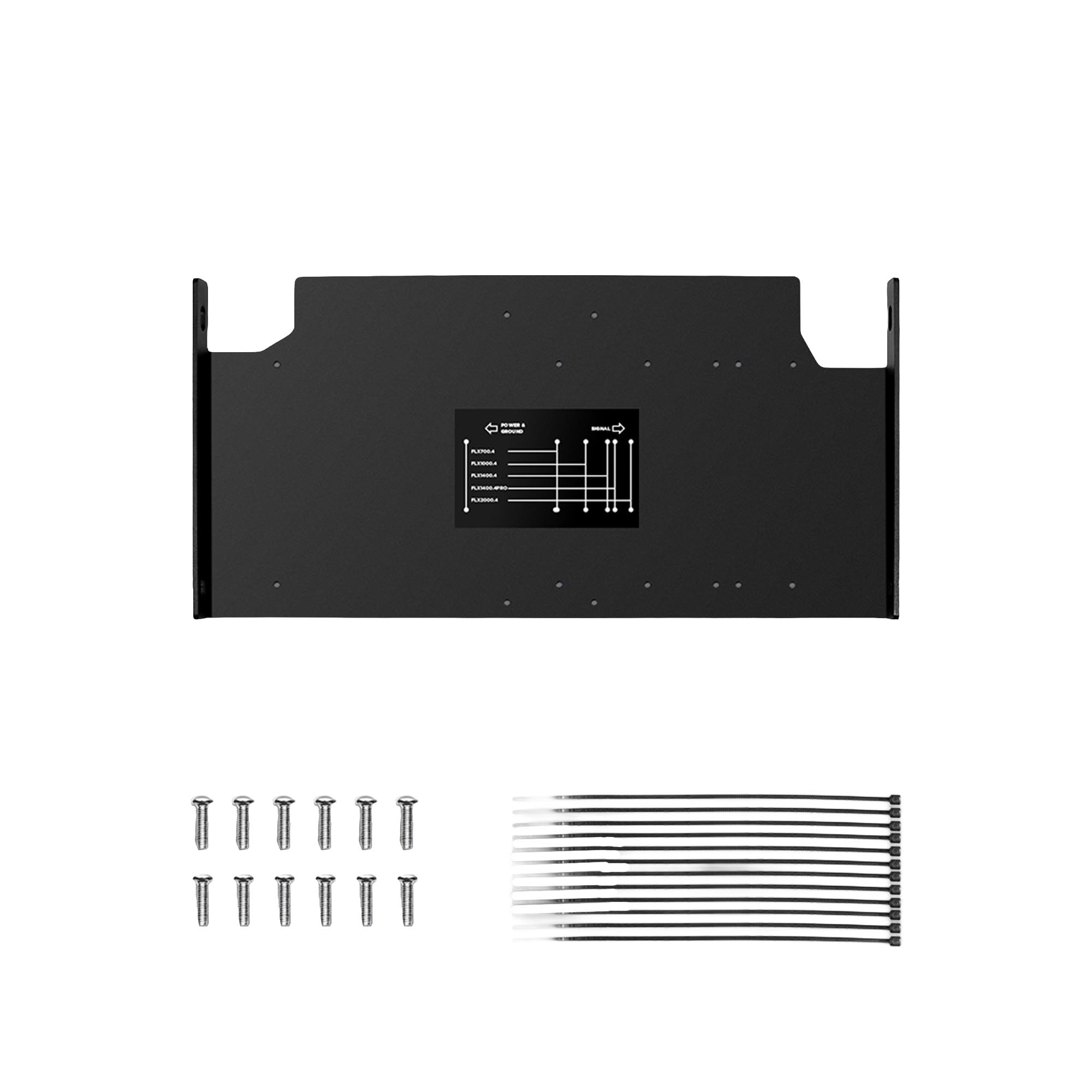

1x Cicada Audio 24HDAR-RG 2024+ H-D® Road Glide® Amplifier Rack (24HDAR-RG)
HASSLE-FREE INSTALLATION
Easily mount using OEM amplifier mounting locations and mount amp to rack with predrilled holes.
Black Anodized Finish
Aluminum construction
Mounting hardware included
Designed for all FLX style amplifiers
