Description
Included in this kit
This bundle includes a Cicada Audio FLX1400.4PRO Front, Rear, & Lid Cut Kit - Level 3 PRO - Road Glide Bagger Kit 2024+ Harley Davidson, a Cicada Audio CH65.4C High Efficiency 6.5-Inch Horn Coaxial Speakers - 4Ω - Original Classic Design, a Cicada Audio CH69.4W - All Weather Coaxial Horn 6x9-inch - 4 Ohm, Pair, a Cicada Audio 24CHDRGG - H-D 2024 + RG Kidney Grill - PR, a Cicada Audio 24CHDLID 2024+ H-D® Saddlebag Lid 6×9-inch Cut-in Mounting Kit, a Cicada Audio HDPG4K - 4 Gauge Power/Ground Kit, a Cicada Audio 24HDZENHCAKIT NAV-TV® ZEN-H™ and Cicada Audio® A2B Audio Interface Harness Kit, a Cicada Audio 24HDRO 2024+ H-D® Rear Output Speaker Wire Harness, and a Cicada Audio 24HDAR-RG 2024+ H-D® Road Glide® Amplifier Rack.

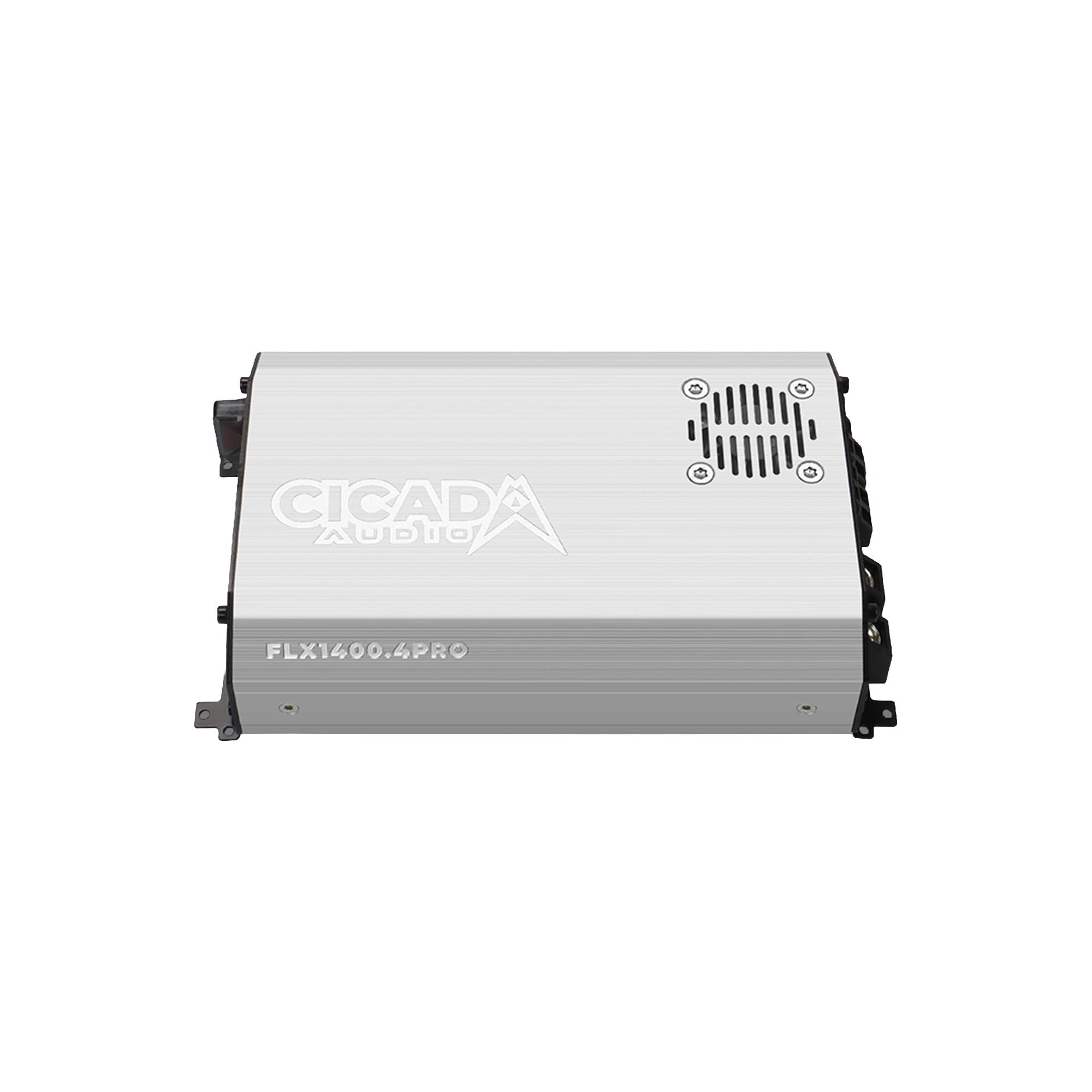

1x Cicada Audio FLX1400.4PRO Front, Rear, & Lid Cut Kit - Level 3 PRO - Road Glide Bagger Kit 2024+ Harley Davidson (FLX1400.4PRO)
The Cicada Audio FLX1400.4PRO is a high‑power, ultra‑efficient Class‑D amplifier with an integrated 6‑channel DSP, engineered specifically for the demands of motorcycle audio systems. Designed to fit Harley‑Davidson® Road Glide® and Street Glide® amp locations, this compact powerhouse delivers exceptional clarity, power, and tuning flexibility through advanced Class‑D architecture and full DIALD™ DSP control.
FEATURES
Compact size engineered to deliver maximum output without compromise
Built‑in 6‑channel DSP (4 amplified / 2 pass‑through) with Bluetooth® audio streaming and USB‑C PC tuning
Supports DIALD™ PC/App‑based DSP Configuration Software
iOS App compatible
Direct mounting compatibility with H‑D® Road Glide® and Street Glide® amp racks
Multiple mounting options using included brackets
Class‑D IR® chipset delivers the latest in digital amplifier efficiency
ICAD overload protection circuit for increased reliability
Fully bridgeable into 2 channels @ 4 Ω with 2CH/4CH input switch control
Premium connectivity with 4 AWG power and 12 AWG busbar speaker outputs
Multi‑mode turn‑on support: REM / DC / VOX
DSP‑selectable HP/BP/LP crossovers with 6 / 12 / 24 / 48 dB per‑octave slopes
Molex® inputs for flexible integration (RCA or H‑D® custom termination)
Clipping and status LED indicators
Sensitivity adjustment from 12 V down to 0.2 V
Fully encased in an extruded aluminum heatsink
SPECIFICATIONS
RMS Power Output — 4 Channel (14.4V)
225W × 4 @ 4 Ω stereo
350W × 4 @ 2 Ω stereo
RMS Power Output — 2 Channel Bridged (14.4V)
700W × 2 @ 4 Ω
Performance & Electrical
Signal‑to‑Noise Ratio: 91 dB (A‑weighted)
Operating Voltage: 9 V – 16 V
Current Draw (Music): 70 A
Current Draw (Max): 150 A
Recommended Fuse: 100 A
Total Efficiency: 80%
Frequency Response: 20 Hz – 20 kHz (±3 dB)
Damping Factor: 200
THD+N (10% rated power): 0.1% @ 2 Ω per channel
DSP & Crossover Controls
Crossover Modes: LPF / FULL / HPF
Crossover Range: 20 Hz – 20 kHz
Crossover Slopes: 6 / 12 / 24 / 48 dB per octave
Gain Range: 0.2 V – 12 V
Turn‑On Configurations: REM / DC / VOX

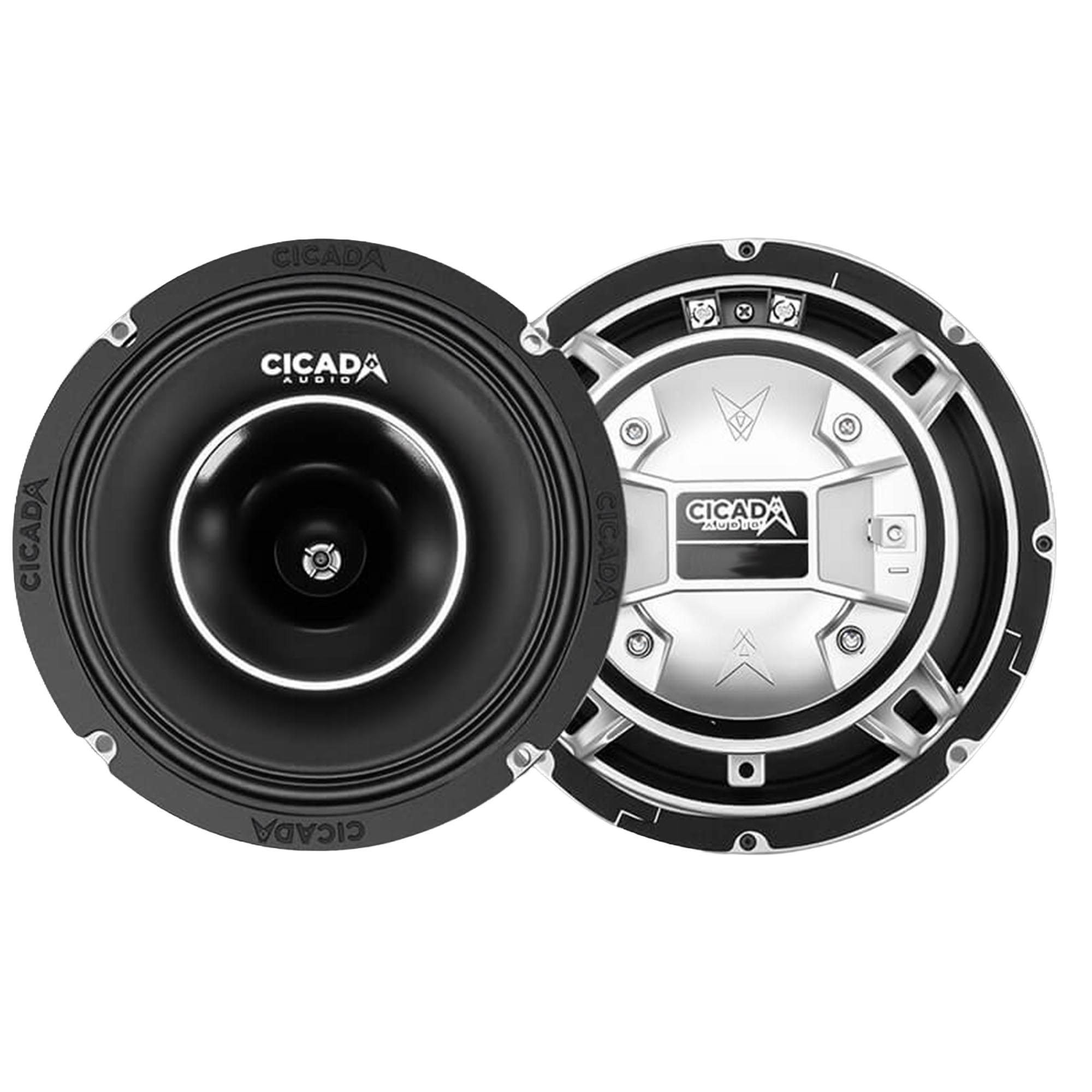

1x Cicada Audio CH65.4C High Efficiency 6.5-Inch Horn Coaxial Speakers - 4Ω - Original Classic Design (CH65.4C)
6.5" 4-Ohm Coaxial Horn Driver – 250W RMS
This 6.5-inch 4-ohm coaxial horn driver is built around the Larry Frederick Original Classic Design and engineered for high-efficiency output in 2014+ H-D® factory locations (some models include a 0.5-inch spacer). With 250 watts RMS and 500 watts max power handling, it delivers strong mid-bass impact and crisp high-frequency response in a factory-fit footprint.
Performance Highlights
- 250W RMS / 500W MAX power handling
- 96.4 dB sensitivity (1W/1M)
- 75Hz – 20kHz frequency response (±5 dB)
- 4-ohm impedance for amplifier efficiency
- 12 dB crossover at 4 kHz
Tweeter & Crossover Engineering
The aluminum dome tweeter uses a 1.4-inch (36mm) OFC copper voice coil to deliver brighter sound and maximized efficiency while minimizing heat buildup. A custom-tooled, vented, encased external 12 dB crossover network is precisely tuned at 4 kHz for smooth transition between mid-bass and high frequencies.
Mid-Bass & Motor Structure
A lightweight, water-resistant treated paper cone provides efficient output and high-temperature durability. The 2-inch (51mm) OFC copper mid-bass voice coil with Black Coat™ ensures high conductivity, low resistance, and strong thermal performance under load.
The N35SH Neodymium magnet motor structure and custom die-cast aluminum basket with Vortex Flow Venting™ improve cooling and structural rigidity for consistent performance at higher output levels.
Fitment & Installation
Designed for 2014+ H-D® factory locations, with select models including a 0.5-inch spacer for proper fitment.
- Mounting Depth: 3.0" (76.2 mm)
- Mounting Diameter: 5.7" (145.5 mm)
Specifications
| Speaker Size | 6.5-inch |
|---|---|
| Impedance | 4 Ohm |
| Power Handling (RMS) | 250 Watts |
| Power Handling (Max) | 500 Watts |
| Sensitivity | 96.4 dB (1W/1M) |
| Frequency Response | 75Hz – 20kHz ±5 dB |
| Mid-Bass Voice Coil | 2-inch (51mm) OFC Copper |
| Tweeter Voice Coil | 1.4-inch (36mm) OFC Copper |
| Tweeter Dome | Aluminum |
| Crossover | 12 dB @ 4 kHz (External) |
| Cone Material | Water-Resistant Treated Paper |
| Magnet | N35SH Neodymium |
| Mounting Depth | 3.0-inch (76.2 mm) |
| Mounting Diameter | 5.7-inch (145.5 mm) |
| Warranty | 2 Years |
1x Cicada Audio CH69.4W - All Weather Coaxial Horn 6x9-inch - 4 Ohm, Pair (CH69.4W)
FEATURES:
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
Removable threaded horn ring for easy modification
Rain or Shine™ all weather performance design
Available in 4- or 2-Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
External 12dB crossover with optional -3/-6 tweeter attenuator
4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat
Water resistant treated paper cone
Lightweight / rigid
Maximized efficiency / super strong
Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
N35SH Neodymium magnet
Die cast Aluminum custom tooled basket with Vortex Flow Venting™
Warranty: 2 years
SPECIFICATIONS:
4Ω – 6X9-inch coaxial horn driver
Power handling: 250W RMS/500W MAX
Voice Coil: 2.5-inch/64mm Mid-bass & 1.4-inch/36mm Tweeter
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
Cone: water resistant treated paper cone
Magnet: Neodymium
Sensitivity: 95dB
Frequency response 75Hz – 20kHz +/- 3dB
Mounting Depth: 3.7-inch/93mm
Mounting Diameter: 6.6-inch/155mm X 9.3-inch/226mm
1x Cicada Audio 24CHDRGG - H-D 2024 + RG Kidney Grill - PR (24CHDRGG)
Crafted from high-quality aluminum, these custom-built grilles are designed specifically to fit 2024 and newer Harley-Davidson Road Glide models. Each grille includes a Cicada Audio® Branded Emblems, ensuring a precise fit and clean installation. Built for durability and performance, these grilles offer a sleek, factory-style appearance while optimizing audio performance—all proudly featuring the Cicada Audio® brand.
1x Cicada Audio 24CHDLID 2024+ H-D® Saddlebag Lid 6×9-inch Cut-in Mounting Kit (24CHDLID)
Designed for 2023.5+ Harley-Davidson® updated saddlebag design
Unique Top Load Speaker Baffle Design
3 Part Assembly:
- Speaker Grill
- Speaker Baffle
- Secure Clamping ring with waterproof gasket
Compatible with:
- CICADA 6×9 speakers, even with full size cast frames and oversized surrounds
- CICADA Hard Divider, Tweeter Bridge Accessories
- CICADA 24RING10, 24PORT3 and all CICADA 8” or 10” Midbass drivers.
Baffle Angle that perfectly positions the speaker towards the rider for optimal projection
Increased durability for heavier full size, full depth 6×9 speakers
Better Waterproofing with the fully gasketed baffle clamp
High-strength ASA plastic for durability and performance
UV Resistant materials for long lasting appearance
Engineered for perfect fit and easy installation
Grille Mesh formed with heavy duty powder-coated steel
Edgeless trim design and rugged speaker protection
Compatible with saddlebags featuring electric locks
Included Accessories:
ABS molded Cutout Templates
Heavy duty updated Lid Gasket Seals
Rainproof Lid Covers
CICADA Tethers with Crossover pouch
Die cut speaker gasketing
1x Cicada Audio HDPG4K - 4 Gauge Power/Ground Kit (HDPG4K)
4 AWG H-D® Amplifier Power Kit
6ft Power/Ground with black over braid, terminated w/ ring terminals at the battery side, Ferrules on the amp side
Remote trigger wire w/ H-D® plug for termination to remote trigger or plug into the H-D® harness
Waterproof Mini ANL Fuse Holder w/60- and 100-amp fuses
1x Cicada Audio 24HDZENHCAKIT NAV-TV® ZEN-H™ and Cicada Audio® A2B Audio Interface Harness Kit (24HDZENHCAKIT)
FEATURES
Direct‑Fit Integration for NAV TV ZEN H‑D® A2B Interfaces
Engineered specifically for seamless use with the NAV TV ZEN H‑D® A2B Interface, ensuring a clean, plug‑and‑play installation with no cutting, splicing, or guesswork.
Purpose‑Built for Cicada Audio® Amplifiers
Equipped with correctly pinned Molex® connectors designed to mate directly with the input and output ports of all Cicada Audio® amplifiers, guaranteeing perfect compatibility.
OEM‑Grade Construction
Built using high‑quality automotive‑grade materials for maximum durability, vibration resistance, and long‑term reliability in the harsh motorcycle environment.
Precision‑Engineered Signal Routing
Provides clean, stable audio signal delivery from the ZEN H‑D® A2B interface to your amplifier system, ensuring optimal sound quality with zero noise or interference.
Simplified Installation
Reduces install time dramatically—no depinning, no rewiring, and no modification to the factory harness required. Simply plug in and go.
Secure Locking Connectors
All connectors feature positive‑locking mechanisms to prevent accidental disconnects due to road vibration, heat, or long‑term wear.
Compact, Clean Layout
Designed with tight routing and minimal bulk to fit neatly within Harley‑Davidson® fairings without adding clutter.
Optimized for Harley-Davidson® Audio Upgrades
Perfect for technicians and DIY builders who want a reliable, direct‑connect solution when upgrading or expanding a 2024 + H-D® factory or aftermarket system.
1x Cicada Audio 24HDRO 2024+ H-D® Rear Output Speaker Wire Harness (24HDRO)
Compatible with 2024 and newer Harley-Davidson® models
Connects rear speaker output to aftermarket audio systems
Includes main harness with factory-style connectors
Two short extensions and two longer leads for flexible installation
Color-coded wiring (green, blue, purple) for easy identification
Braided black sheathing for a clean, professional look and added durability
Plug-and-play design—no cutting or splicing required
1x Cicada Audio 24HDAR-RG 2024+ H-D® Road Glide® Amplifier Rack (24HDAR-RG)
HASSLE-FREE INSTALLATION
Easily mount using OEM amplifier mounting locations and mount amp to rack with predrilled holes.
Black Anodized Finish
Aluminum construction
Mounting hardware included
Designed for all FLX style amplifiers
