Description
Included in this kit
This package contains an AudioControl DM-RTA & an AudioControl CM-10 calibrated microphone.
The DM-RTA isn’t just an RTA. Accessible from the DM-RTA app are five modules, including Voltage Meter, RTA (1/3, 1/6, and 1/12 octave), SPL Meter, Polarity Checker and a fully functional Oscilloscope. Test and measure nearly every signal imaginable from acoustical, to line level, and speaker level. Balanced and unbalanced line level inputs allow the DM-RTA to be inserted into your signal chain to verify optimal signal from source to speakers. This is the last test tool you’ll ever need.
• Balanced Line Level Inputs and Outputs
• Unbalanced Line Level Inputs and Outputs
• Speaker Level Inputs (handles up to 400 watts)
• Microphone presets (for CM-10, CM-20 & C550H)
• Digital and USB Outputs
• Connect to PC/Mac, Phone or Tablet
• Battery Powered and Compact for Portability
Inputs:
• 1 x Balanced (Input Impedance 3.24kΩ)
• 1 x Unbalanced (Input Impedance 3.24kΩ)
• 1 x Microphone (Input Impedance 10kΩ)
• 1 x Speaker Level (Input Impedance 16.24kΩ)
• Max Low Level Input Voltage: 8 Vrms
• Max High Level Input Voltage: 40 Vrms
Outputs:
• 1 x Balanced (Output Impedance: 51Ω)
• 1 x Unbalanced (Output Impedance: 51Ω)
• 1 x Coax Digital (Output Impedance: 75Ω)
• 1 x Toslink
• 1 x USB
General:
• Power Supply:
• Battery Life: ~5 Hours
• in the box: DM-RTA, USB Cable, Power Supply, Manual, Warranty

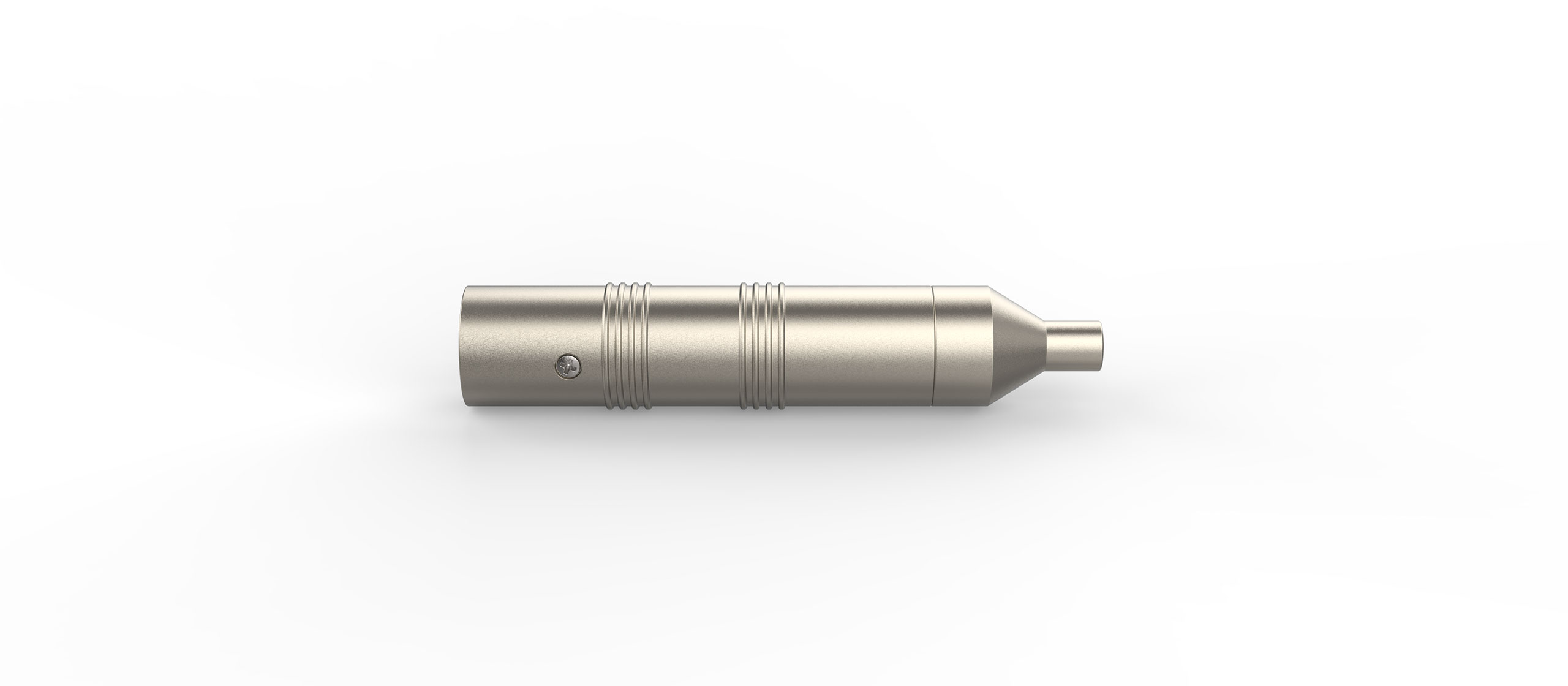

CM-10 microphone And excellent entry-level microphone for your DM-RTA and the official replacement calibrated microphone for all models of the DM-RTA and the Iasys. This is a back electret measurement microphone with calibrated internal preamp. Maximum SPL is 136 dB. Ships with 20 foot XLR mic cable. specifications Frequency Response: 20Hz – 20kHz Max SPL: 136 dB SPL Connector: 3 pin XLR, pin 2 positive in the box: CM-10 Microphone, XLR cable
