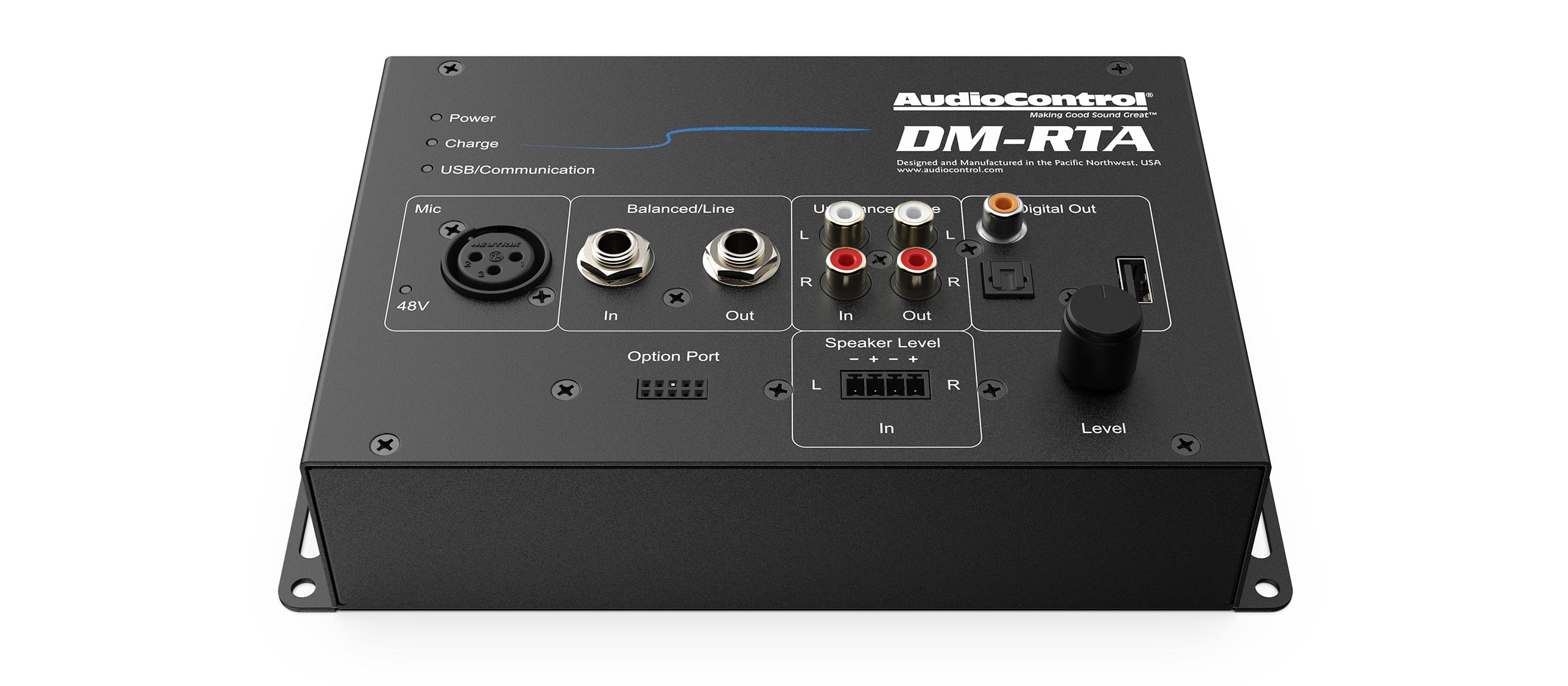

AudioControl DM-RTA Real Time Analyzer and Multi-Test Tool
Test and Measure Any Signal
Balanced Line Level Inputs and Outputs
Unbalanced Line Level Inputs and Outputs
Speaker Level Inputs (handles up to 400 watts)
Microphone Input with 48V Phantom Power (microphone sold separately)
Microphone presets (for CM-10, CM-20 & C550H)
Digital and USB Outputs
Connect to PC/Mac, Phone or Tablet
Inputs:
1 x Balanced (Input Impedance 3.24kΩ)
1 x Unbalanced (Input Impedance 3.24kΩ)
1 x Microphone (Input Impedance 10kΩ)
1 x Speaker Level (Input Impedance 16.24kΩ)
Max Low Level Input Voltage: 8 Vrms
Max High Level Input Voltage: 40 Vrms
Outputs:
1 x Balanced (Output Impedance: 51Ω)
1 x Unbalanced (Output Impedance: 51Ω)
1 x Coax Digital (Output Impedance: 75Ω)
1 x Toslink
1 x USB
General:
Power Supply:
Battery Life: ~5 Hours
Dimensions: 8”W x 4.8”D x 2.4”H
Weight: 2.6lbs (1.2kg)
In the box: DM-RTA, USB Cable, Power Supply, Manual, Warranty

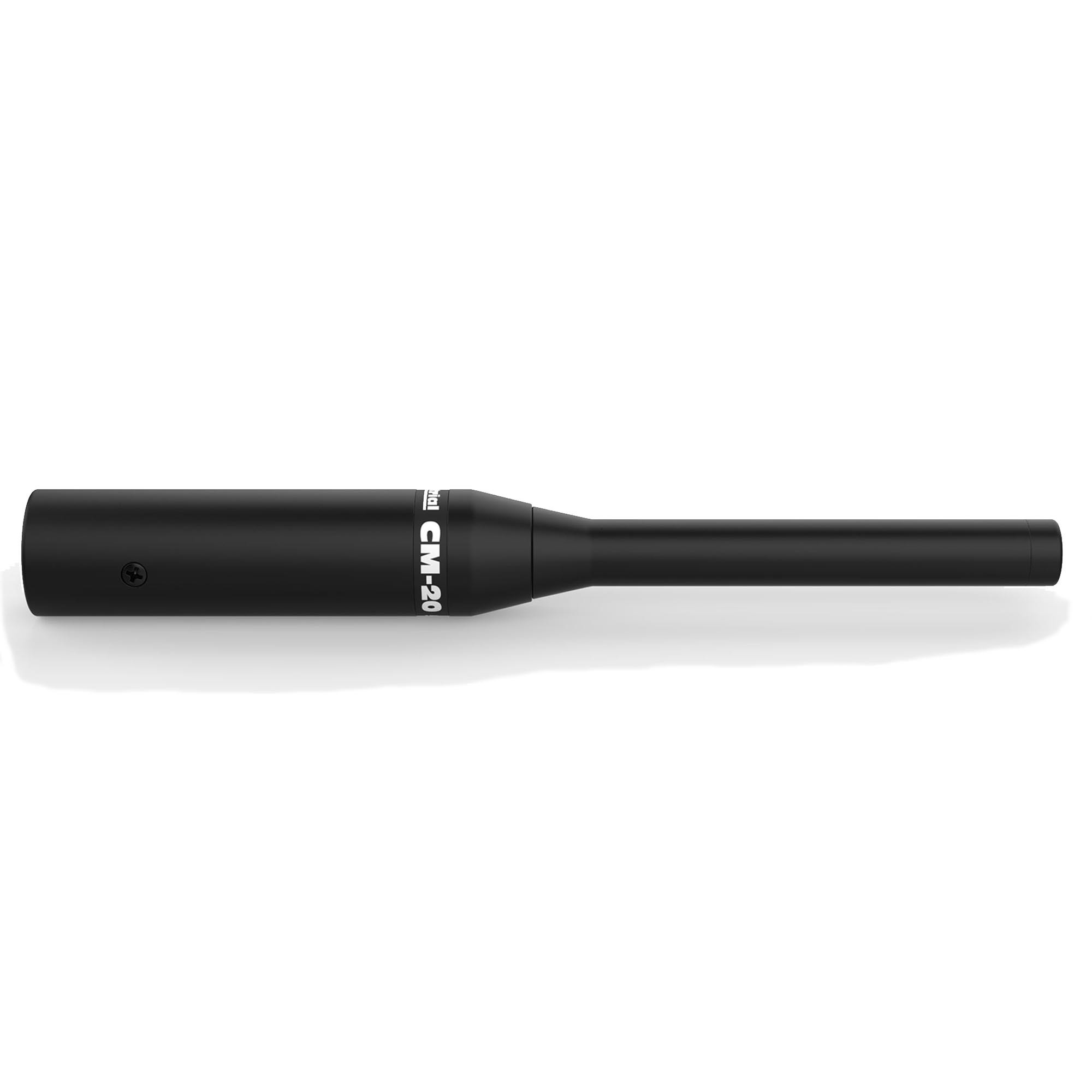

CM-20 Everyday Measurement Microphone
An excellent everyday, budget measurement microphone with commendable frequency response for its price. The CM-20 is a ¼” back electric condenser microphone with omnidirectional pickup, phantom powered and XLR connector. Rugged construction is part of its appeal. At this price, now you can afford to have a spare.
Performance
Frequency Response: 20Hz – 20kHz ±3dB
Polar Pattern: Omnidirectional
Impedance: 250Ω
Phantom Power: 10 – 52Vdc
Connector: 3 pin XLR, pin 2 positive
Weights & Dimensions:
Tip Diameter: 10 mm (.39 inches)
145 mm ( 5.7 inches)
In the box: CM-20 Microphone
UPC: |
841992140424 |
Bundle: |
Yes |
Feature 1: |
The DM-RTA isn’t just an RTA. Accessible from the DM-RTA app are five modules, including Voltage Meter, RTA (1/3, 1/6, and 1/12 octave), SPL Meter, Polarity Checker and a fully functional Oscilloscope. |
Feature 2: |
Test and measure nearly every signal imaginable from acoustical, to line level, and speaker level. Balanced and unbalanced line level inputs allow the DM-RTA to be inserted into your signal chain to verify optimal signal from source to speakers. This |
Feature 3: |
AudioControl offers a wide range of professional measurement and instrumentation microphones which will make a perfect addition to your DM-RTA tool kit for making accurate acoustical measurements. Included in this package it the CM-10, a long time st |
Feature 4: |
The DM-RTA’s microphone preamp will also support any standard measurement microphone, should you already have one in your tool kit. |
Condition: |
NEW |
Weight: |
5.0000 lbs |
ASIN: |
B082L58L4J |
