Description
Included in this kit
This bundle includes 1x AudioControl DM-810 Premium 8 Input 10 Output DSP Matrix Processor, and 1x AudioControl AC-BT24 Bluetooth Streamer & Programmer for AudioControl DSP products featuring the Option Port.
1x AudioControl DM-810 Premium 8 Input 10 Output DSP Matrix Processor - (DM-810)
Audio Control DM-810 Premium 8 Input 10 Output DSP Matrix Processor
When you require total control and optimization to achieve great sound quality, AudioControl’s DM-810 Processor is the solution.
The powerful DM-810 processor allows users to truly optimize the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of “Making Good Sound Great”.
These highly versatile Digital Signal processors are equipped with key features, such as active speaker level inputs, line-level and digital audio inputs, providing up to 10 channels of output. AudioControl’s “smart user” interface contains the power of AudioControl processing through a flexible PC interface packed full of features in a simple lay out. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM as well as integrated input and output RTA’s.
The built in Option Port on the DM-810 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers and interface solutions.
Designed to be the ultimate in sound quality and enhanced audio performance, the DM-810 is our latest AudioControl processor that sets a new standard for sound and what can be achieved in car audio systems.
FEATURES
Smart User Interface software included
Input and Output RTA for precise and informed tuning
GTOTM Signal Sensing
MILCTM Clip Detection
AccuBASS®
Signal Summing
Signal Delay
12 and 24 dB/octave crossovers
30 band equalizer
Optional ACR-3 remote for preset recall and level control
Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

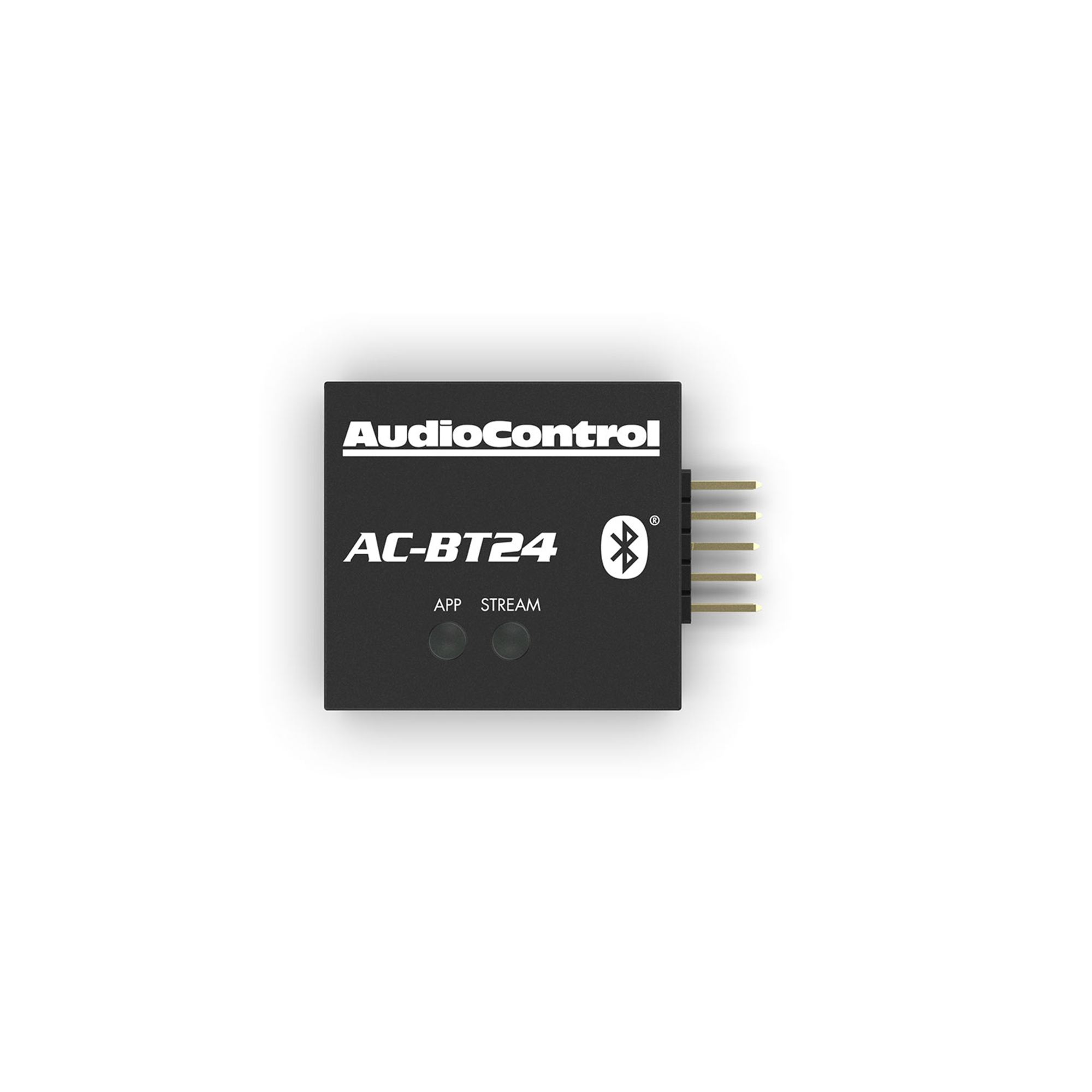

1x AudioControl AC-BT24 Bluetooth Streamer & Programmer for AudioControl DSP products featuring the Option Port - (AC-Bt24)
AudioControl AC-BT24 Bluetooth Streamer & Programmer for AudioControl DSP products featuring the Option Port
The AC-BT24 enables high definition Bluetooth® audio streaming (aptX HD support) and programming for AudioControl DSP products featuring the Option Port. Stream hires audio directly to the DM-810 and DM-608 DSP or the D-6.1200 DSP amplifier and program the DSP simultaneously. The AC-BT24 also allows for complete DSP setup and programming using the DM Smart DSP app for iOS and Android.
The AC-BT24 connects to AudioControl products with the built-in Option Port, allowing high definition audio streaming directly into the DSP, as well as DSP set up and programming. The Option Port provides power to the AC-BT24 which can then be paired to your Bluetooth enabled phone or tablet.
Features:
• High Definition Low-Latency Audio Streaming
• aptXTM HD Support
• 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
• Wireless DSP Programming via DM Smart DSP™ app for iOS/Android
• Simultaneous Audio Streaming and DSP Programming
Specifications:
• bluetooth
• Version: 4.2
• aptX HD Compatible
• UART Interface
Output -
• Dual Differential Class AB Output Stage
Performance -
• Signal to Noise Ratio: 96 dB
• Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
• Operating Range: 10+ meters (depending on environment)
General -
• Power Requirements: Provided by Option Port
Weights & dimensions -
• Dimensions: 1.4”L x 1.0”W x 0.5”H
• Weight: 0.3 oz (9 g)
In the box: AC-BT24, Quick Start Card
