Description
Included in this kit
Alpine S-DB8V-TRK Dual 8" Halo S-Series Preloaded Truck Subwoofer Enclosure with Alpine S-A60M S-Series 600 Watt Mono Amp and RUX-KNOB.2 Bass Knob - This bundle includes a Alpine S-DB8V-TRK Dual 8” Alpine Halo S-Series Preloaded Truck Subwoofer Enclosure, a Alpine S-A60M Mono Digital Subwoofer Amplifier - 600 Watts x 1 @ 2-Ohms & 330 Watts x 1 @ 4-Ohms, a Alpine RUX-KNOB.2 Remote Bass Knob, a pry kit, and an Alpine coozy.

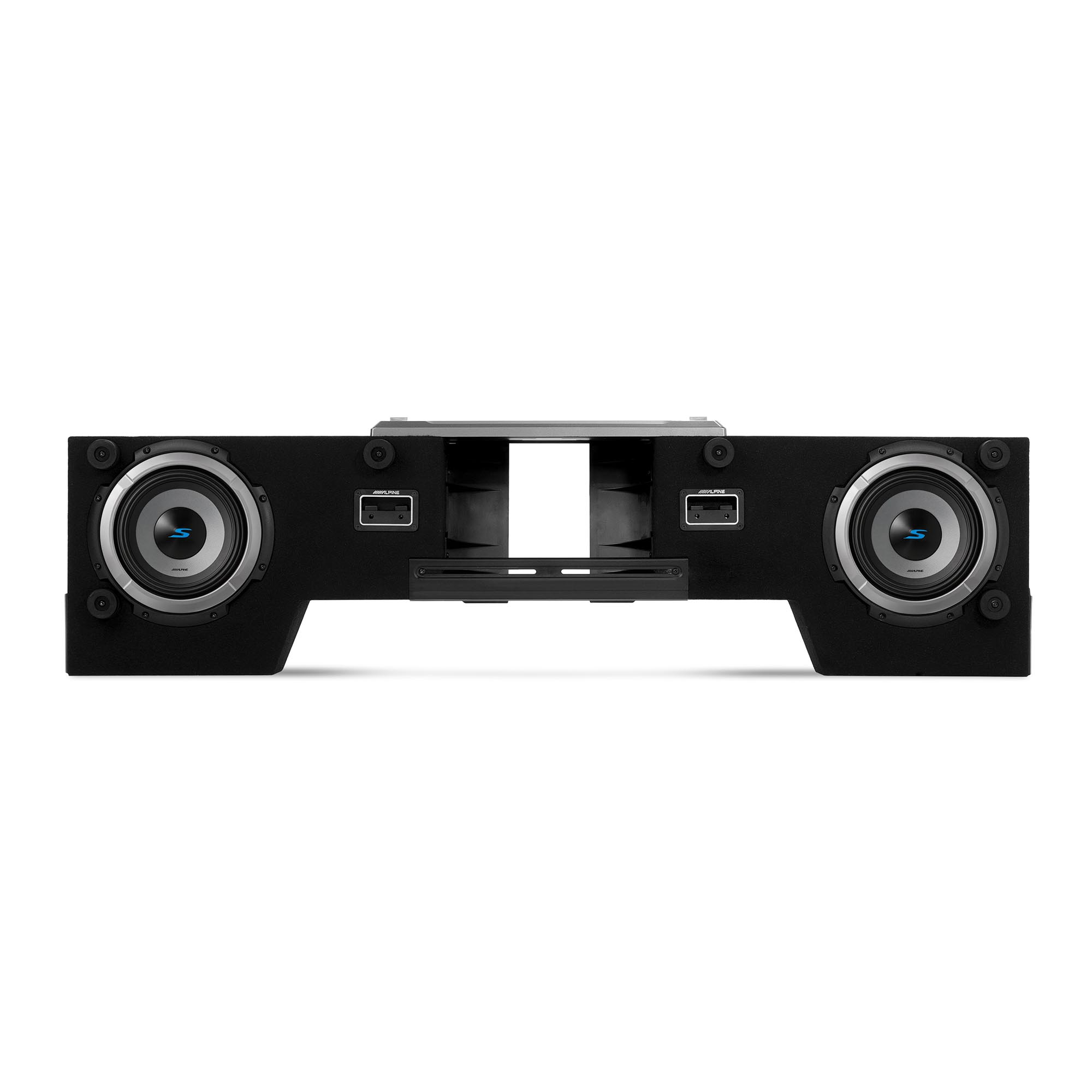

Alpine S-DB8V-TRK Dual 8” Alpine Halo S-Series Preloaded Truck Subwoofer Enclosure
TECH SPECS:
• Dimensions: 40”-51” (W) x 8-3/4” (H) x 13-3/4” (D)
• Power Range: 300W - 600W
• Power Handling: 600W
• Frequency Response: 34Hz-200Hz
• Vented Enclosure Tuning Frequency: 36Hz
• Sensitivity: 84dB
• Dual voice coils Wired in Parallel for a 2Ω Load
• Custom speaker terminals fit up to 12AWG speaker wire
WHAT’S IN THE BOX
• Two subwoofer enclosures preloaded with two S-W8D2 8” S-Series Subwoofers
• Front and rear ProLink™ brackets
• Alpine front logo cover
• Two amplifier tray brackets
• Owner’s Manual
Alpine S-A60M Mono Digital Subwoofer Amplifier - 600 Watts x 1 @ 2-Ohms & 330 Watts x 1 @ 4-Ohms
Specifications:
• Power output 4-Ohm @ 14.4 Volts: 330 W RMS X 1
• Power output 2-Ohm @ 14.4 Volts: 600 W RMS X 1
• THD 10 W into 4 Ohms: Less Than 0.03%
• THD 10 W into 2 Ohms: Less Than 0.05%
• THD Rated Power 4 Ohms: Less Than 0.02%
• THD Rated Power 2 Ohms: Less Than 1.0%
• S/N Ratio: 1 W into 4 Ohms: >85dB
• Frequency Response:+0/-3 dB 10Hz - 400Hz
• Frequency Response:+0/-1 dB 20Hz - 300Hz
• Input Sensitivity: Hi (0.5 - 10V), Low (0.2 - 4.0V)
• Crossover: Variable HPF/LPF, (50Hz - 400 Hz)
• Dimensions: Width - 8-1/8", Height - 2-3/8", Depth - 8-1/8"
• Weight: 4lb 3 oz
Includes Alpine RUX-KNOB.2 Remote Bass Knob
OPTIMIZED FITMENT
• 2018-Up RAM 1500 (Crew Cab)
• 2015-Up Ford F-150 (Crew Cab)
• 2018-Up GMC Sierra (Crew Cab)
• 2018-Up Chevrolet Silverado (Crew Cab)
• 2007-Up Jeep® Wrangler (JK/JL) and Jeep® Gladiator
