ARC Audio Compatible With Harley (1) KX125.2 + Harley Harness Amplifier Wiring Kit-This bundle includes the Arc Audio KS 125.2 BX2 2-Channel Motorcycle Audio Amplifier and the Arc Audio HD-Harness KS125.2BX2 Wiring Kit Compatible With Harley Street Glide (2014+) And Road Glide (2015+)

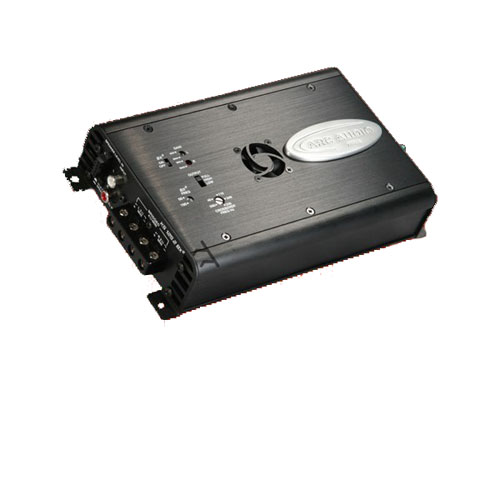

Arc Audio KS 125.2 BX2 2-Channel Amplifier
The KS125.2BX Mini Exclusively Incorporates ARC Audio’s BX2 Low-Frequency Enhancement Technology. The BX2 Technology Gives You Big Bass And Improved Low-Frequency Response Without The Additional Physical Demand On Your Speakers.
Specifications -
2- Channels @ 4 Ohms - 70 Watts
2-Channels @ 2 Ohms - 125 Watts
1-Channel @ 4 Ohms (Bridged) - 250 Watts
Frequency Response - 20Hz - 20kHz
Crossover Range - 50Hz - 550Hz

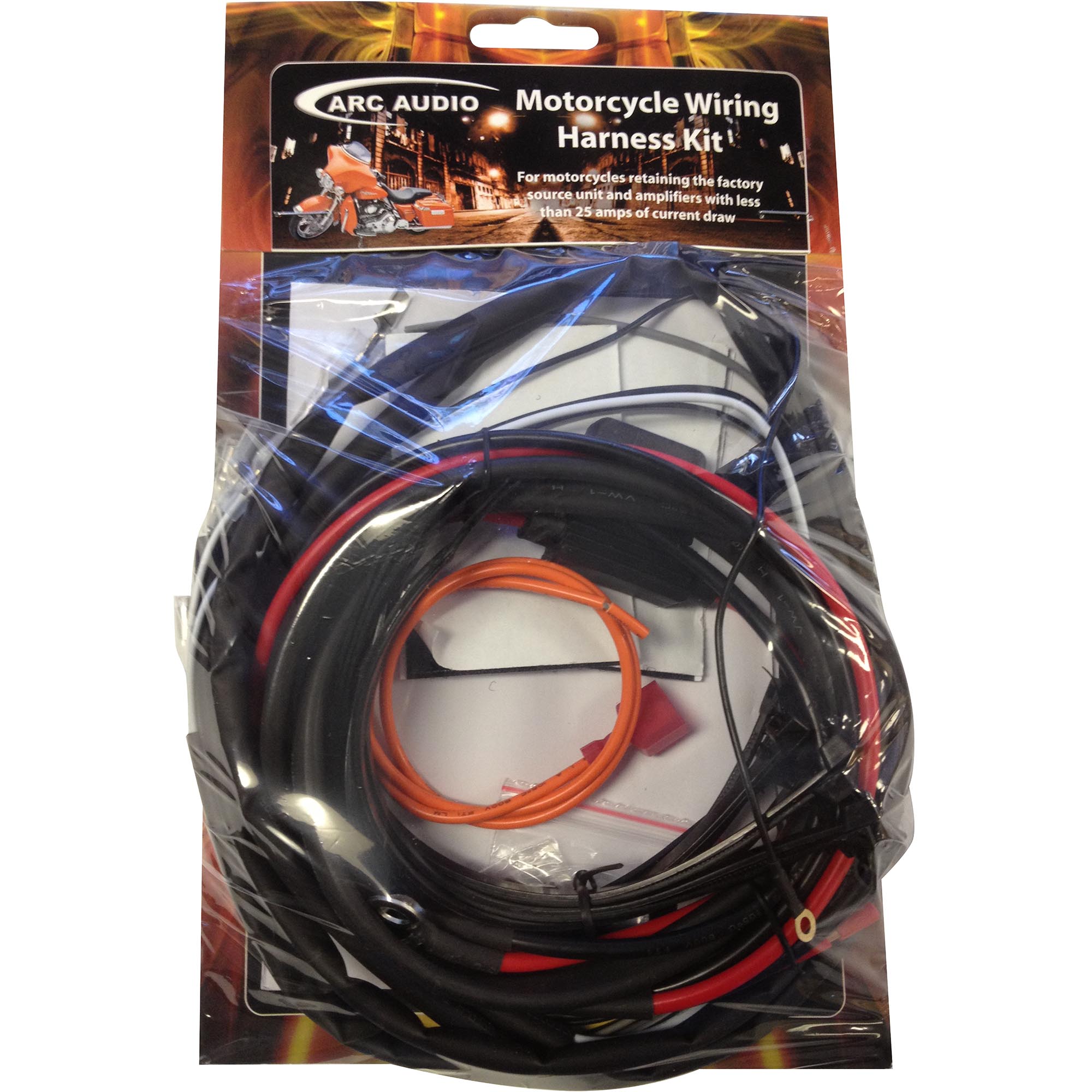

Arc Audio HD Harness
DO NOT USE THE POWER PORTION OF THIS HARNESS KIT TO INSTALL THE ARC AUDIO MOTO600.4! THE POWER HARNESS INCLUDED IN THIS KIT IS ONLY FOR USE WITH THE KS125.2BX2 Mini. IF INSTALLING THE MOTO600.4 YOU WILL ALSO NEED TO PURCHASE THE "HD POWER" KIT AS WELL FOR PROPER INSTALLATION
Kit Includes All Necessary Hardware And Materials To Install Most Any Small Package Amplifier Into The Fairing Of Your Motorcycle (Based On The ARC Audio KS125.2BX Connection Platform.)
(1) Fully Pre-loomed 12 AWG Red/Black Main Power Harness With Inline Fuse
(1) Plug and Play Input/Output Signal Harness
(1) Pre-Terminated Orange 18 AWG Remote Turn on wire
(1) Adhesive Backed 160mm x 110mm Hook & Loop (For Amplifier)
(2) Adhesive Backed 80mm x 50mm Hook & Loop (For Mounting Crossovers)
(4) Machine Screw Phillips Back (For Amplifier Mounting On Road Glide Applications)
(4) Nut w/Star Washer Black
(10) Zip Ties
Arc Audio KS 125.2 BX2 2-Channel Amplifier
The KS125.2BX Mini Exclusively Incorporates ARC Audio’s BX2 Low-Frequency Enhancement Technology. The BX2 Technology Gives You Big Bass And Improved Low-Frequency Response Without The Additional Physical Demand On Your Speakers.
Specifications -
2- Channels @ 4 Ohms - 70 Watts
2-Channels @ 2 Ohms - 125 Watts
1-Channel @ 4 Ohms (Bridged) - 250 Watts
Frequency Response - 20Hz - 20kHz
Crossover Range - 50Hz - 550Hz
Arc Audio HD Harness
DO NOT USE THE POWER PORTION OF THIS HARNESS KIT TO INSTALL THE ARC AUDIO MOTO600.4! THE POWER HARNESS INCLUDED IN THIS KIT IS ONLY FOR USE WITH THE KS125.2BX2 Mini. IF INSTALLING THE MOTO600.4 YOU WILL ALSO NEED TO PURCHASE THE "HD POWER" KIT AS WELL FOR PROPER INSTALLATION
Kit Includes All Necessary Hardware And Materials To Install Most Any Small Package Amplifier Into The Fairing Of Your Motorcycle (Based On The ARC Audio KS125.2BX Connection Platform.)
(1) Fully Pre-loomed 12 AWG Red/Black Main Power Harness With Inline Fuse
(1) Plug and Play Input/Output Signal Harness
(1) Pre-Terminated Orange 18 AWG Remote Turn on wire
(1) Adhesive Backed 160mm x 110mm Hook & Loop (For Amplifier)
(2) Adhesive Backed 80mm x 50mm Hook & Loop (For Mounting Crossovers)
(4) Machine Screw Phillips Back (For Amplifier Mounting On Road Glide Applications)
(4) Nut w/Star Washer Black
(10) Zip Ties
- SKU:
- ArcBDL191009-07
- UPC:
- 841992137806
- Condition:
- New
- Availability:
- In stock and ready to ship!
- Shipping:
- Free 2-Day Shipping!
Click image to download warranty PDF
UPC: |
841992137806 |
Bundle: |
Yes |
Feature 1: |
The KS125.2BX Mini Exclusively Incorporates ARC Audio’s BX2 Low-Frequency Enhancement Technology. The BX2 Technology Gives You Big Bass And Improved Low-Frequency Response Without The Additional Physical Demand On Your Speakers. |
Feature 2: |
The KS125.2BX Mini Uses A High-Velocity Forced Induction Fan For Additional Cooling. |
Feature 3: |
Bridge Auto Detect Mode (Autosense Turn On). |
Feature 4: |
Designed To Allow For A Cut Free Installation Of Your Motorcycles Main Wire Harness. |
Feature 5: |
Harness Designed By Factory Trained Technicians From Mitchel's Modesto Harley . |
Condition: |
NEW |
Manufacturer SKU: |
ArcBDL191009-07 |
Weight: |
3.7000 lbs |
ASIN: |
B07Z9QGFSK |
