Description
Included in this kit
This bundle includes an ARC Audio MOTO-800 4 Channel 800 Watt Motorcycle Amplifier, a Cicada Audio CH65.2v2 - High Efficiency 6.5-Inch Horn Coaxial Speakers - 2 Ohm, Pair, a Cicada Audio CH69.2W - All Weather Coaxial Horn 6x9-inch - 2 Ohm, Pair, an Arc Audio HD-2014+ Factory Integration Harness compatible with Harley Davidson Street Glide (2014+) & Road Glide (2015+), and an Arc Audio HD-FH2014 Wiring Harness Kit compatible with Harley Street Glide (2014+) And Road Glide (2015+).

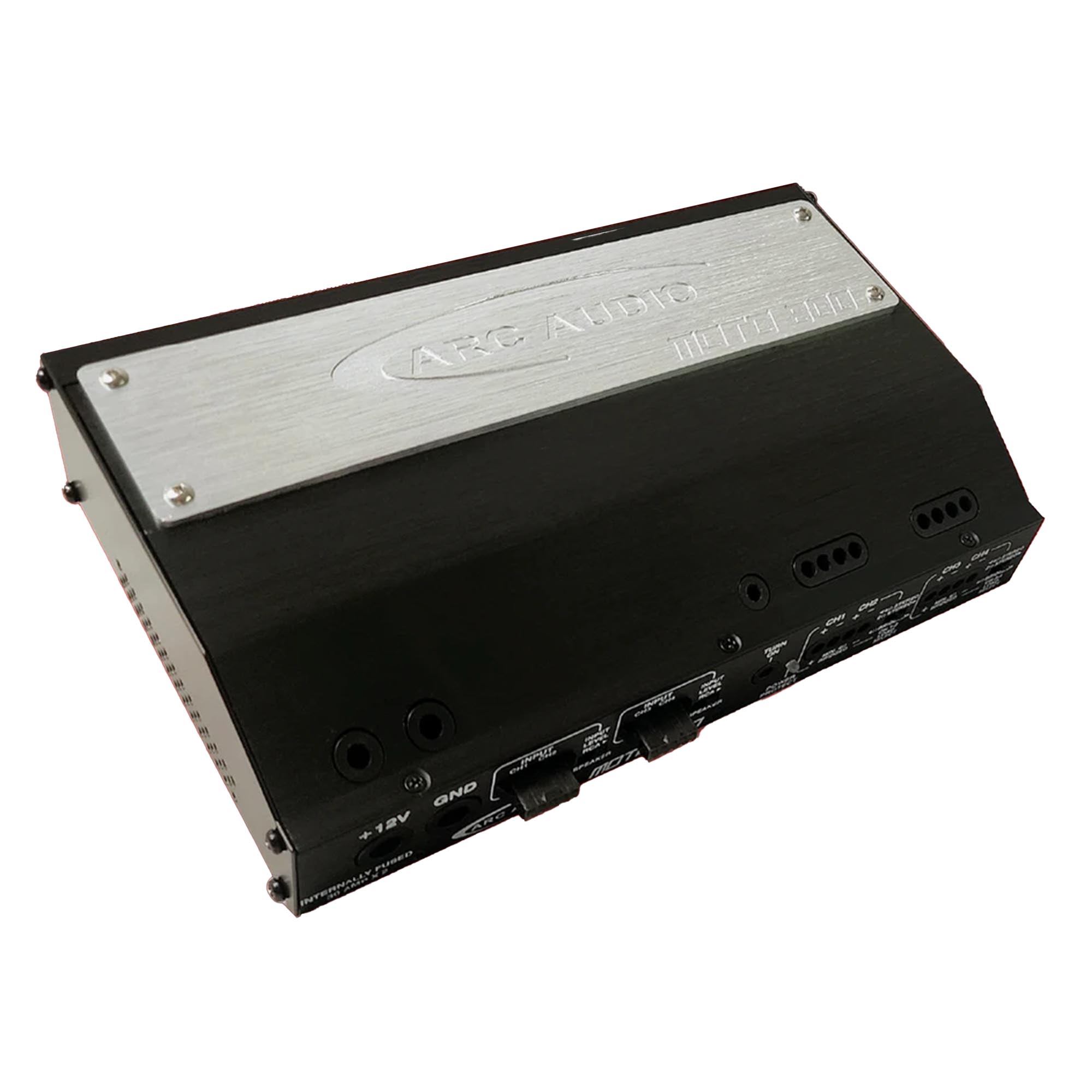

1x ARC Audio MOTO-800 4 Channel 800 Watt Motorcycle Amplifier (MOTO-800)
This new amplifier delivers more power and features from the compact HD motorcycle-specific chassis of the legendary MOTO 600.4 and MOTO 720. While it carries the MOTO category name, many ARC Audio dealers find the compact 8.125 by 5.5-inch footprint ideal for under-seat in exotic cars and behind-seat installations in trucks.
The MOTO 800 delivers an impressive 800+ watts of power across its four output channels and up to 400 x 2 watts when bridged to a single four-ohm speaker. The Load Select switch adjacent to each speaker connection plug allows installers to optimize the power production capabilities for each installation. This flexibility is ideal for side-by-side and automotive applications that use front speakers that need full power at four ohms and a subwoofer that presents a bridged four-ohm load. Speaker terminal blocks integrated to the amplifier chassis deliver solid and reliable power delivery to the speakers in even the harshest of conditions.
Specifications: 4- Channels @ 4 Ohms: 180 Watts
4-Channels @ 2 Ohms: 200 Watts
2-Channel @ 4 Ohms (Bridged): 400 Watts (Bridged)
2-Channel @ 2-Ohms (Bridged): Not Recommended
1-Channel @ 4-Ohms (Bridged): Not Recommended
Frequency Response: 10Hz - 20kHz
Amplifier Frequency Response (Using Factory Radio): 85Hz - 20kHz
Crossover Range: 50Hz - 550Hz
Bass Boost: No
S/N Ratio: 95dB
Remote Level Control Included: No
Input Sensitivity (Low): 200mV - 3.5V
Built in Fan Cooling: Yes
Fusing: 2 x 30amp
Signal Input Connection Type: Pigtail (PNP) Harness
Pigtail Harness Included: Yes, RCA harness included
Signal Input Connection compatibility: Direct connection to RCA Harness, PSM or MPAK wire harness kit
Dimensions: 8.125"(L) x 5.43"(W) x 1.8"(H)
1x Cicada Audio CH65.2v2 - High Efficiency 6.5-Inch Horn Coaxial Speakers - 2 Ohm, Pair (CH65.2v2)
FEATURES
• Designed for 2014+ H-D factory designed locations
• Removable threaded horn flange for easy modification
• Aluminum tweeter diaphragm material
⁃ Brighter sound
⁃ Maximized efficiency
• External 12dB crossover with optional -3/-6 tweeter attenuator
• 1.4-inch OFC copper wire tweeter voice coils offers great sound while generating less heat
• Water resistant treated paper cone
⁃ Lightweight and heavy duty
⁃ Maximized efficiency
• Black CoatTM 2-inch high conductivity, low resistance OFC copper wir
mid-bass voice coil ensures extreme temperature thermal performance
• N35SH Neodymium magnet
• Die cast Aluminum custom tooled basket with Vortex Flow VentingTM
• Two (2) year warranty
SPECIFICATIONS
• 2 ohm 6.5-inch coaxial horn driver
• Power Handling: 250W RMS/500W MAX
• Voice Coil: 2.0-inch/51mm mid-bass and 1.4-inch/36mm tweeter
• Tweeter Dome: Aluminum
• Crossover: 12 dB external custom tooled. vented, encased crossover
• Tweeter Attenuation: -3/-6dB heat sink encased resistor crossover
• Cone: Water resistant treated paper cone
• Magnet: Neodymium
• Sensitivity: 99 dB, 1W/1M
• Frequency Response: 75Hz - 20kHz +/- 3dB
• Mounting Depth: 3.0-inch/76mm
• Mounting Diameter: 5.7-inch/145mm
1x Cicada Audio CH69.2W - All Weather Coaxial Horn 6x9-inch - 2 Ohm, Pair (CH69.2W)
FEATURES:
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
Removable threaded horn ring for easy modification
Rain or Shine™ all weather performance design
Available in 4- or 2-Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
External 12dB crossover with optional -3/-6 tweeter attenuator
4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat
Water resistant treated paper cone
Lightweight / rigid
Maximized efficiency / super strong
Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
N35SH Neodymium magnet
Die cast Aluminum custom tooled basket with Vortex Flow Venting™
Warranty: 2 years
SPECIFICATIONS:
2Ω – 6X9-inch coaxial horn driver
Power handling: 250W RMS/500W MAX
Voice Coil: 2.5-inch/64mm Mid-bass & 1.4-inch/36mm Tweeter
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
Cone: water resistant treated paper cone
Magnet: Neodymium
Sensitivity: 95dB
Frequency response 75Hz – 20kHz +/- 3dB
Mounting Depth: 3.7-inch/93mm
Mounting Diameter: 6.6-inch/155mm X 9.3-inch/226mm
1x Arc Audio HD-2014+ Factory Integration Harness compatible with Harley Davidson Street Glide (2014+) & Road Glide (2015+) (HD-2014+)
Arc Audio HD 2014+ Harness Specifically designed for the 2014+ Harley Davidson Street glide and 2015+ Harley Davidson Road Glide bagger motorcycles the 2014+ HD Adapter Harness is your plug and play audio upgrade solution for your new HD motorcycle.
Designed as a supplement the ARC Audio HD Harness the 2014+ Harness kit includes exact fit water tight factory plugs for all speaker and remote turn on lead connections. Simply connect the 2014+ harness to the color matched connections on the ARC Audio HD Harness, connect to the other side to the factory wires and off you go. No cutting, tapping, soldering or splicing needed (No warranties voided!).
THIS IS A SUPPLEMENTAL HARNESS KIT ONLY. IT REQUIRES PURCHASE OF THE HD HARNESS KIT FOR ALL COMPONENTS REQUIRED TO COMPLETE AN AMPLIFIER INSTALLATION
Kit Includes:
OEM Direct Fit Plug With Lead For Remote Turn-On Circuit
(4) Color Coded OEM Direct Fit Water Tight Speaker Connectors
1x Arc Audio HD-FH2014 Wiring Harness Kit compatible with Harley Street Glide (2014+) And Road Glide (2015+) (HD-FH2014)
Arc Audio HD FH2014 Wiring Harness Kit
Complete wiring and installation kit for the Moto 600.4 amplifier into 2014+ HD motorcycles
100% Color Coded Plug And Play Design.
Harness Designed By Factory Trained Technicians From Mitchel's Modesto Harley .
Designed To Work With All Factory Stereo Equipped Bagger Harley Motorcycles.
Designed To Allow For A Cut Free Installation Of Your Motorcycles Main Wire Harness.
Factory Looming And Materials Used In Harness Preparation.
Kit Includes All Necessary Hardware And Materials To Install Most Any Small Package Amplifier Into The Fairing Of Your Motorcycle (Based On The ARC Audio Moto600.4 amplifier on 2014+ HD Baggers)
(1) Fully Pre-loomed 8 AWG Red/Black Main Power Harness With Inline Fuse
(1) Plug and Play Input/Output Signal Harness
(1) Pre-Terminated Orange 18 AWG Remote Turn on wire
(1) Adhesive Backed 160mm x 110mm Hook & Loop (For Amplifier)
(1) Blue Butt Connector for Turn on lead connection when using the ARC Audio PSM DSP
(10) Zip Ties
