Description
Included in this kit
This bundle includes an ARC Audio MOTO-800 4 Channel 800 Watt Motorcycle Amplifier, an Arc Audio HD-2014+ Factory Integration Harness compatible with Harley Davidson Street Glide (2014+) & Road Glide (2015+), an Arc Audio HD-FH2014 Wiring Harness Kit compatible with Harley Street Glide (2014+) And Road Glide (2015+), and an Arc Audio HD-Power - 8-Gauge OFC Amplifier Wiring Kit compatible with Harley Davidson.
1x ARC Audio MOTO-800 4 Channel 800 Watt Motorcycle Amplifier (MOTO-800)
This new amplifier delivers more power and features from the compact HD motorcycle-specific chassis of the legendary MOTO 600.4 and MOTO 720. While it carries the MOTO category name, many ARC Audio dealers find the compact 8.125 by 5.5-inch footprint ideal for under-seat in exotic cars and behind-seat installations in trucks.
The MOTO 800 delivers an impressive 800+ watts of power across its four output channels and up to 400 x 2 watts when bridged to a single four-ohm speaker. The Load Select switch adjacent to each speaker connection plug allows installers to optimize the power production capabilities for each installation. This flexibility is ideal for side-by-side and automotive applications that use front speakers that need full power at four ohms and a subwoofer that presents a bridged four-ohm load. Speaker terminal blocks integrated to the amplifier chassis deliver solid and reliable power delivery to the speakers in even the harshest of conditions.
Specifications: 4- Channels @ 4 Ohms: 180 Watts
4-Channels @ 2 Ohms: 200 Watts
2-Channel @ 4 Ohms (Bridged): 400 Watts (Bridged)
2-Channel @ 2-Ohms (Bridged): Not Recommended
1-Channel @ 4-Ohms (Bridged): Not Recommended
Frequency Response: 10Hz - 20kHz
Amplifier Frequency Response (Using Factory Radio): 85Hz - 20kHz
Crossover Range: 50Hz - 550Hz
Bass Boost: No
S/N Ratio: 95dB
Remote Level Control Included: No
Input Sensitivity (Low): 200mV - 3.5V
Built in Fan Cooling: Yes
Fusing: 2 x 30amp
Signal Input Connection Type: Pigtail (PNP) Harness
Pigtail Harness Included: Yes, RCA harness included
Signal Input Connection compatibility: Direct connection to RCA Harness, PSM or MPAK wire harness kit
Dimensions: 8.125"(L) x 5.43"(W) x 1.8"(H)
1x Arc Audio HD-2014+ Factory Integration Harness compatible with Harley Davidson Street Glide (2014+) & Road Glide (2015+) (HD-2014+)
Arc Audio HD 2014+ Harness Specifically designed for the 2014+ Harley Davidson Street glide and 2015+ Harley Davidson Road Glide bagger motorcycles the 2014+ HD Adapter Harness is your plug and play audio upgrade solution for your new HD motorcycle.
Designed as a supplement the ARC Audio HD Harness the 2014+ Harness kit includes exact fit water tight factory plugs for all speaker and remote turn on lead connections. Simply connect the 2014+ harness to the color matched connections on the ARC Audio HD Harness, connect to the other side to the factory wires and off you go. No cutting, tapping, soldering or splicing needed (No warranties voided!).
THIS IS A SUPPLEMENTAL HARNESS KIT ONLY. IT REQUIRES PURCHASE OF THE HD HARNESS KIT FOR ALL COMPONENTS REQUIRED TO COMPLETE AN AMPLIFIER INSTALLATION
Kit Includes:
OEM Direct Fit Plug With Lead For Remote Turn-On Circuit
(4) Color Coded OEM Direct Fit Water Tight Speaker Connectors
1x Arc Audio HD-FH2014 Wiring Harness Kit compatible with Harley Street Glide (2014+) And Road Glide (2015+) (HD-FH2014)
Arc Audio HD FH2014 Wiring Harness Kit
Complete wiring and installation kit for the Moto 600.4 amplifier into 2014+ HD motorcycles
100% Color Coded Plug And Play Design.
Harness Designed By Factory Trained Technicians From Mitchel's Modesto Harley .
Designed To Work With All Factory Stereo Equipped Bagger Harley Motorcycles.
Designed To Allow For A Cut Free Installation Of Your Motorcycles Main Wire Harness.
Factory Looming And Materials Used In Harness Preparation.
Kit Includes All Necessary Hardware And Materials To Install Most Any Small Package Amplifier Into The Fairing Of Your Motorcycle (Based On The ARC Audio Moto600.4 amplifier on 2014+ HD Baggers)
(1) Fully Pre-loomed 8 AWG Red/Black Main Power Harness With Inline Fuse
(1) Plug and Play Input/Output Signal Harness
(1) Pre-Terminated Orange 18 AWG Remote Turn on wire
(1) Adhesive Backed 160mm x 110mm Hook & Loop (For Amplifier)
(1) Blue Butt Connector for Turn on lead connection when using the ARC Audio PSM DSP
(10) Zip Ties

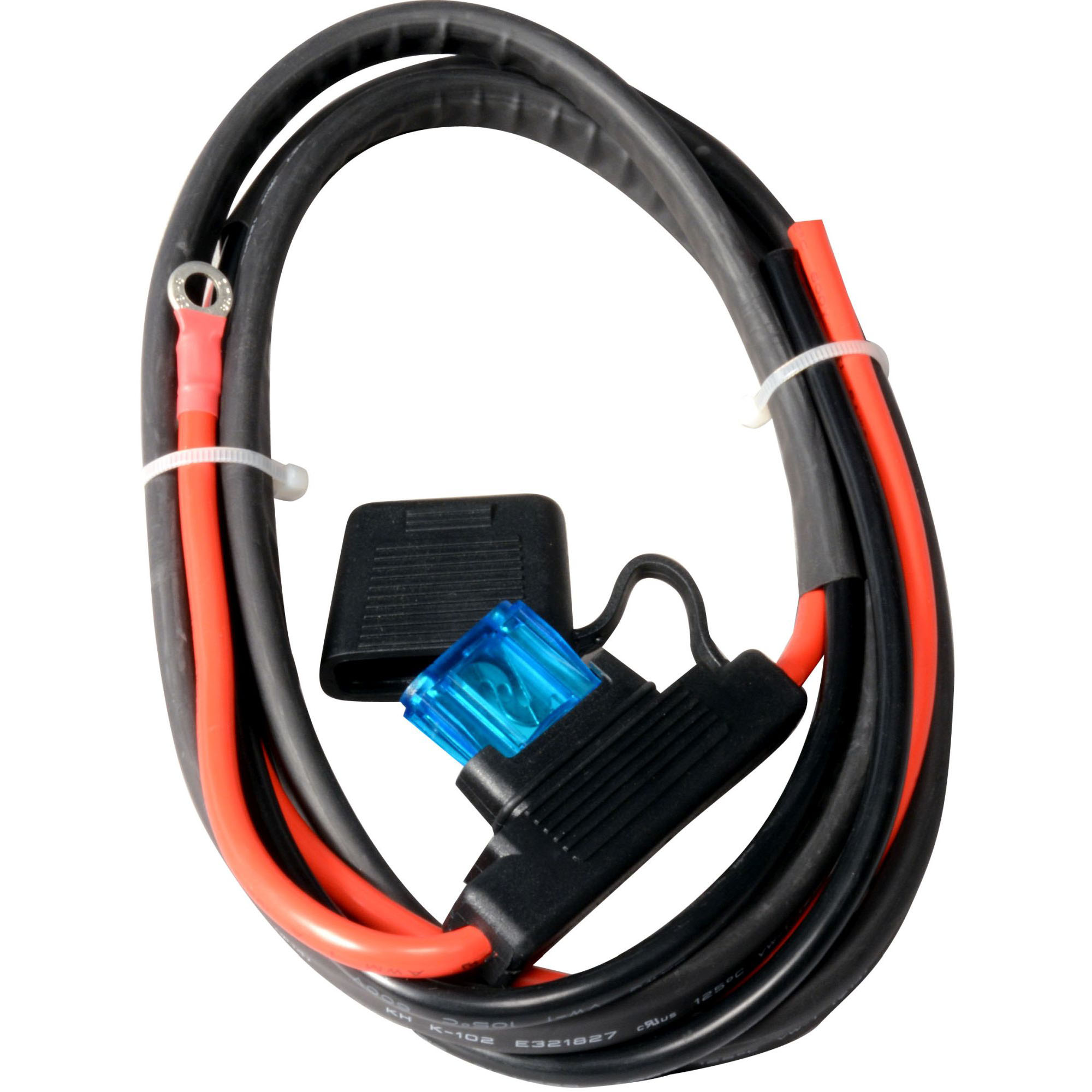

1x Arc Audio HD-Power - 8-Gauge OFC Amplifier Wiring Kit compatible with Harley Davidson (HD-Power)
Arc Audio HD Power Kit
Looking to have big power on your HD motorcycle? Using the new ARC Audio Moto 600.4 amplifier? Then the ARC Audio HD Power kit is your ready to go plug and play solution for your motorcycle audio needs.
Designed to handle the higher current needs of the ARC Audio Moto600.4 amplifier, HD Power uses high quality 8 gauge OFC copper cable eliminating chances of corrosion or increases cable resistance over time due to the harsh open environment. Capable of supplying current to most any heavy duty application up to 60A of continuous current draw, HD Power comes complete with integrated/molded fuse holder (w/fuse), insulated high current ring terminals and factory type wire looming for the ultimate in power cable integration.
Works In Most Any Motorcycle Amplifier Application Up To 60A Continuous Current Draw.
Designed As A Plug And Play Power Kit Required For Use With The Moto600.4 Amplifier.
Includes Molded Hi-Current Fuse Holder (w/60A fuse).
Pre-Terminated And Insulated Battery Ring Terminals For Quick Connection At The Factory Battery.
8-Gauge Hi-Quality OFC Copper Core Cable (No CCA garbage here).
Loomed Harness Design Improved Integration And Ease Of Installation Into Your Motorcycle.
