Description
Included in this kit
This bundle includes an Arc Audio X2 850.5 Multi-Channel Amplifier (5-Channels), an Arc Audio X2 6.2 6.5" Component System, an Arc Audio X2 602 6.5” 2-Way Coaxial Speakers, and an ARC Audio A-Series Flat 12" Subwoofer, Dual 4-Ohm, 600W Peak, 300W RMS.

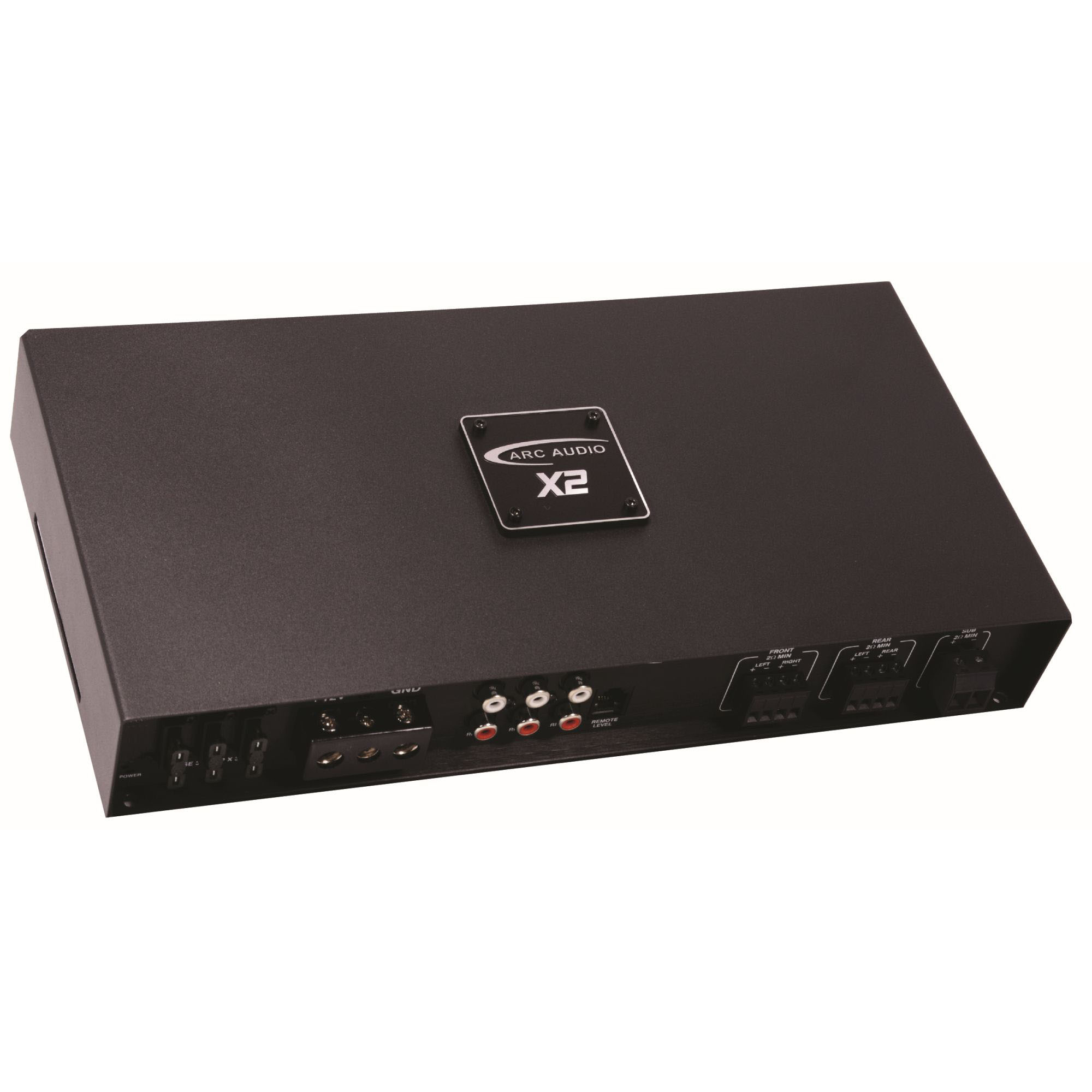

1x Arc Audio X2 850.5 Multi-Channel Amplifier (5-Channels) (X2-850.5)
Arc Audio X2 850.5 Multi-Channel Amplifier (5-Channels)
Multi-Channel Amplifier (5-Channels)
Microprocessor Class-D Design
Designed And Engineered By Robert Zeff
High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality)
Level 1 X2 Cosmetics Package - Texture Coated Stamped Steel Cosmetic Cover With Aluminum Logo Badge. (Changable to Level-2 XDi Cosmetics)
Single Side Connection Design
Full-Range Design
Nickel Plated RCA Terminals
Quick Disconnect Speaker Terminal Plugs
Audiophile Class-D Output Filter Networks
Detailed Micro Processor Controlled Protection
Large, High-Frequency Switching Power Supplies
RCA Inputs Are Compatible With Speaker Level Inputs
Fault Codes Storage Of The Last Protection Code Detected
High Signal To Noise Ratio Without Compromising Power Output
Fully Balanced Input Stage Significantly Increases Flexibility
Ultra-Low ESR, High-capacity Power Supply Storage Capacitors
Flexible Mounting Orientation For Vertical Or Horizontal Installations
Next Generation High-Speed Class-D Technology Powering All XDi Amplifiers.
Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Head Units
Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
Block Type Terminal Connections
Specifications -
4-Channels @ 4 Ohms (Ch 1-4) - 85 Watts
4-Channels @ 2 Ohms (Ch 1 - 4) - 125 Watts
2-Channel @ 4 Ohms (Ch 1-4 Bridged) - 250 Watts
1-Channel @ 4 Ohms (Ch 5) - 225 Watts
1-Channel @ 2-Ohms (Ch 5) - 400 Watts
Frequency Response - 20Hz - 20kHz
Crossover Range (Ch 1-4) - 50Hz - 550Hz
Crossover Range (Ch 5) - 30Hz - 230Hz
Bandpass Capable - No
Bass Boost - Variable 0-12 dB @ 45Hz
Cosmetic Trim - XDi Trim Level 1
Remote Level Control Included - Yes
Input Sensitivity (Low) - 200mV - 3.5V
Fuse - 3 x 30 Amp
Dimensions - 12.42"(L) x 6.268"(W)x2.162"(H)
1x Arc Audio X2 6.2 6.5" Component System (X2-6.2)
Arc Audio X2 6.2 6.5" Component System
Full Range 6.5" OEM Fit Component System Speaker Design
Sold In Pairs Only
Designed And Engineered In The USA
2- Way Component Speakers With External Speakers And Stand-Alone Tweeters
Reinforced Injected Poly Cone Material
Design Specific Heavy Duty Stamped Aluminum Basket
Vented Basket Design For Improved Midbass, Overall Output And Elimination Of Rear Wave Distortion
Ultra-Low Distortion Linear Suspension Design
High-Temperature Copper / Kapton Voice Coil Former
High-End Audiophile Grade Polypropylene Crossover Filter
15mm Silk Dome Tweeter
1x Arc Audio X2 602 6.5” 2-Way Coaxial Speakers (X2-602)
Arc Audio X2 602 6.5” 2-Way Coaxial Speakers
Full Range 6.5" OEM Fit Coaxial Speaker Design
Sold In Pairs Only
Designed And Engineered In The USA
2-Way Coaxial Design
Reinforced Injected Poly Cone Material
Design Specific Heavy-Duty Stamped Aluminum Basket
Vented Basket Design for Improved Midbass, Overall Output And Elimination Of Rear Wave Distortion
Ultra-Low Distortion Linear Suspension Design
High-Temperature Copper / Kapton Voice Coil Former
High-End Audiophile Grade Polypropylene Crossover Filter
15mm Silk Dome Tweeter
Specifications -
Speaker Size - 6.5" OEM Fit
Speaker Type - 2-Way Coaxial
Power Handling (Peak) - 150 Watts
Power Handling (RMS) - 75 Watts
Frequency Response - 60Hz - 20kHz
Sensitivity - 89dB
Impedance - 4 ohms
Tweeter Diameter - 20mm
Tweeter Dome Material - Wool Damped Silk Fiber

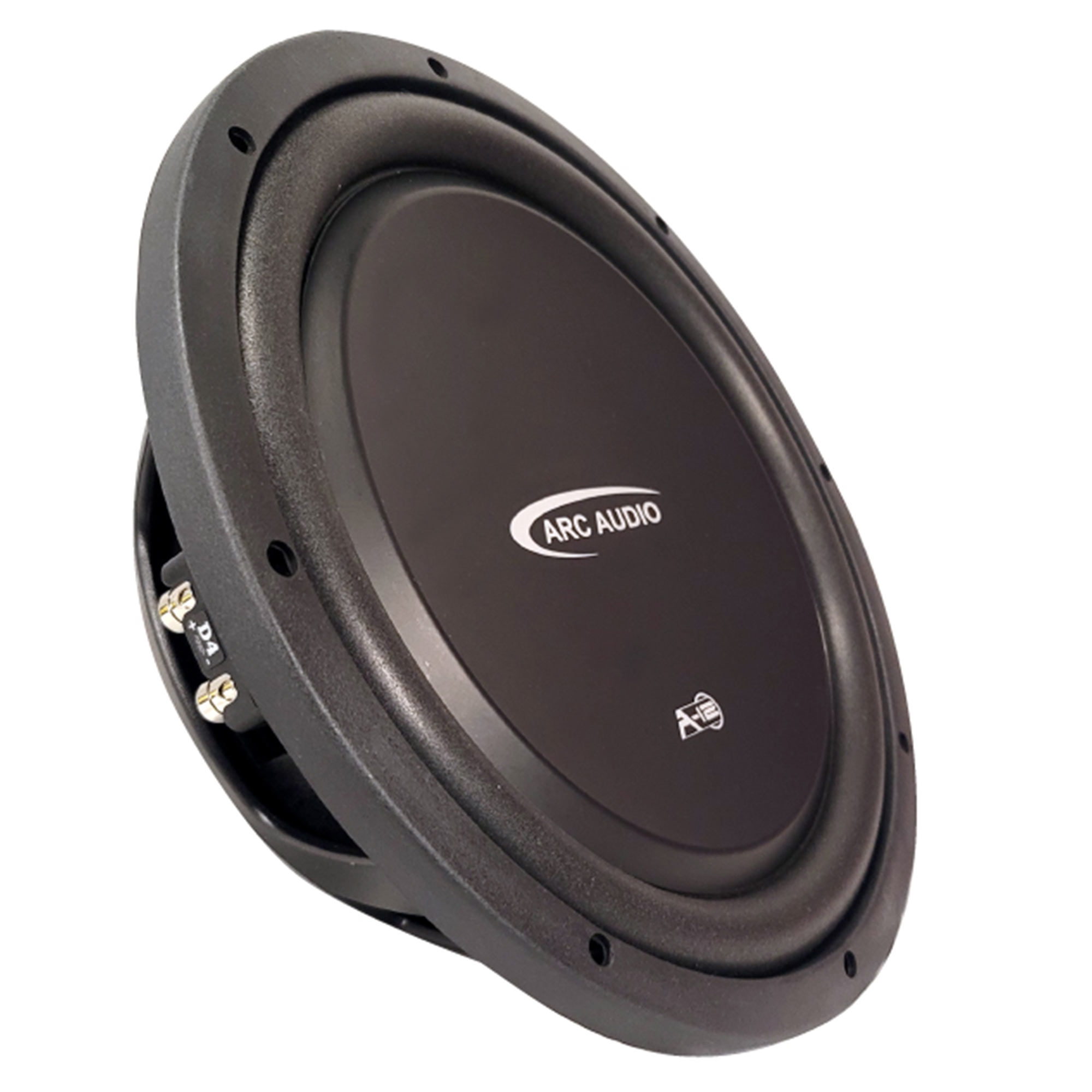

1x ARC Audio A-Series Flat 12" Subwoofer, Dual 4-Ohm, 600W Peak, 300W RMS (A12-D4)
ARC Audio ARC Audio A12-D4
A-Series Flat 12" Subwoofer, Dual 4-Ohm, 600W Peak, 300W RMS
The A-Series subwoofers were designed specifically for applications with limited space that require a lower profile than a standard subwoofer. Performance is designed for the street enthusiast who wants good sound quality, the ability to have some fun at higher output levels, and is still a fraction of the price of higher-end subwoofers like the SW Series. The A12 is available in both 2-ohm or 4-ohm configurations. The A-12 only requires a 3.85” mounting depth and all models feature multi-point geometric basket/motor component resonation control which reduces losses found in a traditional subwoofer. The theme of the A-Series was meant as a tribute to the US armed forces, its dedicated members, and the technology that makes them a superior force around the world. Just like the iconic aircraft that they are named after, the A-12 features advanced technology, is hard-hitting, and is very robust. The A-12 comes in at a 600-watt peak and 300 watt RMS. Simply put, it’s a great all-around sub without breaking the bank!
A-Series subwoofers use a Progressive heat pressed Poly injected Pulp cone delivering a very light weight, durable and sonically proven design maximizing accuracy of the sub across a wide spectrum and level of listening conditions.
The A-Series Surround is composed of simple UV Grade Polyether. This materials is a proven performer in subwoofer manufacturing with above standard performance ratings and exceptional resistance to UV, Humidity, and stress.
A Progressive Twisted Pile Polycotton Nomex Blend spider is used offering premium control and voice coil alignment while minimizing overall mass. This progressive material design allows the sub to execute equal linear control of the moving components at nearly any amount of level of demand being placed on it improving accuracy and overall output at all operating levels.
Imported from Japan the A-Series subwoofers exclusively use Totku Copper Voice Coil windings securely manufactured around a unique spunlaced layered Nomex former with ultra hi-temperature adhesives. These materials and adhesives combined using and stage up adhesive tempering process created the ultimate in thermal resistance and reliability under maximum design demand.
A-Series subwoofers used a proprietary tooled Cold Rolled Steel stamped steel basket design.
All gluing surfaces are cleaned and then surface laser etched and primed prior to adhesive and parts application for maximum bonding strength and maximum reliability in hi-demand and maximum stress conditions.
All Adhesives and bonding agents are dried using time/temp/humidity controlled bonding process in an environmentally controlled drying room based on the adhesive manufacturers specifications for maximum bonding strength and reliability.
Specifications:
A-Series subwoofers use a Progressive heat pressed Poly injected Pulp cone delivering a very light weight, durable and sonically proven design maximizing accuracy of the sub across a wide spectrum and level of listening conditions.
The A-Series Surround is composed of simple UV Grade Polyether. This materials is a proven performer in subwoofer manufacturing with above standard performance ratings and exceptional resistance to UV, Humidity, and stress.
A Progressive Twisted Pile Polycotton Nomex Blend spider is used offering premium control and voice coil alignment while minimizing overall mass. This progressive material design allows the sub to execute equal linear control of the moving components at nearly any amount of level of demand being placed on it improving accuracy and overall output at all operating levels.
Imported from Japan the A-Series subwoofers exclusively use Totku Copper Voice Coil windings securely manufactured around a unique spunlaced layered Nomex former with ultra hi-temperature adhesives. These materials and adhesives combined using and stage up adhesive tempering process created the ultimate in thermal resistance and reliability under maximum design demand.
A-Series subwoofers used a proprietary tooled Cold Rolled Steel stamped steel basket design.
All gluing surfaces are cleaned and then surface laser etched and primed prior to adhesive and parts application for maximum bonding strength and maximum reliability in hi-demand and maximum stress conditions.
All Adhesives and bonding agents are dried using time/temp/humidity controlled bonding process in an environmentally controlled drying room based on the adhesive manufacturers specifications for maximum bonding strength and reliability.
Specifications:
| Power Handling (Peak) | 600 Watts |
| Power Handling (RMS) | 300 Watts |
| Impedance | s4 Ohm |
| Minimum Sealed Enclosure | 0.85 cu ft |
| Optimum Sealed Enclosure | 1.0 cu ft |
| Maximum Sealed Enclosure | 1.25 cu ft |
| Cutout Diameter | 11" |
| Mounting Depth | 3.85" |
Extra Information
Brand:
ARC Audio
Weight:
26.80 LBS
RMS Wattage Per Speaker:
300
UPC:
199730561841
Bundle:
Yes
Feature 1:
This bundle includes an Arc Audio X2 850.5 Multi-Channel Amplifier, X2 6.2 6.5" Component System, X2 602 6.5” 2-Way Coaxial Speakers, and an A-Series Flat 12" Subwoofer.
Feature 2:
Experience superior sound with the Arc Audio X2 850.5 Multi-Channel Amplifier, featuring a microprocessor Class-D design for improved signal transparency.
Feature 3:
The X2 6.2 6.5" Component System offers high-end audiophile-grade sound with a reinforced poly cone and silk dome tweeter.
Feature 4:
Enjoy crisp, clear audio with the X2 602 6.5” 2-Way Coaxial Speakers, designed for low distortion and enhanced midbass output.
Feature 5:
Feel the powerful bass of the A-Series Flat 12" Subwoofer, delivering 600W peak power with a compact design for limited spaces.
Condition:
NEW
Weight:
26.8000 lbs
Shipping:
Free 2-Day Shipping!
