Description
Included in this kit
This bundle includes an Arc Audio X2 1100.5 Multi-Channel Amplifier (5-Channels), an Arc Audio X2 6.2 6.5" Component System, an Arc Audio X2 602 6.5” 2-Way Coaxial Speakers, and an Arc Audio ARC-12D4 12” 4 Ohm Subwoofer.

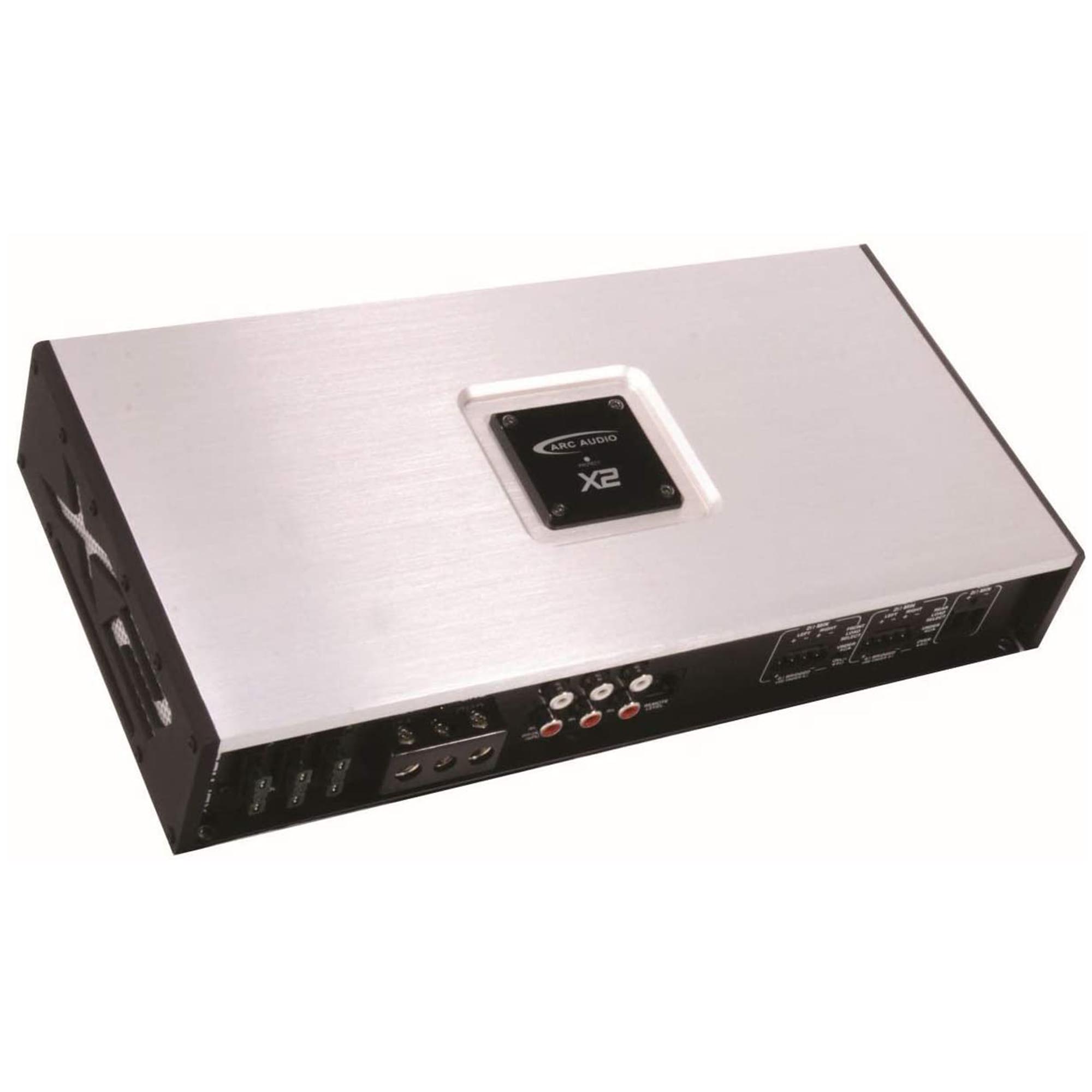

1x Arc Audio X2 1100.5 Multi-Channel Amplifier (5-Channels) (X2-1100.5)
Arc Audio X2 1100.5 Multi-Channel Amplifier (5-Channels)
Multi-Channel Amplifier (5-Channels)
Microprocessor Class-D Design
Designed And Engineered By Robert Zeff
High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality
Remote Bass Boost Control (Included)
Extruded Aluminum CNC Chassis Design (Level 2 X2 Cosmetics)
Start-Stop Vehicle Compatible
Signal Sense and DC Detect
Single Side Connection Design
Nickel Plated RCA Terminals
Quick Disconnect Speaker Terminal Plugs
Audiophile Class-D Output Filter Networks
Detailed Microprocessor Controlled Protection
Large, High-Frequency Switching Power Supplies
RCA Inputs Are Compatible With Speaker-Level Inputs
Fault Codes Storage Of The Last Protection Code Detected
High Signal To Noise Ratio Without Compromising Power Output
Fully Balanced Input Stage Significantly Increases Flexibility
Ultra Low ESR, High-Capacity Power Supply Storage Capacitors
Flexible Mounting Orientation For Vertical Or Horizontal Installations
Next Generation High-Speed Class-D Technology Powering All X2 Amplifiers
Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Headunits
Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
Quick Disconnect Type Terminal Connections
Specifications -
4-Channels @ 4 Ohms (Ch 1-4) - 150 Watts
4-Channels @ 2 Ohms (Ch 1 - 4) - 150 Watts
2-Channel @ 4 Ohms (Ch 1-4 Bridged) - 300 Watts
1-Channel @ 4 Ohms (Ch 5) - 275 Watts
1-Channel @ 2-Ohms (Ch 5) - 500 Watts
Frequency Response - 20Hz - 20kHz
Crossover Range (Ch 1-4) - 50Hz - 550Hz
Crossover Types (Ch 1-4) - Bandpass All Channels
Crossover Range (Ch 5) - 30Hz - 230Hz
Bandpass Crossovers - Yes (Ch 1/2 only)
Remote Level Control - Yes(Ch 5 only)
Remote Level Control Included - Yes
Input Sensitivity (Low) - 200mV - 3.5V
Cosmetic Trim - X2 Trim Level 2
Fuse - 3 x 30 Amp
Dimensions - 12.42"(L) x 6.268"(W) x 2.162"(H)

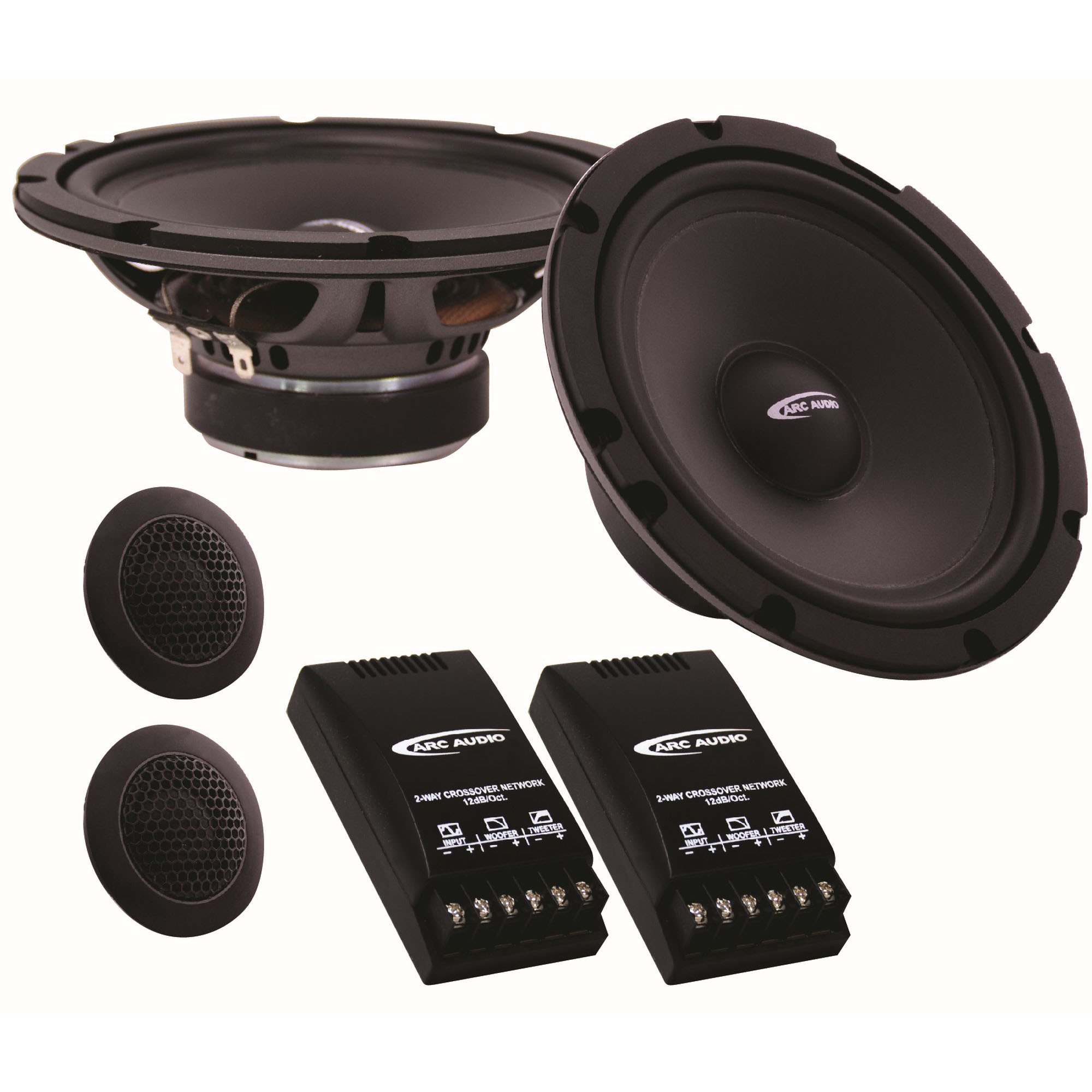

1x Arc Audio X2 6.2 6.5" Component System (X2-6.2)
Arc Audio X2 6.2 6.5" Component System
Full Range 6.5" OEM Fit Component System Speaker Design
Sold In Pairs Only
Designed And Engineered In The USA
2- Way Component Speakers With External Speakers And Stand-Alone Tweeters
Reinforced Injected Poly Cone Material
Design Specific Heavy Duty Stamped Aluminum Basket
Vented Basket Design For Improved Midbass, Overall Output And Elimination Of Rear Wave Distortion
Ultra-Low Distortion Linear Suspension Design
High-Temperature Copper / Kapton Voice Coil Former
High-End Audiophile Grade Polypropylene Crossover Filter
15mm Silk Dome Tweeter
1x Arc Audio X2 602 6.5” 2-Way Coaxial Speakers (X2-602)
Arc Audio X2 602 6.5” 2-Way Coaxial Speakers
Full Range 6.5" OEM Fit Coaxial Speaker Design
Sold In Pairs Only
Designed And Engineered In The USA
2-Way Coaxial Design
Reinforced Injected Poly Cone Material
Design Specific Heavy-Duty Stamped Aluminum Basket
Vented Basket Design for Improved Midbass, Overall Output And Elimination Of Rear Wave Distortion
Ultra-Low Distortion Linear Suspension Design
High-Temperature Copper / Kapton Voice Coil Former
High-End Audiophile Grade Polypropylene Crossover Filter
15mm Silk Dome Tweeter
Specifications -
Speaker Size - 6.5" OEM Fit
Speaker Type - 2-Way Coaxial
Power Handling (Peak) - 150 Watts
Power Handling (RMS) - 75 Watts
Frequency Response - 60Hz - 20kHz
Sensitivity - 89dB
Impedance - 4 ohms
Tweeter Diameter - 20mm
Tweeter Dome Material - Wool Damped Silk Fiber

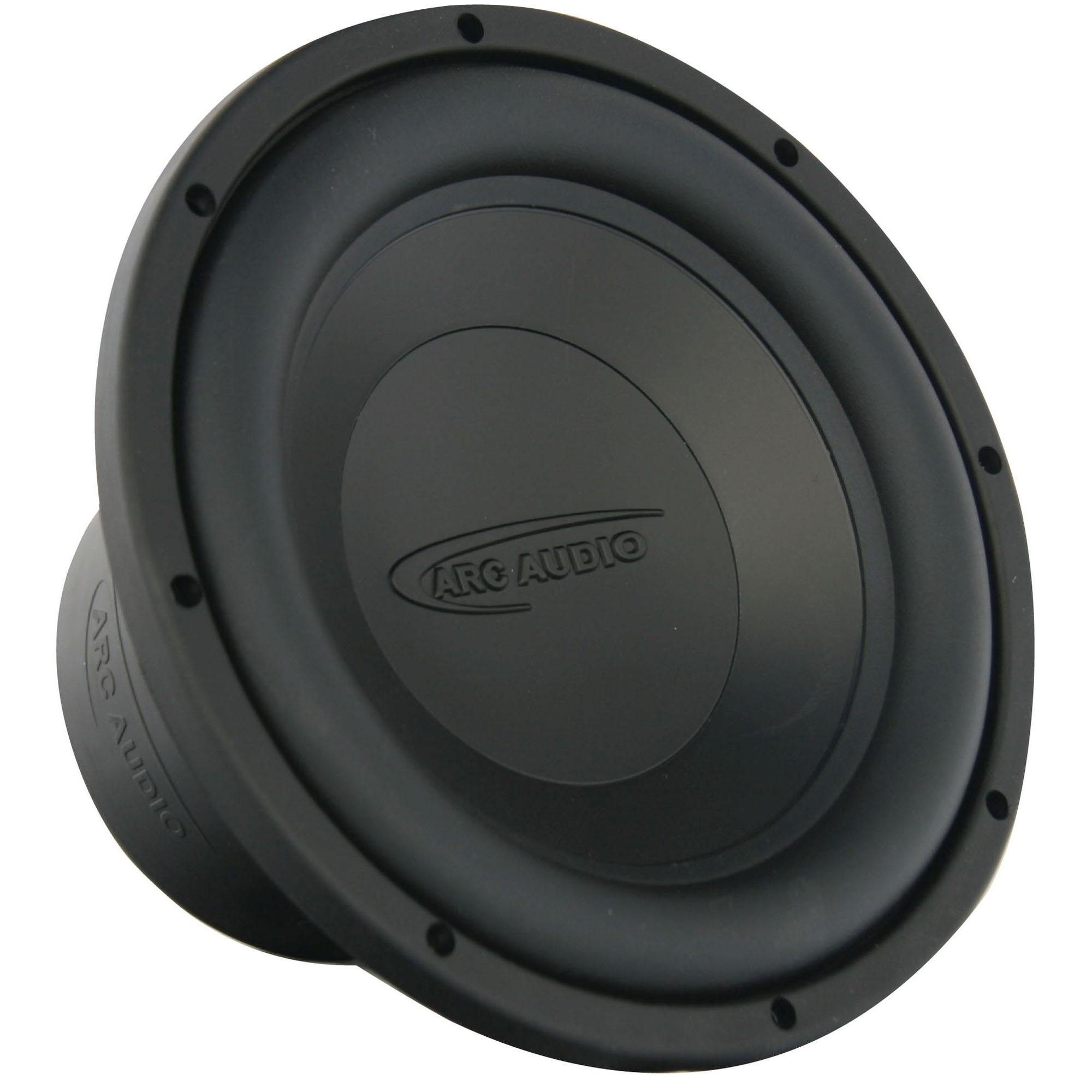

1x Arc Audio ARC-12D4 12” 4 Ohm Subwoofer (ARC-12D4)
ARC Audio ARC-12D4
12” 4 Ohm Subwoofer
Designed and Engineered by one of the leading car audio speaker and subwoofer acoustical engineers in the United States, the ARC Series is the moving step into the world of high end and all-around performance in a single package. Offering an optimized balance of performance and sound quality the ARC Series subwoofer line allows users to have the best of both worlds when it comes to sound quality and ground-pounding bass.
Designed for small to moderate-sized enclosures with extremely dynamic power handling specifications, ARC series subwoofers create that enveloped energy and support that we all strive to achieve without the loss of the majority of the vehicle's interior and usable storage space. For the die-hard sound quality individuals, the ARC series subwoofer line is also versatile enough to be incorporated into well designed and built infinite baffle applications.
Experience quality and chaos all in one affordable package and enjoy your customized musical experience the way it was intended. The way you want it!
Features:
Specifications:
Designed for small to moderate-sized enclosures with extremely dynamic power handling specifications, ARC series subwoofers create that enveloped energy and support that we all strive to achieve without the loss of the majority of the vehicle's interior and usable storage space. For the die-hard sound quality individuals, the ARC series subwoofer line is also versatile enough to be incorporated into well designed and built infinite baffle applications.
Experience quality and chaos all in one affordable package and enjoy your customized musical experience the way it was intended. The way you want it!
Features:
- Designed And Engineered In The USA
- High-Temperature Black Anodized Voice Coil
- Linear Design For Improved Dynamics And SPL At Low And High Volumes
- One Piece Molded Rubber Surround
- Stamped Steel Basket
- Progressive Flat Layered Spider With Integrated Tinsel Leads
- Designed For Small To Moderate Sized Sealed And Ported Enclosures
- Mounting Depth 5-1/2"
- Cutout Diameter 9-1/8"
- Minimum Sealed Enclosure - 0.65 cu ft
- Optimum Sealed Enclosure - 0.75 cu ft
- Maximum Sealed Enclosure - 0.90 cu ft
Specifications:
| Power Handling (Peak) | 700 Watts |
| Power Handling (RMS) | 350 Watts |
| Impedance | Dual 4 Ohm |
| Minimum Sealed Enclosure | 0.9 cu ft |
| Optimum Sealed Enclosure | 1.1 cu ft |
| Maximum Sealed Enclosure | 1.25 cu ft |
| Cutout Diameter | 11-1/8" |
| Mounting Depth | 6" |
Extra Information
Brand:
ARC Audio
Weight:
36.30 LBS
RMS Wattage Per Speaker:
350
UPC:
199730561933
Bundle:
Yes
Feature 1:
This bundle includes an Arc Audio X2 1100.5 Amplifier, X2 6.2 Component System, X2 602 Coaxial Speakers, and ARC-12D4 Subwoofer for a comprehensive audio upgrade.
Feature 2:
Experience superior sound with the Arc Audio X2 1100.5 Amplifier featuring a microprocessor Class-D design and high-frequency power supply for improved signal transparency.
Feature 3:
The Arc Audio X2 6.2 Component System offers a full range 6.5" speaker design with a reinforced poly cone and silk dome tweeter for exceptional audio clarity.
Feature 4:
Arc Audio X2 602 Coaxial Speakers deliver robust sound with a vented basket design and high-temperature voice coil for enhanced midbass and output.
Feature 5:
Feel the power of deep bass with the ARC-12D4 Subwoofer, engineered for high performance in compact enclosures, perfect for immersive sound experiences.
Condition:
NEW
Weight:
36.3000 lbs
Shipping:
Free 2-Day Shipping!
