Description
Included in this kit
This bundle includes an ARC Audio MPAK-14CX Motorcycle Coaxial Speaker Kit - Fits 2014+ HD Street Glide and Road Glide Motorcycles, an ARC PSM-PRO 6 Ch-in / 8 Ch-out Compact Stand-Alone DSP w/ Idata Maestro "AR" Compatibility., and an ARC Audio LR2 Programmable DSP Level Controller.
1x ARC Audio MPAK-14CX Motorcycle Coaxial Speaker Kit - Fits 2014+ HD Street Glide and Road Glide Motorcycles (MPAK-14CX)
This MPAK kit includes the following products: MOTO720.4 Amplifier, a pair of MOTO602V2 Coaxial Speakers, a HD-FH2014 Wiring Harness Kit, and a RG15 Amplifier Mounting Kit
As the MPAK14 is a full kit, it includes speakers that bolt into the factory location and work with the enclosures in the fairing. Likewise, the kit includes dedicated power wiring to ensure efficient current delivery to the amp. Finally, the signal wiring uses OEM-compatible connectors to extract a signal from the factory radio and feed it to the DSP or MOTO720 amp. Not a single wire needs to be cut, tapped, or modified in any way, so your warranty remains unquestionably intact while you can enjoy your music the way it was supposed to be enjoyed – loud!
• Designed for use with 2014 and up Harley Street Glide and Road Glide Motorcycles
• Includes all components necessary for both Street Glide and Road Glide Applications
• Motorcycles that already have Boom II/III kits may require additional components, parts and/or labor to complete the installation properly
• Designed and tested by factory trained technicians at Mitchell's Modesto Harley.
• MPAK kits are designed to fit directly into your HD Motorcycle's factory locations in the front fairing.
• No loss of space inside your side bags of tour pack.
• High-Efficiency Non-Digital amplifier design works within the parameters of the factory motorcycle charging system.
• Speakers bolt directly into the factory locations with no modifications or changes needed to the factory speakers mounting area.
• Allows you to upgrade your HD audio system and still retain all factory handle bar stereo controls.
• Wire harness and installation kit contents selected by Mitchell's Modesto Harley technicians so that the stereo will not void the motorcycles factory electrical warranty. (At No Point In This Installation Does The Motorcycles Main Harness Need To Be Cut!)
• Includes full plug and play input/output signal wire harness.
1x ARC PSM-PRO 6 Ch-in / 8 Ch-out Compact Stand-Alone DSP w/ Idata Maestro "AR" Compatibility. (PSM-PRO)
The ARC Audio PSM Pro digital sound processor is a small but powerful device that is designed to enhance the audio quality of your car or motorcycle's sound system. It is an upgraded version of the PSM offering even better performance and 8 channels of output.
The PSM Pro uses advanced 32-bit DSP technology and has 296 total bands of full variable parametric equalization, open architecture crossover selection, signal delay, and phase control. This allows you to tune your audio system to your specific preferences and improve the quality of your listening experience.
The PSM Pro is affordable and provides OEM integration, which means it can work seamlessly with the existing audio system of your car or motorcycle. For example, if you have a 2014+ HD motorcycle, the PSM Pro can be easily integrated with the ARC Audio Moto 720 amplifier to improve your audio system's performance.
The PSM Pro is designed to be easy to use and can be easily customized to suit your personal listening style using a Windows based computer.
The ARC Audio PSM Pro is an affordable and powerful solution for enhancing the audio quality of your car or motorcycle. It offers advanced features and can be easily integrated with a wide range of vehicles, making it a versatile choice for anyone looking to improve their listening experience.
Specifications -
• Processor Type: Stand Alone Unit
• Processor Resolution: 32-Bits
• Sample Rate: 96kHz
• Analog Inputs: 6 CH. Differential in (RCA or Speaker Level)
• Input Sensitivity: 2V - 16V RMS
• Digital Inputs: Coaxial
• Auto-sense Turn-On: DC (BTL) (Uses Ch 1/2 Inputs Only)
• Outputs (RCA): 8-Channels
• Outputs Voltage (RCA): Up to 3.5V
• Input Impedance (RCA): 10k ohms
• Frequency Response: 20Hz - 23.5kHz
• S/N Ratio 1V 1:1: 86dB
• S/N 4V 1:1: 90dB

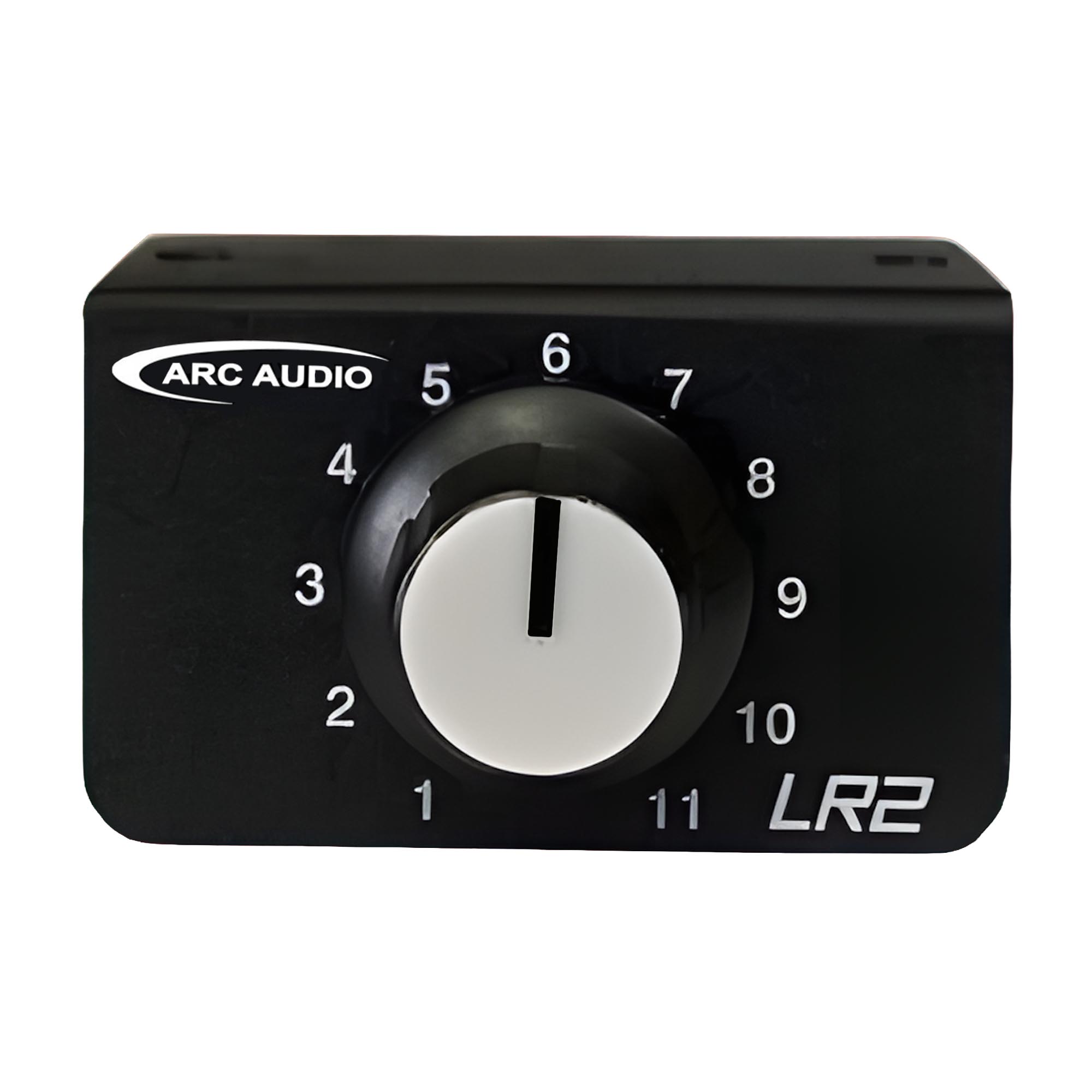

1x ARC Audio LR2 Programmable DSP Level Controller (LR-2)
ARC Audio LR2 Programmable DSP Controller
The ARC Audio LR2 is a programmable single-function digital remote controller designed for seamless integration with ARC Audio stand-alone DSPs and DSP amplifiers. As part of the ARC Audio DNA DSP ecosystem, the LR2 provides direct, intuitive control over one user-defined function—allowing precise, on-the-fly system adjustments without accessing software.
Ideal for OEM upgrades and fully custom DSP-based systems, the LR2 delivers predictable and synchronized system control through ARC Audio’s DNA 2.7+ PC software platform.
Programmable Single-Function Control
- Assignable to one dedicated control function per installation
- Common applications include master volume, subwoofer level, bass boost, and more
- Digital controller design for precise and repeatable adjustment
- Fully programmable through ARC Audio DNA 2.7+ software
Dual DSP Control Capability
The LR2 can control up to two ARC Audio DSPs simultaneously, making it an excellent solution for advanced multi-processor systems that require synchronized adjustments across components.
- Controls one DSP with included cable
- Controls two DSPs with the addition of a second LR2-compatible cable (sold separately)
- Maintains identical behavior across both processors
Installation & Included Hardware
- Includes 5-meter (20-foot) 4-pin low-impedance data cable
- Pre-mounted to right-angle L-bracket for quick installation
- Knob and circuit board removable from bracket for custom mounting applications
Specifications
| Product Type | DSP Controller |
| Controller Type | Digital |
| Function Controls | Single Function (User Programmable) |
| Feature Control | Single (Volume, Sub Level, Bass Boost, etc.) |
| Compatible With | All ARC Audio Stand-Alone DSPs & DSP Amplifiers |
| Control Quantity | Up to Two DSPs Simultaneously |
| Included Hardware | L-Bracket Mount & Cable |
| Cable Type | 5 Meter (20ft) 4-Pin Low Impedance Cable |
| Software Requirements | DNA 2.7+ |
