Description
Included in this kit

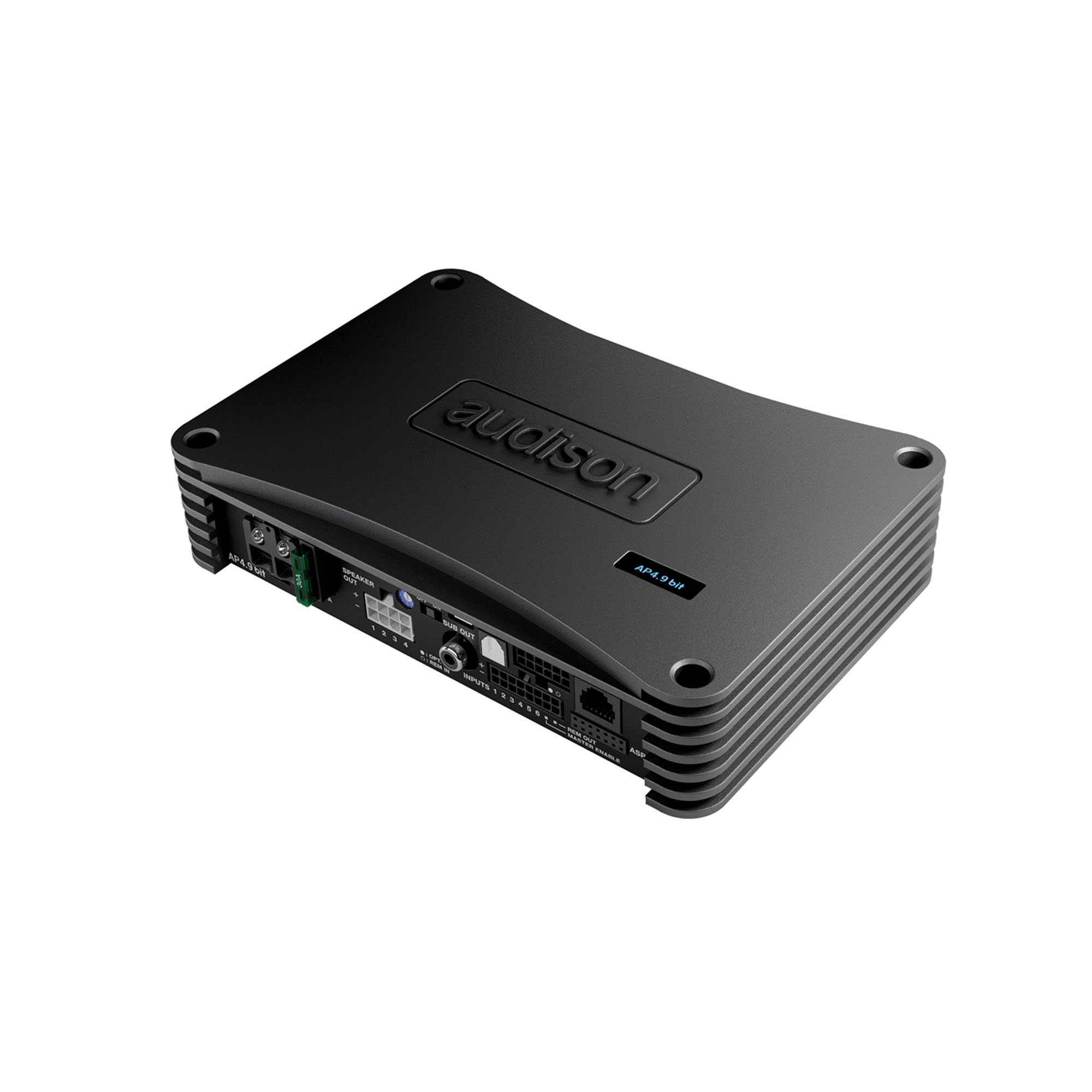

Audison AP4.9 bit Prima Series 4-Channel Amplifier With 9-Channel DSP 4 x 70W 4Ω -
AP4.9 bit amplifier was designed for the Integration into OEM front/rear systems where a lot of power is required. The built-in processor, that this amplifier shares with the AP8.9 bit, provides the ability to assign the pre-outs to the AP1 D amplifier to drive a subwoofer, to the AP4 D amplifier to have 4 additional amplified channels exceeding 1080 W @ 4 - 2 Ω total power.
Features -
• Distortion - THD @ 1 kHz, 4 Ω, 90% Output Power: 0.10 %
• Bandwidth @ -3 dB, 2 V RMS, 4Ω: 10 ÷ 20k Hz
• S/N ratio @ A weighted, 2V, Output Power: 95 dBA
• Damping factor @ 1 kHz, 2 V RMS, 4Ω: >170
• Input sensitivity: 2 ÷ 15 V RMS
• Input impedance: 15k Ω
DRC MP - DIGITAL REMOTE CONTROL MULTIMEDIA PLAY
The new Audison DRC MP (Digital Remote Control Multimedia Play) is compatible with all the Audison electronics featuring AC Link bus. Its slim profile along with the holder supplied with it eases the installation in the best position inside the car. Thanks to the new Joystick, “Rubber Touch” finished for best control of the movements along the four direction axes, the “DRC Settings” menu can be adjusted and navigation is also possible through the “Navi Command” function if the system features an Audison bit Play HD with video output connected to a monitor.
