Description
Included in this kit
This bundle includes an Audison bit Ten Signal Interface Processor with 4 Channels In and 5 Out, and an Audison CBT1 RCA Multiple Connector - bit Ten Adapter.
1x Audison bit Ten Signal Interface Processor with 4 Channels In and 5 Out - (bit-Ten)
bit Ten - SIGNAL INTERFACE PROCESSOR
bit Ten is a multi-function digital processor featuring analog input, capable of transforming ordinary OEM or after-market system into a high-performance system. Provided with a 32 bit, 147 MHz clock speed DSP as well as 24 bit A/D and D/A converters, bit Ten is controlled by a software especially developed for signal treatment according to the vehicle acoustic peculiarities. Setting the parameters of each input single channel, setting the delays according to the listening position, adjusting crossovers and equalizers for each of the 5 output channels; all of these operations can be managed by the PC. Thanks to the integration of the USS technology, the bit Ten can also be connected to headunits featuring the “speaker load detection” circuit that would otherwise mute the audio signal output. During the installation phase, after converting the analog signal into digital, bit Ten automatically reconstructs a digital full-bandwidth stereo signal; de-equalizes the frequency response and, if necessary, reconstructs the central and subwoofer channels.The user can configure the output mode of each channel relative to the installed system.
Features -
• Audio DSP and converters 32 bit Cirrus Logic (Clock speed: 147 MHz) Digital Signal Processing chip and A/D D/A converters working in PCM at 48 kHz with 24 bit resolution. The processor speed allows the user to hear and verify in real time the changes applied during the tuning.
• Audio Inputs 4 independent high-level channels with automatic summing capability and USS (Universal Speakers Simulator), the technology that allows bit processors to work with headunits featuring the “speaker load detection” circuit; 1 analog low-level stereo auxiliary input; 1 high-level momentary audio interrupt input (with priority) on Phone Mute cable (settable through PC).
• Audio Outputs 5 independent analog PRE channels featuring adjustable level.
1x Audison CBT1 RCA Multiple Connector - bit Ten Adapter - (CBT1)

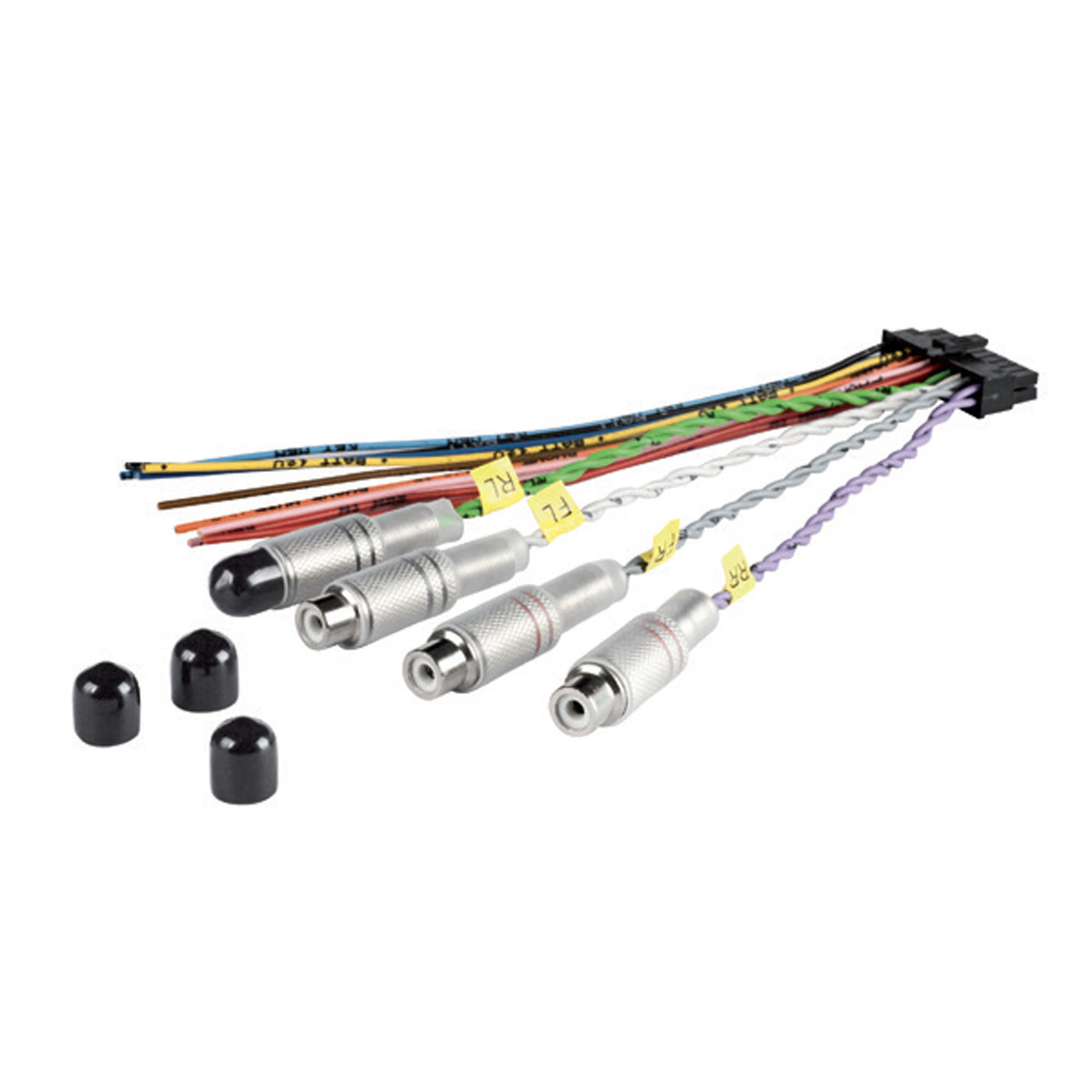

CBT1 - RCA MULTIPOLE CONNECTOR BIT TEN ADAPTER -
RCA connector for effortless and fast connections between the head unit PRE OUTs (2 V min.) and bit Ten, bit Ten D Hi-Level inputs.
