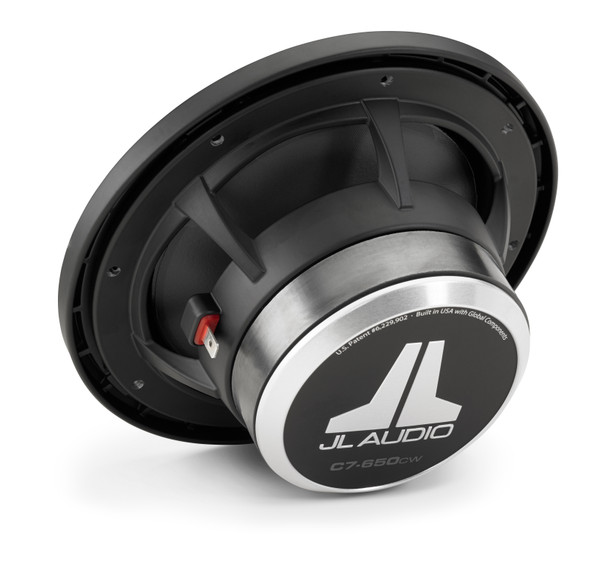

JL Audio C7-650cw 6.50-inch (165mm) Component Woofer Grille included

$449.99
Current stock: 0
SKU: C7-650cw
  • Free 3-Day Shipping*
  • MECP Certified Phone Support
  • 60-Day Moneyback Guarantee
  • Authorized Internet Retailer

Sold Individually. This is a listing for a single speaker.

Description

JL Audio C7-650cw

6.5-inch (165 mm) Component Woofer, Single

C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from our most advanced development tools and a complete commitment to precision manufacturing.

The C7-650cw component woofer is capable of operating in a 3-way system, with a midrange and tweeter, or with only a tweeter in a 2-way configuration. Engineered from the ground up, it has exceptional linear excursion capability and outstanding linearity, resulting in solid mid-bass and pure, precise, mid-range performance. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors.

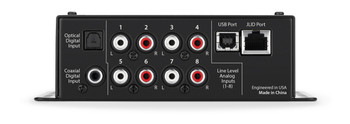

Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, and a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.

C7-650cw Design Notes:
Cone and Dust Cap: Vacuum-formed, mineral-filled polypropylene material offers excellent damping and low mass. The cone body features a gentle curvilinear profile to optimize response. A specially shaped dust cap attaches to the cone body and the voice coil former to improve high frequency behavior.

Suspension design: The moving assembly is suspended and damped via a large-diameter, linear profile spider formed from a Nomex®/polycotton blend, and a positive-roll, rubber surround. The two combine to provide optimum damping without prematurely restricting the C7-650cw's outstanding excursion capability.

Motor Design: The C7-650cw employs a high-density magnetic circuit with a high-grade Y35 Strontium-ferrite magnet, and a specially machined, T-Yoke motor topology. Motor magnetics have been precisely optimized utilizing advanced FEA tools to reduce distortion and provide linear motor force throughout the driver's performance range.

A 32 mm (1.27 inch) diameter, overhung voice coil is employed, wound with copper wire onto a fiberglass voice coil former. The oversized voice coil offers extended power handling capability, minimizing thermal compression and distortion at higher listening levels. Chassis Design: A purpose-engineered cast alloy basket is employed, featuring thin spokes to maximize rear open area, and our Patented Elevated Frame Cooling technology.

Design Bandwidth:
With 48 dB/octave filters: 50 Hz - 5 kHz
With 24 dB/octave filters: 60 Hz - 5 kHz
With 12 dB/octave filters: 70 Hz - 5 kHz

Built in USA with Global Components
Sold individually, with a cast-alloy grille tray, one fine mesh steel grille insert and one spiral steel grille insert.

The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report HERE.

Continuous Power Handling (RMS) 125 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 50 - 175 W / Ch.
Nominal Impedance 4 Ω
Frequency Response 50 Hz - 5 KHz ± 3 dB
Voice Coil Resistance (Re) 3.114 Ω
Free Air Resonance (Fs) 54.5 Hz
Reference Efficiency (no) 0.304%
Efficiency 87.0 dB @ 1W / 1m
93.0 dB @ 1W / 0.5m
Sensitivity 90.0 dB @ 2.83V / 1m
Electrical “Q” (Qes) 0.669
Mechanical “Q” (Qms) 6.265
Total Speaker “Q” (Qts) 0.605
Equivalent Compliance (Vas) 0.461 cu. ft. (13.05 liters)
Moving Mass (Mms) 17.679 g
Mechanical Compliance (Cms) 0.000482 m/N
Magnetic Strength (BL) 5.31 N/A
Effective Piston Area (Sd) 21.4 sq. in. (0.013807 sq. m)
One Way Linear Excursion (Xmax) 5 mm
Frame Outer Diameter (A) 6.50 in / 165 mm
Bolt Hole Circle Diameter (B) 6.12 in / 155 mm
Mounting Hole Diameter (C) 5.56 in / 141 mm
Grille Tray Outer Diameter (D) 7.20 in / 183 mm
Frontal Grille Protrusion* (E) 0.98 in / 25 mm
Mounting Depth (F) 2.77 in / 70 mm
Motor Outer Diameter (G) 3.94 in / 100 mm
Reviews
Additional Info

Additional Info

SKU:
C7-650cw
Condition:
New
Availability:
Sold Individually. This is a listing for a single speaker.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout
Manufacture SKU #:
99757
Size:
6.5 Inch
Type:
Component
UPC:
699440997577
