Cicada Audio CH8.4 - Coaxial Horn 8-inch - 4 Ohm with 14CHDLID8R - H-D 2014-2023 8-inch Lid Paintable

Included in this kit

---

This bundle includes a Cicada Audio CH8.4 - Coaxial Horn 8-inch - 4 Ohm, and a Cicada Audio 14CHDLID8R - H-D 2014-2023 8-inch COMPLETE Lid + CMB8F withTweeter Grill + CHD8HD + CHD8JS + HDRoM + Primer RAW - PR.

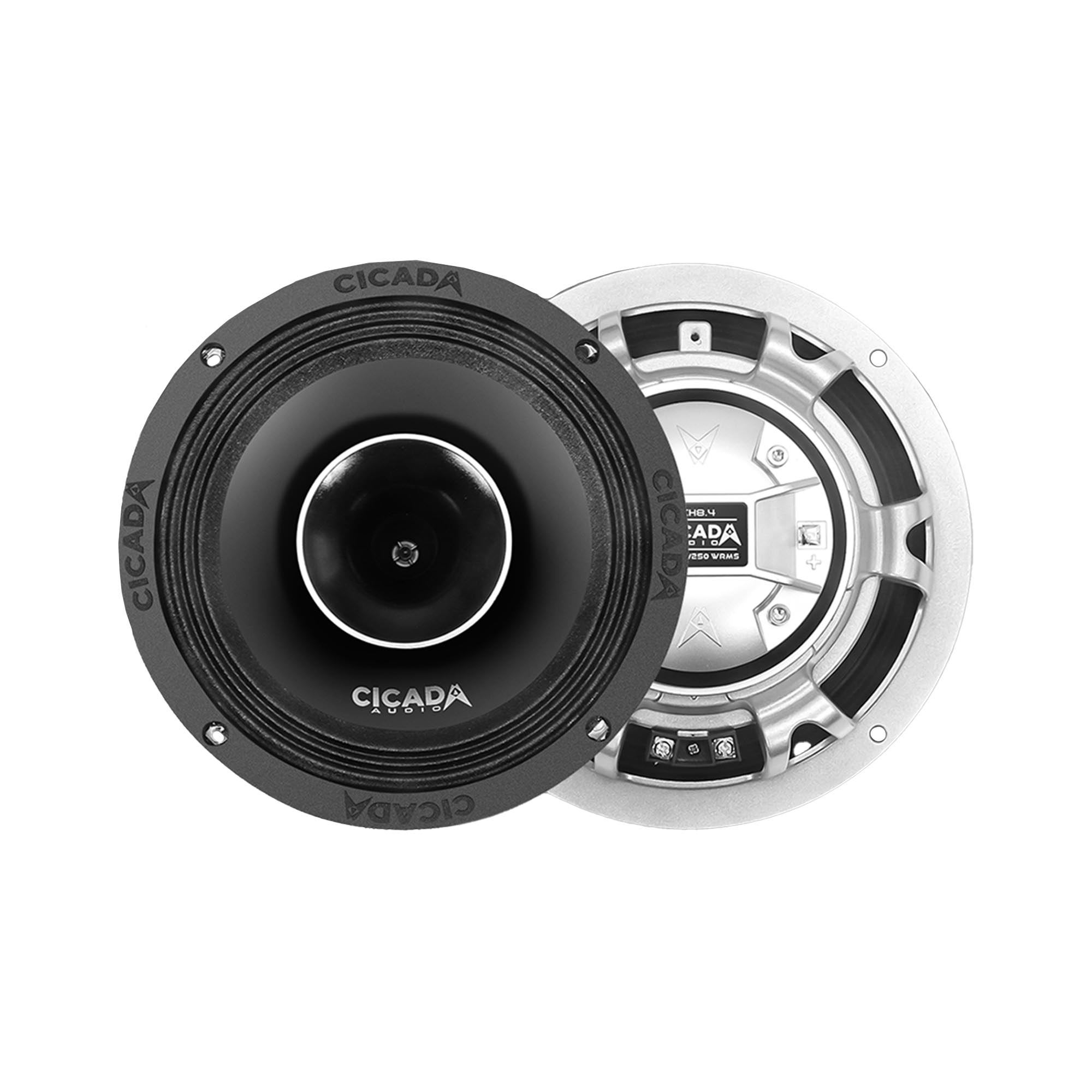

1x Cicada Audio CH8.4 - Coaxial Horn 8-inch - 4 Ohm - (CH8.4)

8 Inch 4 Ohm High Performance Coaxial Horn Speaker – PAIR
Pro Sound for 2014 & Up Harley Street Glide, Road Glide, Electra Glide, & Ultra
500WRMS/1000 MAX Power Handling- PAIR
Neodymium High Energy/ Light Weight N35 Magnet structure
Heavy Duty/ Die-cast Aluminum Basket
2.0” 4 Ohm – High Temp Voice Coil (Black Coat™) Voice Coil MidBass
Shortening Ring for the Ultimate in speaker control
1.4” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
Frequency Response: 75Hz -20Khz+/-5dB
High Sensitivity: > 99dB 1W/1M Average (1W/1M – 2.83V)
12dB Crossover with custom tooled/ Vented crossover case
Can be Bi-Amped (Horn Tweeters can be run on their own dedicated channels)
Total Diameter: 8.3” / 210.5mm
Mounting Diameter: 7.1” / 180mm
Mounting Depth: 3.6” / 91.2mm

TECHNICAL SPECIFICATIONS
Component: High Efficiency CoAx Driver
Provided inline crossover: Hi-pass filter @ 4 kHz - 12 dB Oct
Size mm (in.): 8 (210.5)
Power Handling (PAIR) W peak 1000W - Hi-pass filtered @ 100Hz - 12 dB Oct.
Impedance Ω: 4 Mid / 8 Ohm Tweeter
Frequency Response Hz: 65Hz -20k +/- 5dB
Sensitivity dB/SPL: 97.2dB / 101dB Average (1W/1M -2.83V
Voice Coil Ø in. (mm): 2.0 (50)Mid / 1.4 (35) Tweeter
Magnet: Neodymium N35H
Dome: Aluminium
Weight of 1 Speaker lb. (kg): 3.2 (1.45)

ELECTRO-ACOUSTIC PARAMETERS - MIDBASS
D inches / mm: 8 / 210.5
Re Ω: 4
Fs Hz: 81.79
Le mH @ 1 kHz: 0,03
Vas I: 20.502
Mms g: 11.7
Cms mm/N: 323.568
BL T• m: 6.09
Qts: 0.488
Qes: 0.551
Qms: 4.246
Spl dB: 97.2dB /101dB Average (1W/1M -2.83V)
**Power Ratings are per PAIR with a Hi-Pass Filter (Electronic for Passive) @100Hz - 12 dB Octave

1x Cicada Audio 14CHDLID8R - H-D 2014-2023 8-inch COMPLETE Lid + CMB8F withTweeter Grill + CHD8HD + CHD8JS + HDRoM + Primer RAW - PR - (14CHDLID8R)

H-D® 2014-2023 8-inch Lid Kit
Vivid Black Finish
8-inch Speaker Hard Dividers
8-inch Billet Grill Kit (included)
Works with CH, CM, CHX / Power coated metal grill / Billet Aluminum ring
