Description
Included in this kit
This bundle includes a Cicada Audio BDA1600.1D - 1 x 1600 @ 2 Ohm Mono Amplifier, 2x Cicada Audio CXX525.2 - Pro Coaxial Speakers 5.25-inch - 2 Ohm, Pair, a Cicada Audio CHX525.2 - Pro Coaxial Horn Loaded Speakers 5.25-inch - 2 Ohm, Pair, a Cicada Audio CXX57.2 - Pro Coaxial Speakers Bi Ampable 5x7-inch - 2 Ohm, Pair, and a Cicada Audio HDBDAPro4K - 4-Channel BDA Wiring Harness Kit with 4 AWG PWR Wire.

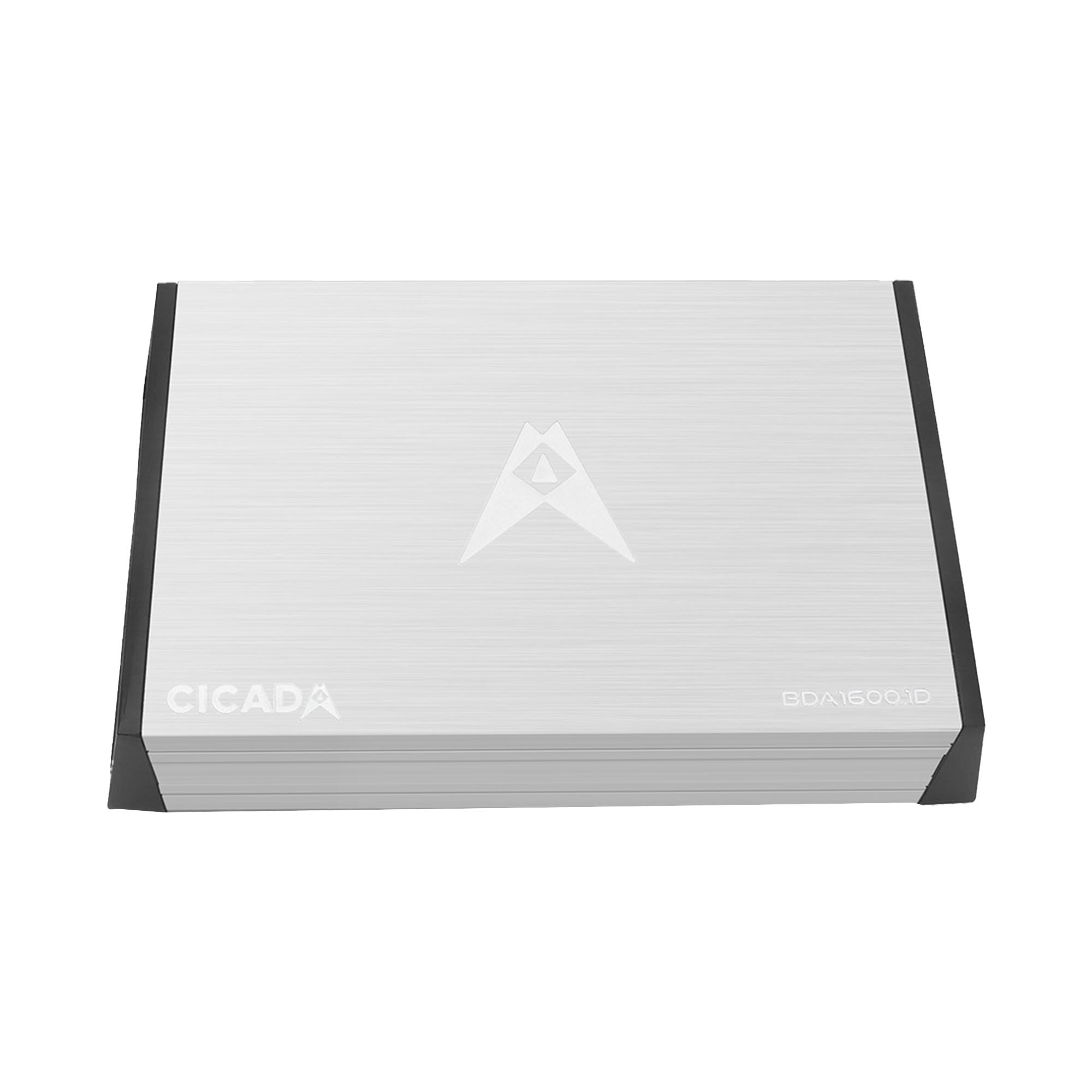

1x Cicada Audio BDA1600.1D - 1 x 1600 @ 2 Ohm Mono Amplifier - (BDA1600.1D)
Unleash unmatched power with the Cicada Audio BDA1600.1D, a mono power amplifier designed to drive your audio system with unparalleled strength. This beast delivers an astonishing 1600 WRMS into 2 ohms at 14.4 Vdc, ensuring that your bass hits harder and your beats resonate with clarity. At 12.5 Vdc, it pumps out 1250 WRMS into 2 ohms, proving its capability to maintain exceptional power levels even under varying voltage conditions.
MONO POWER AMPLIFIER
Requires 4 AWG Power Wire – HDPG4K
1 X 670 WRMS into 4 ohms @ 12.5 Vdc
1 X 950 WRMS into 4 ohms @ 14.4 Vdc
1 X 1250 WRMS into 2 ohms @ 12.5 Vdc
1 X 1600 WRMS into 2 ohms @ 14.4 Vdc
Frequency response – 10-20,000 +/- 3dB THD < 0.5%
Operating Voltage: 9V – 16V
Current Draw (Music): 70 A
Current Draw (Max): 140 A
Recommended Fuse (Music): 100 A
Total Efficiency: 80%
Damping Factor: 200
SNR: 86dB
Crossover HPF: 10 TO 80Hz
Crossover LPF: 80 TO 20kHz
Slope:12dB per octave
Gain: 0.2V – 12 Vac
Turn-On Configuration: REM/DC
THD + N (10% Rated Power): 0.1%
Product Dimensions (Inches / Millimeters): 9.1 x 5.37 x 2.1 in / 232 x 136.4 x 54 mm

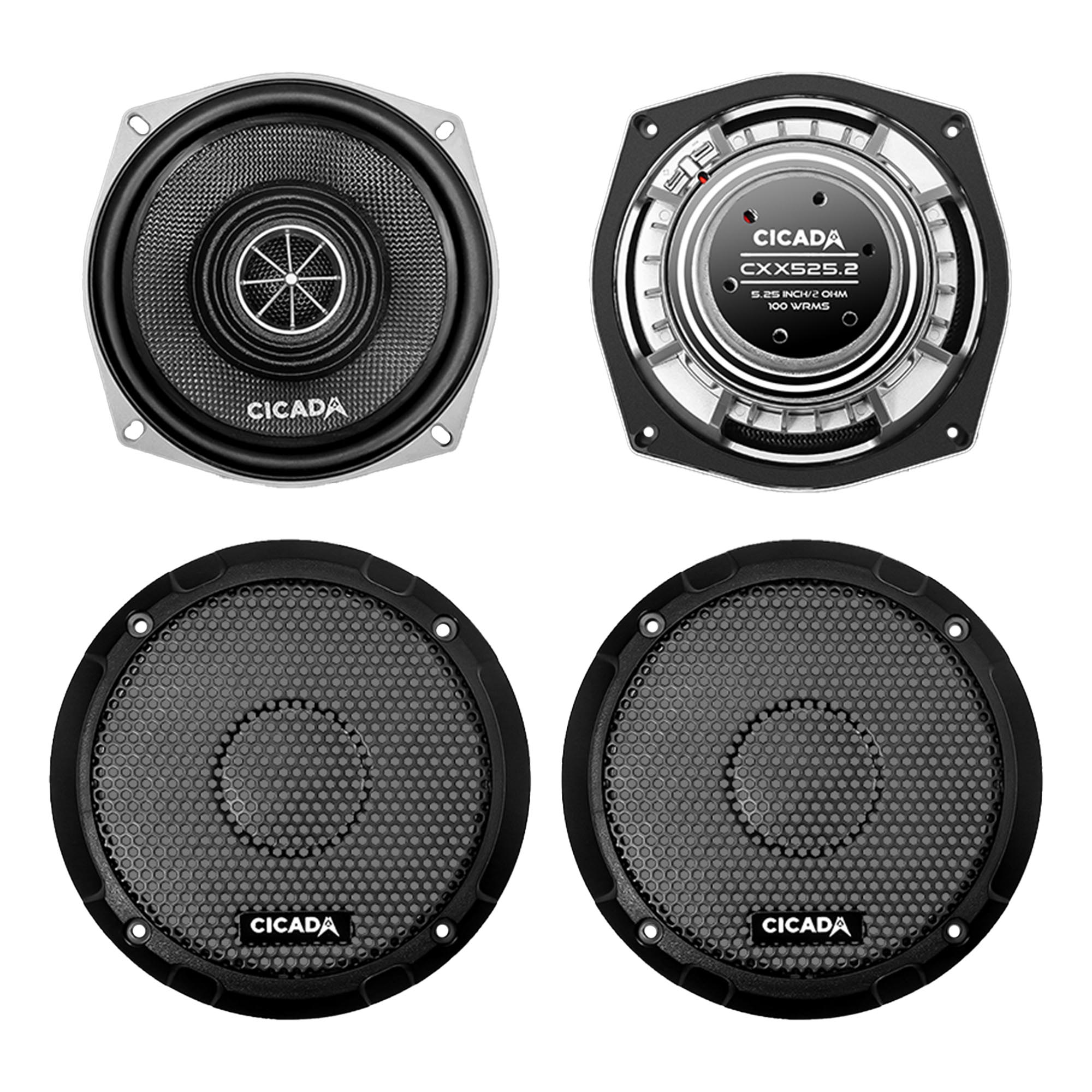

2x Cicada Audio CXX525.2 - Pro Coaxial Speakers 5.25-inch - 2 Ohm, Pair - (CXX525.2)
FEATURES:
Designed for H-D®, Indian®, Honda® factory designed locations
V8™ Dispersion Guide
Exclusive Cicada Design for 360o sound from tweeter
Rain or Shine™ all weather performance design
Built-In 6dB crossover
PEI tweeter dome for best sound dispersion
Moisture resistant
Brighter sound
More efficiency
Kevlar cone
Extremely lightweight and strong
Moisture resistant
Maximized efficiency
Copper wire voice coils offer great sound while generating less heat
N45H Neo Magnets
High temperature resistant Polycarbonate custom tooled basket
UV protection over all surfaces
25-inch grills and hardware are included
Two (2) year warranty
SPECIFICATIONS:
2Ω / 5.25-inch high performance coaxial driver
Power handling: 75W RMS/150W MAX
Voice Coils: 1.4-inch/35mm mid-bass and 1-inch/25mm Tweeter
Cone: Kevlar
Tweeter Dome: PEI
Magnet: Neodymium
Sensitivity: 91dB, 1W / 1M
Frequency response: 50 Hz – 20 kHz +/- 3dB
Mounting Depth: 2.25-inch/57mm
Mounting Diameter: 4.6-inch/116mm

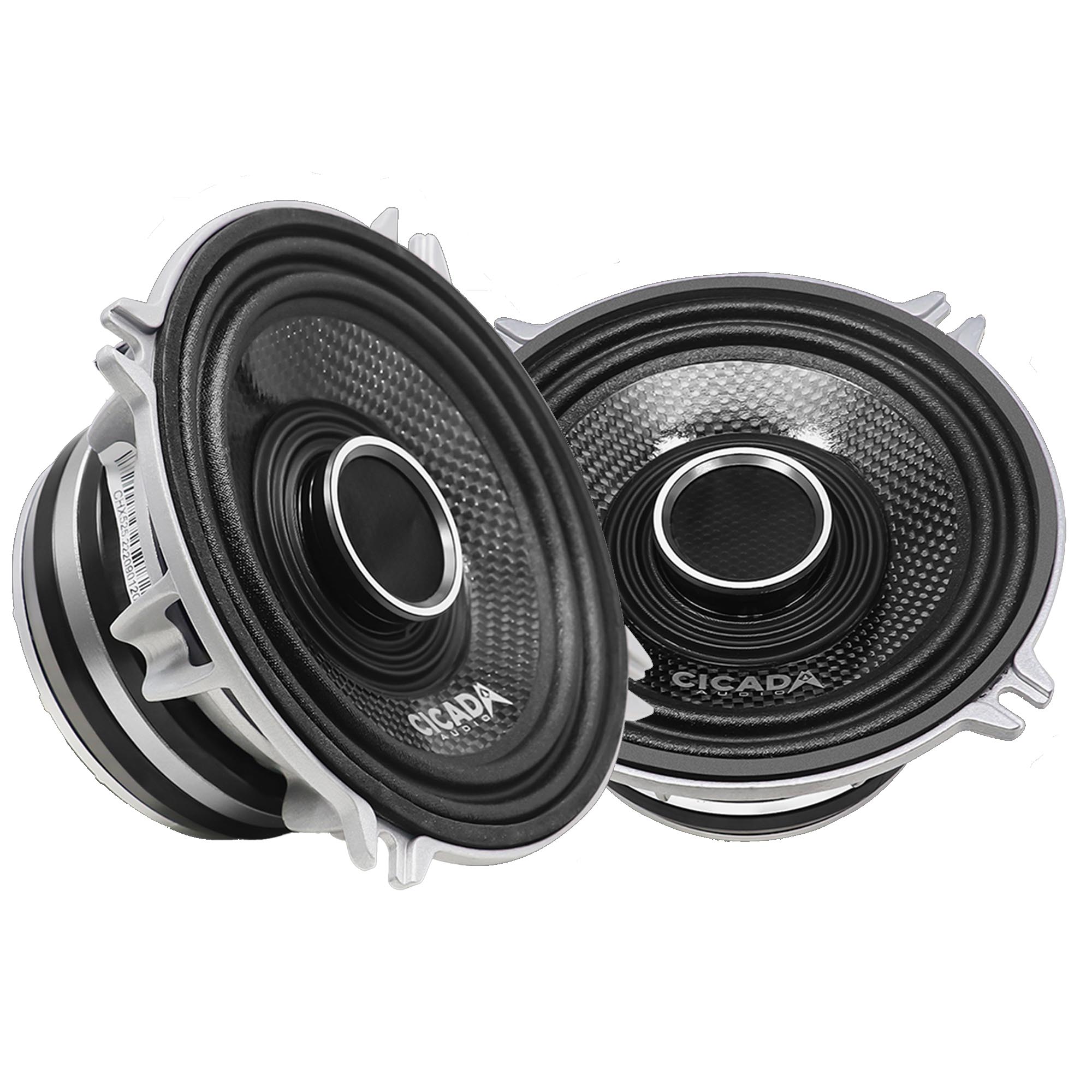

1x Cicada Audio CHX525.2 - Pro Coaxial Horn Loaded Speakers 5.25-inch - 2 Ohm, Pair - (CHX525.2)
FEATURES:
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
Rain or Shine™ all weather performance design
Available in 4 or 2Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
1″ OFC copper wire tweeter voice coils offer great sound while generating less heat
Carbon Matrix Composite™ (CMC™) cone
Lightweight / rigid / high temp
Maximized efficiency / super strong
Black coat™ 1.75” high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
N35SH Neodymium magnet
Die cast Aluminum custom tooled basket with Vortex Flow Venting™
Warranty: 2 years
SPECIFICATIONS:
2Ω -5.25” PRO coaxial horn driver
Power handling: 150W RMS/300W MAX
Voice Coil: 1.5-inch/38.1mm Mid-bass & 1.00-inch/25.4mm Tweeter
High temperature design
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Cone: Carbon Matrix Composite™
Magnet: Neodymium
Sensitivity: 91dB, 1W / 1M
response 90Hz – 20kHz +/- 5dB
Mounting Depth: 2.75-inch/69.85mm
Mounting Diameter: 4.66-inch/118.5mm
1x Cicada Audio CXX57.2 - Pro Coaxial Speakers Bi Ampable 5x7-inch - 2 Ohm, Pair - (CXX57.2)
New to our mid-line series, the CXX57.2 is a drop-in replacement 5″ x 7″ bag lid speaker featuring 1.4″, 2Ω, voice coil woofer and a 1″ PEI, 4Ω, tweeter. This model can be operated as a coaxial or is bi-ampable for a direct replacement on the Boom 2 system.
FEATURES:
Designed for 1998 to 2023 H-D® factory designed locations
V8™ Dispersion Guide
Exclusive Cicada Design for 360o sound from tweeter
Rain or Shine™ all weather performance design
Bi-Amp ready for OEM Hook up for H-D® Boom 2® System
Switchable built-In 6dB crossover
PEI – (High temp polymer dome) tweeter diaphragm material
Brighter sound
More efficient
Moisture resistant
Kevlar cone
Extremely lightweight and strong
Moisture resistant
Maximized efficiency
N45H Neo Magnets
High temperature resistant Polycarbonate custom tooled basket
UV protection over all surfaces
Two (2) year warranty
SPECIFICATIONS:
2Ω / 5×7-inch high performance coaxial driver
Power handling: 125W RMS/250W MAX
Voice Coils: 1.4-inch/35mm mid-bass and 1-inch/25mm Tweeter
Cone: Kevlar
Tweeter Dome: PEI
Magnet: Neodymium
Sensitivity: 89dB 1W / 1M
Frequency response: 50 Hz – 20 kHz +/- 3dB
Mounting Depth: 2.23-inch/56.8mm
Mounting Diameter: 4.84-inch/123mm X 7.3-inch/185mm

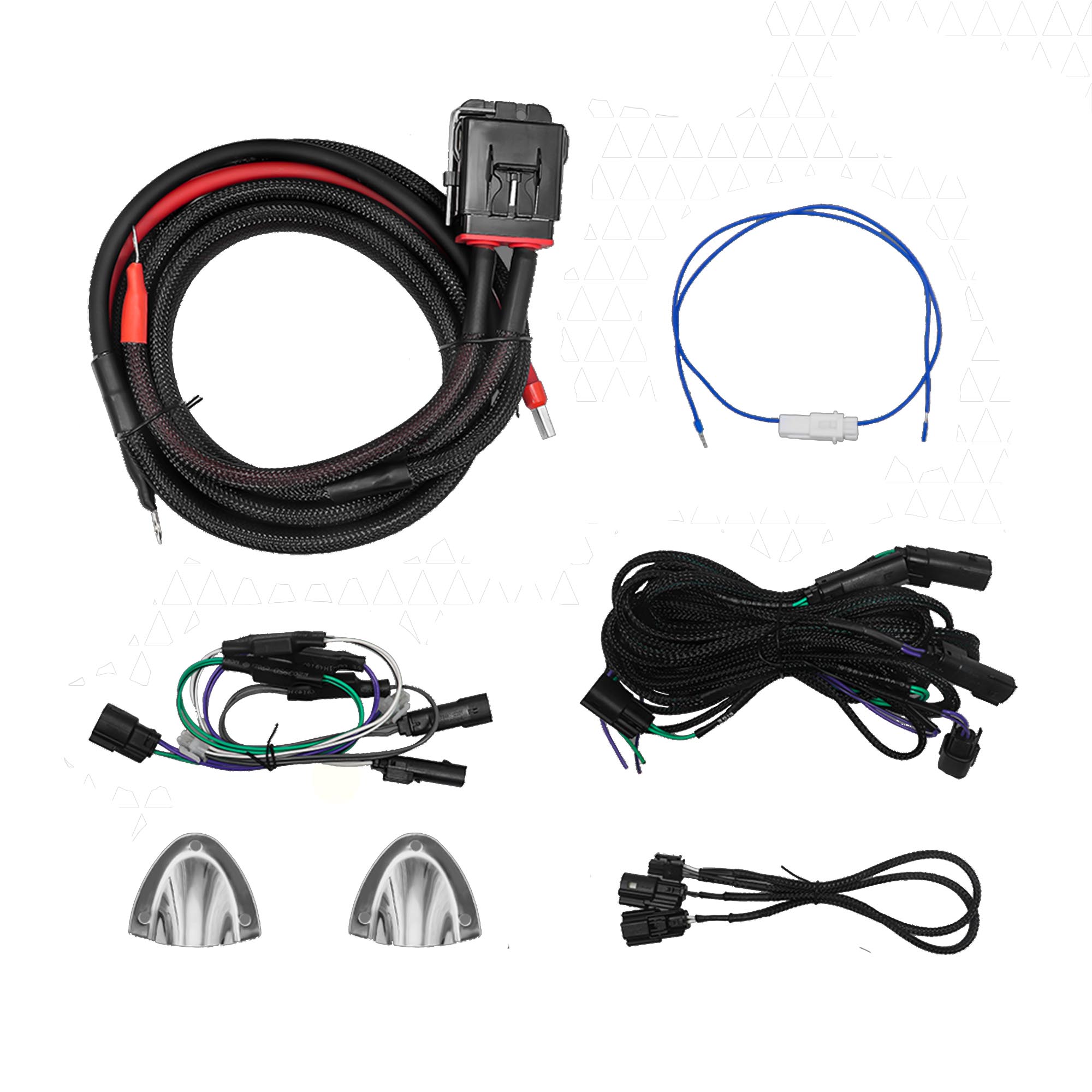

1x Cicada Audio HDBDAPro4K - 4-Channel BDA Wiring Harness Kit with 4 AWG PWR Wire - (HDBDAPro4K)
Includes:
HDFIM Front input harness with 47-ohm resistors – Molex
HDRIM Rear input harness with 47-ohm resistors – Molex
HDBDAFO Front output harness – Ferrules
HDBDARO Rear output harness w/ 8 FT extension – Ferrules
HDPG4K 4-Gauge Power/Ground Kit
