Description
Included in this kit
This bundle includes a Cicada Audio 24CHDLID 2024+ H-D® Saddlebag Lid 6×9-inch Cut-in Mounting Kit, and a Cicada Audio CX69.4 - Coaxial Speakers 6x9-inch - 4 Ohm, Pair.

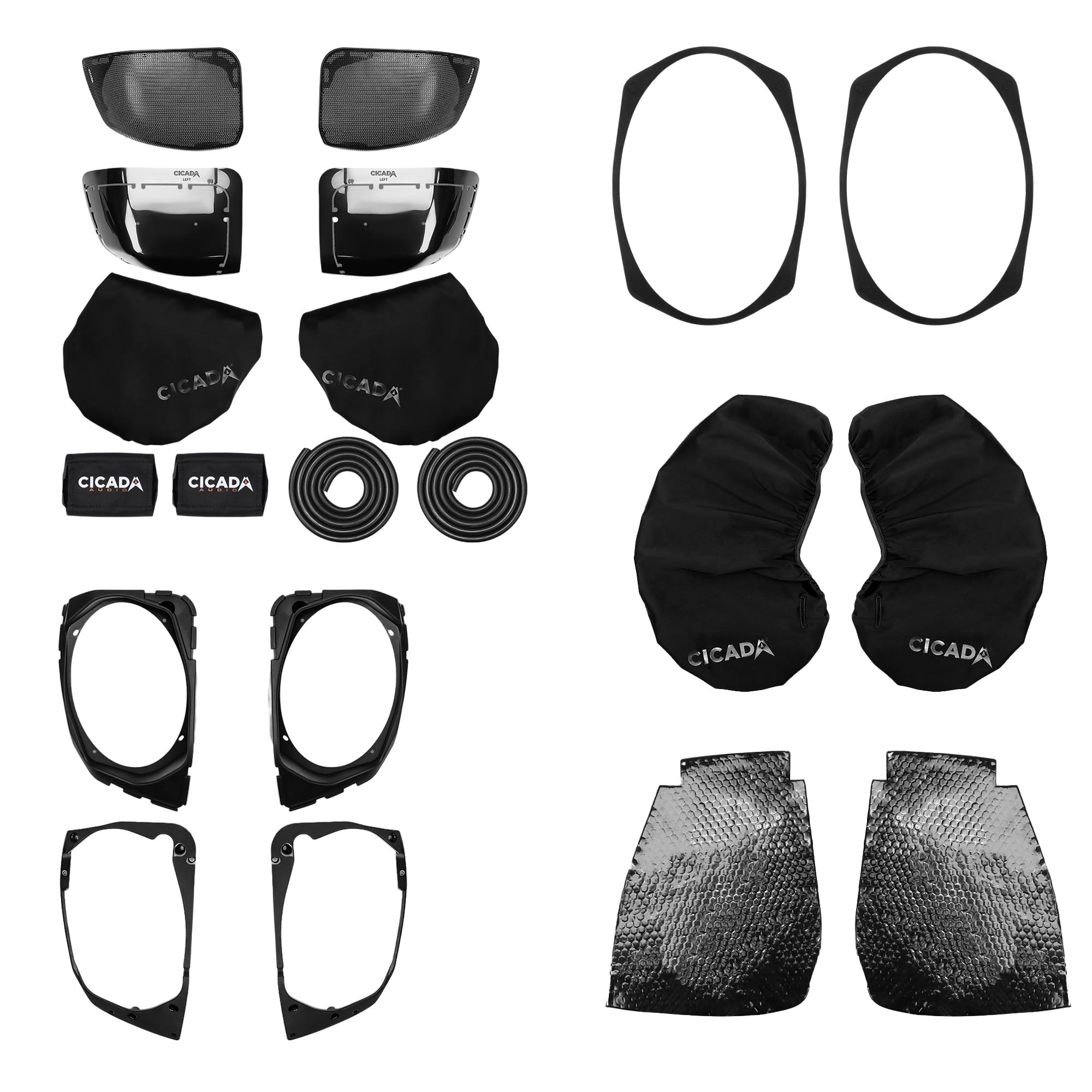

1x Cicada Audio 24CHDLID 2024+ H-D® Saddlebag Lid 6×9-inch Cut-in Mounting Kit - (24CHDLID)
Designed for 2023.5+ Harley-Davidson® updated saddlebag design
Unique Top Load Speaker Baffle Design
3 Part Assembly:
- Speaker Grill
- Speaker Baffle
- Secure Clamping ring with waterproof gasket
Compatible with:
- CICADA 6×9 speakers, even with full size cast frames and oversized surrounds
- CICADA Hard Divider, Tweeter Bridge Accessories
- CICADA 24RING10, 24PORT3 and all CICADA 8” or 10” Midbass drivers.
Baffle Angle that perfectly positions the speaker towards the rider for optimal projection
Increased durability for heavier full size, full depth 6×9 speakers
Better Waterproofing with the fully gasketed baffle clamp
High-strength ASA plastic for durability and performance
UV Resistant materials for long lasting appearance
Engineered for perfect fit and easy installation
Grille Mesh formed with heavy duty powder-coated steel
Edgeless trim design and rugged speaker protection
Compatible with saddlebags featuring electric locks
Included Accessories:
ABS molded Cutout Templates
Heavy duty updated Lid Gasket Seals
Rainproof Lid Covers
CICADA Tethers with Crossover pouch
Die cut speaker gasketing
1x Cicada Audio CX69.4 - Coaxial Speakers 6x9-inch - 4 Ohm, Pair - (CX69.4)
• 125WRMS/250 MAX Power Handling
• Neodymium High Energy/ Light Weight N35H Magnet structure
• WaterProof IMPP Cone with NBR surrounds
• Heavy Duty/ Injected High Temp Polymer Frame.
• 1.4” 4 Ohm – High Temp Voice Coil (Black Coat™) Voice Coil MidBass
• 1.0” PEI dome tweeter with Neodymium magnet
• DPSH® “Dual-Phase Slot Horn”
• Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
• Frequency Response: 53.6Hz -20Khz+/-5dB
• High Sensitivity: 95.5dB (1W/1M - 2.83V)
• Built in 6dB Crossover
TECHNICAL SPECIFICATIONS
Component: High Efficiency CoAx Driver
Provided inline crossover Hi-pass filter @ 6 kHz - 6 dB Oct
Size in. / mm: 6 X 9 (163 X 234)
Power Handling W peak 250W - Hi-pass filtered** @ 100Hz - 12 dB Oct.
Impedance Ω 4 Ohm
Frequency Response Hz: 45Hz-20k +/- 5dB
Sensitivity dB/SPL 95.5dB: (1W/1M -2.83V)
Voice Coil Ø in. (mm): 1.4 (35) Mid / 1.0 (25) Tweeter
Magnet: Neodymium N35H
Dome: PEI
Weight of 1 Speaker (kg) lb.: (1.04) 2.3
ELECTRO-ACOUSTIC PARAMETERS - MIDBASS
D inches / mm: 6 X 9 (163 X 234)
Re Ω: 4
Fs Hz: 53.6
Le mH: @ 1 kHz 0,03
Vas I: 25.89
Mms g: 22
Cms mm/N: 0.431
BL T• m: 6.371
Qts: 0.548
Qes: 0.609
Qms: 5.488
Spl dB: 95.5dB (1W/1M -2.83V)
