Description
Included in this kit
This bundle includes a Cicada Audio FLX1400.4P - DSP 4 x 350 @ 2 Ohm, a Cicada Audio CHX65.2 - Pro Coaxial Horn Loaded Speakers 6.5-inch - 2 Ohm, Pair, a Cicada Audio Waterproof USB C Extension Kit for DSP88v2/DSP600.4D w/90 degree connector - 3 ft, a Cicada Audio HDFLXPro4K - 4-Channel FLX Wiring Harness Kit with 4 AWG PWR Wire, a Cicada Audio CHDRGG - H-D 2014-2023 RG Kidney Grill - PR, and a Cicada Audio 14HDAR-RG - CX/DSP/FLX Amplifier Mounting System H-D® Road Glide ®.
1x Cicada Audio FLX1400.4P - DSP 4 x 350 @ 2 Ohm (FLX1400.4P)
4 CHANNEL DSP POWER AMPLIFIER
Requires 4 AWG Power Wire – HDPG4K
4 X 200 WRMS into 4 ohms @ 12.5 Vdc
4 X 225 WRMS into 4 ohms @ 14.4 Vdc
4 X 300 WRMS into 2 ohms @ 12.5 Vdc
4 X 350 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
2 X 600 WRMS into 4 ohms @ 12.5 Vdc
2 X 700 WRMS into 4 ohms @ 14.4 Vdc
Frequency response – 20-20,000 +/- 3dB THD < 0.5%
Operating Voltage: 8 V – 16 V
Current Draw (Music): 50 A
Current Draw (Max): 220 A
Recommended Fuse (Music): 120 A
Total Efficiency: 79%
Damping Factor: 200
SNR: 91 dB
Crossover LPF/FULL/HPF: 30 TO 300Hz
Slope:12dB per octave
Gain: 0.2V – 12 Vac
Turn-On Configuration: REM/DC
DSP Crossover HPF/LPF: 0 TO 20kHz
Slope configurable 6/12/18/24/48dB
DSP PEQ – 8 BANDS
Q’s Adjustable from 0.05 – 20
THD + N (10% Rated Power): 0.1%
Product Dimensions (Inches / Millimeters): 7.6 x 4.9 x 2.0 in / 193 x 124 x 51 mm
1x Cicada Audio CHX65.2 - Pro Coaxial Horn Loaded Speakers 6.5-inch - 2 Ohm, Pair (CHX65.2)
FEATURES:
Designed for 2014+ H-D® factory designed locations
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
N35SHSH Neo magnet
Water proofing, UV protected
External 12dB crossover with optional -3/-6 tweeter resistor pack
Available in 4- or 2-Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
Carbon Matrix Composite™ (CMC™) cone
Lightweight / rigid / high temp
Maximized efficiency / super strong
Die cast Aluminum custom tooled basket
Warranty: 2 years
Specifications
6.5” PRO coaxial horn driver
Power handling: 300W RMS/600W MAX
Voice Coils: 2.0”/51mm mid-bass & 1.75”/44mm Tweeter
High temperature Design
Cone: Carbon Matrix Composite™
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Tweeter Attenuation: -3/-6 dB heat sink encased resistor pack
Magnet: Neodymium
Sensitivity: 92dB
response 70hz-20Khz +/- 4dB
Mounting Depth: 2.64”/67mm
Mounting Diameter: 5.67”/144mm

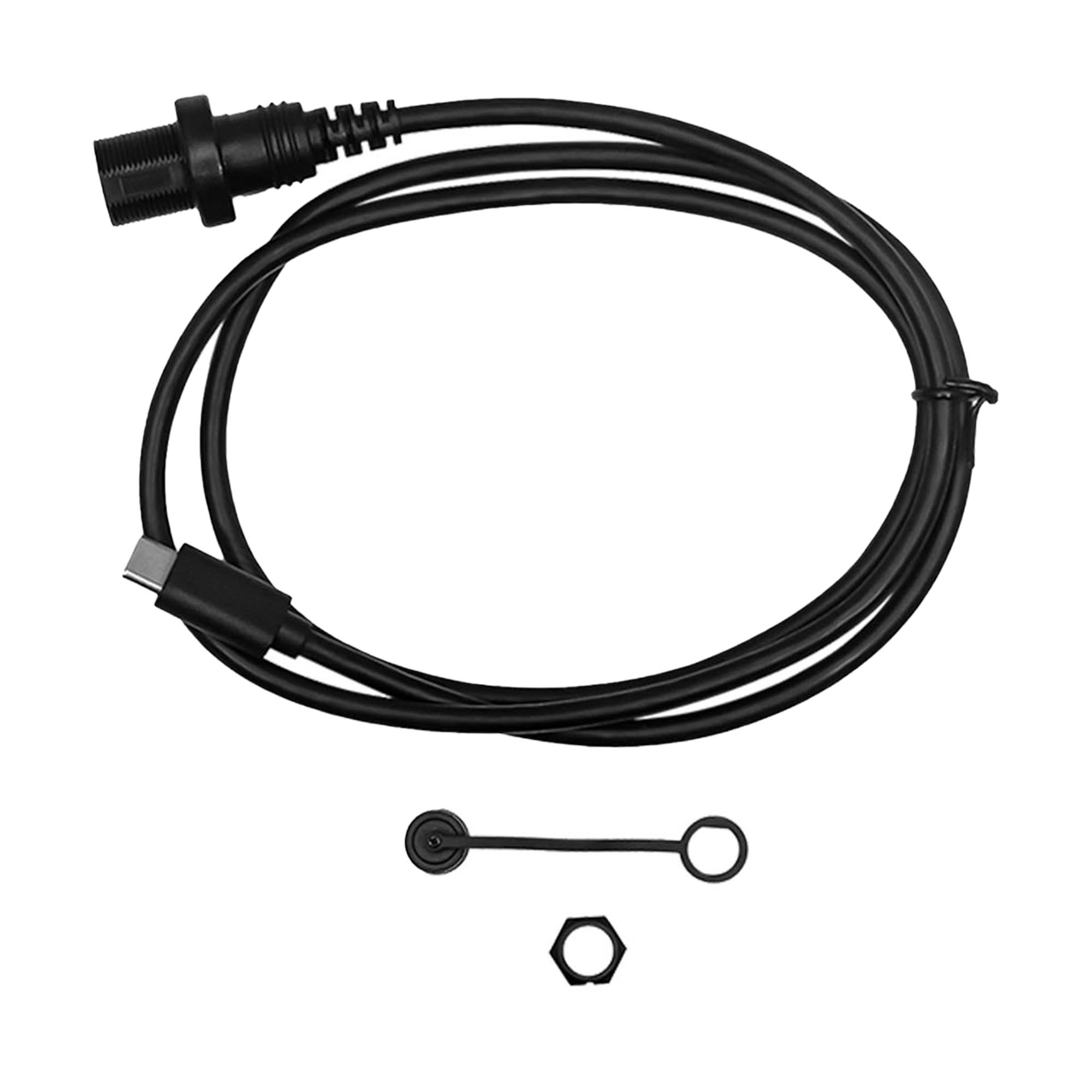

1x Cicada Audio Waterproof USB C Extension Kit for DSP88v2/DSP600.4D w/90 degree connector - 3 ft (C2C90)
Waterproof USB C Extension Kit for DSP88v2/DSP600.4D w/90 degree connector - 3 ft
1x Cicada Audio HDFLXPro4K - 4-Channel FLX Wiring Harness Kit with 4 AWG PWR Wire (HDFLXPro4K)
HDFIM Front input harness with 47-ohm resistors – Molex
HDRIM Rear input harness with 47-ohm resistors – Molex
HDBDAFO Front output harness – Ferrules
HDBDARO Rear output harness w/ 8 FT extension – Ferrules
HDPG4K 4-Gauge Power/Ground Kit
1x Cicada Audio CHDRGG - H-D 2014-2023 RG Kidney Grill - PR (CHDRGG)
Custom tooled Road Glide(R) replacement grill for increased height for CH/CM series speakers.
1x Cicada Audio 14HDAR-RG - CX/DSP/FLX Amplifier Mounting System H-D® Road Glide ® (14HDAR-RG)
Amplifier Mounting Rack for 2014-2023 H-D® Road Glide®
HASSLE-FREE INSTALLATION
Mount amp to stainless steel chassis and easily slide in under the fairing mounted radio.
NOTE: Place amplifier input side toward the driver, power and ground input toward the headlight!
Powder coated
Stainless steel construction
Mounting hardware included
Designed for CX/FLX/DSP600.4D style amplifiers only
