Description
Included in this kit
This bundle includes 2x Diamond Audio DMD102SH Diamond Shallow 10" Dvc 2Ω 250W Rms / 500W Max Power Handling.
2x Diamond Audio DMD102SH Diamond Shallow 10" Dvc 2Ω 250W Rms / 500W Max Power Handling - (DMD102SH)

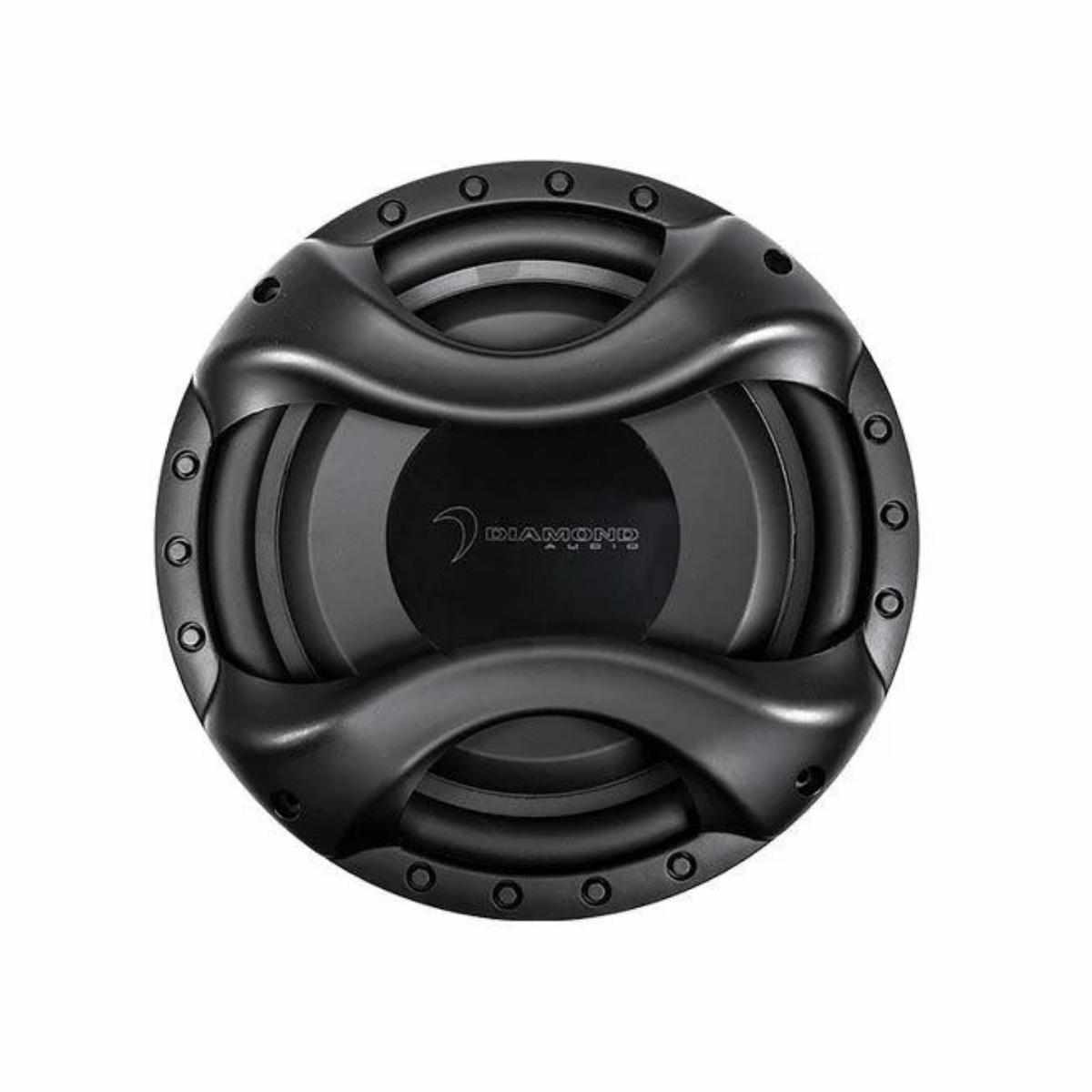

DMD102SH - DMD Series 10" Shallow Dual Voice Coil Subwoofer (2Ω)
Look no further if you are seeking a solution when challenged with space limitations for adding bass to your car audio system. The Diamond DMD shallow series subwoofers measure in with only 3 inches of depth and perform best in sealed enclosures performing just like a conventional full-size subwoofer but taking up less space. For optimum bass response, we recommend using two DMD shallow subwoofers in a narrow 1 cubic foot enclosure. Extremely shallow mounting depth of 3 inches.
Specifications:
- Power: 250W RMS/500W MAX
- SPL(dB): 85.8
- Re(Ω): 3.40
- Qms: 9.0
- Qes: 0.71
- Qts: 0.66
- Fs(Hz): 48.0
- Vas(L): 15.4
- Cms(mm/N): 0.084
- Mms(g): 130.5
- Sd(cm²): 0.0359
- BL(T*M): 13.7
- Xmax(mm): 7.9
