Description
Included in this kit
This bundle includes 2x Metra 72-6514 Chrysler/Dodge 1990-Up Speaker Harness - Pair, a Diamond Audio DMDX69 - DMDX Series 6"X9"2-way Concentric Coaxial Speakers, and a Diamond Audio DMDX5 - DMDX Series 5.25" 2-way Concentric Coaxial Speakers.
2x Metra 72-6514 Chrysler/Dodge 1990-Up Speaker Harness - Pair - (72-6514)
Metra speaker harness compatible with 1990 and later Chrysler/Dodge vehicles. Sold in pairs.
1x Diamond Audio DMDX69 - DMDX Series 6"X9"2-way Concentric Coaxial Speakers - (DMDX69)
Diamond Audio DMDX 6"x9" Concentric Coaxial Speakers
The Diamond Audio DMDX Concentric Coaxial Speakers are engineered to deliver high-fidelity sound in a streamlined, full-range design. Built for drivers seeking a noticeable upgrade over factory audio, the DMDX series combines clarity, efficiency, and dynamic output in a single 6"x9" chassis.
Utilizing a concentric coaxial configuration, the tweeter and woofer are aligned to provide cohesive sound reproduction with natural staging and improved tonal balance across the frequency spectrum.
Performance Highlights
- 65 watts RMS power handling
- 195 watts maximum power handling
- 50Hz–20kHz frequency response
- 88dB sensitivity (1W/1M)
- 4-ohm nominal impedance
- 68Hz free-air resonance (Fs)
Installation & Fitment
Designed around a standard 6"x9" form factor, the DMDX coaxials provide compatibility with a wide range of factory and aftermarket speaker locations. Installation measurements are provided below to assist with proper fitment.
| Nominal Diameter | 6"x9" (152 x 228mm) |
|---|---|
| Mounting Depth | 3.17" (80.6mm) |
| Cut-Out Dimensions | 8.68" x 5.93" (220.5 x 150.5mm) |
| Overall Dimensions | 9.29" x 6.4" (236 x 162.6mm) |
| Overall Height | 3.54" (90mm) |
Specifications
| Power Handling (RMS) | 65 Watts |
|---|---|
| Power Handling (Max) | 195 Watts |
| Frequency Response | 50Hz–20kHz |
| Sensitivity (1W/1M) | 88dB |
| Nominal Impedance | 4 Ohms |
| Free-Air Resonance (Fs) | 68Hz |

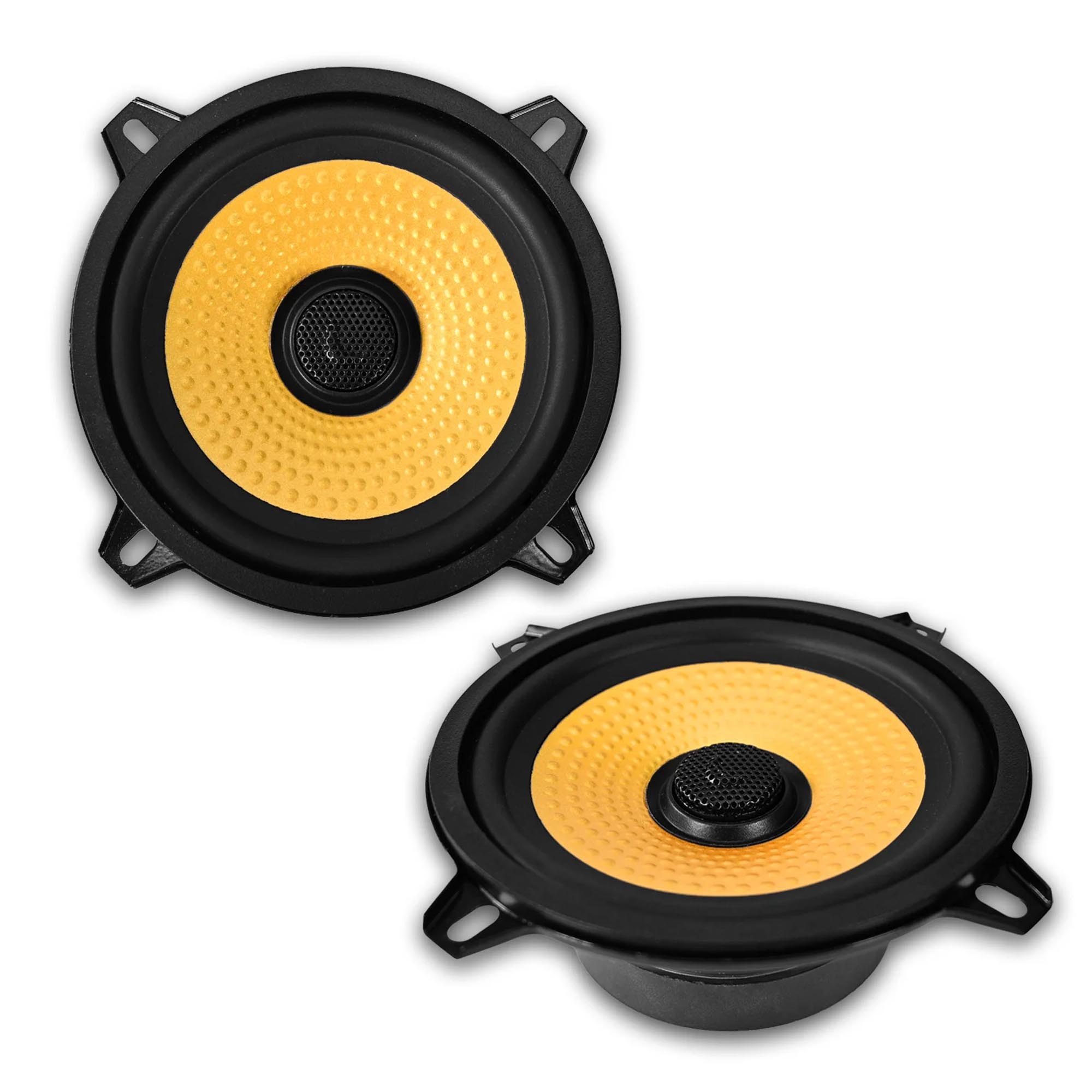

1x Diamond Audio DMDX5 - DMDX Series 5.25" 2-way Concentric Coaxial Speakers - (DMDX5)
Diamond Audio DMDX 5.25" Concentric Coaxial Speakers
The Diamond Audio DMDX Concentric Coaxial Speakers are designed to deliver reliable, full-range sound in a compact 5.25-inch format. Built for drivers seeking improved clarity and output over factory systems, the DMDX series balances efficiency, power handling, and practical installation dimensions.
The concentric coaxial configuration integrates the tweeter and woofer into a single aligned assembly, promoting cohesive sound reproduction and consistent tonal balance across the listening area.
Performance Highlights
- 40 watts RMS power handling
- 120 watts maximum power handling
- 60Hz–20kHz frequency response
- 85dB sensitivity (1W/1M)
- 4-ohm nominal impedance
- 70Hz free-air resonance (Fs)
Installation & Fitment
With a shallow 1.89-inch mounting depth and standard 5.25-inch sizing, these speakers are well-suited for factory replacement applications and compact mounting locations. Verify all measurements prior to installation.
| Nominal Diameter | 5.25" (127mm) |
|---|---|
| Mounting Depth | 1.89" (48mm) |
| Cut-Out Diameter | 4.43" (112.5mm) |
| Overall Diameter | 5.08" (129mm) |
| Overall Height | 2.13" (54.1mm) |
Specifications
| Power Handling (RMS) | 40 Watts |
|---|---|
| Power Handling (Max) | 120 Watts |
| Frequency Response | 60Hz–20kHz |
| Sensitivity (1W/1M) | 85dB |
| Nominal Impedance | 4 Ohms |
| Free-Air Resonance (Fs) | 70Hz |
