Description
Included in this kit
This bundle includes a Diamond Audio DMDX35 - 3.5" 2-Way Concentric Coaxial Speakers, and a Diamond Audio DMDX65 - DMDX Series 6.5" 2-way Concentric Coaxial Speakers.

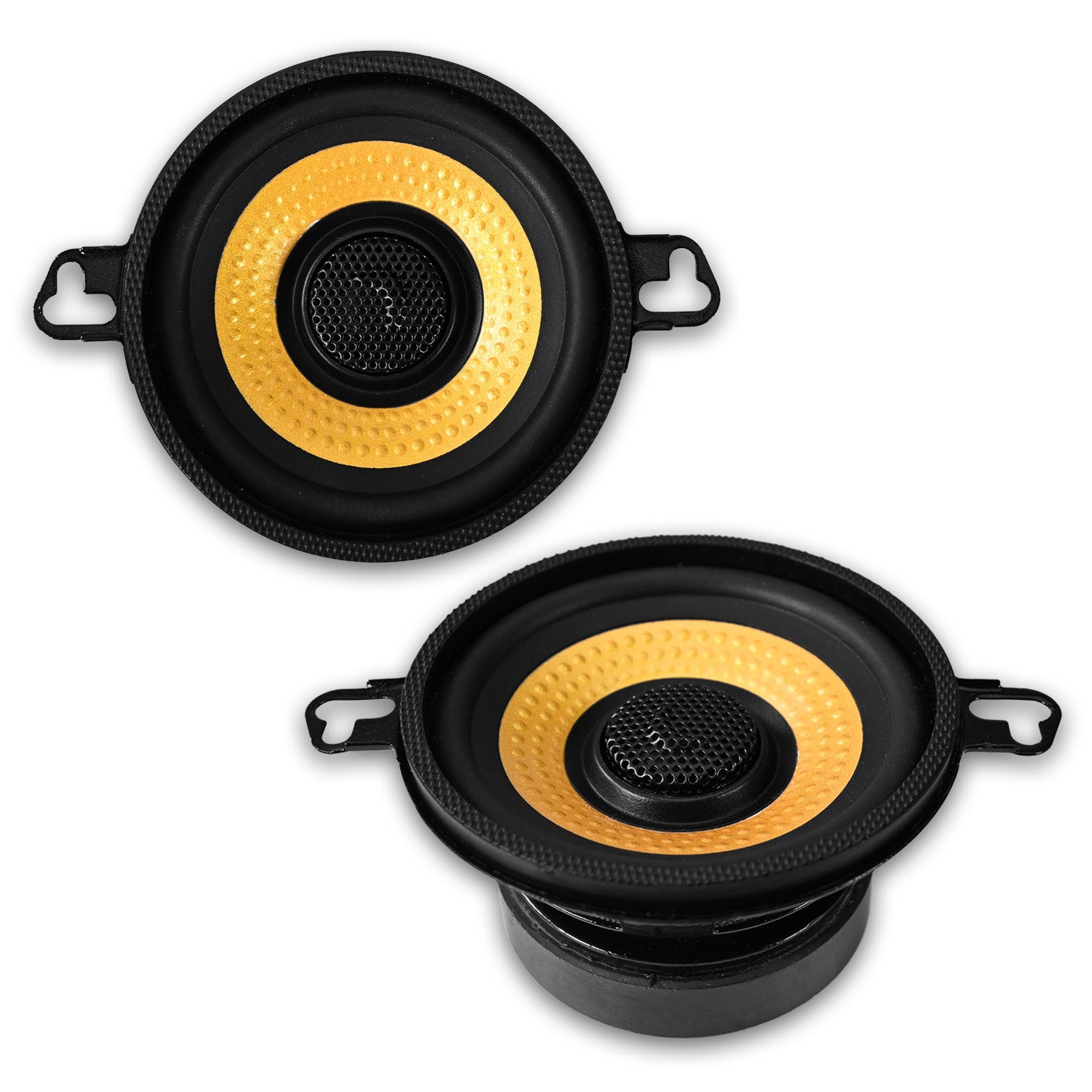

1x Diamond Audio DMDX35 - 3.5" 2-Way Concentric Coaxial Speakers (DMDX35)
Diamond Audio DMDX35 is the 3.5" 2-Way Concentric Coaxial Speakers. Bring your factory system back to life with the Diamond Audio DMDX35 3.5" 2-way concentric coaxial speakers, designed to deliver crisp clarity, balanced sound, and exceptional value in a compact footprint. As part of the performance-focused DMDX Series, these speakers are the perfect upgrade for drivers looking to enhance dash or rear fill audio without breaking the bank. At the heart of the DMDX35 is its advanced concentric coaxial design, where the tweeter is precisely aligned with the woofer. This configuration improves phase accuracy and sound dispersion, creating a more natural, cohesive soundstage.
Features / Specs -
• Power Handling - Watts (RMS/Peak): 25W RMS / 75W MAX
• Frequency Response (Hz): 80Hz-20KHz
• Sensitivity (1W/1M): 82dB
• Nominal Impedance (ohms): 4Ω
• Free-Air Resonance (Hz): 155Hz
• Nominal Diameter -inch (mm): 3.5" (88.9mm)
• Mounting Depth-inch (mm): 1.65" (42mm)
• Cut-Out Diameter -inch (mm): 3.07" (78mm)
• Overall Diameter -inch (mm): 3.43" (87.2mm)
• Overall Height -inch (mm): 1.89" (48mm)
1x Diamond Audio DMDX65 - DMDX Series 6.5" 2-way Concentric Coaxial Speakers (DMDX65)
Diamond Audio DMDX 6.5" Concentric Coaxial Speakers
The Diamond Audio DMDX 6.5" Concentric Coaxial Speakers are designed to deliver high-fidelity sound in a compact, installation-friendly format. Engineered for drivers seeking an upgrade over factory audio, the DMDX series balances clean power handling, smooth frequency response, and efficient output in a 6.5-inch platform.
Featuring a concentric coaxial design, these speakers provide detailed high frequencies, articulate midrange, and controlled low-frequency response—making them an ideal solution for OEM replacement or entry-level aftermarket systems.
Performance Highlights
Power Handling
Rated at 45 watts RMS with 135 watts maximum power handling for reliable everyday performance.
Full-Range Response
60Hz–20kHz frequency range supports balanced reproduction across lows, mids, and highs.
Efficient Sensitivity
87dB sensitivity (1W/1M) allows strong output with factory head units or external amplification.
4-Ohm Design
Nominal 4-ohm impedance ensures compatibility with standard automotive audio systems.
Installation & Fitment
Built in a 6.5-inch (165mm) format, the DMDX is well-suited for factory speaker replacement in compatible vehicles. Its shallow mounting depth supports installation in tighter door or rear deck locations.
Mounting Depth
1.77" (45mm)
Cut-Out Diameter
4.84" (123mm)
Overall Diameter
6.26" (159mm)
Overall Height
2.13" (54.1mm)
Specifications
| Nominal Diameter | 6.5" (165mm) |
| Power Handling (RMS) | 45 Watts |
| Power Handling (Max) | 135 Watts |
| Frequency Response | 60Hz – 20kHz |
| Sensitivity (1W/1M) | 87dB |
| Nominal Impedance | 4 Ohms |
| Free-Air Resonance (Fs) | 70Hz |
| Mounting Depth | 1.77" (45mm) |
| Cut-Out Diameter | 4.84" (123mm) |
| Overall Diameter | 6.26" (159mm) |
| Overall Height | 2.13" (54.1mm) |
