Description
Included in this kit
This bundle includes a Diamond Audio MP694 MP Series 6"x9" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω) - MP694, a Metra 82-5606 Speaker Mounting Brackets Install 6"x9" speakers in select 2015-Up Ford, Lincoln Vehicles, and a Metra 72-5602 Speaker Harness Pair - Fits Ford/Multi-App 2008-Up.

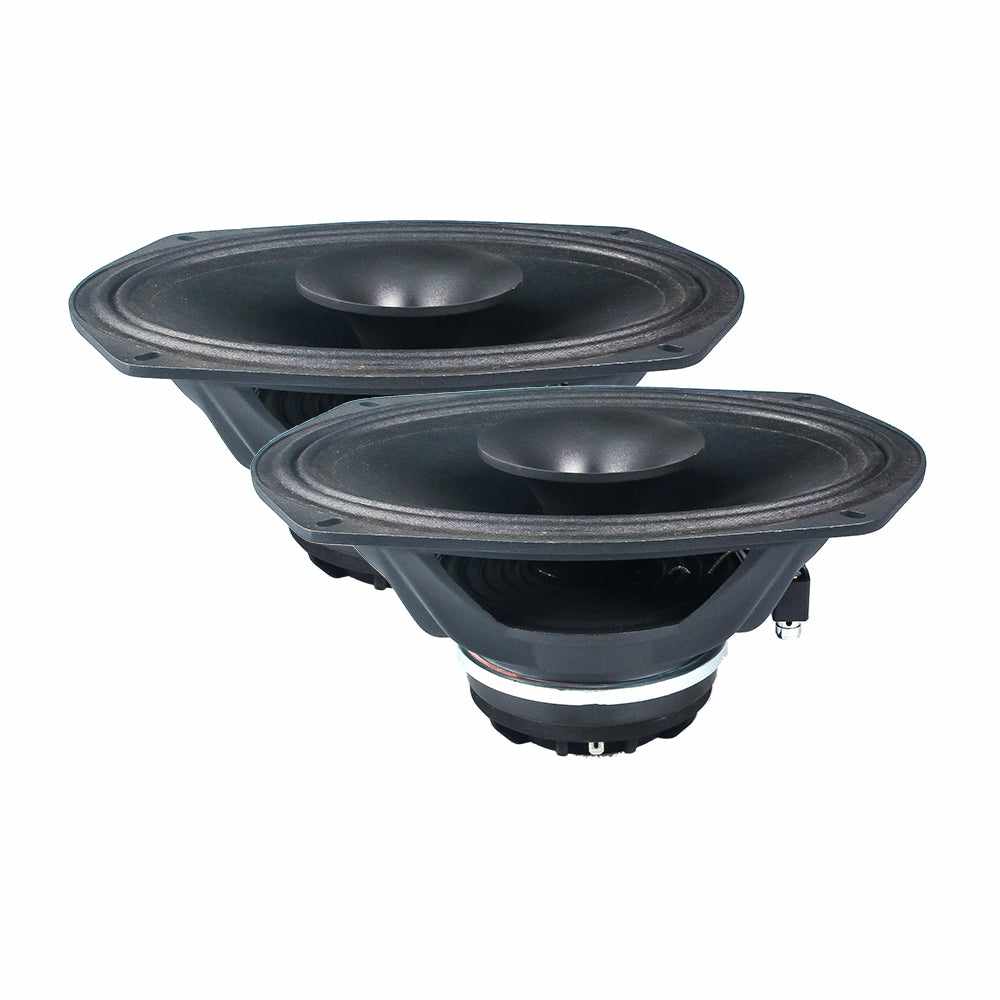

1x Diamond Audio MP694 MP Series 6"x9" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω) - MP694 (MP694)
MP694 - MP Series 6"x9" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω)
Discover the ultimate in audio performance with Diamond Audio’s MP Series speakers. Engineered for maximum efficiency and loudness, these speakers incorporate a horn style tweeter with a replaceable tweeter diaphragm, ensuring unparalleled sound clarity and power. Designed to meet the needs of discerning audio enthusiasts, the MP Series is your perfect audio companion for boats, Harley Davidson motorcycles, and recreational vehicles.
The MP Series speakers are designed to be ultra-efficient, ensuring that you get the most out of your audio system with minimal power consumption. Experience high-decibel sound that delivers powerful, clear audio whether you’re on the water, the open road, or off the beaten path.
Crafted with a high-end cast basket and superior design, the MP Series speakers are built to last. The horn style tweeter enhances sound projection and clarity, while the replaceable tweeter diaphragm ensures long-term performance and ease of maintenance.
Diamond Audio is renowned for delivering superior sound quality, and the MP Series is no exception. Enjoy your favorite music with exceptional clarity, rich mid-range, and powerful bass, making every journey a sonic adventure.
Whether you’re outfitting your boat, Harley Davidson, or recreational vehicle, Diamond Audio’s MP Series speakers are the ideal choice for high-quality, durable audio equipment. Built to withstand the rigors of various environments, these speakers deliver consistent, high-performance sound wherever your journey takes you.
Upgrade your audio system with Diamond Audio MP Series speakers and experience the pinnacle of sound performance and reliability. Feel the difference that high-end engineering and precision craftsmanship can make – choose Diamond Audio for your next adventure!
Disclaimer
*** The speakers are water resistant and not waterproof. They can be damaged by large amounts of water. ***
Specifications:
- Power: 150W RMS/300W MAX
- SPL(dB) MidBass: 95.6
- SPL(dB) Tweeter: 107
- Re(Ω): 3.2
- Qms: 9.42
- Qes: 0.43
- Qts: 0.42
- Fs(Hz): 82.6
- Vas(L): 18.2
- Cms(mm/N): 0.25
- Mms(g): 15.1
- Sd(cm²): 229.7
- BL (T*M): 7.6
- Xmax(mm): 1.0
- Hi-pass Filter: 12dB 2nd Order Crossover
1x Metra 82-5606 Speaker Mounting Brackets Install 6"x9" speakers in select 2015-Up Ford, Lincoln Vehicles (82-5606)
Upgrade your speakers with the help of these speaker adapter plates. These plates are sold as a pair and designed to install most 6"x9" aftermarket speakers in multiple vehicle applications, making them convenient to have on hand. They mount directly into the factory location, so no drilling is required, and feature a breakaway tab design for easy installation.
Features:
For the installation of most 6"x9” aftermarket speakers into the original factory speaker location in the front door
For use in multiple vehicle applications
Breakaway tab design
Sold as a pair
1-year warranty
Includes:
(2) Speaker adapter plates
Vehicle Applications:
Ford
2018-2024 Ford Expedition
2020-2025 Ford Explorer
2015-2025 Ford F-150
2017-2024 Ford F-250 Super Duty
2017-2024 Ford F-350 Super Duty
Lincoln
2017-2020 Lincoln Continental
2018-2024 Lincoln Navigator
1x Metra 72-5602 Speaker Harness Pair - Fits Ford/Multi-App 2008-Up (72-5602)
Connect aftermarket front kick panel speakers to your Ford Bronco's factory wiring with these vehicle-specific speaker harnesses. The plug-n-play design eliminates the need to cut and splice wires. It is constructed of quality materials to ensure durability.
Keep in mind that you may need additional parts to complete your installation. For fitment information, look up your vehicle in our vehicle fit guide.
Fiat
2017-2020 Fiat 124 Spider
Ford
2021-2025 Ford Bronco
2021-2024 Ford Bronco Sport
2013-2018 Ford C-Max
2018-2021 Ford EcoSport
2015-2023 Ford Edge
2013-2023 Ford Escape
2018-2024 Ford Expedition
2011-2025 Ford Explorer
2015-2025 Ford F-150
2017-2024 Ford F-250 Super Duty
2017-2024 Ford F-350 Super Duty
2011-2019 Ford Fiesta
2012-2018 Ford Focus
2013-2020 Ford Fusion
2015-2024 Ford Mustang
2021-2024 Ford Mustang Mach-E
2019-2023 Ford Ranger
2015-2024 Ford Transit-150
2015-2024 Ford Transit-250
2015-2024 Ford Transit-350
2015-2024 Ford Transit-350 HD
2014-2023 Ford Transit Connect
Jaguar
2018-2024 Jaguar E-Pace
2017-2020 Jaguar F-Pace
2014-2021 Jaguar F-Type
2019-2021 Jaguar I-Pace
2017-2020 Jaguar XE
2009-2023 Jaguar XF
2011-2019 Jaguar XJ
Land Rover
2021-2023 Land Rover Defender 90
2020-2023 Land Rover Defender 110
2023 Land Rover Defender 130
2017-2023 Land Rover Discovery
2015-2020 Land Rover Discovery Sport
2008-2015 Land Rover LR2
2013-2020 Land Rover Range Rover
2012-2020 Land Rover Range Rover Evoque
2014-2020 Land Rover Range Rover Sport
2018-2020 Land Rover Range Rover Velar
Lincoln
2020-2023 Lincoln Aviator
2017-2020 Lincoln Continental
2020-2024 Lincoln Corsair
2013-2020 Lincoln MKZ
2019-2023 Lincoln Nautilus
2018-2024 Lincoln Navigator
Mazda 2011-2014 Mazda 2
2010-2023 Mazda 3
2014-2021 Mazda 6
2016-2021 Mazda CX-3
2013-2024 Mazda CX-5
2016-2023 Mazda CX-9
2020-2023 Mazda CX-30
2016-2021 Mazda MX-5
2016-2024 Mazda MX-5 Miata
Scion
2016 Scion iA
Toyota
2019-2020 Toyota Yaris
2017-2018 Toyota Yaris iA
