Description
Included in this kit
This bundle includes a Diamond Audio NEO12004DSP - 1200W RMS Class D 4-Channel Amplifier, 2x Diamond Audio MP654 MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω), and a Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS.

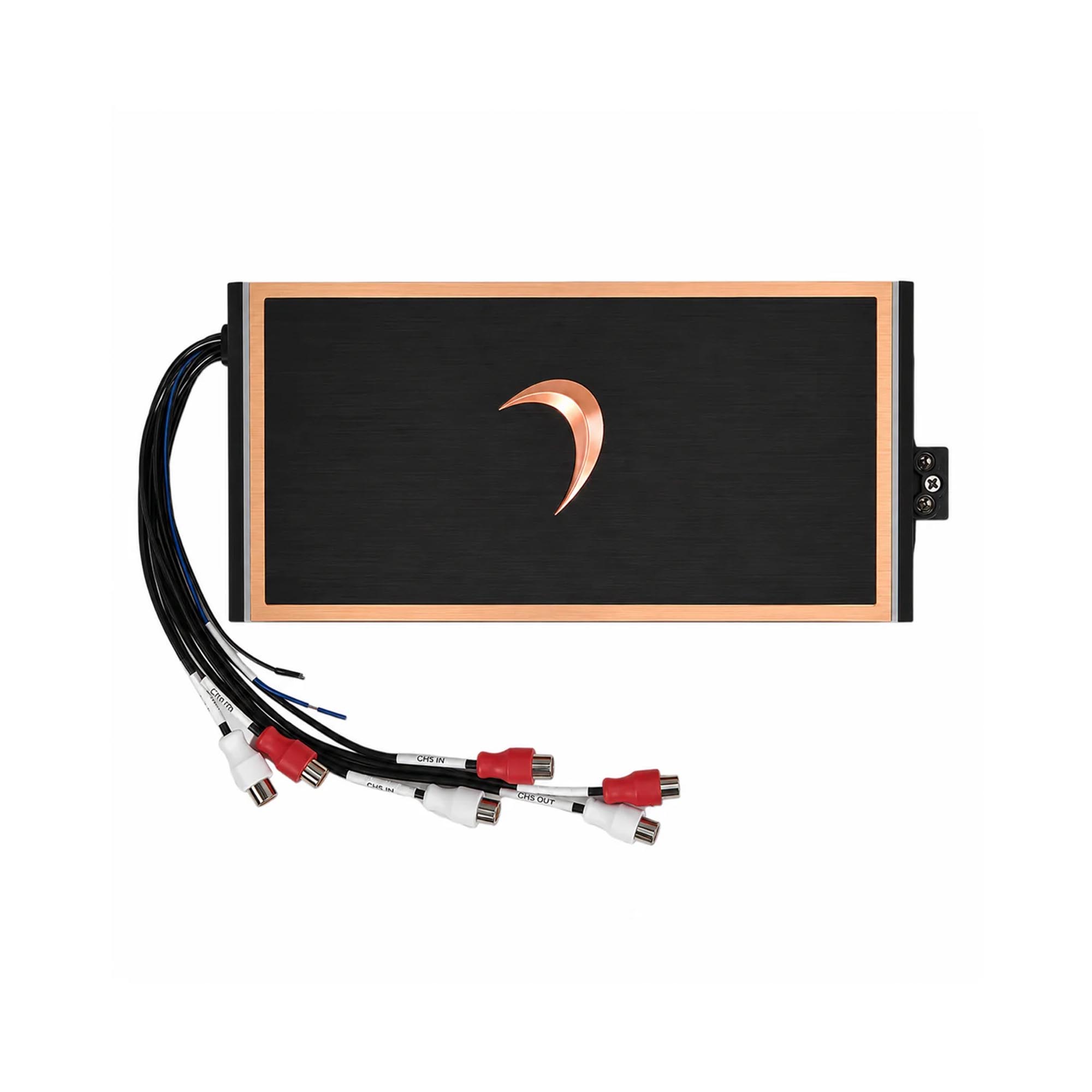

1x Diamond Audio NEO12004DSP - 1200W RMS Class D 4-Channel Amplifier (NEO12004DSP)
Versatile Power Meets Precision Control
The Diamond Audio NEO12004DSP is the definitive solution for audiophiles seeking the perfect balance of multi-channel power and sophisticated tuning with onboard 8CH DSP. As a high-efficiency Class D 4-Channel amplifier ,it delivers a robust 1200W RMS total output, 150W RMS x 4 @ 4Ω or 300W RMS x 4 @ 2Ω, providing the versatile strength needed to drive high-end component speakers or subwoofers when bridged at 600W x 2 @ 4Ω , all while maintaining the pure sonic clarity Diamond Audio is known for.
Advanced Full DSP Integration
Unlike standard multi-channel amplifiers, the NEO12004DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ per channel , precise crossovers, time delay , and channel linking, you have total command over your entire soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to calibrate your system for any acoustic environment.
Key Features:
Full 6CH DSP integration: 4CH internal, 2CH output. 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
Easy OEM integration features:
Up to 20V signal inputs (High/Low level 20V – 0.4V)
Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
EV friendly voltage compatibility (8V – 17V)
Marine ready, water-resistant chassis
Staggered RCA connections for clean installations
High-current quick-connect power block
NeoDRC1 Diamond Remote Commander compatible (sold separately)
2 RCA preamp outputs for system expansion
Ultra-low distortion (0.05% THD)
Specifications
Output Power Rating
150W x 4 @ 4Ω
300W x 4 @ 2Ω
Bridged @ 4Ω: 2x600W
Frequency Response: 15Hz - 23kHz
Input Sensitivity: 0.4-20V
Signal to Noise Ratio: 85dB
THD & Noise: ≤0.03%
Dimensions(L×H×W): 223.5 X 103.3 X 35mm/ 8.8" X 4.07" X 1.38"
Net Weight: 1.02kg / 2.25lbs
2x Diamond Audio MP654 MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω) (MP654)
MP654 - MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω)
Discover the ultimate in audio performance with Diamond Audio’s MP Series speakers. Engineered for maximum efficiency and loudness, these speakers incorporate a horn style tweeter with a replaceable tweeter diaphragm, ensuring unparalleled sound clarity and power. Designed to meet the needs of discerning audio enthusiasts, the MP Series is your perfect audio companion for boats, Harley Davidson motorcycles, and recreational vehicles.
The MP Series speakers are designed to be ultra-efficient, ensuring that you get the most out of your audio system with minimal power consumption. Experience high-decibel sound that delivers powerful, clear audio whether you’re on the water, the open road, or off the beaten path.
Crafted with a high-end cast basket and superior design, the MP Series speakers are built to last. The horn style tweeter enhances sound projection and clarity, while the replaceable tweeter diaphragm ensures long-term performance and ease of maintenance.
Diamond Audio is renowned for delivering superior sound quality, and the MP Series is no exception. Enjoy your favorite music with exceptional clarity, rich mid-range, and powerful bass, making every journey a sonic adventure.
Whether you’re outfitting your boat, Harley Davidson, or recreational vehicle, Diamond Audio’s MP Series speakers are the ideal choice for high-quality, durable audio equipment. Built to withstand the rigors of various environments, these speakers deliver consistent, high-performance sound wherever your journey takes you.
Upgrade your audio system with Diamond Audio MP Series speakers and experience the pinnacle of sound performance and reliability. Feel the difference that high-end engineering and precision craftsmanship can make – choose Diamond Audio for your next adventure!
Disclaimer
*** The speakers are water resistant and not waterproof. They can be damaged by large amounts of water. ***
Specifications:
- Power: 150W RMS/300w MAX
- SPL(dB) MidBass: 92.7
- SPL(dB) Tweeter: 107
- Re(Ω): 3.2
- Qms: 10.73
- Qes: 0.47
- Qts: 0.45
- Fs(Hz): 103.3
- Vas(L): 6.6
- Cms(mm/N): 0.24
- Mms(g): 90.7
- Sd(cm²): 138.9
- BL(T*M): 6.5
- Xmax(mm): 1.0
- Hi-pass Filter: 12dB 2nd Order Crossover
1x Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS (CAK42)
Designed Specifically for Car Audio System up to 1200W. 4 Gauge 2-Channel Amplifier Connection Kits. 17ft, 4 Gauge Matte Red Power Wire with ring terminated. 3ft, 4 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 2-Ch. Vega series RCA interconnect. AGU fuse holder with 100A fuse. All Hardware included. OFC. US Spec.
Specifications
4 Gauge 2-Channel Amplifier Connection Kits
17ft. 4 Gauge Matte Red Power Wire with ring terminated
3ft. 4 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 2-Ch. Vega series RCA interconnect
ANL fuse holder with 100A fuse
All Hardware Include
OFC
