Description
Included in this kit
This bundle includes a Diamond Audio MSMS694LK24 Motorsport H-D Cut-In Speaker Lid Kit With Ms69cx, a Diamond Audio MICRO2V2 Micro 2-Ch 250W RMS X 2 @ 2-Ohm, and a Diamond Audio HX82 - 2-Channel 8 Gauge Amplifier Installation Kit W/ RCA Interconnect and 20 ft Speaker Cable.

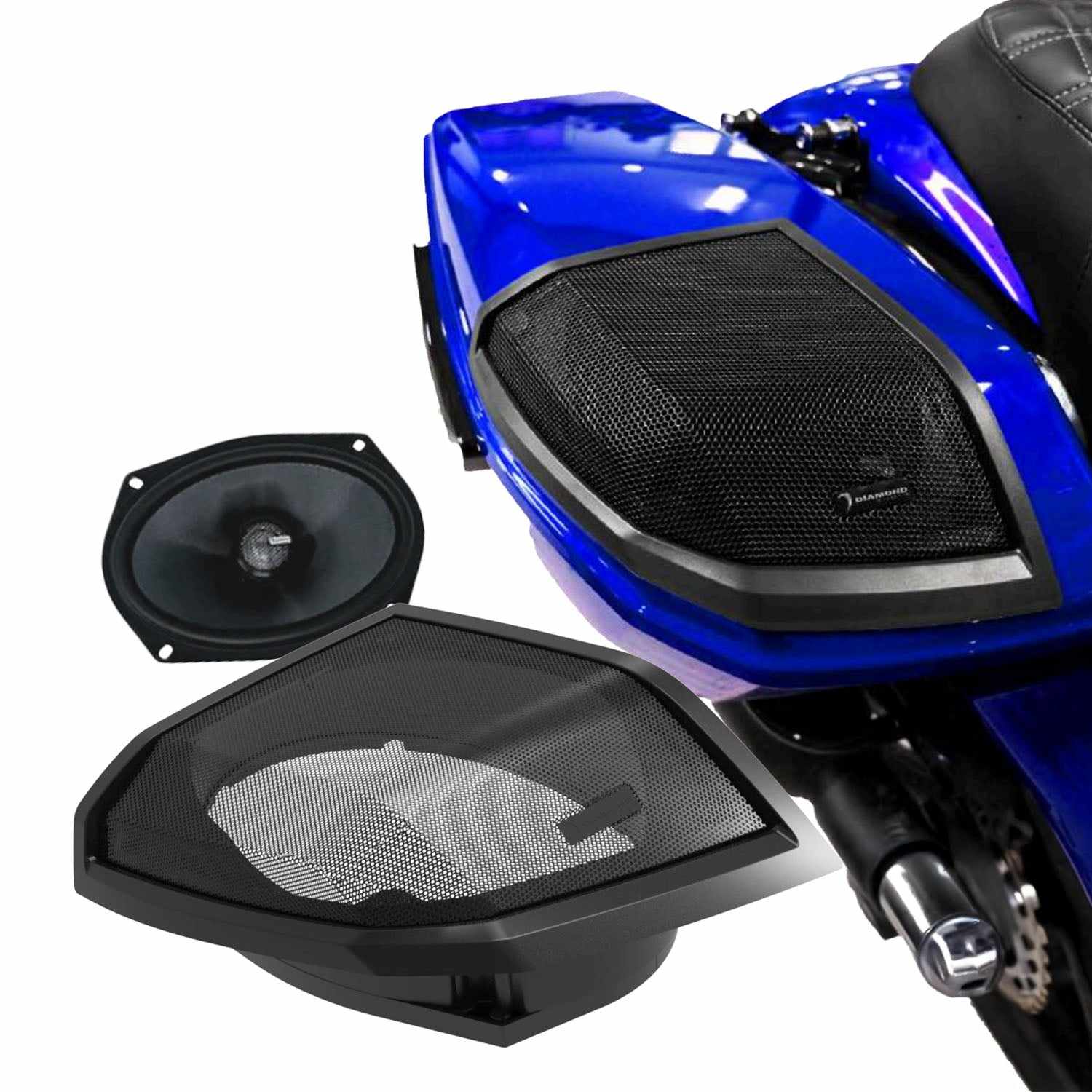

1x Diamond Audio MSMS694LK24 Motorsport H-D Cut-In Speaker Lid Kit With Ms69cx (MSMS694LK24)
2024+ Harley Davidson® Cut-In Lid Kit with MS69CX Speakers (4Ω) - MSMS694LK24
Unleash the power of Diamond Audio's MSMS694LK24 Cut-in Lid Kit, designed for 2024+ Harley Davidson® motorcycles. This premium 6x9” 2-Way Coaxial Subwoofer System delivers deep bass, crystal-clear highs, and an immersive audio experience built for the open road.
Key Features:
Seamless Integration: Engineered to fit 2024+ Harley Davidson® models, this kit ensures a factory-finish appearance and a perfect fit for easy installation.
High-Performance Audio: Featuring MSMS694 6x9” Coaxial Subwoofers, these speakers provide rich bass, detailed mids, and crisp highs, ensuring every note is felt and heard.
Superior Heat Dissipation: Designed with a high-temp voice coil and an advanced cooling system, this kit allows for extended high-volume play without distortion.
Built to Last: Constructed with a heavy-duty stamped steel basket and a Ferrite Strontium Magnet Structure, these speakers offer long-lasting durability even in the toughest riding conditions.
Plug & Play Installation: The included wiring harness and precision-fit spacer rings make installation quick, easy, and hassle-free.
Upgrade your Harley Davidson® with powerful, high-performance sound and deep bass that commands attention. Order your MSMS694LK24 Cut-in Lid Kit today!
Specifications:
- Includes .5” 6” x 9” Spacer Ring
- Includes: MS69CX - 6"x9" 2-Way High Power Motorsport Coax-Sub
- Manufactured to IPx65 Marine Grade Compliant Specifications
- 1" High Output Titanium Dome Tweeter
- UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
- 12dB Bessel Crossover Network
- Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
- T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
- High-Temperature Cast Aluminum Basket
- Mounting Diameter 8.875″ (225.5mm) x 6.125″ (155.6mm)
- Mounting Depth 3.875″ (98.425mm)
1x Diamond Audio MICRO2V2 Micro 2-Ch 250W RMS X 2 @ 2-Ohm (MICRO2V2)
MICRO2V2 - MICROV2 Series 2-Channel Full Range Class D Amplifier
Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.
The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.
With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.
When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.
Specifications:
- 2 Channel Full Range Digital Amplifier
- 250W x 2CH @ 2Ω
- 150W x 2CH @ 4Ω
- 500W x 1CH @4Ω Bridged RMS Power Output
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF
- Dimensions: 7.89” x 4.1” x 1.46” / 200.5 x 103 x 37.2 mm
- Remote Bass Knob Included
- Disconnected RCA Input & Speaker Output Harness Kits Included
1x Diamond Audio HX82 - 2-Channel 8 Gauge Amplifier Installation Kit W/ RCA Interconnect and 20 ft Speaker Cable (HX82)
Noise shield directional construction uses 3 tightly twisted conductor bundles (+, -, signal drain) per channel to create directional noise canceling.
Body Armor Protection utilizes high strength high strength nylon fibers that are woven tightly around the ultra-flexible PVC Cable Jacket
D.N.S Diamond Noise Shield Technology doubles the doubles the shielding efforts by combining two layers of EMI rejecting Mylar foil and radiated noise absorbing mesh, eliminating unwanted noise and interference.
Optimized Dynamic Signal Flow uses finely stranded pure OFC copper to optimize signal vs. frequency interaction for a dynamic listening experience.
Specifications
8 Gauge 4-Channel Amplifier Connection Kits
17ft. 8 Gauge Matte Red Power Wire with ring terminated
3ft. 8 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge Remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 4-Ch. Vega series RCA interconnect
AGU fuse holder with 60A fuse
All Hardware Include
