Description
Included in this kit
This bundle includes 2x DS18 PRO-HY69.4B 6x9" | 250 Watts RMS | 4Ω | Mid-Range | Water Resistant Cone, a Diamond Audio DMDXTK 20MM DMDX Series Tweeter Add-on Kit, a Diamond Audio HX600.4D - HEX Series 4-Channel Full Range Class D Amplifier RMS Power (4 Ω): 160W x 4, a Metra 82-5606 Speaker Mounting Brackets Install 6"x9" speakers in select 2015-Up Ford, Lincoln Vehicles, a Metra 72-5602 Speaker Harness Pair - Fits Ford/Multi-App 2008-Up, and a Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS.
2x DS18 PRO-HY69.4B 6x9" | 250 Watts RMS | 4Ω | Mid-Range | Water Resistant Cone (PRO-HY69.4B)
DS18 • PRO-HY69.4B
DS18 PRO-HY69.4B 6x9" | 250 Watts RMS | 4Ω | Mid-Range | Water Resistant Cone
DS18 PRO-HY69.4B PRO 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm
Nominal Diameter: 6x9" / 152 x 228mm
Nominal Impedance: 4 Ohm
RMS Power Handling: 250W
Frequency Response: 50Hz - 20Khz
Sensitivity (1w/1m): 97dB
Pair or Single: Single
Overview
Product Overview
DS18 PRO-HY69.4B PRO 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm
Highlights
Key Product Features
- 6x9" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
SPECS
| SKU | PRO-HY69.4B |
| Nominal Diameter | 6x9" / 152 x 228mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 50Hz - 20Khz |
| Recommended HI Pass Crossover | 80Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | No |
WOOFER SPECIFICATIONS
| Voice Coil Diameter | 1.5"/ 38.6mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper (IPx5) |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 27 Oz |
| Displacement Volume | 0.051L / 0.0018ft3 |
THIELE & SMALL PARAMETERS
| Equivalent Volume Vas | 14.84L / 0.52ft3 |
| Excursion (one way) Xmax | 9.2mm |
| Free Air Resonance Fs | 87Hz |
| Mechanical Factor Qms | 3.629 |
| Electrical Factor Qes | 0.661 |
| Total Factor Qts | 0.559 |
| Mechanical Mass Mms | 14.264g |
| Mechanical Compliance Cms | 0.236 mm/N |
| BL Factor BL | 6.135 |
| Voice Coil Inductance Le | 4.22mH |
| Cone Area Sd | 210.48 cm² |
| DC Resistance Re | 3.2 ohms |
| Mechanical Mass w/o air Mmd | 12.509g |
DRIVER SPECIFICATIONS
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3.26" / 83mm |
SPEAKER MEASUREMENT
| Overall Diameter | 9.45 X 6.57" / 240 X 167mm |
| Overall Depth | 4.54" / 115.4mm |
| Front Mount Baffle Cutout | 8.74 X 5.98" / 222 X 152mm |
| Mounting Depth | 4.21" / 107 mm |
| Motor Diameter | 4.61" / 117mm |

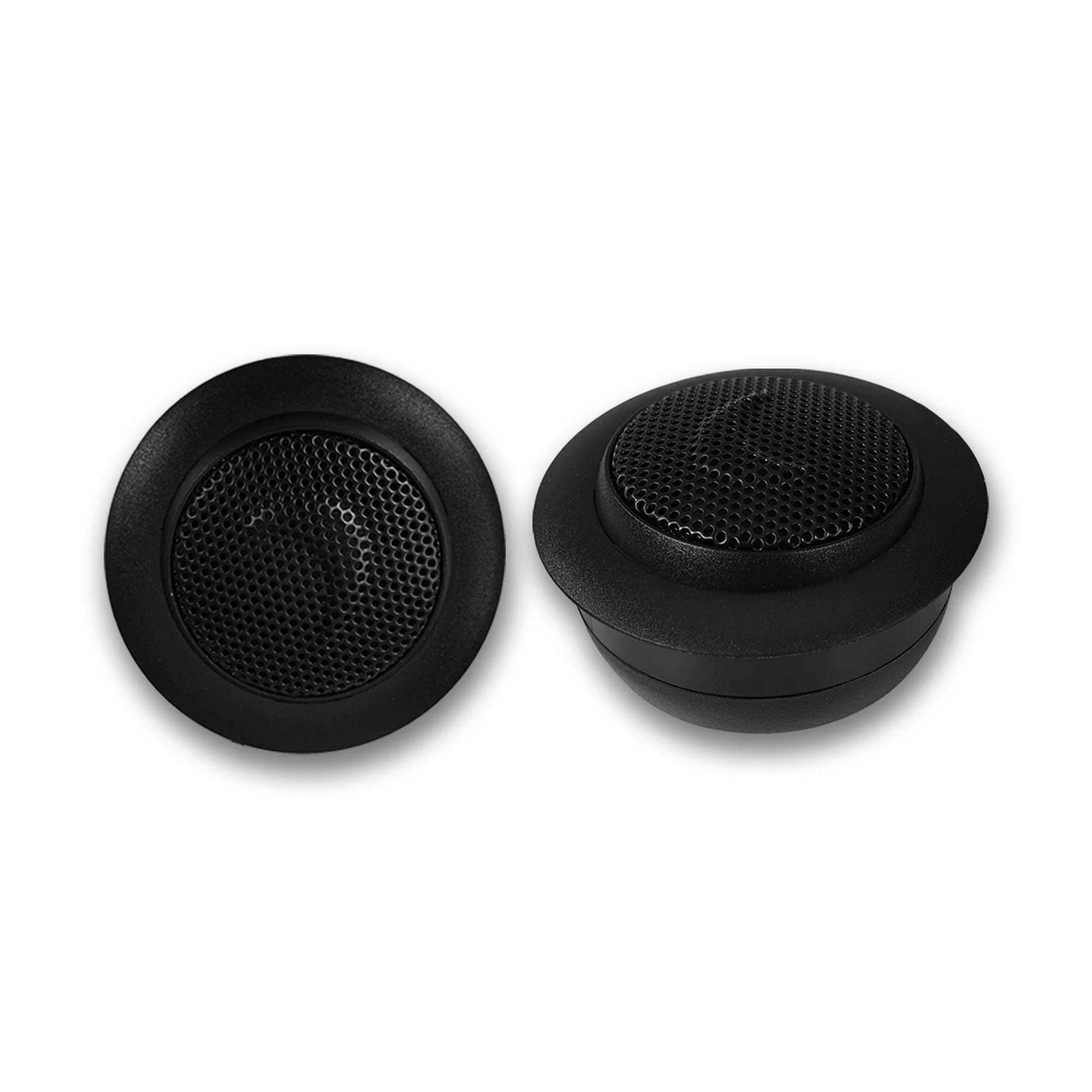

1x Diamond Audio DMDXTK 20MM DMDX Series Tweeter Add-on Kit (DMDXTK)
Precision High-Frequency Upgrade
The Diamond Audio DMDXTK 20mm Add-On Tweeter Kit is designed to enhance clarity, detail, and overall balance in your audio system. As part of the DMDX Series, this soft dome tweeter kit delivers smooth, natural high frequencies while improving soundstage and imaging for a more refined listening experience.
Key Features
- 20mm (1") soft dome tweeters for smooth, natural high-frequency response
- Add-on tweeter kit designed to upgrade existing systems
- Improves soundstage, imaging, and overall clarity
- Compact design allows flexible mounting locations
- Suitable for OEM and aftermarket audio systems
- Engineered for consistent performance and durability
Sound Performance
The DMDXTK tweeters are engineered to reproduce high frequencies with accuracy and control. With a frequency response of 1200 Hz to 20 kHz, they capture fine musical details such as vocals and cymbals while maintaining a smooth, non-fatiguing sound signature.
A 91 dB sensitivity rating ensures efficient output, making these tweeters a strong match for a wide range of factory and aftermarket systems.
Installation & Fitment
Designed for flexibility, the compact form factor allows installation in multiple locations including A-pillars, dash panels, and custom builds. The add-on configuration helps optimize tweeter placement for improved imaging and soundstage depth.
With a shallow 0.83" mounting depth and a 2.07" cut-out diameter, the DMDXTK is well-suited for tight or custom installation environments.
Specifications
| Model | DMDXTK |
| Tweeter Size | 20mm (1") |
| Power Handling | 45W RMS / 135W MAX |
| Frequency Response | 1200 Hz – 20,000 Hz |
| Sensitivity | 91 dB (1W/1M) |
| Nominal Impedance | 4Ω |
| Mounting Depth | 0.83" (21.2 mm) |
| Cut-Out Diameter | 2.07" (52.5 mm) |
| Overall Diameter | 2.4" (61 mm) |
| Overall Height | 1.28" (32.5 mm) |
1x Diamond Audio HX600.4D - HEX Series 4-Channel Full Range Class D Amplifier RMS Power (4 Ω): 160W x 4 (HX600.4D)
Diamond Audio HX600.4D is the HEX Series 4-Channel Full Range Class D Amplifier. Introducing the Hex Series Amplifiers – the ultimate choice for audiophiles who demand nothing but the best in sound quality and power. These amplifiers are engineered with meticulous precision and feature high-tolerance components, ensuring an unparalleled listening experience. With top-of-the-line features and user-friendly controls, the Hex Series Amplifiers seamlessly blend advanced technology with convenience. Whether you're setting up a high-end audio system or upgrading an existing one, these amplifiers are designed to deliver unmatched sound quality and power.
Features / Specs -
• RMS Power (4 Ω): 160W x 4
• RMS Power (2 Ω): 250W x 4
• Bridged (mono 4 Ω): 500W x 2
• Bridged (mono 2 Ω): N/A
• Bridged (stereo 4 Ω): 500W x 2
1x Metra 82-5606 Speaker Mounting Brackets Install 6"x9" speakers in select 2015-Up Ford, Lincoln Vehicles (82-5606)
Upgrade your speakers with the help of these speaker adapter plates. These plates are sold as a pair and designed to install most 6"x9" aftermarket speakers in multiple vehicle applications, making them convenient to have on hand. They mount directly into the factory location, so no drilling is required, and feature a breakaway tab design for easy installation.
Features:
For the installation of most 6"x9” aftermarket speakers into the original factory speaker location in the front door
For use in multiple vehicle applications
Breakaway tab design
Sold as a pair
1-year warranty
Includes:
(2) Speaker adapter plates
Vehicle Applications:
Ford
2018-2024 Ford Expedition
2020-2025 Ford Explorer
2015-2025 Ford F-150
2017-2024 Ford F-250 Super Duty
2017-2024 Ford F-350 Super Duty
Lincoln
2017-2020 Lincoln Continental
2018-2024 Lincoln Navigator
1x Metra 72-5602 Speaker Harness Pair - Fits Ford/Multi-App 2008-Up (72-5602)
Connect aftermarket front kick panel speakers to your Ford Bronco's factory wiring with these vehicle-specific speaker harnesses. The plug-n-play design eliminates the need to cut and splice wires. It is constructed of quality materials to ensure durability.
Keep in mind that you may need additional parts to complete your installation. For fitment information, look up your vehicle in our vehicle fit guide.
Fiat
2017-2020 Fiat 124 Spider
Ford
2021-2025 Ford Bronco
2021-2024 Ford Bronco Sport
2013-2018 Ford C-Max
2018-2021 Ford EcoSport
2015-2023 Ford Edge
2013-2023 Ford Escape
2018-2024 Ford Expedition
2011-2025 Ford Explorer
2015-2025 Ford F-150
2017-2024 Ford F-250 Super Duty
2017-2024 Ford F-350 Super Duty
2011-2019 Ford Fiesta
2012-2018 Ford Focus
2013-2020 Ford Fusion
2015-2024 Ford Mustang
2021-2024 Ford Mustang Mach-E
2019-2023 Ford Ranger
2015-2024 Ford Transit-150
2015-2024 Ford Transit-250
2015-2024 Ford Transit-350
2015-2024 Ford Transit-350 HD
2014-2023 Ford Transit Connect
Jaguar
2018-2024 Jaguar E-Pace
2017-2020 Jaguar F-Pace
2014-2021 Jaguar F-Type
2019-2021 Jaguar I-Pace
2017-2020 Jaguar XE
2009-2023 Jaguar XF
2011-2019 Jaguar XJ
Land Rover
2021-2023 Land Rover Defender 90
2020-2023 Land Rover Defender 110
2023 Land Rover Defender 130
2017-2023 Land Rover Discovery
2015-2020 Land Rover Discovery Sport
2008-2015 Land Rover LR2
2013-2020 Land Rover Range Rover
2012-2020 Land Rover Range Rover Evoque
2014-2020 Land Rover Range Rover Sport
2018-2020 Land Rover Range Rover Velar
Lincoln
2020-2023 Lincoln Aviator
2017-2020 Lincoln Continental
2020-2024 Lincoln Corsair
2013-2020 Lincoln MKZ
2019-2023 Lincoln Nautilus
2018-2024 Lincoln Navigator
Mazda 2011-2014 Mazda 2
2010-2023 Mazda 3
2014-2021 Mazda 6
2016-2021 Mazda CX-3
2013-2024 Mazda CX-5
2016-2023 Mazda CX-9
2020-2023 Mazda CX-30
2016-2021 Mazda MX-5
2016-2024 Mazda MX-5 Miata
Scion
2016 Scion iA
Toyota
2019-2020 Toyota Yaris
2017-2018 Toyota Yaris iA
1x Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS (CAK42)
Designed Specifically for Car Audio System up to 1200W. 4 Gauge 2-Channel Amplifier Connection Kits. 17ft, 4 Gauge Matte Red Power Wire with ring terminated. 3ft, 4 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 2-Ch. Vega series RCA interconnect. AGU fuse holder with 100A fuse. All Hardware included. OFC. US Spec.
Specifications
4 Gauge 2-Channel Amplifier Connection Kits
17ft. 4 Gauge Matte Red Power Wire with ring terminated
3ft. 4 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 2-Ch. Vega series RCA interconnect
ANL fuse holder with 100A fuse
All Hardware Include
OFC
