Description
Included in this kit
This bundle includes 2x DS18 PRO-ZT6 6.5" | 225 Watts RMS | 4Ω | Mid-Range | Water Resistant Cone, a Metra JP-1015 Soundbar speaker kit - Compatible with Wrangler JL 2018-UP, Gladiator 2020-UP, and a Cerwin-Vega XED1T - XED .75" Piezo Tweeter Add-On Kit - 500W Max.
2x DS18 PRO-ZT6 6.5" | 225 Watts RMS | 4Ω | Mid-Range | Water Resistant Cone (PRO-ZT6)
DS18 • PRO-ZT6
DS18 PRO-ZT6 6.5" | 225 Watts RMS | 4Ω | Mid-Range | Water Resistant Cone
DS18 PRO-ZT6
Nominal Diameter: 6.5" (165.1 mm)
Nominal Impedance: 4 ohms
RMS Power Handing: 225 Watts
Maximum Power Handing: 450 Watts
Frequency Response: 85Hz-20kHz
Sensitivity (1w/1m): 97dB
Overview
Product Overview
6.5” Water Resistant Mid-Range Loudspeaker with Built-in Bullet Tweeter and Grill
Experience earth-shaking sound with the PRO-ZT6: a 2-way mid-range built for raw power, and full-range functionality. Packed into a rugged, water-resistant coaxial build.
Highlights
Key Product Features
- 6.5" Coaxial Water Resistant Mid-Range
- RMS Power: 225 Watts (450 Watts Peak)
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
- Grill with Cloth Shade
SPECS
| SKU | PRO-ZT6 |
| Nominal Diameter | 6.5" (165.1 mm) |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 225 Watts |
| Maximum Power Handing | 450 Watts |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 85Hz-20kHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Sold as | Single Unit |
MOTOR
| Voice Coil Diameter | 1.5” (38.1 mm) |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 27 oz |
| Magnet Material | Ferrite |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
TWEETER
| Voice Coil Diameter | 1” |
| Voice Coil Material | KAPTON |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum Alloy |
| Magnet Material | Neodymium (N35H) |
MEASUREMENTS
| Overall Diameter | 178 mm (7”) |
| Front Mount Baffle Cutout | 144 mm (5.67”) |
| Mounting Depth | 77 mm (3.03”) |
| Overall Depth | 97mm (3.81”) |
THIELE & SMALL PARAMETERS
| Vas | 4.72L / 0.16ft3 |
| Xmax | 1.65mm |
| Fs | 120Hz |
| Qms | 5.259 |
| Qes | 0.614 |
| Qts | 0.55 |
| Re | 3.2 Ohms |
1x Metra JP-1015 Soundbar speaker kit - Compatible with Wrangler JL 2018-UP, Gladiator 2020-UP (JP-1015)
Don‘t limit your speaker upgrade to the size of the 4\" factory speakers. Go bigger with the JP-1015, designed to fit a larger 6.5\" aftermarket speaker and optional tweeter into the factory soundbar location. Designed to adapt the factory 4” to 6.5” with a tweeter option. Speaker depth 3 5/8".
Features:
• Retains factory soundbar - 2018 JL/JT
• Fits 6.5 speaker and tweeter
• All hardware and harnesses included
Box Contents:
• (2) grille replacements
• (2) cutting template/grille support
• (8) speaker mounting screws
• (12) grille replacement screws
• (2) cutting template/grille support screws
• (2) 7” speaker harnesses
• (2) sound deadening padding
• Hardware
• Harness

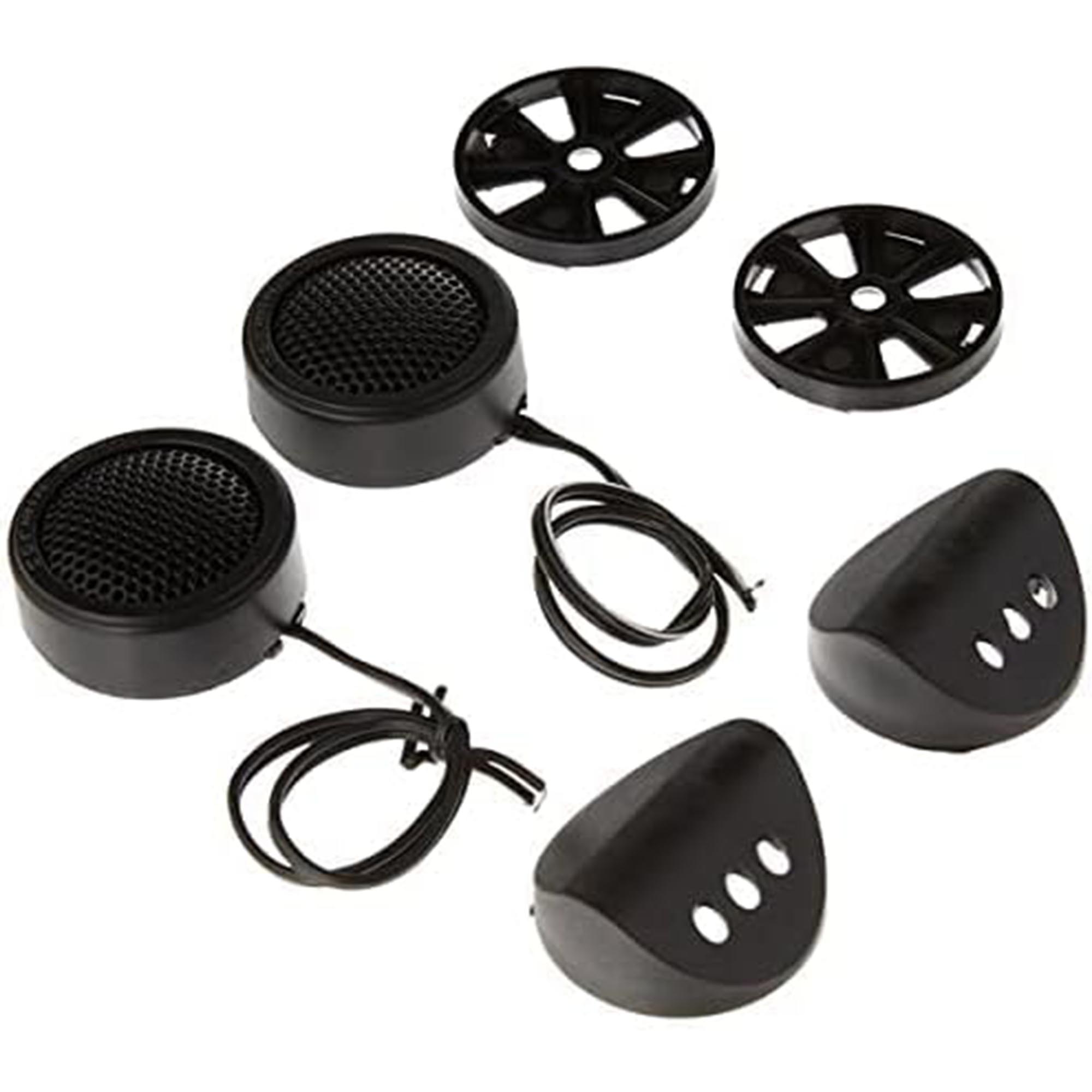

1x Cerwin-Vega XED1T - XED .75" Piezo Tweeter Add-On Kit - 500W Max (XED1T)
Defy all odds and overcome budget limitations with the best in class XED SERIES SPEAKERS that provide quality sound reproduction without breaking the bank. Harnessed with suitable power handling capability and balanced metal dome tweeters, XED SERIES SPEAKERS provides tremendous value and sound that will be music to your ears.
Specifications
SPEAKER SIZE - 1”
SPEAKER TYPE - TWEETER
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - PIEZO
DIAPHRAGM MATERIAL - PIEZO
BASKET MATERIAL - COMPOSITE PLASTIC
MAGNET TYPE - NEODYMIUM
INCLUDES SPEAKER GRILL - YES
SURROUND MATERIAL - TREATED CLOTH
YES - EXTERNAL
FREQUENCY RESPONSE (HZ): 3KHZ-20KHZ
VOICE COIL DIAMETER - INCH (MM) - .75"
SENSITIVITY: 97DB
POWER HANDLING RMS: 20W
POWER HANDLING MAX: 500W
