Description
Included in this kit
This bundle contains a Focal FDPSport 4 Channel Powersport & Motorcycle Amplifier & A Pair Of EC165K 6.5" K2 Power Coaxial Speakers.
Focal FDPSport 4 Channel amplifer 4 x 160 W (MOTORCYCLE / ALL TERRAIN)
For serious bikers, the audio system has to be just as impressive as a perfectly tuned exhaust. The new FDP Sport packs real power into an 8-by-5-inch chassis; enough to drive an open-air audio system with headroom to spare.
Create the ideal system with highly flexible crossovers pushing a 2/3/4-channel Class D amplifier, producing up to 1,000 watts RMS. Conformal coated-circuitry and hard anodizing keep it running despite the elements. Plus, plug right into Harley-Davidson systems with matching Molex harnesses.
Advantages:
Very small size for power output
Can be used in 2, 3, or 4 channel modes
Conformally coated circuit board for added water resistance
Anti Hard clipping circuit
Included Accessories:
Harley Molex input harness
Harley Molex output harness
OFC power and ground cable, will reach the battery.
Adjustable mounting feet for 2 different mounting options.
Regular 4 channel RCA input harness
Specifications:
Power into 4 Ohms 4x175W rms
Power into 2Ohms 4x250W rms
Bridged mode into 4 Ohms 2x500W rms
Adjustable gain 200mV to 19V
Dimensions (HxLxD):1-5/8 x 8-1/4 x 5 in (41 x 208 x 127mm)

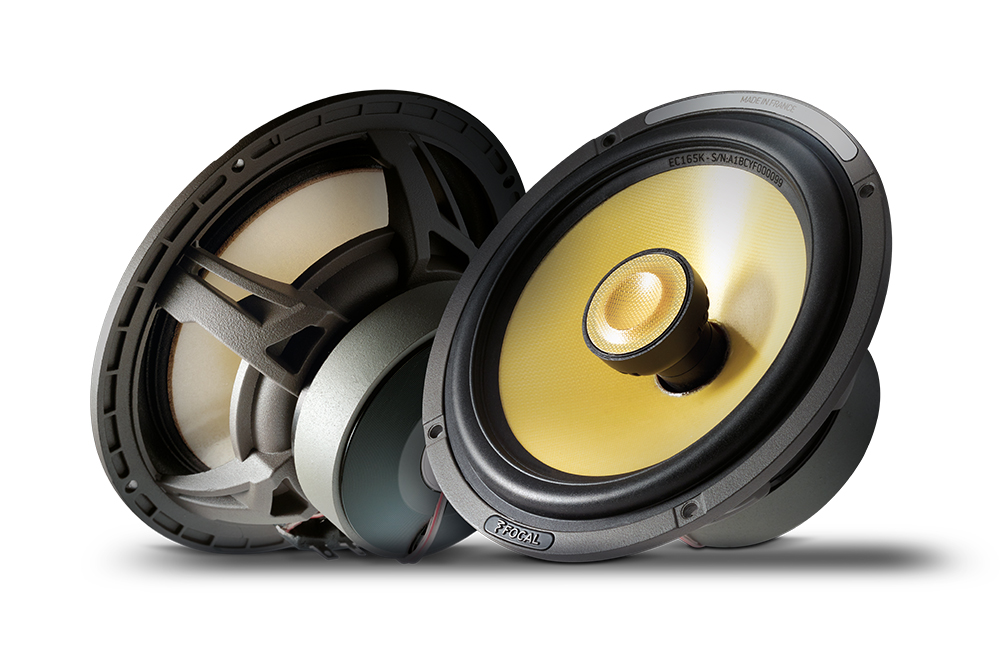

Focal EC165K K2 Power 6.5" Coaxial Speakers (pair)
2-Way Coaxial Kit
Inverted dome “M"-shaped tweeter
Reinforced tweeter post
Flush tweeter (compact)
Specifications:
diameter 6-1/2″ (165mm)
voice coil diameter 1″ (25mm)
tweeter TKM (“M" profile aramid fiber inverted dome)
cone Composite K2 Power “W" sandwich cone
surround Tuned Mass Damper (TMD)
max power 160W
nominal power 80W RMS
sensitivity (2.83V/1m) 93dB
frequency response 60Hz-22kHz
impedance 4 Ω
Supplied grilles
