Description
Included in this kit
Focal FDS2.350 2-Channel Amplifier + Flax-Universal-8 8" Loaded Subwoofer Enclosure Bundle-This bundle includes the Focal FDS-2.350 2 Channel amplifier, the Focal Single 8” Universal Subwoofer Enclosure, and a Creative Car Audio Coozy.
Focal FDS-2.350 2 Channel amplifier 2 x 105 W
Ultra Compact 2-Channel Amplifier
The FDS 2.350 is a 2-channel model delivering a power of 2 x 105 Watts RMS under 4 Ohms. For a perfect matching, it’s featuring an active high-pass and lowpass crossover. The FDS 2.350 can consequently drive a pair of speaker drivers or a subwoofer.
Stereo D Class bridgeable amplifier
High-level inputs with auto-detect / RCA low-level inputs
Compact
Advantages
D Class – Direct Fet ® Technology – Efficient heat dissipation and precision
Stable under 2 Ohms
Stackable aluminium chassis with high heat dissipation
Low noise operational amplifiers New Japan Radio® NJM4580
Low ESR capacitors – 105°C (220°F)
Pseudo-balanced inputs
Specifications:
Stereo Class D bridgeable amplifier High-level inputs with auto-detection / RCA low-level inputs
CEA power (4 Ohms) 2 x 105 Watts RMS
Power max (2 Ohms) 2 x 170 Watts RMS
Power max (4 Ohms bridged) 1 x 360 W RMS
Configurable high-pass/low-pass crossover 40Hz – 400Hz
Full Range Mode
Bass boost (0-12dB)
Protections Short circuit / low impedance / reversal of polarity / DC / power drop / heat protection
Dimensions (L X H X W) 7-13/16 x 4-1/4 x 1-11/16 in (199 x 108 x 43mm)

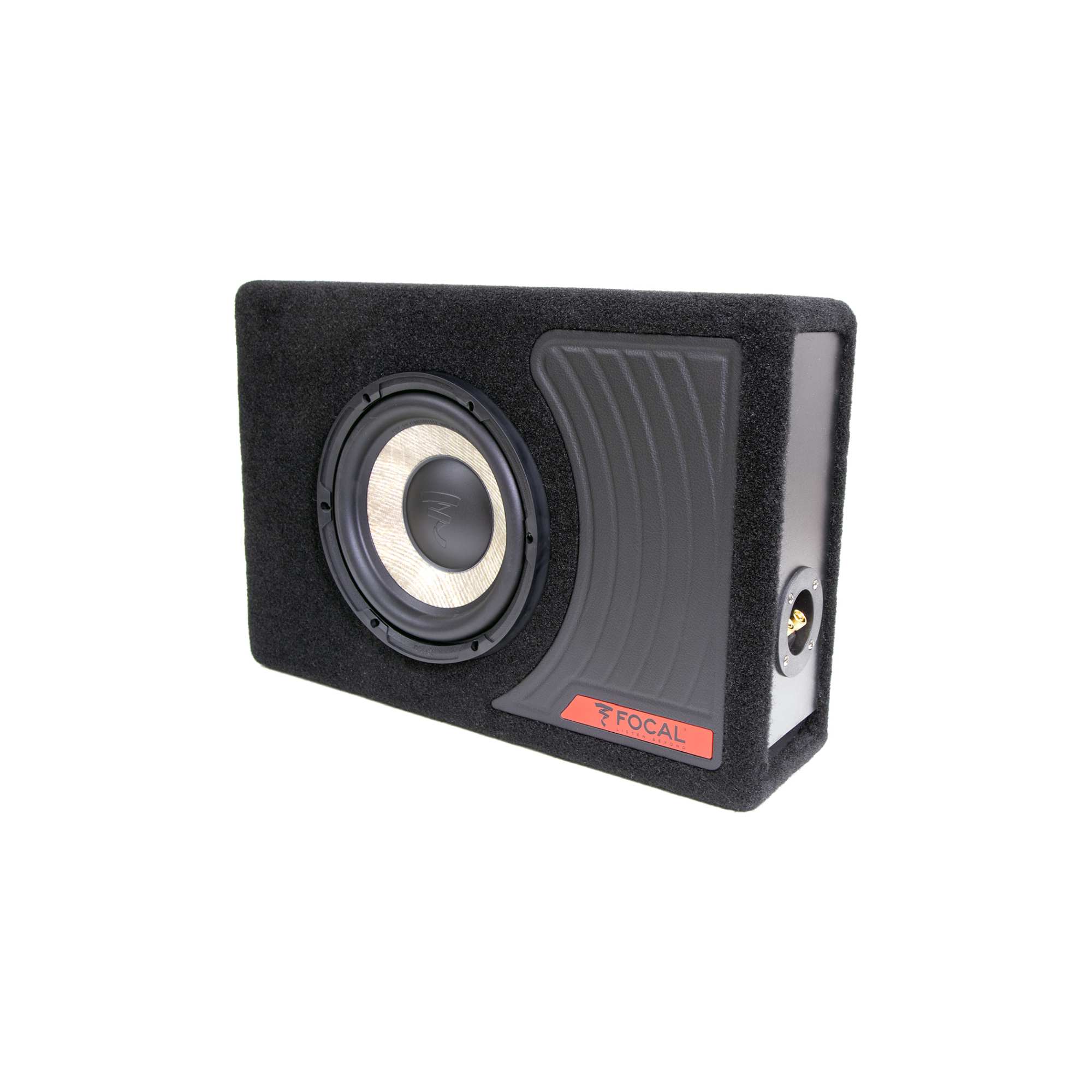

Weight 1.9lbs Focal Single 8” Universal Subwoofer Enclosure
SUBP20F
Woofer 8″ (200mm)
Voice-coil 2″ (50mm)
Voice-coil height 1-1/8″ (28mm)
Magnet 4-3/4″ (120mm)
max power 500 W
nominal power 250 W RMS
sensitivity 82.5dB
impedance 4 Ohms
frequency response 39Hz – 500Hz
