Description
Included in this kit
This bundle includes a Focal 200 SF - Slate Fiber 8" Component kit; RMS: 80W - 160W MAX, 4ohm, a Focal BAM Acoustic insulation kit, a Focal SUB 20 SF - Slate Fiber 8" Subwoofer; RMS:200W - 400W MAX, 4ohm, and a Focal FDS-1.350 1 Channel amplifier 1 x 350 W.

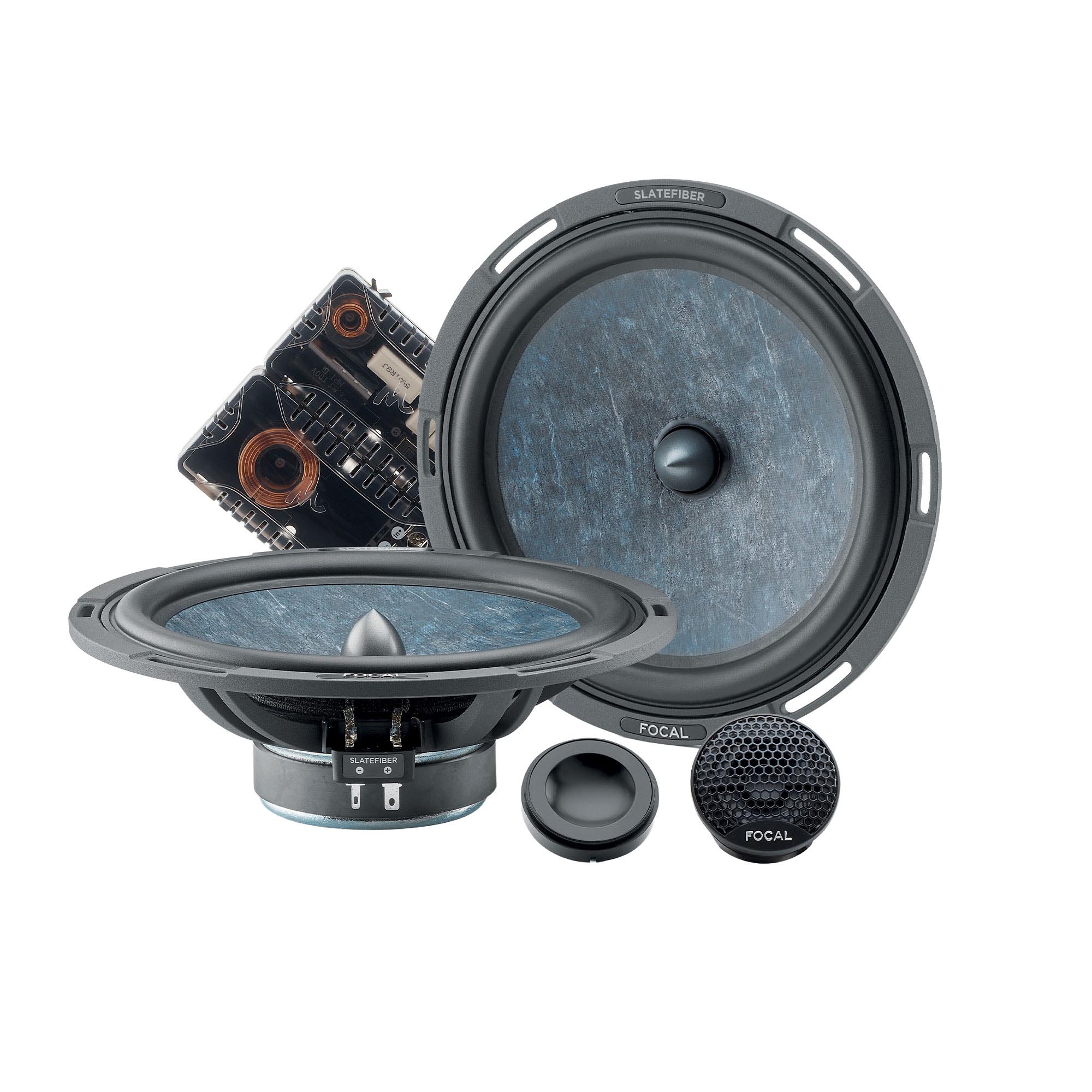

1x Focal 200 SF - Slate Fiber 8" Component kit; RMS: 80W - 160W MAX, 4ohm (200SF)
With its 200 mm woofer and Slatefiber cone made in France, the 200 SF audio kit instantly enriches your soundstage with generous bass, clean midrange, and controlled highs. Designed for demanding drivers, it combines performance, installation flexibility, and long lasting durability, all with Focal’s signature sound.
The second generation Slatefiber range relies on its exclusive technology, designed and developed by Focal engineers to combine precision, responsiveness and robustness. Every car journey becomes a clear, dynamic listening experience, true to Focal’s signature sound. From passive kits to the subwoofers, the range offers perfect sound coherence across its models, as well as a bold design. The Slatefiber solutions are characterised by their performance, versatility and easy installation.
• Separable crossovers: Detachable tweeter and woofer crossovers for more flexible installation options.
• Aluminium chassis: A unique ‘rotor’ design, designed with an assertive style and a great resistance in mind. Long-lasting performances.
• Adjustment of tweeter level: Three positions (-3/0/+3dB) allow the level to be adjusted to suit the installation and the desired balance.
• Butyl surround: Cone control for constant performance.
• Slatefiber cone: Made in France in the Focal workshops from recycled non-woven carbon fibre. Performance and eco-responsibility.
• Al/Mg inverted dome tweeter: Tweeter with different mounting methods (surface-mount on original locations or on angled bracket.
• Shallow depth: Exceptional power handling in a small space.
SPECIFICATIONS
Woofer: 7 7/8” (200mm)
Maximum power: 160W
Nominal power: 80W RMS
Sensitivity: (2.83V/ – 1m) 91dB
Frequency response: 50Hz – 21kHz
Impedance: 4Ω
Depth: 2 1/2” (63mm)
Voice coil diameter: 1″ (25mm)
Magnet: Ferrite
Surround: Butyl
Adjustable tweeter level: -3dB / 0dB / +3dB
PARAMETERS
Rdc: 2.7Ω
Fs: 46Hz
Mms: 14g
Cms: 0.5mm/N
Vas: 29l
Qts: 0.55
Qes: 0.7
Qms: 9
Bxl: 4.5N/A
Sd: 201 sq cm
SPL: 91dB
Xmax: 4mm
1x Focal BAM Acoustic insulation kit (BAM)
Acoustic Insulation Kit
Two 21cm x 31cm Sheets
Key Points
Replaces Plain chant
Attenuates the speaker back wave
Increases the bass level in your car
Increases Soundproofing out outside noise
Advantages
3 technical materials, 3 strategic functions
This acoustic insulation kit is completing and essential to a quality car audio installation.
From its use depends optimum acoustic rendering of speakers, amplifiers and installed accessories. Technical materials made of honeycombed damping material, an Aluminum sheet and a viscoelastic complex (Butyl).
Honeycombed damping material
Just like the acoustic foam inside a loudspeaker, the honeycombed damping material attenuates the speaker back wave and thus increases the speaker performance.
Aluminum sheet
Aluminum provides rigidity to the Butyl/foam couple. This rigidity also permits the easy laying of BAM in difficultlocations.
Viscoelastic complex
Self-adhesive, the Butyl complex absorbs the vibrations of the surface with which it’s in contact. It highly attenuates the outside noise that gets inside the car.

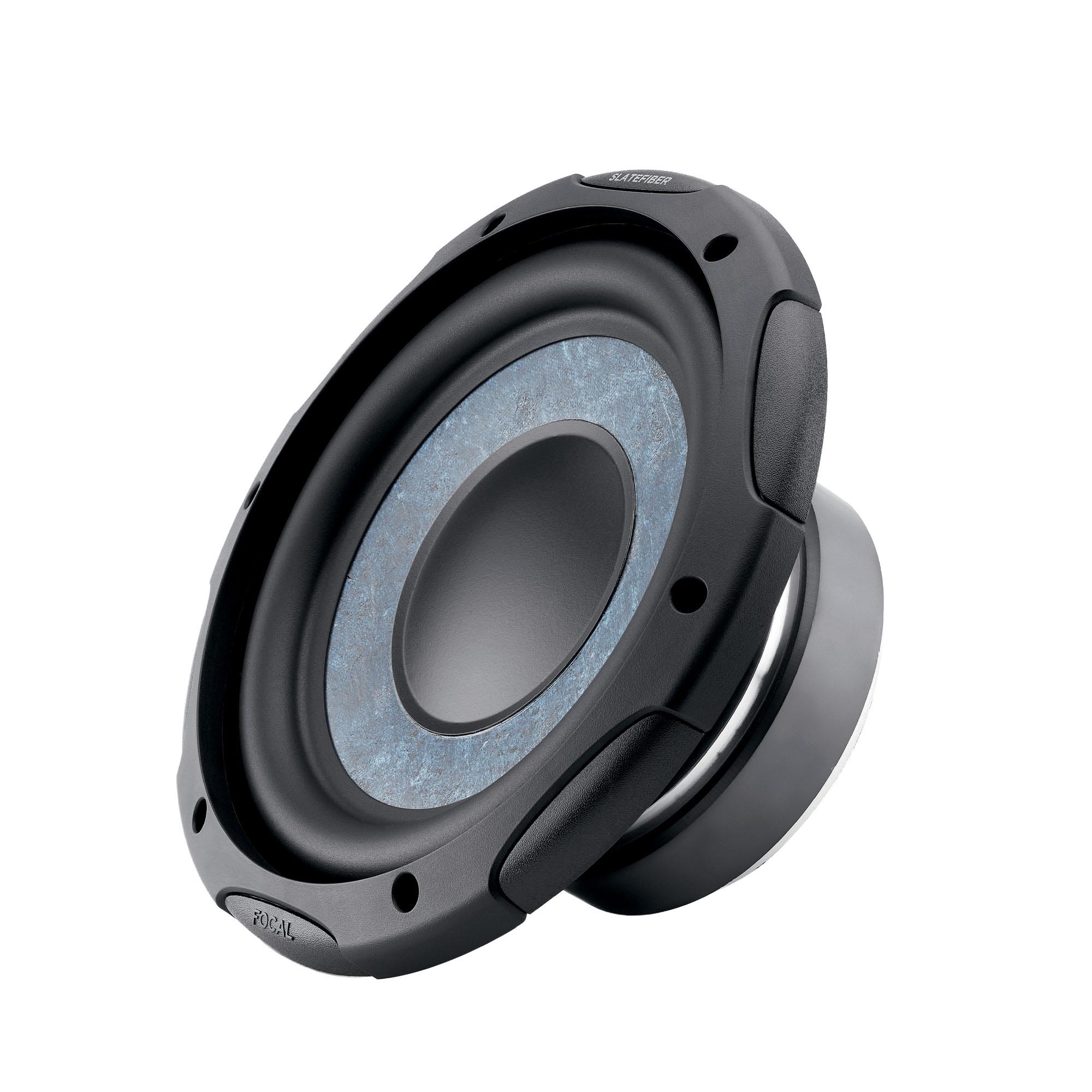

1x Focal SUB 20 SF - Slate Fiber 8" Subwoofer; RMS:200W - 400W MAX, 4ohm (SUB20SF)
The SUB 20 SF delivers powerful, controlled bass that transforms the presence and impact of low frequencies in your vehicle. Made with an exclusive Slatefiber cone of recycled carbon fibres, it ensures precision, energy, and exceptional durability.
Powerful bass
The non-woven recycled carbon fibre Slatefiber cone provides rigidity, speed, and precise damping. The result is dynamic, deep, and distortion free bass, even at high volume or during long listening sessions.
Robust design & exemplary performance
A ferrite motor guarantees stability at high excursion, while the butyl surround maintains durability and precise control. The aluminium rotor design frame adds strength and a bold visual identity.
Easy installation & compatibility
With its convenient push terminal block and included grille, the SUB 20 SF is designed for quick, reliable installation. Its optimized efficiency reduces amplification requirements, making the subwoofer compatible with a wide range of car audio systems.
Key points
• Exclusive Slatefiber technology
• High power handling, for long-lasting performances, even at high volume
• Optimised efficiency to limit amplification requirements
• Solid design and rigorously selected materials for long-term reliability
• Grille included
SPECIFICATIONS
Nominal power: 200W RMS
Maximum power: 400W
Sensitivity: 87dB
Nom. impedance: 4Ω
Cone: Slatefiber
Surround: Butyl
DC resistance: 2.8Ω
VC diameter: 52mm/2.05"
Former: Glass fiber
Layers: 4
Wire: Copper
Net weight: 3300g/7.28lbs
PARAMETERS Rdc: 2.8Ω
Fs: 36Hz
Mms: 95g
Cms: 0.2mm/N
Vas: 12l
Qts: 0.39
Qes: 0.42
Qms: 3.8
Bxl: 11.8N/A
Sd: 202 sq. cm
SPL: 87dB
Xmax: 10mm
SUGGESTED APPLICATIONS
Volume: F-3dB
9L (0.32 cu.ft.): 68Hz
14L (0.5 cu.ft.): 64Hz
1x Focal FDS-1.350 1 Channel amplifier 1 x 350 W (FDS-1.350)
Focal FDS-1.350 1 Channel amplifier 1 x 350 W
Ultra Compact Mono Amplifier
The FDS 1.350 is a mono block amplifier specifically designed for handling a subwoofer channel. It has a power of 210 and 350 Watts RMS under 4 and 2 Ohms respectively. In order to configure the system’s bass according to the car’s installation; it is equipped with an active crossover, bass correction and phase adjustment.
Advantages
D Class – Direct Fet ® Technology – Efficient heat dissipation and precision
Stable under 2 Ohms
Stackable aluminium chassis with high heat dissipation
Low noise operational amplifiers New Japan Radio® NJM4580
Low ESR capacitors – 105°C (220°F)
Pseudo-balanced inputs
Cable accessories included – easy to install
Specifications:
Mono Class D amplifier with dual output High-level inputs with auto-detection / RCA low-level inputs
CEA power (4 Ohms) 1 x 210 Watts RMS
Power max (2 Ohms) 1 x 350 Watts RMSv Low-pass crossover 40Hz – 400Hz
Progressive phase adjustment (0-180°)
Bass boost (0/6dB/12dB)
Protections Short circuit / low impedance / reversal of polarity / DC / power drop / heat protection
Dimensions (L X H X W) 7-13/16 x 4-1/4 x 1-11/16 in (199 x 108 x 43mm)
Weight 1.8lbs
