Description
Included in this kit
This bundle includes a Focal 6WM - Utopia M Series 6.5" 4-Ohm Component Woofers (pair), 2x Focal UtopiaM 3.5WM 3.5" Midrange Speaker Driver, and a Focal TBM Utopia M Series Tweeters (Pair).
1x Focal 6WM - Utopia M Series 6.5" 4-Ohm Component Woofers (pair) (6WM)
Focal 6WM 6.5" Woofers
6.5″ WOOFER (Pair)
Designing a 6.5” woofers that perfectly combines extreme performance, high-end design and shallow depth is a real challenge. Our teams succeeded, by combining the best of our latest technologies: ‘M’-profile ‘W’ sandwich cone, TMD® surround, progressive spider and coupling it with a unique basket design, inspired by French architecture. The result is simple: excellence at all levels.
SPECIFICATIONS:
woofer (6.5″) 165mm
voice coil diameter (3.1″) 80mm
motor Neodymium
cone ‘M’-profile ‘W’
suspension Tuned Mass Damper (TMD*)
impedance 4 Ohm
max power 200W
nom power 100W
sensitivity 91.5dB
frequency response 60Hz – 6kHz
accessories Mounting screws supplied, Grilles sold separately
2x Focal UtopiaM 3.5WM 3.5" Midrange Speaker Driver (3.5WM)
Focal 3.5WM 3.5" Midrange
3.5″ MIDRANGE SPEAKER DRIVER
The design of this ultra-compact midrange speaker driver was made possible thanks to the exclusive use of our new ‘M’-profile ‘W’ sandwich cone, combined, amongst other things, with our TMD® surround and a red neodymium motor, Focal’s signature. Our ears being particularly sensitive around 4kHz, this 3.5” midrange will surprise you with its extreme softness and striking realism.
SPECIFICATIONS:
midrange (3.5″) 87.5mm
voice coil diameter (1.8″) 45mm
motor Neodymium
cone ‘M’-profile ‘W’
suspension Tuned Mass Damper (TMD*)
impedance 4 Ohm
max power 100W
nom power 50W
sensitivity 88dB
frequency response 200Hz – 10kHz
accessories Mounting screws supplied, Grilles sold separately

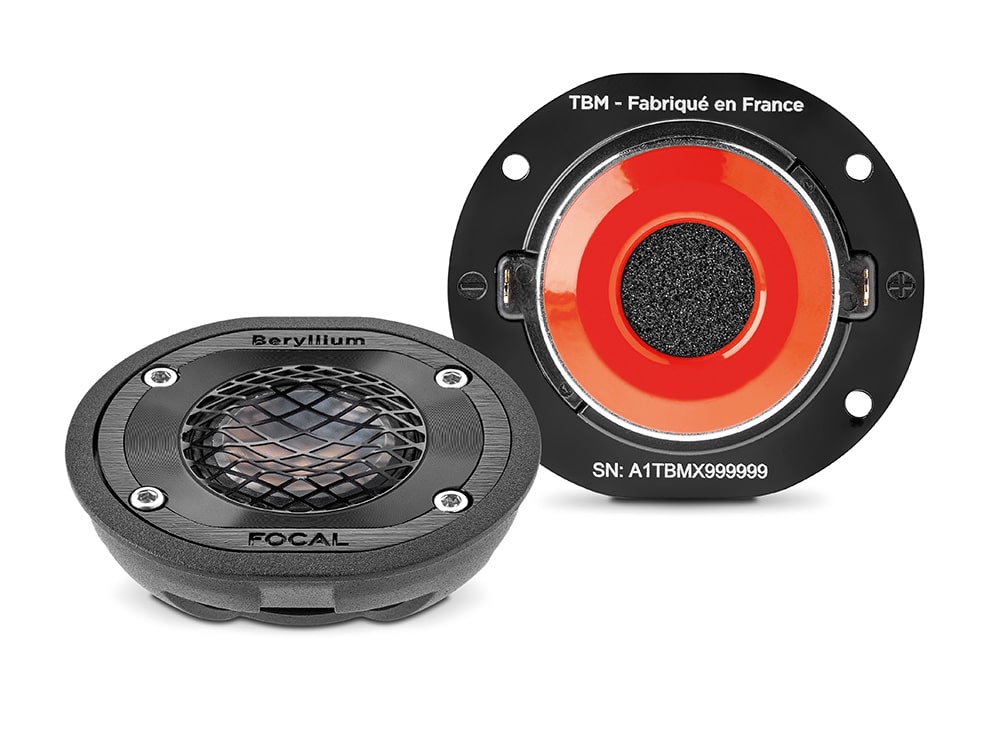

1x Focal TBM Utopia M Series Tweeters (Pair) (TBM)
Focal TBM Utopia Tweeters (Pair)
PAIR OF TWEETERS
The culmination of the very best of our latest innovations, our Beryllium tweeter combines for the first time ever our ‘M’-profile dome and our patented TMD® surround. With this new combination, our engineering teams have successfully extended the frequency response and obtained better dispersion. We also get a treble that is unrivalled in its precision, of great finesse, and an incredible soundstage’s width. SPECIFICATIONS: voice coil diameter (1″) 25mm motor Neodymium cone ‘M’-shape Beryllium dome suspension Tuned Mass Damper (TMD*) impedance 4 Ohm max power 200W nom power 20W sensitivity 95dB frequency response 1.5kHz – 50kHz accessories Bracket and mounting screws supplied
