Description
Included in this kit
This bundle includes a NAIM CI-UNITI 102 Streaming stereo power amplifier with Wi-Fi® and Bluetooth®, and a Focal Aria EVO X N°1 Bookshelf Speakers Prime Walnut, Pair - FARIAEVOXN1PRVN.
1x NAIM CI-UNITI 102 Streaming stereo power amplifier with Wi-Fi® and Bluetooth® (CI-Uniti 102)
Focal & Naim Custom Install Series
CI-Uniti 102 Streamer Amplifier
The CI-Uniti 102 is a compact streamer amplifier designed for custom integration applications, combining high-quality amplification, network streaming, and flexible control in a rack-friendly 1U chassis. It delivers audio from televisions, streaming services, gaming consoles, and network sources while integrating seamlessly with Focal speakers and larger CI installations.
150W @ 8Ω
260W @ 4Ω
HDMI eARC
Wi-Fi 6 & Ethernet
AirPlay 2 & Chromecast
1U Rack Mount
Overview
Streaming & Amplification for Custom Installations
The CI-Uniti 102 combines network streaming and high-performance amplification into a single chassis designed for residential integration. It supports music streaming services, television audio via HDMI eARC, gaming consoles, and network audio while pairing with Focal integrated speakers or larger distributed audio systems.
- Streamer amplifier with 4 line channels and 2 amplified channels.
- 150W per channel into 8Ω and 260W per channel into 4Ω.
- Compatible with CI-NAP 108 for expanded installation capabilities.
Streaming & Sources
Broad Streaming Platform Support
The CI-Uniti 102 supports both wired and wireless playback from a wide range of streaming platforms and network audio sources.
- TIDAL and TIDAL Connect
- Spotify Connect (Free & Premium)
- Qobuz
- UPnP with play queue
- Internet Radio & Podcasts
- AirPlay 2
- Chromecast v2
- Dante Receiver (48kHz)
- Bluetooth® SBC & AAC
Connectivity
Flexible Integration Options
HDMI eARC
Accepts stereo LPCM signals up to 192kHz / 24-bit for television integration.
Digital & Analogue Inputs
Stereo RCA analogue input and S/PDIF digital input supporting up to 96kHz / 24-bit.
Network Connectivity
Gigabit Ethernet, Wi-Fi 6 (802.11ax 2x2 MIMO), Bluetooth LE 5.1, and IPv4/IPv6 support.
Subwoofer & Zone Outputs
Stereo RCA outputs can be configured for subwoofers or additional sub-zones.
Trigger Outputs
Dual 12V trigger outputs allow remote standby control of compatible CI-NAP 108 amplifiers.
Rack Friendly
Compact 1U chassis simplifies professional rack installations.
System Control
Designed for Professional Integration
Configuration is handled using Focal & Naim Manager software with speaker profiles for customized installations. Day-to-day control is available through the Focal & Naim App.
- Supports single-room and multi-room installations.
- Compatible with up to 32 Naim Multiroom devices.
- Works with Control4, Crestron, RTI, Savant, and Elan automation systems.
- Compatible with all generations of Naim streamers.
Performance
Engineered for High-Fidelity Audio
- Total Harmonic Distortion (THD+N): <0.006%
- Signal-to-noise ratio: 110dB (A-weighted)
- Gain: 29dB
- Frequency response: 5Hz–70kHz (-3dB)
- Maximum sampling rate: 32-bit / 384kHz
Technical Specifications
| Type | Streamer amplifier |
| Channels | 4 Line, 2 Amplified |
| Power Output | 150W @ 8Ω, 260W @ 4Ω |
| Analogue Input | Stereo RCA (47kΩ / 2.5V RMS) |
| Digital Input | S/PDIF up to 96kHz / 24-bit |
| HDMI | eARC (LPCM up to 192kHz / 24-bit Stereo) |
| Main Output | Stereo RCA |
| Amplified Output | Terminal Block / Euroblock / 4mm Banana |
| Sub/Aux Output | Stereo RCA |
| Network | Gigabit Ethernet, Wi-Fi 6 (802.11ax), Bluetooth LE 5.1 |
| Frequency Response | 5Hz–70kHz (-3dB) |
| Signal-to-Noise Ratio | 110dB (A-weighted) |
| THD+N | <0.006% |
| Maximum Sampling Rate | 32-bit / 384kHz |
| Power Supply | 100–240V AC, 50/60Hz |
| Rack Height | 1U |
| Dimensions (H × W × D) | 1.75 × 11.75 × 11.75 in (4.45 × 30 × 30 cm) |
| Weight | 9.9 lb (4.5 kg) |
| Operating Temperature | 5°C to 35°C |
| Storage Temperature | -20°C to 60°C |
Installation Note:
The CI-Uniti 102 is designed for discreet rack-mounted installations and supports expansion with the CI-NAP 108 amplifier, making it suitable for both single-room and distributed multi-room audio systems.
The CI-Uniti 102 is designed for discreet rack-mounted installations and supports expansion with the CI-NAP 108 amplifier, making it suitable for both single-room and distributed multi-room audio systems.

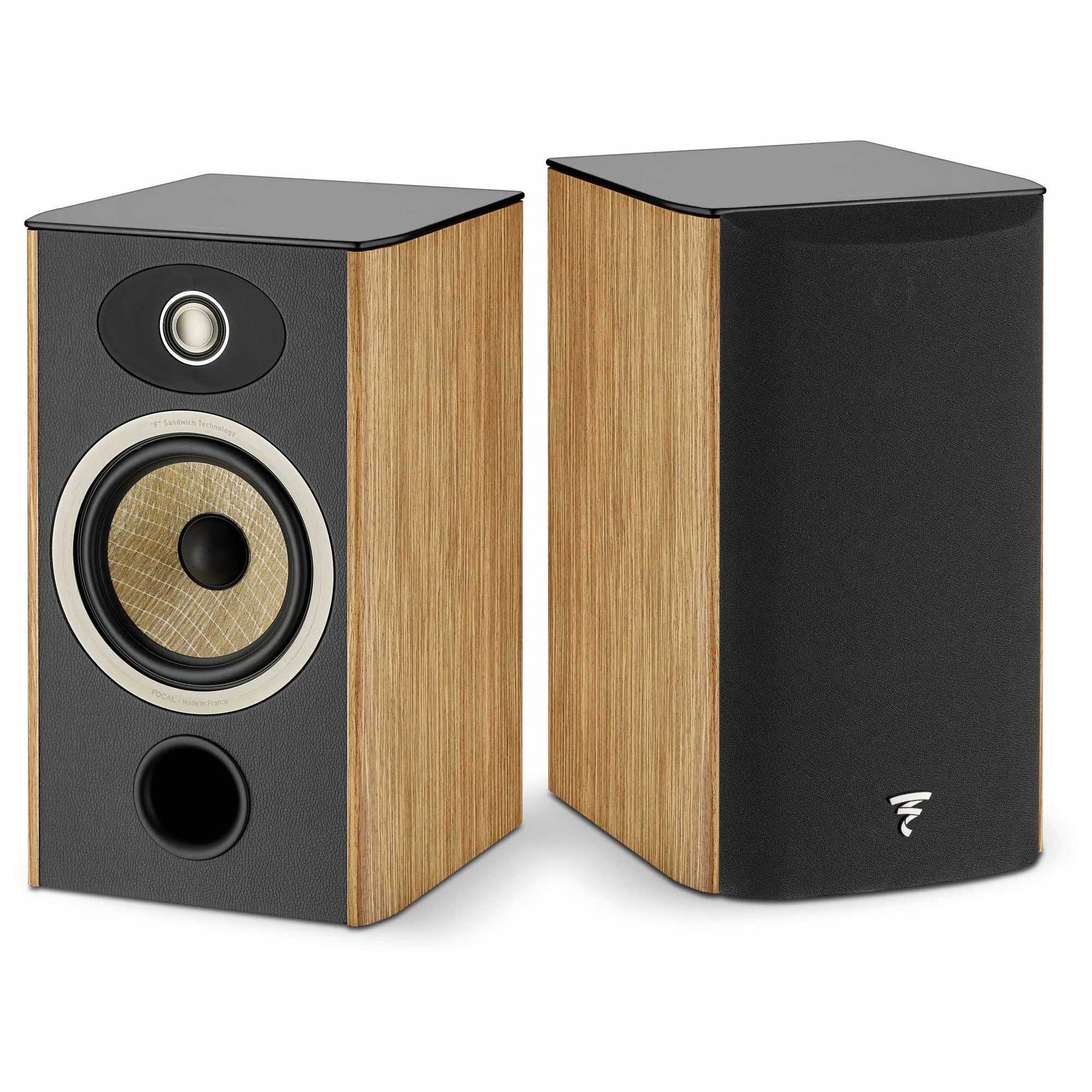

1x Focal Aria EVO X N°1 Bookshelf Speakers Prime Walnut, Pair - FARIAEVOXN1PRVN (FARIAEVOXN1PRVN)
Focal Aria EVO X N°1 Bookshelf Speakers Prime Walnut - FARIAEVOXN1PRVN
Sold as a Pair.
The Aria Evo X N°1 bookshelf loudspeaker preserves the essence of the Aria 900 range, with its sophisticated sound quality and its perceived value elevated by high-quality materials. The qualities of its Flax cone are centre-stage in this 2-way loudspeaker: neutrality, presence and elegance. It is recommended for rooms of at least 161 ft² (15m2), with a listening distance of 7 to 10 feet (2 to 3 metres).
Key points -
• Flax fibre cone
• TMD® surround
• Aluminium/Magnesium ‘M’-shaped inverted dome TAM tweeter
• Speaker drivers developed and manufactured in France
• Leather effect front panel
• Aluminium/Magnesium ‘M’-shaped inverted dome TAM tweeter Precision and softness
• Urethane tweeter plate with waveguide Improved horizontal directivity Better sound image
• Bass/midrange Flax cone TMD® surround Midrange neutrality and bass presence
• Magnetic grille Understated design, fine materials Significantly increased perceived value
• Ultra-rigid MDF construction Non-parallel side panels, very low vibration, neutrality
• Magnetic Grille
Specifications -
• Type: Bass-reflex 2-way bookshelf loudspeaker
• Speaker drivers: 6.5" (16.5cm) Flax bass/midrange with TMD® surround, Aluminium/Magnesium ‘M’-shaped inverted dome TAM tweeters.
• Frequency response (+/-3dB): 55Hz – 30kHz
• Response at -6dB: 47Hz
• Sensitivity: 89.5dB
• Nominal impedance: 8Ω
• Minimal impedance: 4.6Ω
• Recommended amp power: 25 – 120W
• Crossover frequency: 2,800Hz
• Dimensions (HxLxD): 15-3/8 x 8-7/8 x 11", (39x22.5x28cm)
• Weight: 18.74lbs (8.5kg)
