Description
Included in this kit
This bundle includes a NAIM CI-UNITI 102 Streaming stereo power amplifier with Wi-Fi® and Bluetooth®, and 2x Elac DFR52-BK - Debut Reference 5.25" Floor Speaker - Black, Sold Individually.
1x NAIM CI-UNITI 102 Streaming stereo power amplifier with Wi-Fi® and Bluetooth® (CI-Uniti 102)
Focal & Naim Custom Install Series
CI-Uniti 102 Streamer Amplifier
The CI-Uniti 102 is a compact streamer amplifier designed for custom integration applications, combining high-quality amplification, network streaming, and flexible control in a rack-friendly 1U chassis. It delivers audio from televisions, streaming services, gaming consoles, and network sources while integrating seamlessly with Focal speakers and larger CI installations.
150W @ 8Ω
260W @ 4Ω
HDMI eARC
Wi-Fi 6 & Ethernet
AirPlay 2 & Chromecast
1U Rack Mount
Overview
Streaming & Amplification for Custom Installations
The CI-Uniti 102 combines network streaming and high-performance amplification into a single chassis designed for residential integration. It supports music streaming services, television audio via HDMI eARC, gaming consoles, and network audio while pairing with Focal integrated speakers or larger distributed audio systems.
- Streamer amplifier with 4 line channels and 2 amplified channels.
- 150W per channel into 8Ω and 260W per channel into 4Ω.
- Compatible with CI-NAP 108 for expanded installation capabilities.
Streaming & Sources
Broad Streaming Platform Support
The CI-Uniti 102 supports both wired and wireless playback from a wide range of streaming platforms and network audio sources.
- TIDAL and TIDAL Connect
- Spotify Connect (Free & Premium)
- Qobuz
- UPnP with play queue
- Internet Radio & Podcasts
- AirPlay 2
- Chromecast v2
- Dante Receiver (48kHz)
- Bluetooth® SBC & AAC
Connectivity
Flexible Integration Options
HDMI eARC
Accepts stereo LPCM signals up to 192kHz / 24-bit for television integration.
Digital & Analogue Inputs
Stereo RCA analogue input and S/PDIF digital input supporting up to 96kHz / 24-bit.
Network Connectivity
Gigabit Ethernet, Wi-Fi 6 (802.11ax 2x2 MIMO), Bluetooth LE 5.1, and IPv4/IPv6 support.
Subwoofer & Zone Outputs
Stereo RCA outputs can be configured for subwoofers or additional sub-zones.
Trigger Outputs
Dual 12V trigger outputs allow remote standby control of compatible CI-NAP 108 amplifiers.
Rack Friendly
Compact 1U chassis simplifies professional rack installations.
System Control
Designed for Professional Integration
Configuration is handled using Focal & Naim Manager software with speaker profiles for customized installations. Day-to-day control is available through the Focal & Naim App.
- Supports single-room and multi-room installations.
- Compatible with up to 32 Naim Multiroom devices.
- Works with Control4, Crestron, RTI, Savant, and Elan automation systems.
- Compatible with all generations of Naim streamers.
Performance
Engineered for High-Fidelity Audio
- Total Harmonic Distortion (THD+N): <0.006%
- Signal-to-noise ratio: 110dB (A-weighted)
- Gain: 29dB
- Frequency response: 5Hz–70kHz (-3dB)
- Maximum sampling rate: 32-bit / 384kHz
Technical Specifications
| Type | Streamer amplifier |
| Channels | 4 Line, 2 Amplified |
| Power Output | 150W @ 8Ω, 260W @ 4Ω |
| Analogue Input | Stereo RCA (47kΩ / 2.5V RMS) |
| Digital Input | S/PDIF up to 96kHz / 24-bit |
| HDMI | eARC (LPCM up to 192kHz / 24-bit Stereo) |
| Main Output | Stereo RCA |
| Amplified Output | Terminal Block / Euroblock / 4mm Banana |
| Sub/Aux Output | Stereo RCA |
| Network | Gigabit Ethernet, Wi-Fi 6 (802.11ax), Bluetooth LE 5.1 |
| Frequency Response | 5Hz–70kHz (-3dB) |
| Signal-to-Noise Ratio | 110dB (A-weighted) |
| THD+N | <0.006% |
| Maximum Sampling Rate | 32-bit / 384kHz |
| Power Supply | 100–240V AC, 50/60Hz |
| Rack Height | 1U |
| Dimensions (H × W × D) | 1.75 × 11.75 × 11.75 in (4.45 × 30 × 30 cm) |
| Weight | 9.9 lb (4.5 kg) |
| Operating Temperature | 5°C to 35°C |
| Storage Temperature | -20°C to 60°C |
Installation Note:
The CI-Uniti 102 is designed for discreet rack-mounted installations and supports expansion with the CI-NAP 108 amplifier, making it suitable for both single-room and distributed multi-room audio systems.
The CI-Uniti 102 is designed for discreet rack-mounted installations and supports expansion with the CI-NAP 108 amplifier, making it suitable for both single-room and distributed multi-room audio systems.

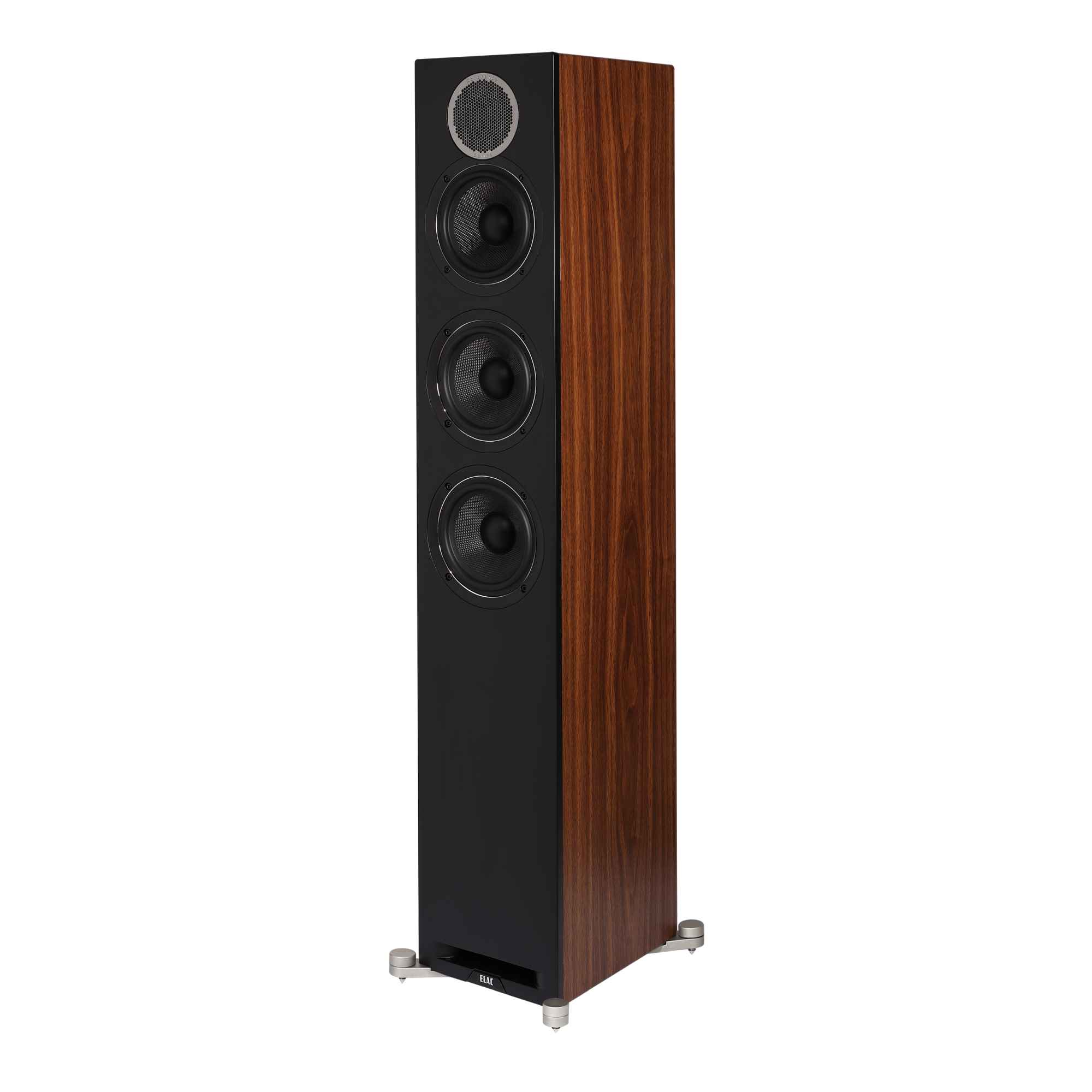

2x Elac DFR52-BK - Debut Reference 5.25" Floor Speaker - Black, Sold Individually (DFR52-BK)
Improved High Frequency Response
An innovative waveguide, coupled with a redesigned, more open grill design, improves the upper high frequency response of the Debut Reference’s 1” soft-dome tweeter.
Full Perimeter Bracing
A newly implemented full perimeter brace, connecting the top, bottom, and side panels, effectively reduces cabinet vibrations, resulting in minimized audio coloration within the cabinet.
Cast Chassis Woofer
The recently developed cast chassis woofer enhances stiffness, reinforcing the front baffle and effectively minimizing resonances within the chassis and cabinet. Paired with our custom aramid cone that offers even greater stiffness and damping, far superior to polypropylene or paper.
Dual Flared Slot Port
The newly introduced dual flared slot vent enables enhanced bass dynamics by delivering higher bass output with reduced noise levels.
Premium Finishes
Debut Reference showcases premium finishes, offering a Walnut cabinet paired with a black painted front baffle, or an Oak cabinet complemented by a white painted front baffle ensuring these speakers blend seamlessly into any home decor, making a statement without taking up unnecessary space.
Specifications:
Height × Width × Depth: 1016 × 185 × 242 mm
Weight: 16.7 Kg
Enclosure Type: 3-Way Bass Reflex
Frequency Response: 42Hz - 35000Hz
Nominal Impedance: 6 Ω
Sensitivity: 87dB @ 2.83v/1m
Crossover Frequency: 90 / 2200Hz
Max Power Input: 140 Watts
Tweeter: 1” Soft Dome
Woofer: 3 x 5-1/4” Aramid Fiber
Cabinet: CARB2 Rated MDF
Port: 3 × Dual Flared
Binding Posts: 5-Way Metal
Cabinet Finish: Black Baffle / Walnut Cabinet
