This bundle includes a NAIM CI-UNITI 102 Streaming stereo power amplifier with Wi-Fi® and Bluetooth®, and a Focal FBUNDLE41D Littora Speaker Set - Four ODSAT5 5" Outdoor Speakers and ODSUB12 12" In-Ground Subwoofer - Black.
1x NAIM CI-UNITI 102 Streaming stereo power amplifier with Wi-Fi® and Bluetooth® (CI-Uniti 102)
Focal & Naim Custom Install Series
CI-Uniti 102 Streamer Amplifier
The CI-Uniti 102 is a compact streamer amplifier designed for custom integration applications, combining high-quality amplification, network streaming, and flexible control in a rack-friendly 1U chassis. It delivers audio from televisions, streaming services, gaming consoles, and network sources while integrating seamlessly with Focal speakers and larger CI installations.
150W @ 8Ω
260W @ 4Ω
HDMI eARC
Wi-Fi 6 & Ethernet
AirPlay 2 & Chromecast
1U Rack Mount
Overview
Streaming & Amplification for Custom Installations
The CI-Uniti 102 combines network streaming and high-performance amplification into a single chassis designed for residential integration. It supports music streaming services, television audio via HDMI eARC, gaming consoles, and network audio while pairing with Focal integrated speakers or larger distributed audio systems.
- Streamer amplifier with 4 line channels and 2 amplified channels.
- 150W per channel into 8Ω and 260W per channel into 4Ω.
- Compatible with CI-NAP 108 for expanded installation capabilities.
Streaming & Sources
Broad Streaming Platform Support
The CI-Uniti 102 supports both wired and wireless playback from a wide range of streaming platforms and network audio sources.
- TIDAL and TIDAL Connect
- Spotify Connect (Free & Premium)
- Qobuz
- UPnP with play queue
- Internet Radio & Podcasts
- AirPlay 2
- Chromecast v2
- Dante Receiver (48kHz)
- Bluetooth® SBC & AAC
Connectivity
Flexible Integration Options
HDMI eARC
Accepts stereo LPCM signals up to 192kHz / 24-bit for television integration.
Digital & Analogue Inputs
Stereo RCA analogue input and S/PDIF digital input supporting up to 96kHz / 24-bit.
Network Connectivity
Gigabit Ethernet, Wi-Fi 6 (802.11ax 2x2 MIMO), Bluetooth LE 5.1, and IPv4/IPv6 support.
Subwoofer & Zone Outputs
Stereo RCA outputs can be configured for subwoofers or additional sub-zones.
Trigger Outputs
Dual 12V trigger outputs allow remote standby control of compatible CI-NAP 108 amplifiers.
Rack Friendly
Compact 1U chassis simplifies professional rack installations.
System Control
Designed for Professional Integration
Configuration is handled using Focal & Naim Manager software with speaker profiles for customized installations. Day-to-day control is available through the Focal & Naim App.
- Supports single-room and multi-room installations.
- Compatible with up to 32 Naim Multiroom devices.
- Works with Control4, Crestron, RTI, Savant, and Elan automation systems.
- Compatible with all generations of Naim streamers.
Performance
Engineered for High-Fidelity Audio
- Total Harmonic Distortion (THD+N): <0.006%
- Signal-to-noise ratio: 110dB (A-weighted)
- Gain: 29dB
- Frequency response: 5Hz–70kHz (-3dB)
- Maximum sampling rate: 32-bit / 384kHz
Technical Specifications
| Type | Streamer amplifier |
| Channels | 4 Line, 2 Amplified |
| Power Output | 150W @ 8Ω, 260W @ 4Ω |
| Analogue Input | Stereo RCA (47kΩ / 2.5V RMS) |
| Digital Input | S/PDIF up to 96kHz / 24-bit |
| HDMI | eARC (LPCM up to 192kHz / 24-bit Stereo) |
| Main Output | Stereo RCA |
| Amplified Output | Terminal Block / Euroblock / 4mm Banana |
| Sub/Aux Output | Stereo RCA |
| Network | Gigabit Ethernet, Wi-Fi 6 (802.11ax), Bluetooth LE 5.1 |
| Frequency Response | 5Hz–70kHz (-3dB) |
| Signal-to-Noise Ratio | 110dB (A-weighted) |
| THD+N | <0.006% |
| Maximum Sampling Rate | 32-bit / 384kHz |
| Power Supply | 100–240V AC, 50/60Hz |
| Rack Height | 1U |
| Dimensions (H × W × D) | 1.75 × 11.75 × 11.75 in (4.45 × 30 × 30 cm) |
| Weight | 9.9 lb (4.5 kg) |
| Operating Temperature | 5°C to 35°C |
| Storage Temperature | -20°C to 60°C |
Installation Note:
The CI-Uniti 102 is designed for discreet rack-mounted installations and supports expansion with the CI-NAP 108 amplifier, making it suitable for both single-room and distributed multi-room audio systems.
The CI-Uniti 102 is designed for discreet rack-mounted installations and supports expansion with the CI-NAP 108 amplifier, making it suitable for both single-room and distributed multi-room audio systems.

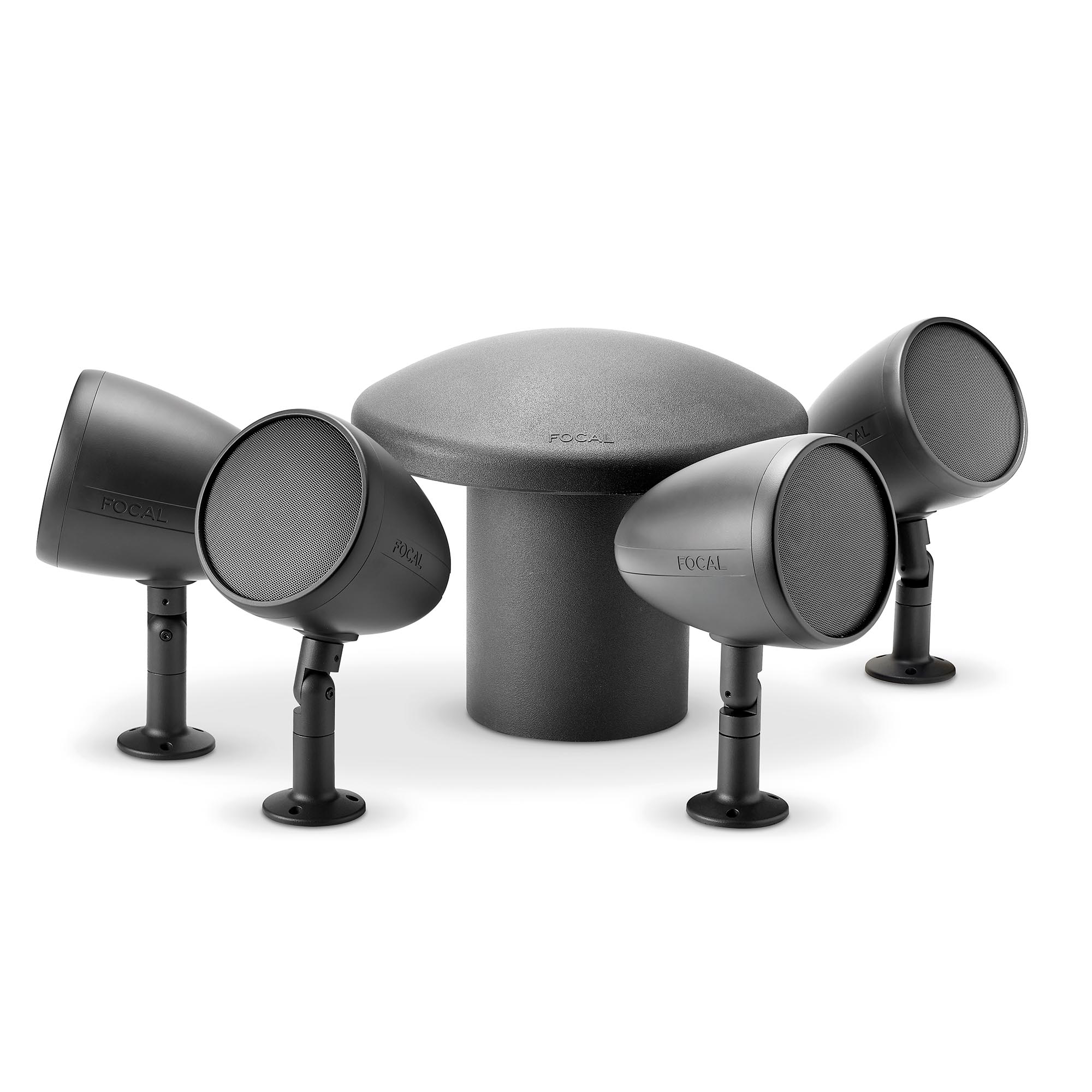

1x Focal FBUNDLE41D Littora Speaker Set - Four ODSAT5 5" Outdoor Speakers and ODSUB12 12" In-Ground Subwoofer - Black (FBUNDLE41D)
Bundle includes: 4 Focal ODSAT 5" Outdoor Speakers and 1 OBSUB12 12" Outdoor in-ground Subwoofer
Focal FODSAT5D 5" Outdoor Speaker
With its discreet design, adapting perfectly to any outdoor space, the OD Sat 5 loudspeaker delivers Focal Sound quality in all weathers and for a long time. IP55 certified and featuring anti-UV treatment, it withstands adverse weather and extreme climates.
Technical specifications
Type of speaker: 2-way outdoor speaker
Speaker drivers: 5" (12.7cm) Midbass, Iris IP cone 1" (2.5cm) Aluminium 'M'-shaped tweeter
Bandwidth: 90Hz – 28kHz
Impedance: 8Ώ
Minimal impedance: 5.2Ώ at 250Hz
Sensitivity: 88dB
Power: 50W RMS – 100W Peak
Recommended amp power: 8Ώ 20W – 100W
Transformer positions: 70V – 100V / 5W, 10W, 20W, 40W
Temperature tolerance: -20° / 65°
IP rating: IP55
Angle coverage: 90°
Focal FODSUB12D Outdoor Subwoofer Dark
The OD Sub 12 subwoofer takes Focal's high-quality sound into your outdoor spaces! its speaker driver with Iris cone (11 3/4" / 30cm) delivers a deep and powerful bass (400W), and for a long period of time: IP45 certified, it withstands adverse weather and extreme climates.
With the benefit of Focal's know-how, OD Sub 12 delivers high-end sound quality and integrates a transformer, making it 70/100V compatible and able to cover large space, with no loss power.
• Type of speaker: Outdoor subwoofer
• Speaker drivers: 113/4" (30cm) woofer with Iris IP cone
• Bandwidth: 40Hz – 120Hz
• Impedance: 6Ώ
• Minimal impedance: 5Ώ at 55Hz
• Sensitivity: 90dB
• Power: 100W RMS – 400W Peak
• Recommended amp power: 8Ώ 50W – 300W
• Maximum power: (70/100V) 300W (150W RMS)
• Temperature tolerance: -20° / 65°
• IP rating: IP55
