Description
Included in this kit
This bundle includes a Hertz Venezia Compact V5C - 5-Channel Compact Marine Amplifier 115W x 4 + 550W x 1 @ 2-Ohm, 2x Hertz HMX 8-TW - 8" 4-Ohm Coaxial Marine Speakers, White Grilles, Pair, and a Hertz HMS-10-B-2 10" 250 Watts RMS 2-Ohm Marine Infinite Baffle Subwoofer, White.
1x Hertz Venezia Compact V5C - 5-Channel Compact Marine Amplifier 115W x 4 + 550W x 1 @ 2-Ohm - (Venezia-Compact-V5C)
Venezia V5C is the compact five channels marine amplifier, featuring 80 W x 4 (4Ω) plus 330 W (4Ω) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5C is engineered and tested for marine applications and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. Last but not least, Venezia V5C is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
General Specs
Channels: 5 - 3
POWER SUPPLY
Power supply voltage: 9 ÷ 16 VDC
ldling current (power ON/OFF): 1.7 A / 0.05 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 47 A
Remote In:: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω): <0,05%
Bandwidth: 10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V): 100 dB
Damping factor (100Hz @ 4Ω): >130
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10 kΩ
Load impedance (MIN)
@5Ch: 2Ω
@3Ch: 4Ω + 4Ω + 2Ω
Weight (kg/lb): 3.72 / 8.2
Adjustable Crossovers: yes
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
5Ch: 80 W x 4 (4Ω) + 330 x 1 (4Ω)
5Ch: 115 W x 4 (2Ω) + 550 W x 1 (2Ω)
3Ch: 230 W x 2 (4Ω) + 330 W x 1 (4Ω)
3Ch: 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
Total Power RMS: 1010 W
INPUTS / FILTERS
Inputs: A Ch. Pre in, B Ch. Pre in, Sub Ch. Pre in
Pre Out: No
A Ch. filters: Yes
By-Pass Yes
Hi-Pass : 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
B Ch. filters:
By-pass: Yes
Hi-Pass: 50 ÷ 500 Hz @ 12 dB/Oct
Band-Pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Sub Ch. filters:
By-pass: No
Low-Pass: 50 ÷ 250 Hz @ 24 dB/Oct
Phase (adjust°): (0 ÷ 180°)
Subsonic: 25 Hz @ 24 dB/Oct
Boost 50 Hz (adjust): (0 ÷ 12) dB
2x Hertz HMX 8-TW - 8" 4-Ohm Coaxial Marine Speakers, White Grilles, Pair - (HMX-8-TW)
HMX 8 TW hi-performance marine coaxial speakers, also available in the black option HMX 8 TC, features a tone-on-tone stainless steel front mesh matching the grille colour. Coaxial speaker is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The tweeter feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The UV resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Features:
• Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
• 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
• Sound-transparent tone-on-tone stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
• Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
• Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
• FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
• Sealed built-in crossover with resettable solid-state tweeter protection circuit.
• Gold-plated corrosion resistant terminals.

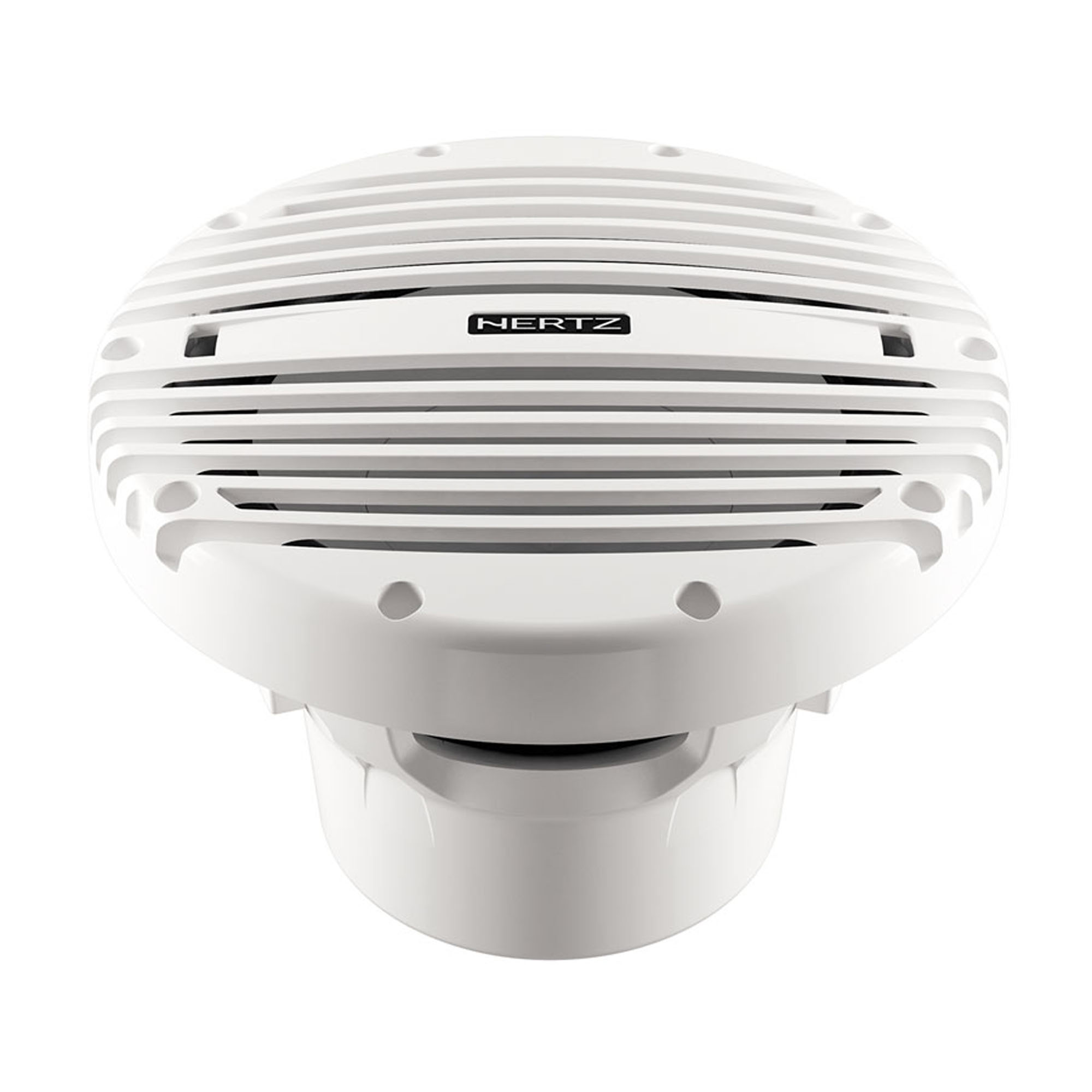

1x Hertz HMS-10-B-2 10" 250 Watts RMS 2-Ohm Marine Infinite Baffle Subwoofer, White - (HMS-10-B-2)
The HMS 10 B-2 (white) B-C (black) long throw 10” marine subwoofers are engineered for infinite baffle application. The 2 Ohm configuration makes the most of the amplifier power. It relieves the main speakers from the hard work of reproducing the lowest frequency range, adding bass output and punch to maximize the overall system performance. The FEM optimized high-excursion mobile equipment of HMS 10 B with a 50 mm (2”) voice coil is driven by a massive magnetic group, to obtain a perfect control also at very high level SPL. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust ) HMS 10 B-C2 is nature-proof. The progressive design aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The gold-plated corrosion resistant brass connection terminals with silicone cap protect the leadwire junction point.
Features -
• Hertz Pure Marine Certified Product Stamp Featuring the IP65 Protection Grade, ASTM-D4329 Standards for UV Resistance and ASTM-B117 for Salt Fog • Operability.
• Progressive Design Aramid Fiber Spider with Silicone-Insulated Lead Wires Ensuring Durability and Constant Performance Over Time.
Specifications -
• Power Handling: 500W Peak
• Impedance: 4 Ohms
• Magnet: Ferrite
• Cone Polypropylene with UV Inhibtors
Electro-Acoustic Parameters -
• D: 210mm
• Xmax: 12,3mm
• Re: 2,1 Ohms
• Fs: 43Hz
• Le: 0,46mH
• Vas: 30,46L
• Mms: 75,6g
