Description
Included in this kit
This bundle includes a Hertz HMP-1D Marine & Powersports D-Class Mono Bass Amplifier 300 WRMS x 1 at 2-Ohm (IP64 rated), and 2x Hertz HMS-10-B-C 10" 250 Watts RMS 4-Ohm Marine Infinite Baffle Subwoofer, Black.

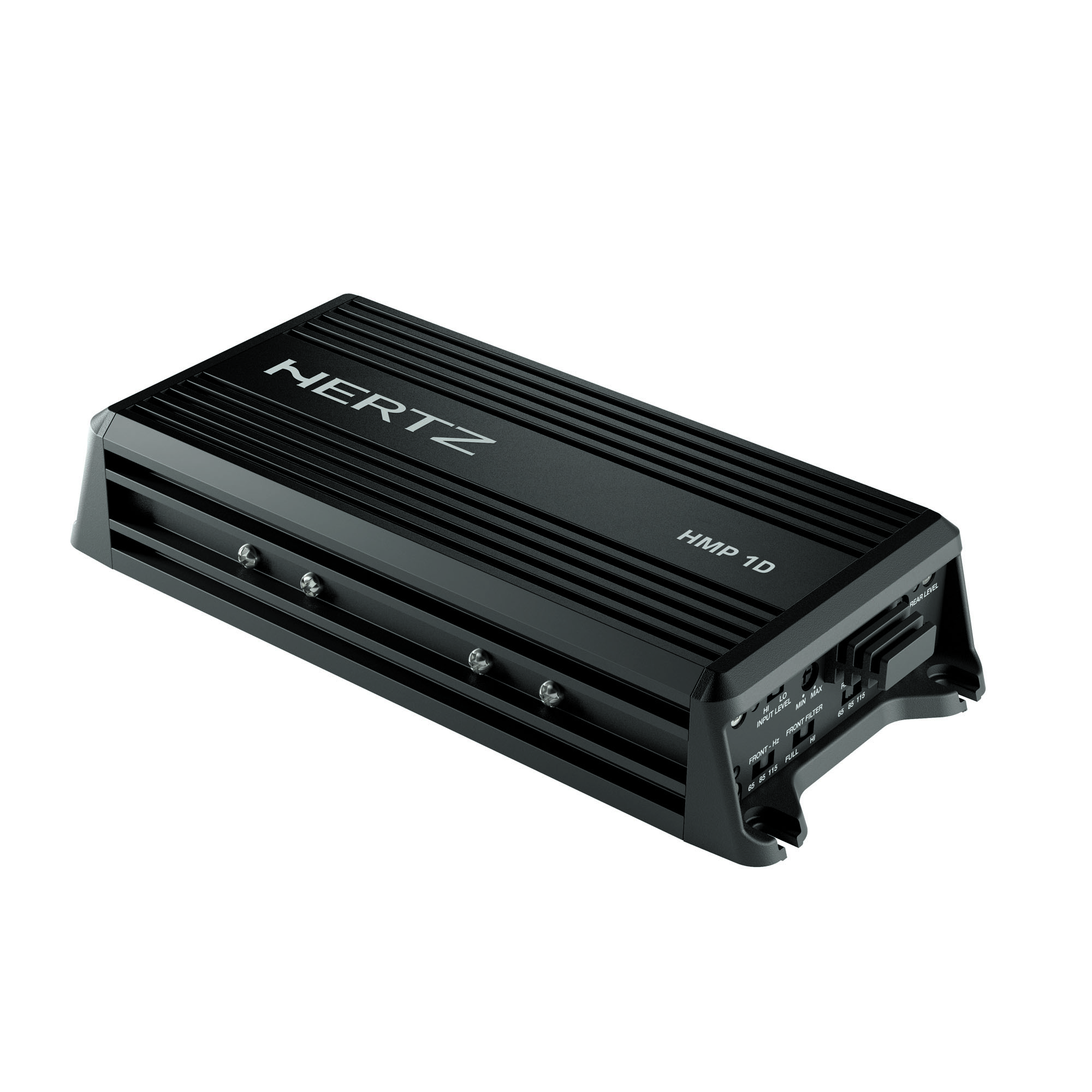

1x Hertz HMP-1D Marine & Powersports D-Class Mono Bass Amplifier 300 WRMS x 1 at 2-Ohm (IP64 rated) - (HMP-1D)
Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 1D amplifiers is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results. The level of HMP 1 D amplifiers can be remote controlled with the included HRC BM (Hertz Remote Control Bass Management). Connected to the Remote Control plug, this provides extremely precise volume level from the comfort of your seat.
Features -
• To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
• Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marine grade (epoxy coated) PCB boards.
• The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.
Specifications -
• Distortion - THD (100 Hz @ 4Ω): 0.1 %
• Bandwidth: 10 ÷ 500 Hz
• S/N Ratio (A weighted @ 1 V): 105 dB
• Damping factor (100 Hz @ 4Ω): 300
• Load impedance (MIN) @ 2 Ch: 2Ω:

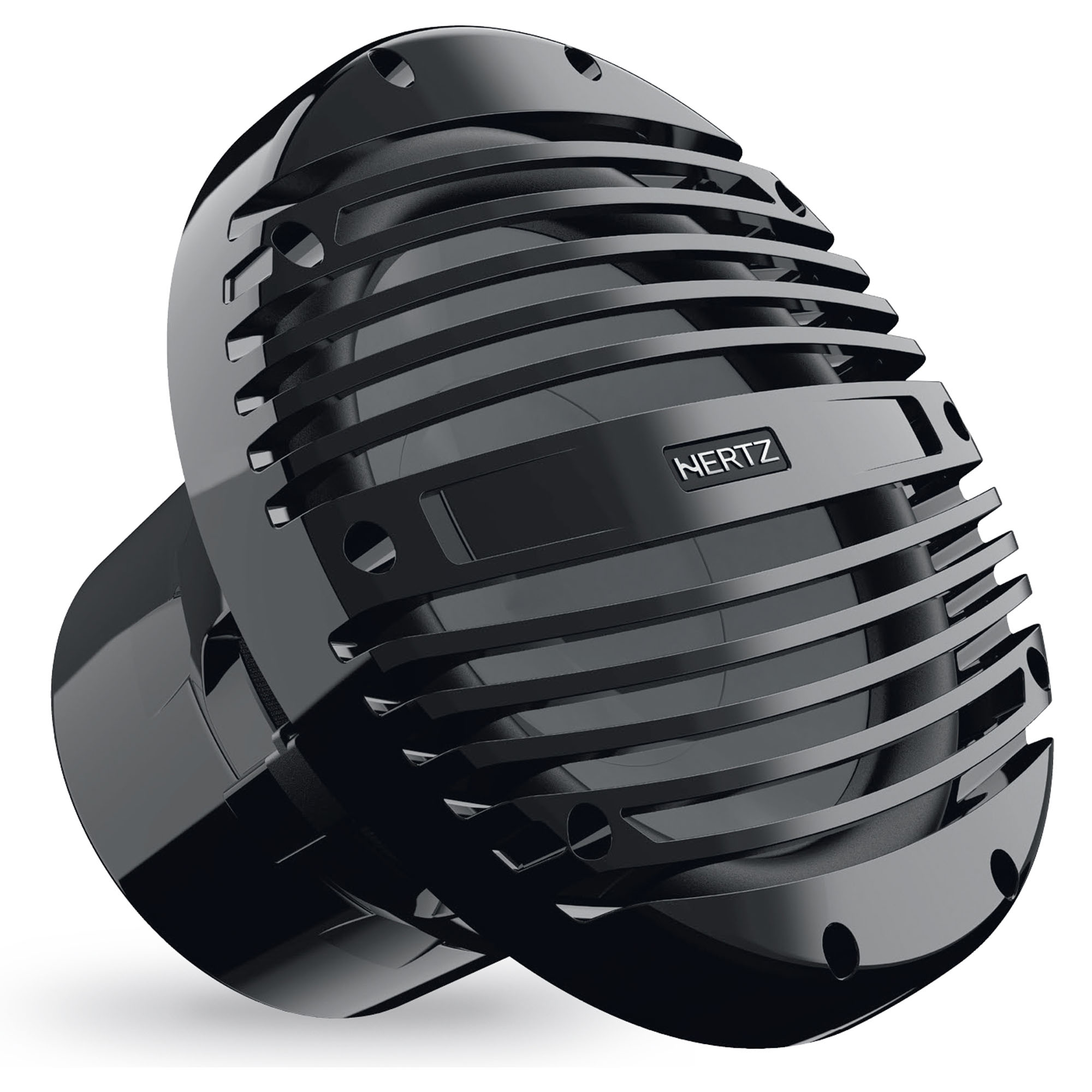

2x Hertz HMS-10-B-C 10" 250 Watts RMS 4-Ohm Marine Infinite Baffle Subwoofer, Black - (HMS-10-B-C)
The HMS 10 B long throw 10” marine subwoofer, also available in the black option HMS 10 B-C, is engineered for infinite baffle application. It relieves the main speakers from the hard work of reproducing the lowest frequency range, adding bass output and punch to maximize the overall system performance. The FEM optimized high-excursion mobile equipment of HMS 10 B with a 50 mm (2”) voice coil is driven by a massive magnetic group, to obtain a perfect control also at very high level SPL. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust ) HMS 10 B is nature-proof. The progressive design aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The gold-plated corrosion resistant brass connection terminals with silicone cap protect the leadwire junction point.
Features -
• Hertz Pure Marine Certified Product Stamp Featuring the IP65 Protection Grade, ASTM-D4329 Standards for UV Resistance and ASTM-B117 for Salt Fog Operability
• Progressive-Design Aramid Fiber Spider with Silicone Insulated Lead Wires Ensuring Durability and Constant Performance Over Time.
• FEM Optimized High-Excursion Mobile Equipment Driven By a Massive Magnetic Group Encapsulated into a Marine-Grade Polymer Injected Basket.
Specifications -
• Power Handling: 500W Peak
• Impedance: 4 Ohms
• Magnet: Ferrite
• Cone: Polypropylene with UV Inhibitors
Electro Acoustic Parameters -
• D: 210mm
• Xmax: 13,5mm
• Re: 4,5 Ohms
• Fs: 41Hz
• Le: 0,9mH
• Vas: 37L
• Mms: 69g
