Description
Included in this kit
This bundle includes 4x Hertz HMX 6.5 S-LD-G - 6.5" 4-Ohm Coaxial Marine Speakers with RGB LEDs, Gray Sport Grilles, Pair, a Hertz Compact Power HCP-4M Marine 4 Channel Amplifier 95 WRMS X 4 at 2-Ohm, and a Hertz HMR-10 Marine Digital Media Receiver Gauge style Receiver AM/FM/USB Bluetooth 50 W x 4.
4x Hertz HMX 6.5 S-LD-G - 6.5" 4-Ohm Coaxial Marine Speakers with RGB LEDs, Gray Sport Grilles, Pair - (HMX-65-S-LD-G)
The HMX 6.5 S LD hi-performance powersport coaxial speakers with RGB LEDs lighting option is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The HMX tweeters feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The attractive stainless steel tweeter mesh grille provides perfect high-frequency transfer and a rock-solid protection. The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Specifications -
• Component: POWERSPORTS COAX RGB LED
• Size mm (in.): 165 (6.5)
• Power Handling - Continuous W: 75
• Power Handling - Peak W: 150
• Impedance Ohm: 4
• Depth mm (in.): 95,6 (3.76)
• Tweeter diaphragm mm (in.): 36 (1.4)
• Woofer Voice Coil Ø mm (in.): 25 (1)
• Tweeter Voice Coil Ø mm (in.): 20 (0.8)
• Frequency Response Hz 50 ÷ 25k
• Woofer Magnet size D x d x h mm (in.): 78,5 x 32 x 17 (3.09 x 1.26 x 0.67)
• Tweeter Magnet size D x h mm (in.): 19,7 x 3 (0.78 x 0.12)
• Weight of one speaker kg (lb.): 1 (2.2)
• Woofer Magnet: High density flux ferrite
• Tweeter Magnet: Neodymium
• Cone: Polypropylene with UV inhibitors
• Dome: PEI
• Xmech mm (in.): ±6,65 (0.26)
Electro-Acoustic Specifications -
• D mm 125 Xmax mm 3,65
• Re Ohm: 3,5
• Fs Hz: 65
• Le mH: 0,53
• Vas I: 8,8
• Mms g: 14
• Cms mm/N: 0,4
• BL T*m: 5,2
• Qts: 0,7
• Qes: 0,75
• Qms: 11,5
• Spl dB: 89

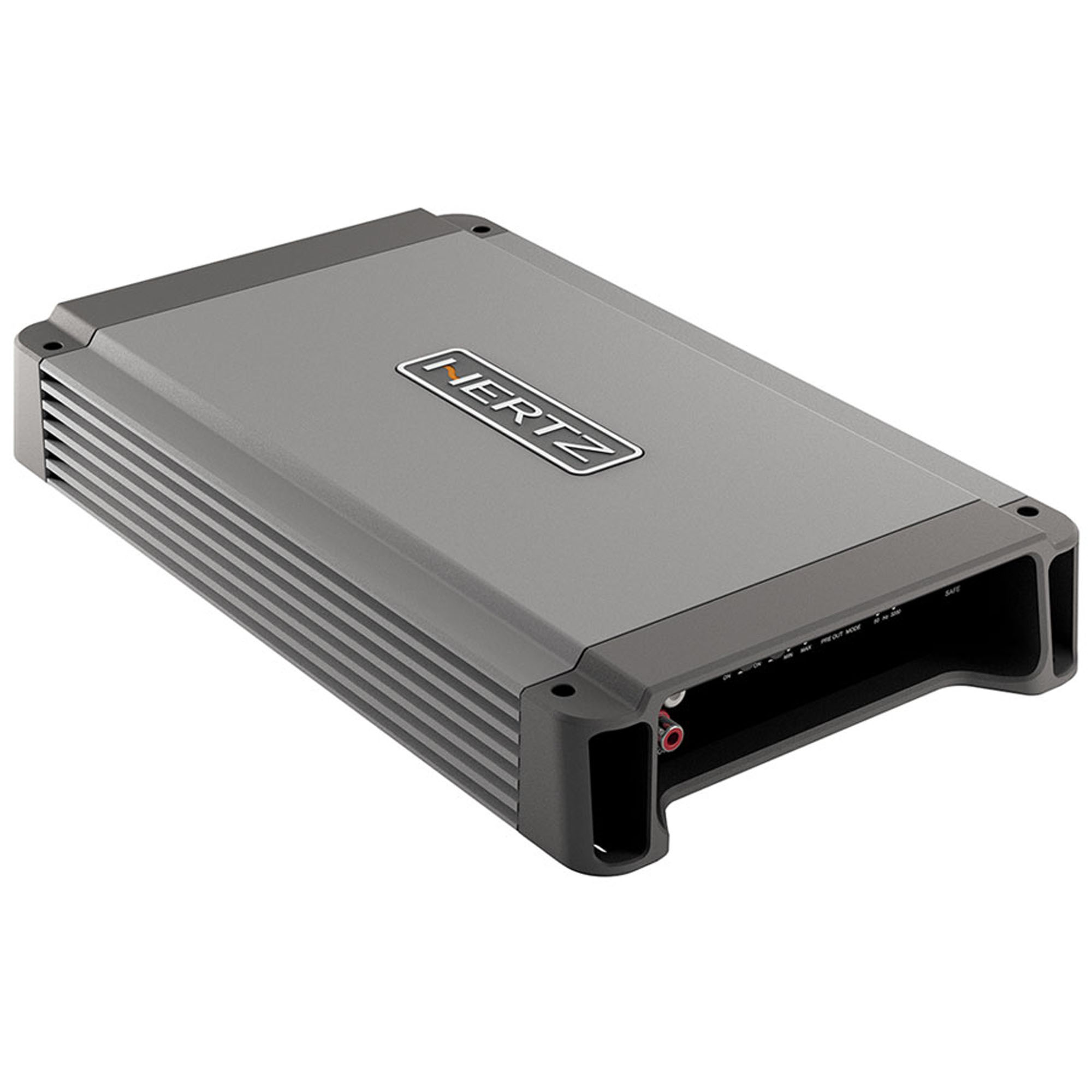

1x Hertz Compact Power HCP-4M Marine 4 Channel Amplifier 95 WRMS X 4 at 2-Ohm - (HCP-4M)
HCP 4M four channels marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier. Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. The HCP 4 M four channel model features also an extended frequency range filter, which can be used when designing active 2-way speaker systems.
Specifications -
• Distortion - THD (100 Hz @ 4Ω): 0.01 %
• Bandwidth: 10 ÷ 45k Hz
• S/N Ratio (A weighted @ 1 V): 103 dB
• Damping factor (100 Hz @ 4Ω): 120
• Pre-In sensitivity: 0.2 ÷ 5 VRMS (15 kΩ)
• Speaker-In sensitivity: 0.8 ÷ 20 VRMS (47 Ω)
Inputs/Outputs -
• INPUTS: PRE IN / SPEAKER IN
• Preout FULL range (FRONT): Yes
• FRONT Ch. filters FULL: Yes
• FRONT Ch. filters Hi-Pass: 80 Hz @ 12 dB/Oct.
• FRONT Ch. filters Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
• REAR Ch. filters FULL: Yes
a • REAR Ch. filters Hi-Pass: 80 Hz @ 12 dB/Oct.
• REAR Ch. filters Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
• FRONT Ch. MONO (on/off): Yes
• REAR Ch. MONO (on/off): Yes
• BOOST 50 Hz (select): (0 / 6 / 12) dB
1x Hertz HMR-10 Marine Digital Media Receiver Gauge style Receiver AM/FM/USB Bluetooth 50 W x 4 - (HMR-10)
HMR 10 is ideal for boat enthusiast who want a great sound on board with a reduced gauge installation. With two pairs of high quality stereo outputs, a screen readable at all times and a generous marine-grade control panel, it will be a breeze to control your favorite playlist on USB or Bluetooth© streaming for maximum fun in water.
Features -
• Easily Readable Screen
• Equalizer Featuring 3 Presets (Classic/Pop/Rock)
• Loudness Control
• Fits in Gauge Opening
Sources -
• Tuner: AM/FM
• USB: Yes
• Bluetooth: 2.1
General -
• Power Supply Voltage: 12 V DC (10,5 to 16 V Allowable)
• Grounding System: Negative Ground
• Speaker Impedance: 4-8 Ohms
• IP Protection: IP66
• Over Voltage: Alarm
• Over Temperature: Protection
USB -
• USB: 2.0 Full Speed
• USB Port: 1A
• USB Voltage: 5.0V
• Maximum MP3/WMA Songs: Max Folder 6000
• USB Flash Drive: Max Capacity 32GB
• Compatible Format: FAT/FAT32
