Description
Included in this kit
This bundle includes 3x Hertz HMX 6.5 S-LD-SW - 6.5" 4-Ohm Coaxial Marine Speakers with RGB LEDs, White Sport Grilles, Pair, a Hertz HMD8 DSP - 8 Channel Marine Amplifier with DSP - 85 WRMS X 8 at 4-Ohm, and a Hertz HMS 10 S4-LD-SW.1 - 10" 4-Ohm Marine Subwoofer with RGB LEDs, White Sport Grille.
3x Hertz HMX 6.5 S-LD-SW - 6.5" 4-Ohm Coaxial Marine Speakers with RGB LEDs, White Sport Grilles, Pair (HMX-65-S-LD-SW)
The HMX 6.5 S LD hi-performance powersport coaxial speakers with RGB LEDs lighting option is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The HMX tweeters feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The attractive stainless steel tweeter mesh grille provides perfect high-frequency transfer and a rock-solid protection. The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Specifications -
• Component: POWERSPORTS COAX RGB LED
• Size mm (in.): 165 (6.5)
• Power Handling - Continuous W: 75
• Power Handling - Peak W: 150
• Impedance Ohm: 4
• Depth mm (in.): 95,6 (3.76)
• Tweeter diaphragm mm (in.): 36 (1.4)
• Woofer Voice Coil Ø mm (in.): 25 (1)
• Tweeter Voice Coil Ø mm (in.): 20 (0.8)
• Frequency Response Hz 50 ÷ 25k
• Woofer Magnet size D x d x h mm (in.): 78,5 x 32 x 17 (3.09 x 1.26 x 0.67)
• Tweeter Magnet size D x h mm (in.): 19,7 x 3 (0.78 x 0.12)
• Weight of one speaker kg (lb.): 1 (2.2)
• Woofer Magnet: High density flux ferrite
• Tweeter Magnet: Neodymium
• Cone: Polypropylene with UV inhibitors
• Dome: PEI
• Xmech mm (in.): ±6,65 (0.26)
Electro-Acoustic Specifications -
• D mm 125 Xmax mm 3,65
• Re Ohm: 3,5
• Fs Hz: 65
• Le mH: 0,53
• Vas I: 8,8
• Mms g: 14
• Cms mm/N: 0,4
• BL T*m: 5,2
• Qts: 0,7
• Qes: 0,75
• Qms: 11,5
• Spl dB: 89
1x Hertz HMD8 DSP - 8 Channel Marine Amplifier with DSP - 85 WRMS X 8 at 4-Ohm (HMD8-DSP)
The HMD8 DSP, powered by Hertz Marine DSP technology, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system. The amazing power of 8 * 85 W or 4 * 260 W (RMS@ 4Ω) gives the HMD 8DSP the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. “Power for the Waves” design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.
Specifications -
• Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.06 %
• Damping factor @ 1 kHz, 4Ω, 2 VRMS: > 110
• Bandwidth @ -1.5 dB: 10Hz ÷ 22 kHz
• S/N ratio (A weighted @ 1 V Input) Master Input: 100 dBA
• S/N ratio (A weighted @ 1 V Input) Optical Input: 105 dBA
• Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
• Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS
Inputs/Outputs -
• Pre-In Inputs: Ch1 ÷ Ch6 customizable
• Speaker-In Inputs: Ch1 ÷ Ch6 customizable
• Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit
• Sub Out (RCA Pre Out): 4 VRMS Max
Digital Signal Processor -
• Crossover frequency: 20 ÷ 20k Hz
• Phase control: 0° / 180°
• Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
• Time Alignment Delay: 0 ÷ 15 ms
• Time Alignment Step: 1 cm
• Time Alignment Fine SET: 1 sample

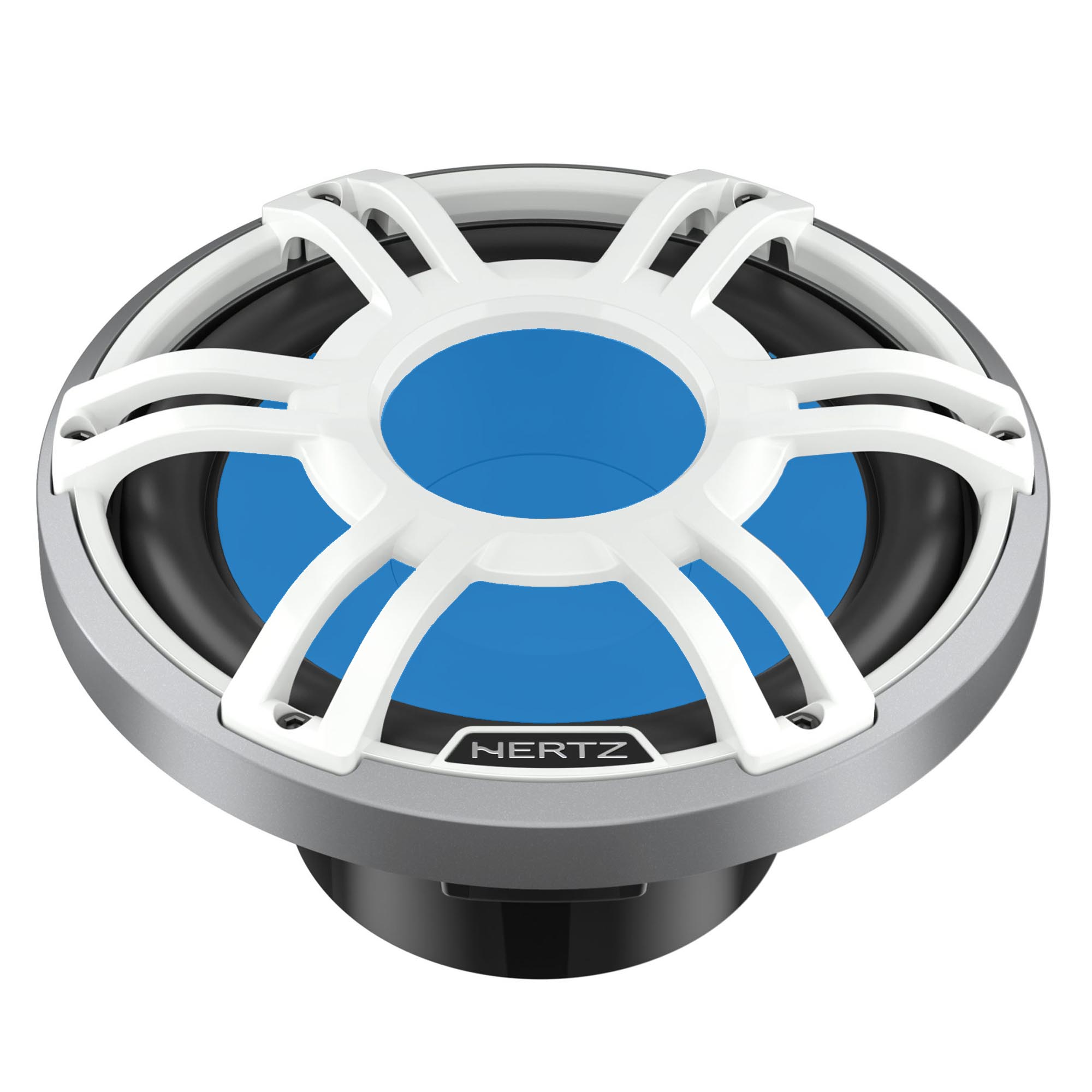

1x Hertz HMS 10 S4-LD-SW.1 - 10" 4-Ohm Marine Subwoofer with RGB LEDs, White Sport Grille (HMS-10-S4-LD-SW.1)
Hertz HMS 10 S4-LD-SW marine subwoofer is designed to be installed without the need for a dedicated enclosure delivering powerful and precise bass in any vessel. Sport white grille, featuring built-in LEDs, can be easily removed to be painted with the perfect color for your vessel. HMS subwoofers are designed to be installed without the need for a dedicated enclosure delivering powerful and precise bass in any vessel. The motor and suspension design is optimized for high-power, infinite-baffle operation featuring long linear excursion capability for tremendous output with low distortion. Hertz Marine subwoofers not only add tons of bass output to your system but also relieve the main speakers from the hard work of reproducing the lowest frequency range, maximizing the overall system performance, for unlimited sound pressure and emotion!
Technical Specs
Size mm (in.): 250 (10)
Power Handling - Continuous W: 300
Power Handling - Peak W: 600
Impedance Ohm: 4
Depth mm (in.): 191 (7.52)
No Filter Component: SPORT LED SUBWOOFER
Voice Coil Ø: 50 (2)
Magnet size D x d x h mm (in.): 140 x 60 x 30 (5.51 x 2.36 x 1.18)
Weight of one component kg (lb.): 5,1 (11.24)
Magnet: High density flux ferrite
Cone: Polypropylene with UV inhibitors
Xmech mm (in.): ±19 (0.75)
Electro-acoustic Specs
D mm: 210
Xmax mm: 13.5
Re Ohm: 4,5
Fs Hz: 41
Le mH: 0,9
Vas I: 37
Mms g: 69
Cms mm/N: 0,22
BL T*m: 10,2
Qts: 0.71
Qes: 0.76
Qms: 11
Spl dB: 88
